Diager Booster Plus SDS+ Hammer Drill Bit

In Stock

Designed to deliver calibrated holes and efficient dust evacuation across demanding concrete drilling applications.

Request Quote

Compatible with SDS+ rotary hammers
3 cutting edges technology
Monobloc carbide tip design
150° angle tip
Self-centering tip
For concrete and reinforced concrete
Fast dust evacuation
Perfectly round and calibrated holes

Hassle-Free

Manufacturer Warranty

Free Delivery

Above 500 OMR

Quality Guarantee

Expert Quality Check

Priority Support

Shop With an Expert

Like this product?
Speak to an Expert!

Call Now

Sunday - Thursday
08:00 AM - 08:00 PM

Categories: Drill Bits, Hammer Drill Bits, Masonry & Concrete Drill BitsBrand: Diager

Diager Booster Plus SDS+ Hammer Drill Bit for Concrete and Reinforced Concrete

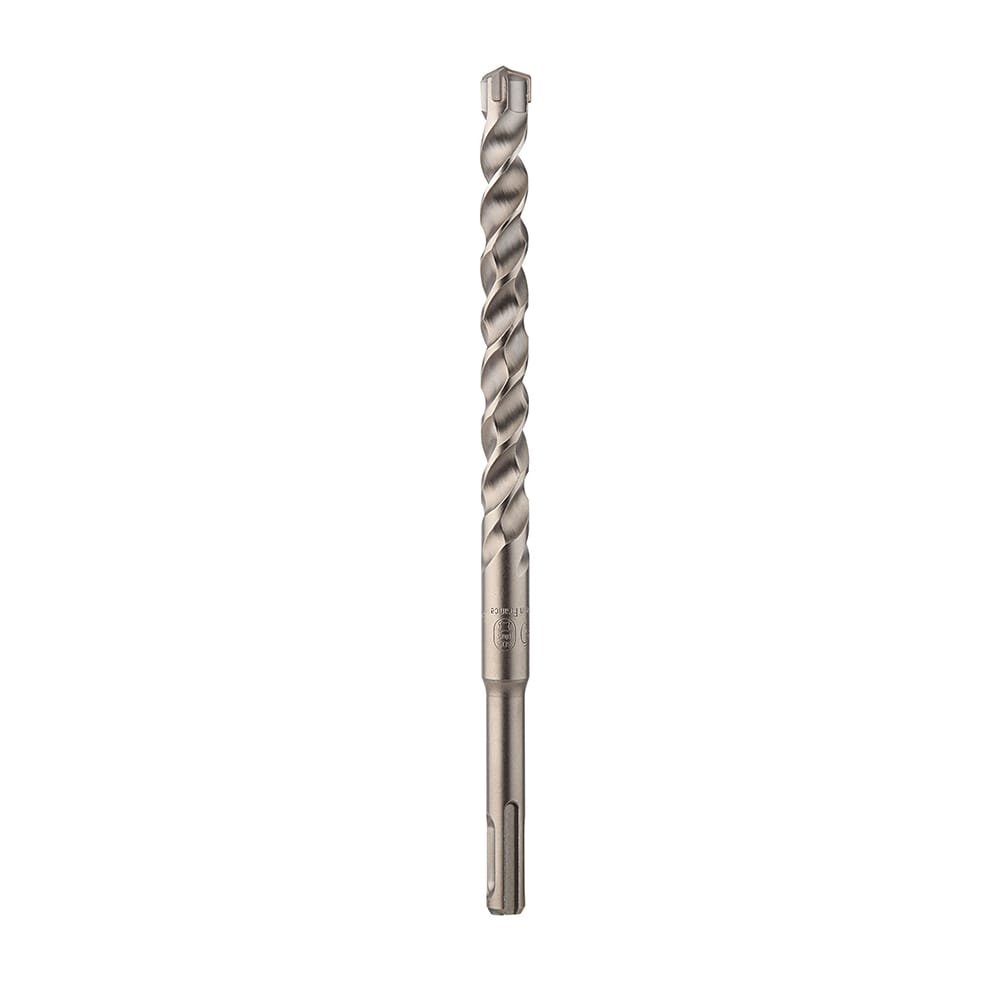

The Diager Booster Plus SDS+ Hammer Drill Bit is a high-performance drill bit designed for drilling concrete and reinforced concrete using SDS+ compatible rotary hammers.

Accurate Drilling for Concrete and Reinforced Concrete Applications

The Booster Plus is specifically designed for drilling concrete and reinforced concrete. Its manufacturer-specified 3 cutting edges technology, monobloc carbide tip, self-centering tip, and 150° angle tip are engineered to produce accurately positioned, perfectly calibrated holes while supporting fast dust evacuation during drilling.

Diager Booster Plus Features and Technical Capabilities

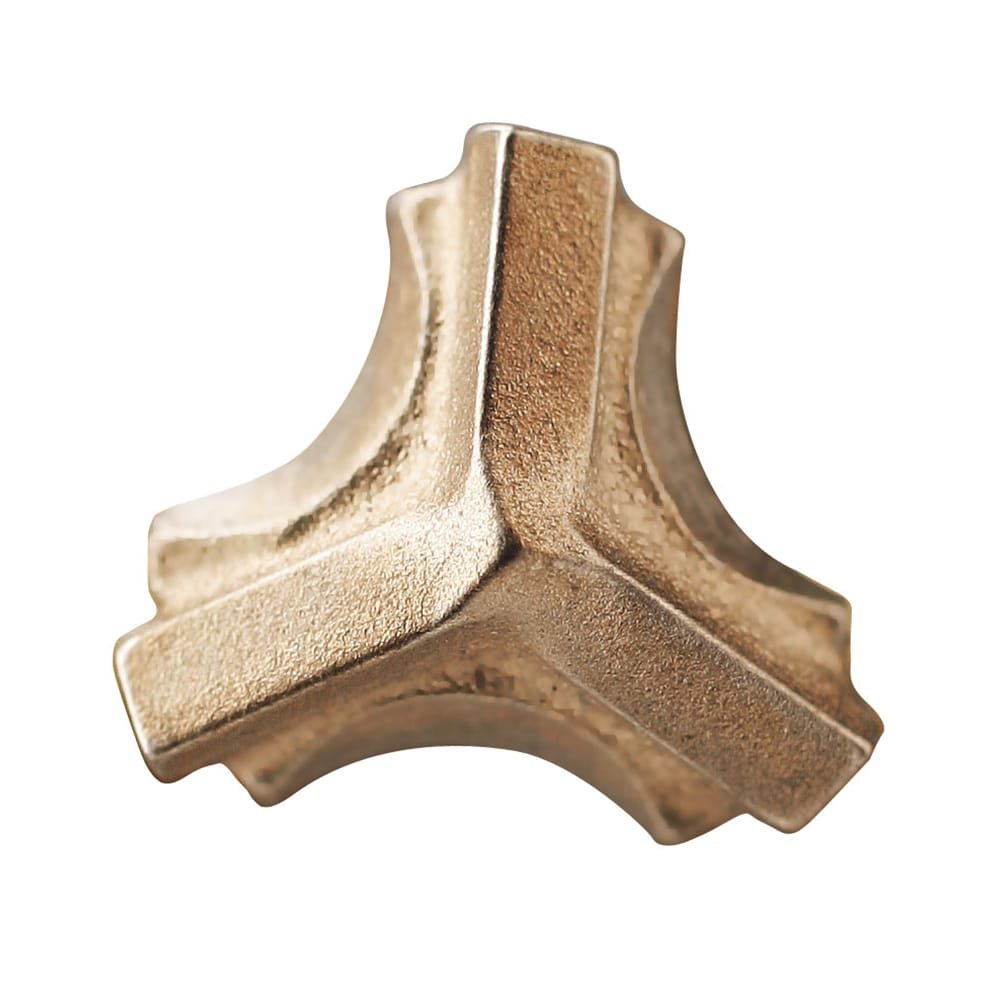

3 Cutting Edges Technology: Provides efficient drilling in concrete and reinforced concrete while producing perfectly round and calibrated holes.

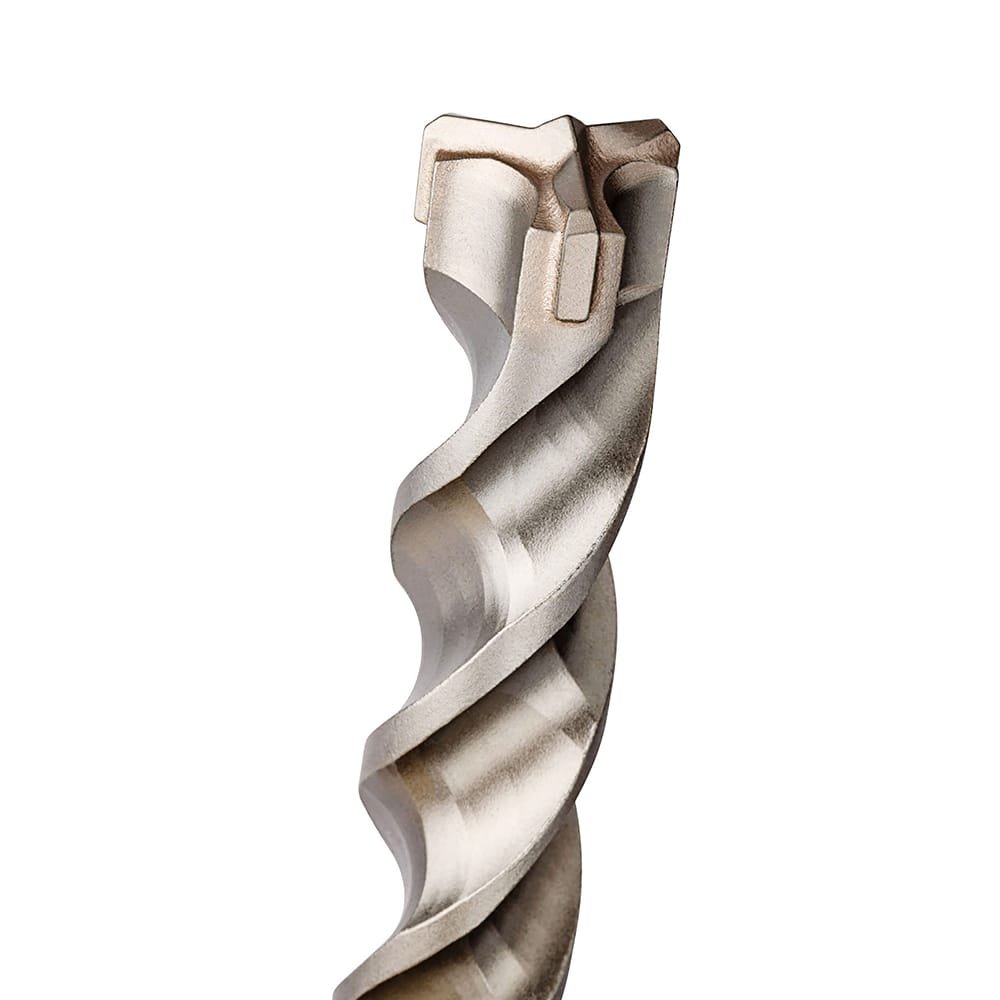

Monobloc Carbide Tip: Integrates a monobloc carbide tip to support drilling performance and long service life.
150° Angle Tip: Features a 150° tip geometry designed for concrete drilling applications.
Self-Centering Tip: Improves accuracy when starting the hole for more precise positioning.
Fast Dust Evacuation: Facilitates rapid removal of drilling dust during operation for continuous drilling.
Calibrated Hole Production: Produces perfectly round and calibrated holes for consistent drilling results.
Concrete Compatibility: Designed for drilling all types of concrete, including reinforced concrete.
Resistance and Long Life: Engineered to provide resistance and extended service life during operation.

Concrete Drilling Applications in Oman and the GCC

Concrete Drilling: Designed for drilling in all types of concrete.

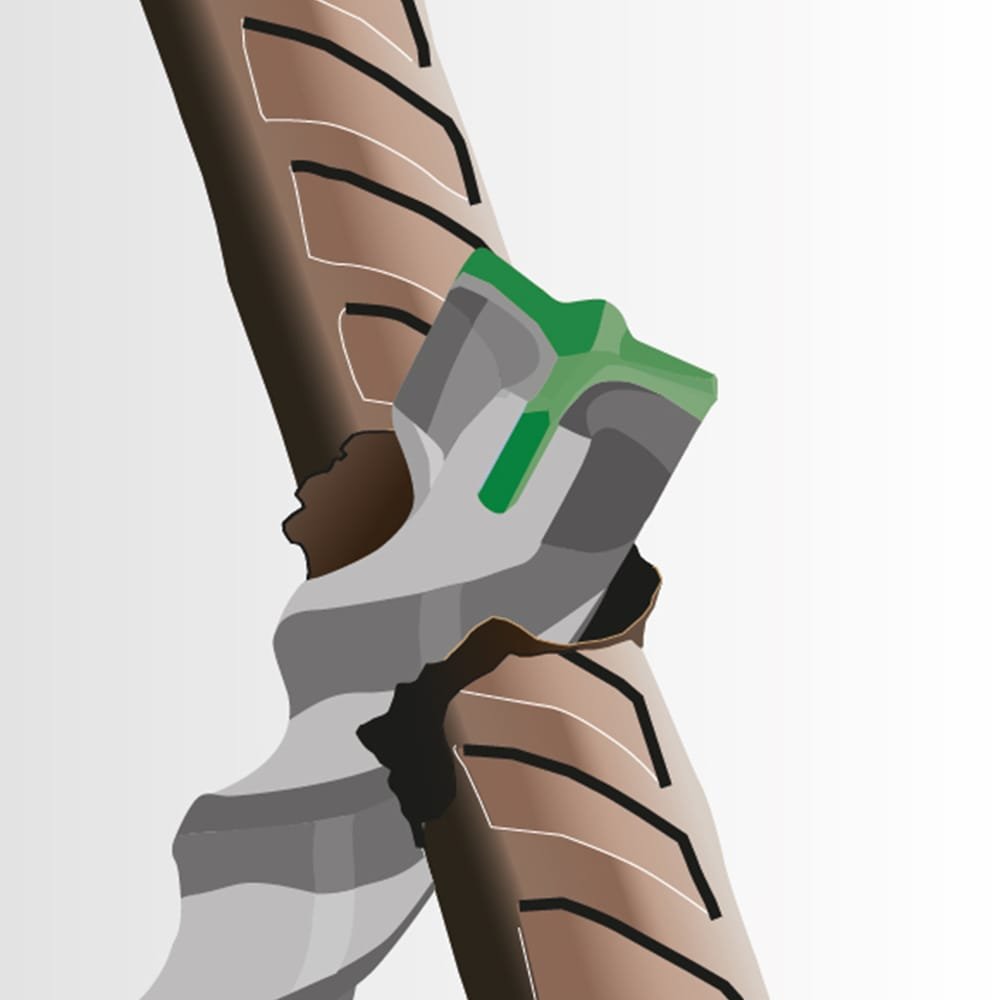

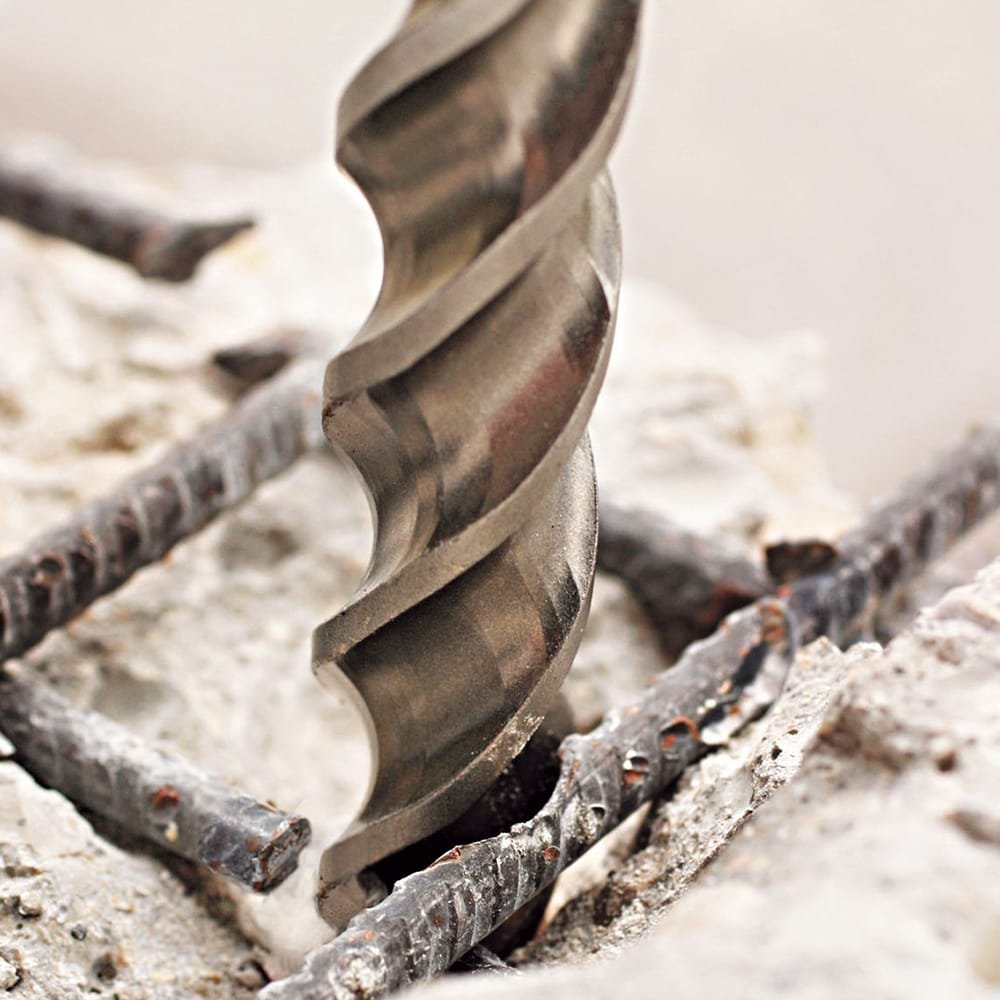

Reinforced Concrete Drilling: Suitable for drilling reinforced concrete applications.

Diager Booster Plus – Available Through iBuild in Oman

As an authorised technical partner for Diager products in Oman, iBuild provides access to genuine engineering-grade drilling solutions for specification-driven construction and industrial projects.

Customers also benefit from local availability, technical expertise, and lifecycle support that help maintain operational reliability throughout the equipment lifecycle.

Technical Data

Product Label	Item Code	Diameter (mm)	Total Length (mm)	Working Length (mm)
Booster sds+ drill bit 5×160	113D05L0160	5	160	100
Booster sds+ drill bit 5.5×110	113D05.5L0110	5.5	110	50
Booster sds+ drill bit 5.5×160	113D05.5L0160	5.5	160	100
Booster sds+ drill bit 5.5×210	113D05.5L0210	5.5	210	150
Booster sds+ drill bit 6×110	113D06L0110	6	110	50
Booster sds+ drill bit 6×160	113D06L0160	6	160	100
Booster sds+ drill bit 6×210	113D06L0210	6	210	150
Booster sds+ drill bit 6×260	113D06L0260	6	260	200
Booster sds+ drill bit 6×310	113D06L0310	6	310	250
Booster sds+ drill bit 6.5×110	113D06.5L0110	6.5	110	50
Booster sds+ drill bit 6.5×160	113D06.5L0160	6.5	160	100
Booster sds+ drill bit 6.5×210	113D06.5L0210	6.5	210	150
Booster sds+ drill bit 6.5×260	113D06.5L0260	6.5	260	200
Booster sds+ drill bit 6.5×310	113D06.5L0310	6.5	310	250
Booster sds+ drill bit 7×160	113D07L0160	7	160	100
Booster sds+ drill bit 7×210	113D07L0210	7	210	150
Booster sds+ drill bit 7×310	113D07L0310	7	310	250
Booster sds+ drill bit 8×110	113D08L0110	8	110	50
Booster sds+ drill bit 8×160	113D08L0160	8	160	100
Booster sds+ drill bit 8×210	113D08L0210	8	210	150
Booster sds+ drill bit 8×260	113D08L0260	8	260	200
Booster sds+ drill bit 8×310	113D08L0310	8	310	250
Booster sds+ drill bit 8×460	113D08L0460	8	460	400
Booster sds+ drill bit 8×610	113D08L0610	8	610	550
Booster sds+ drill bit 9×160	113D09L0160	9	160	100
Booster sds+ drill bit 9×210	113D09L0210	9	210	150
Booster sds+ drill bit 9×310	113D09L0310	9	310	250
Booster sds+ drill bit 9.5×260	113D09.5L0260	9.5	260	200
Booster sds+ drill bit 9.5×210	113D09.5L0210	9.5	210	150
Booster sds+ drill bit 10×110	113D10L0110	10	110	50
Booster sds+ drill bit 10×160	113D10L0160	10	160	100
Booster sds+ drill bit 10×210	113D10L0210	10	210	150
Booster sds+ drill bit 10×260	113D10L0260	10	260	200
Booster sds+ drill bit 10×310	113D10L0310	10	310	250
Booster sds+ drill bit 10×460	113D10L0460	10	460	400
Booster sds+ drill bit 10×610	113D10L0610	10	610	550
Booster sds+ drill bit 12×160	113D12L0160	12	160	100
Booster sds+ drill bit 12×210	113D12L0210	12	210	150
Booster sds+ drill bit 12×260	113D12L0260	12	260	200
Booster sds+ drill bit 12×310	113D12L0310	12	310	250
Booster sds+ drill bit 12×460	113D12L0460	12	460	400
Booster sds+ drill bit 12×610	113D12L0610	12	610	550
Booster sds+ drill bit 13×160	113D13L0160	13	160	100
Booster sds+ drill bit 13×210	113D13L0210	13	210	150
Booster sds+ drill bit 13×310	113D13L0310	13	310	250
Booster sds+ drill bit 14×160	113D14L0160	14	160	100
Booster sds+ drill bit 14×160	113D14L0610	14	610	550
Booster sds+ drill bit 14×210	113D14L0210	14	210	150
Booster sds+ drill bit 14×260	113D14L0260	14	260	200
Booster sds+ drill bit 14×310	113D14L0310	14	310	250
Booster sds+ drill bit 14×460	113D14L0460	14	460	400
Booster sds+ drill bit 15×160	113D15L0160	15	160	100
Booster sds+ drill bit 15×210	113D15L0210	15	210	150
Booster sds+ drill bit 15×310	113D15L0310	15	310	250
Booster sds+ drill bit 15×460	113D15L0460	15	460	400
Booster sds+ drill bit 16×160	113D16L0160	16	160	100
Booster sds+ drill bit 16×210	113D16L0210	16	210	150
Booster sds+ drill bit 16×260	113D16L0260	16	260	200
Booster sds+ drill bit 16×310	113D16L0310	16	310	250
Booster sds+ drill bit 16×460	113D16L0460	16	460	400
Booster sds+ drill bit 16×610	113D16L0610	16	610	550
Booster sds+ drill bit 18×210	113D18L0210	18	210	150
Booster sds+ drill bit 18×260	113D18L0260	18	260	200
Booster sds+ drill bit 18×460	113D18L0460	18	460	400
Booster sds+ drill bit 18×610	113D18L0610	18	610	550
Booster sds+ drill bit 20×210	113D20L0210	20	210	150
Booster sds+ drill bit 20×260	113D20L0260	20	260	200
Booster sds+ drill bit 20×310	113D20L0310	20	310	250
Booster sds+ drill bit 20×460	113D20L0460	20	460	400
Booster sds+ drill bit 20×610	113D20L0610	20	610	550
