Diager Ceratile Glass and Tile Drill Bit Cylindrical Shank
In Stock
Developed for accurate drilling in glass, tiles, plastics, and composite materials.
- Suitable for drilling glass
- Drills tiles up to Class 3
- 4 sharpened cutting sides
- High-strength carbide tip
- Copper brazing for heat resistance
- Long drill bit design
- Precise and fast penetration
Like this product?
Speak to an Expert!
08:00 AM - 08:00 PM

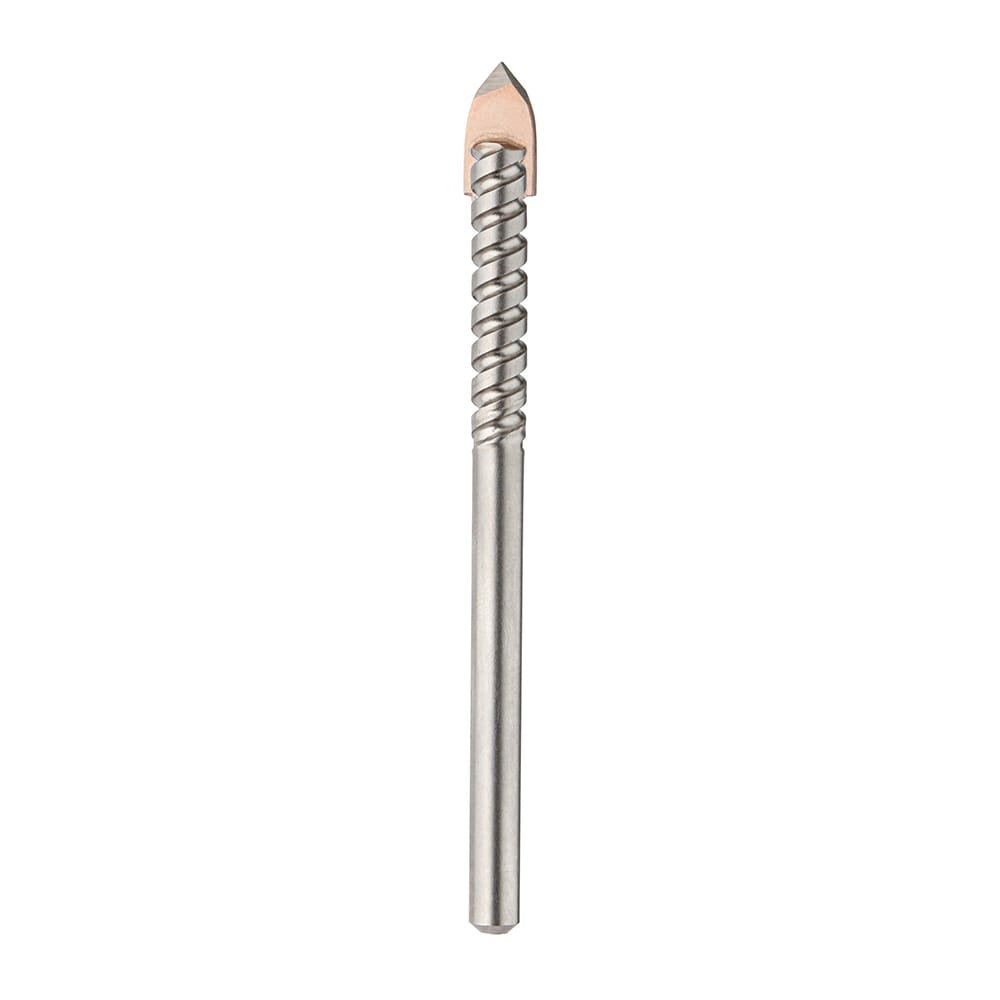

Diager Ceratile Glass and Tile Drill Bit with Cylindrical Shank
The Diager Ceratile Glass and Tile Drill Bit is a cylindrical shank drill bit designed for drilling glass and ceramic tiles up to Class 3, while also supporting drilling in plastics and composite materials.
Precision Drilling for Glass and Hard Surface Applications
The Ceratile drill bit is designed for drilling hard and delicate materials including glass, plastics, composites, and ceramic tiles up to Class 3. Its sharpened carbide bit, exclusive design, and copper brazing provide precise penetration together with improved resistance to heating.
Diager Ceratile Features and Technical Capabilities

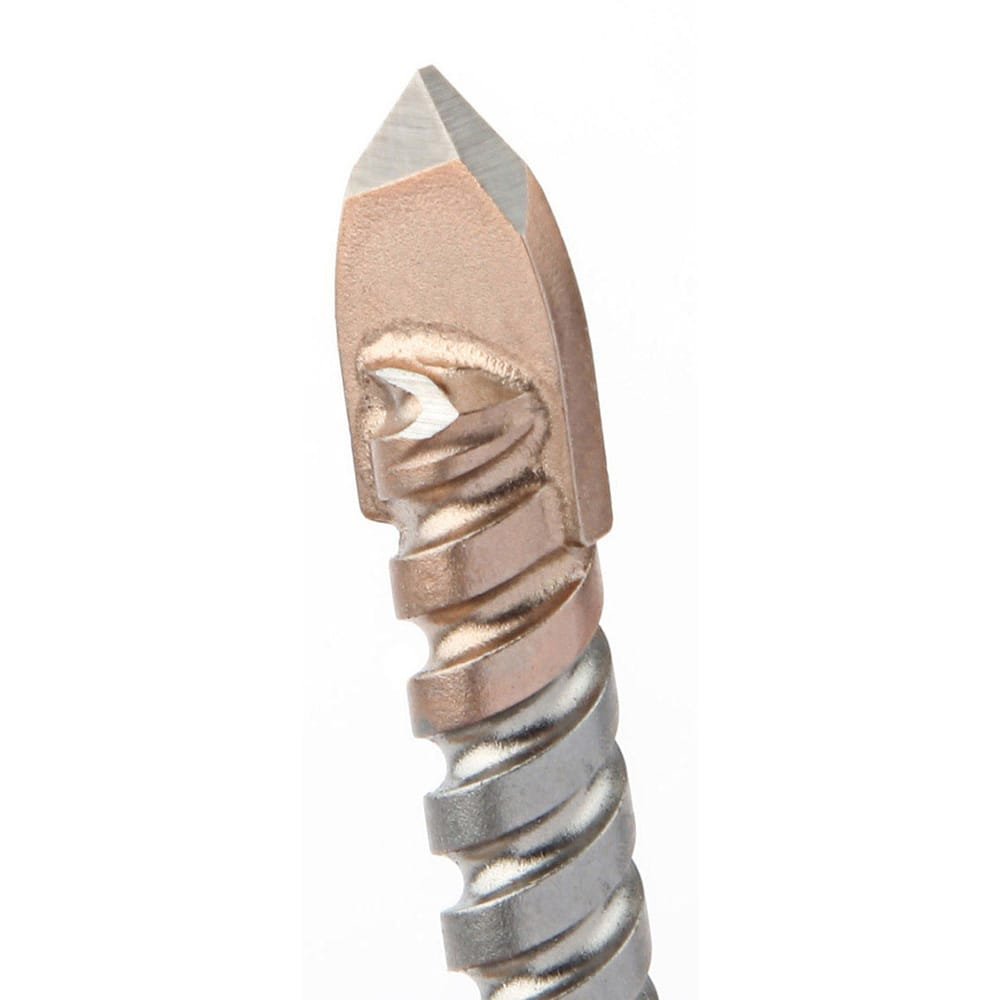

- High-Strength Carbide Tip: Enables drilling through hard and delicate materials including glass, plastics, composites, and ceramic tiles.
- Four Sharpened Sides: Provides precise and fast penetration during drilling operations.
- Exclusive Design: Incorporates a manufacturer-designed drill bit geometry for its intended drilling applications.
- Copper Brazing: Improves resistance to heating during drilling operations.
- Extended Length: Features a long drill bit design for the specified drilling applications.
- Glass Drilling Capability: Specifically designed for drilling glass.
- Tile Drilling Capability: Suitable for drilling ceramic tiles up to Class 3.
Glass and Tile Drilling Applications in Oman and the GCC
- Glass Drilling: Designed for drilling glass materials.
- Ceramic Tile Installation: Suitable for drilling ceramic tiles up to Class 3.
- Plastic Drilling: Intended for drilling plastic materials.
- Composite Material Drilling: Suitable for drilling composite materials.
Diager Ceratile – Available Through iBuild in Oman
As an authorised technical partner for Diager products in Oman, iBuild provides genuine engineering-grade drilling solutions for specification-driven construction and industrial applications.
Customers benefit from local availability, technical expertise, and lifecycle support to help maintain operational reliability throughout the product lifecycle.
Technical Data
| Product Label | Item Code | Diameter (mm) | Total Length (mm) | Working Length (mm) |
|---|---|---|---|---|
| Ceratile glass drill 3 mm 1/8 | 400D03 | 3 | 80 | 40 |
| Ceratile glass drill 4 mm 5/32 | 400D04 | 4 | 80 | 40 |
| Ceratile glass drill 5 mm 3/16 | 400D05 | 5 | 80 | 40 |
| Ceratile glass drill 6 mm 15/64 | 400D06 | 6 | 80 | 40 |
| Ceratile glass drill 7 mm 9/32 | 400D07 | 7 | 100 | 60 |
| Ceratile glass drill 8 mm 5/16 | 400D08 | 8 | 100 | 60 |
| Ceratile glass drill 9 mm 11/32 | 400D09 | 9 | 100 | 60 |
| Ceratile glass drill 10 mm 3/8 | 400D10 | 10 | 100 | 60 |
| Ceratile glass drill 12 mm 15/32 | 400D12 | 12 | 100 | 60 |
| Ceratile glass drill 13 mm 1/2 | 400D13 | 13 | 100 | 60 |
