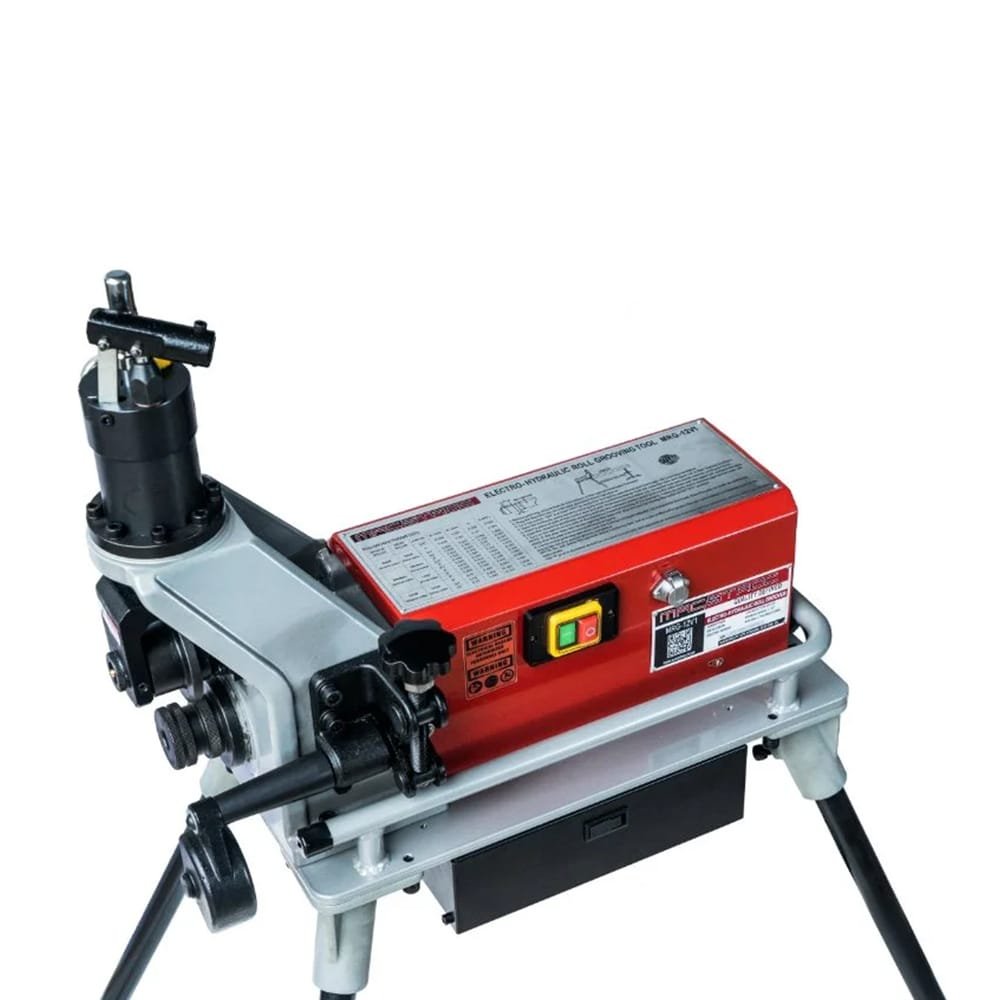

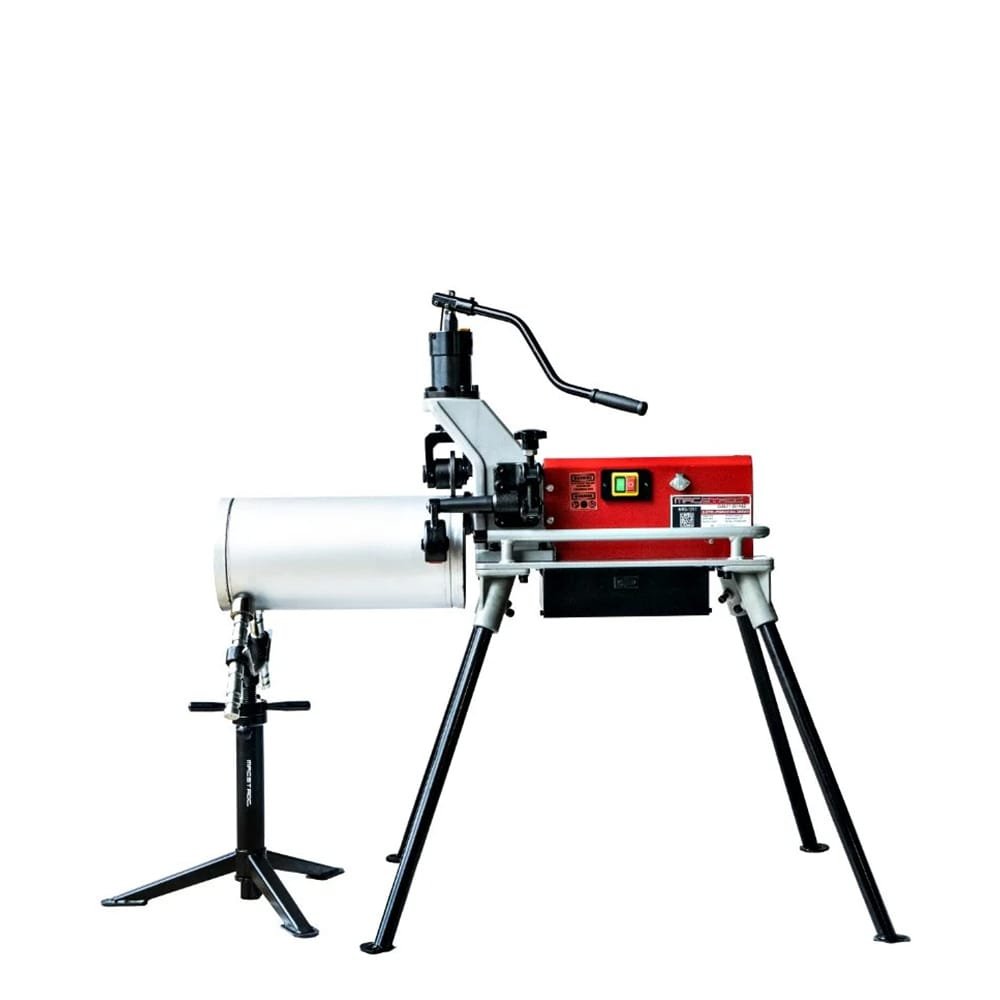

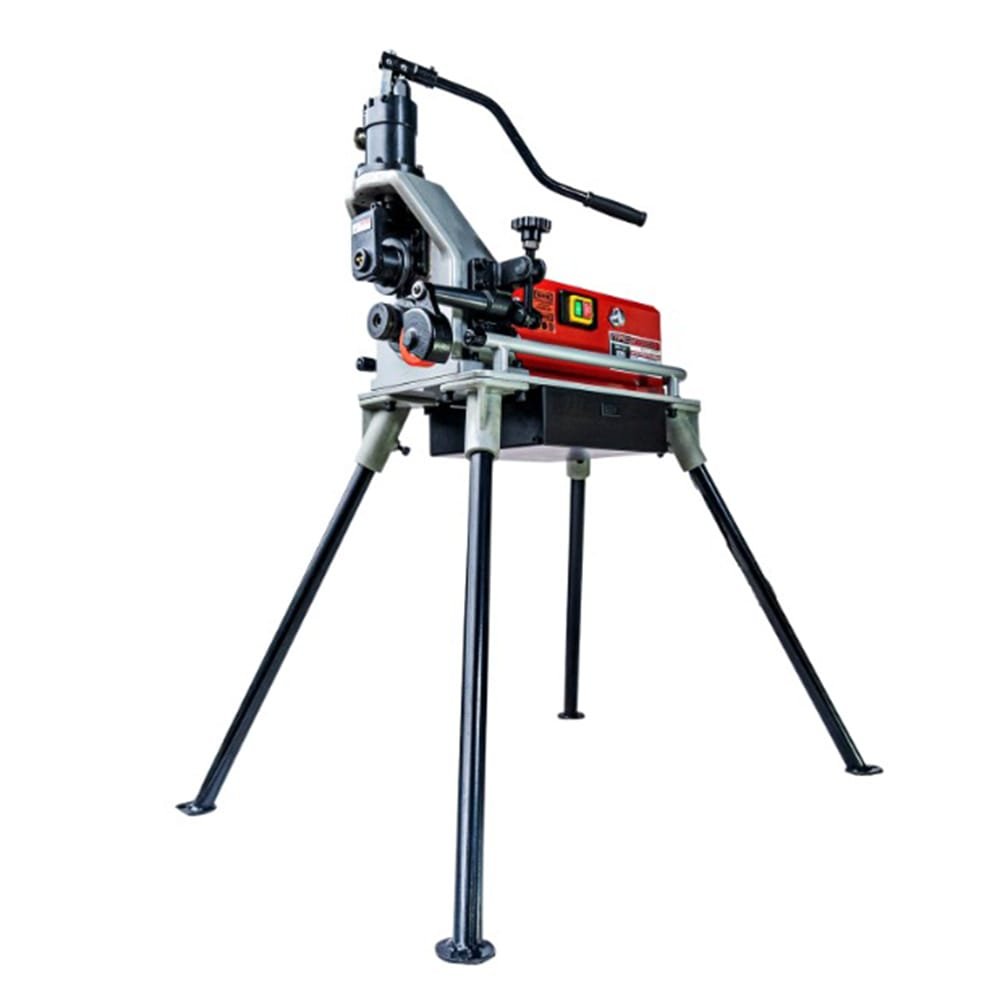

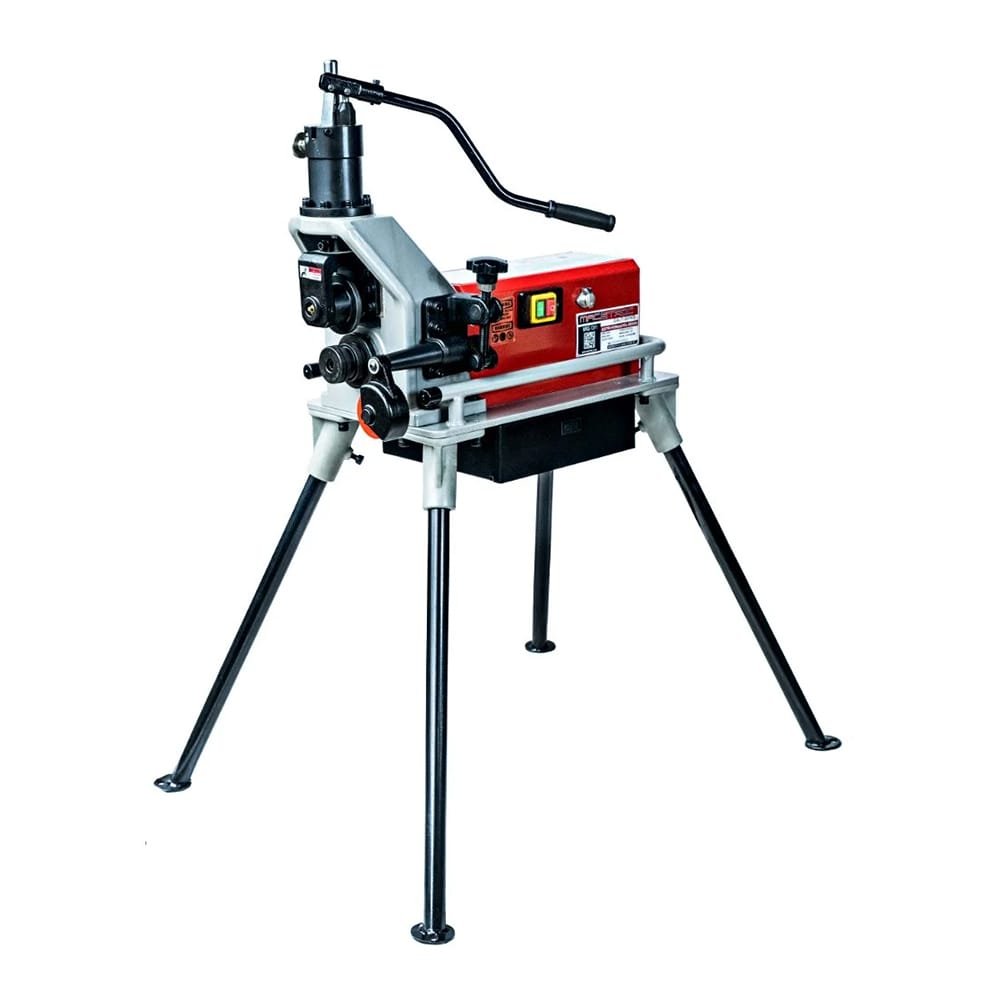

Macstroc MRG-12V1 Electrohydraulic Roll Grooving Tool

The Macstroc MRG-12V1 Electrohydraulic Roll Grooving Tool is a professional pipe grooving machine designed to produce precise roll grooves on steel and stainless steel pipes up to 12 inches using an electrohydraulic drive system.

Professional Roll Grooving for Large-Diameter Pipe Fabrication

The Macstroc MRG-12V1 is engineered for professional grooving of Schedule 10 and Schedule 40 steel and stainless steel pipes. Powered by a 1100W induction motor with an electrohydraulic system, it combines high-capacity grooving, low-noise operation and lightweight portability in a compact machine suitable for fabrication workshops and installation projects throughout Oman and the GCC.

Macstroc MRG-12V1 Features and Technical Capabilities

• Electrohydraulic Power System: Combines an 1100W induction motor with an electrohydraulic drive for professional pipe grooving operations.
• Steel Pipe Capacity: Grooves Schedule 10 and Schedule 40 steel pipes from 1 inch to 12 inches.
• Stainless Steel Capacity: Suitable for 1 inch to 8 inch Schedule 10/40 stainless steel pipes and 10 inch to 12 inch Schedule 10 stainless steel pipes.
• Depth Adjustment Function: Allows accurate groove depth adjustment for consistent grooving results.
• Low-Noise Gearbox: High-performance gear reduction system supports quieter machine operation.
• Lightweight Construction: Weighing 65 kg, the machine is designed for easier transportation and on-site handling.
• Four Standard Roll Sets: Supplied with roll sets covering 1″-1-1/2″, 2″-3″, 3-1/2″-6″ and 8″-12″ pipe sizes.
• Heavy-Duty Capacity: Suitable for pipe wall thicknesses up to 8 mm.
• Compact Portable Design: Designed for efficient operation in workshops and on project sites.

Pipe Grooving Applications in Oman and the GCC

• Mechanical Pipe Fabrication: Suitable for grooving Schedule 10 and Schedule 40 steel piping.
• Fire Protection Systems: Designed for grooved piping used in fire protection installations.
• HVAC Installations: Supports grooved piping systems used in HVAC applications.
• Plumbing Systems: Suitable for professional plumbing pipe grooving operations.
• Industrial Pipework: Designed for fabrication and installation of industrial piping systems.

Macstroc Pipe Fabrication Equipment Available Through iBuild in Oman

As the authorised technical partner for Macstroc in Oman, iBuild supplies genuine roll grooving machines, pipe fabrication equipment and engineering-grade accessories supported by technical expertise and lifecycle support.

Our team assists contractors, MEP specialists, fabrication workshops and industrial professionals with dependable local availability and product guidance for specification-driven projects across Oman.
