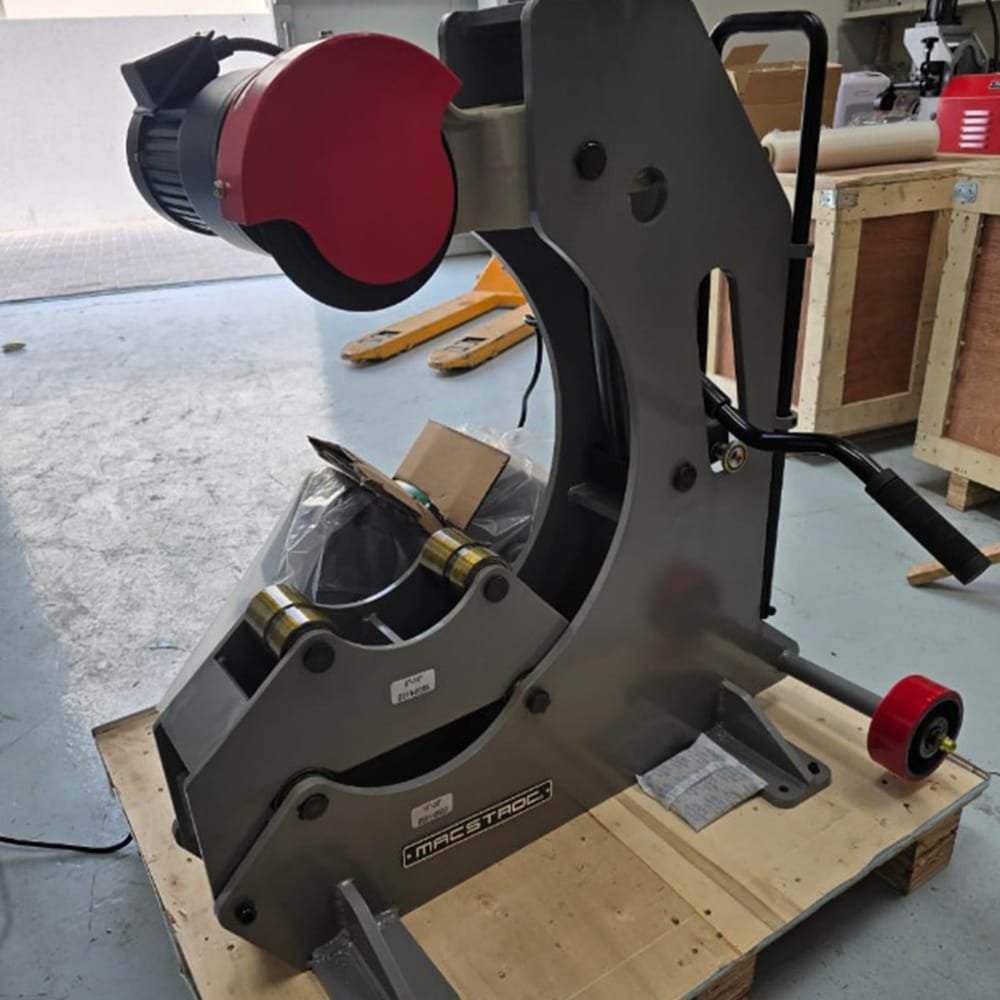

Macstroc TERCEL.20 Electrohydraulic Pipe Cutter

The Macstroc TERCEL.20 is a heavy-duty electrohydraulic pipe cutter engineered for cutting carbon steel pipes from 8 inches to 20 inches with a maximum wall thickness of 12mm.

Heavy-Duty Cold Pipe Cutting for Large Carbon Steel Pipe Fabrication

The TERCEL.20 is designed for electrohydraulic cold cutting of large carbon steel pipes used in heavy-duty fabrication and industrial applications. Powered by a 1100W single-phase motor operating at 23 RPM, the machine cuts pipes up to 20 inches in diameter while accommodating wall thicknesses up to 12mm. The supplied MH98102 pipe stand provides stable support during cutting, making the TERCEL.20 suitable for professional pipe fabrication projects throughout Oman and the GCC.

Macstroc TERCEL.20 Features and Technical Capabilities

• Electrohydraulic Cutting System: Provides controlled cold cutting for large-diameter carbon steel pipes.
• 8-20 Inch Cutting Capacity: Cuts carbon steel pipes from 8 inches to 20 inches in diameter.
• 12mm Maximum Wall Thickness: Handles carbon steel pipes with wall thicknesses up to 12mm.
• 1100W Single-Phase Motor: Delivers dependable cutting performance using 110V or 240V, 50/60Hz power.
• Optional 700W Three-Phase Motor: Offers an alternative motor configuration for compatible installations.
• 23 RPM Operating Speed: Provides controlled cutting performance for large pipe fabrication.

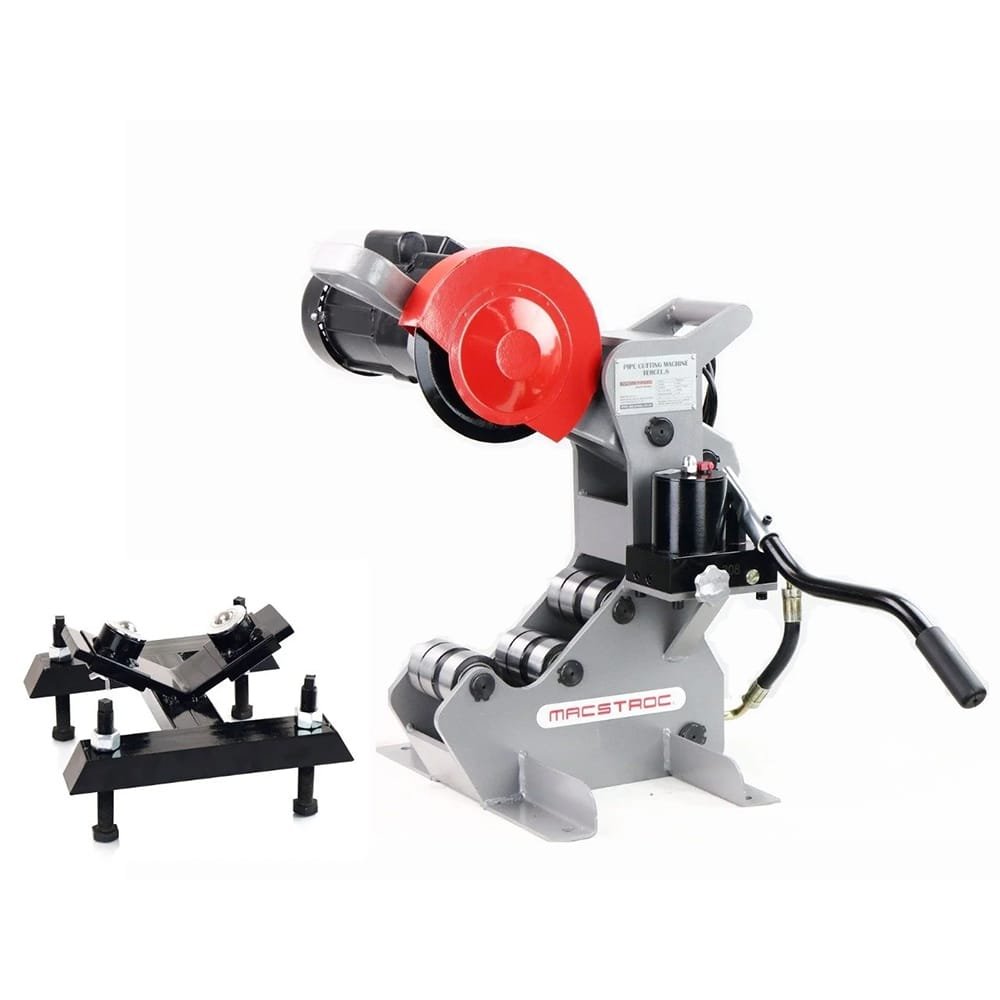

• MH98102 Pipe Stand: Supports 8-inch to 20-inch pipes for stable cutting operations.
• P-128B Cutting Blade Compatibility: Supports the dedicated P-128B cutting blade for the TERCEL.20.
• Heavy-Duty Construction: Designed for demanding industrial pipe cutting applications.

Applications for Large-Diameter Carbon Steel Pipe Cutting

• Pipe Fabrication: Designed for cutting large-diameter carbon steel pipes during fabrication.
• Fire Protection Systems: Suitable for preparing carbon steel pipes used in fire protection installations.
• Oil and Gas Projects: Designed for cutting carbon steel pipes used in oil and gas applications.
• Mechanical Workshops: Suitable for large pipe cutting in mechanical fabrication environments.

Macstroc TERCEL.20 – Available Through iBuild in Oman

As an authorised technical partner for Macstroc products in Oman, iBuild provides engineering-grade pipe fabrication equipment supported by local availability, technical expertise, and lifecycle support.

iBuild supports contractors, fabrication specialists, and industrial operators with professional Macstroc equipment for specification-driven construction, infrastructure, and industrial projects across Oman.
