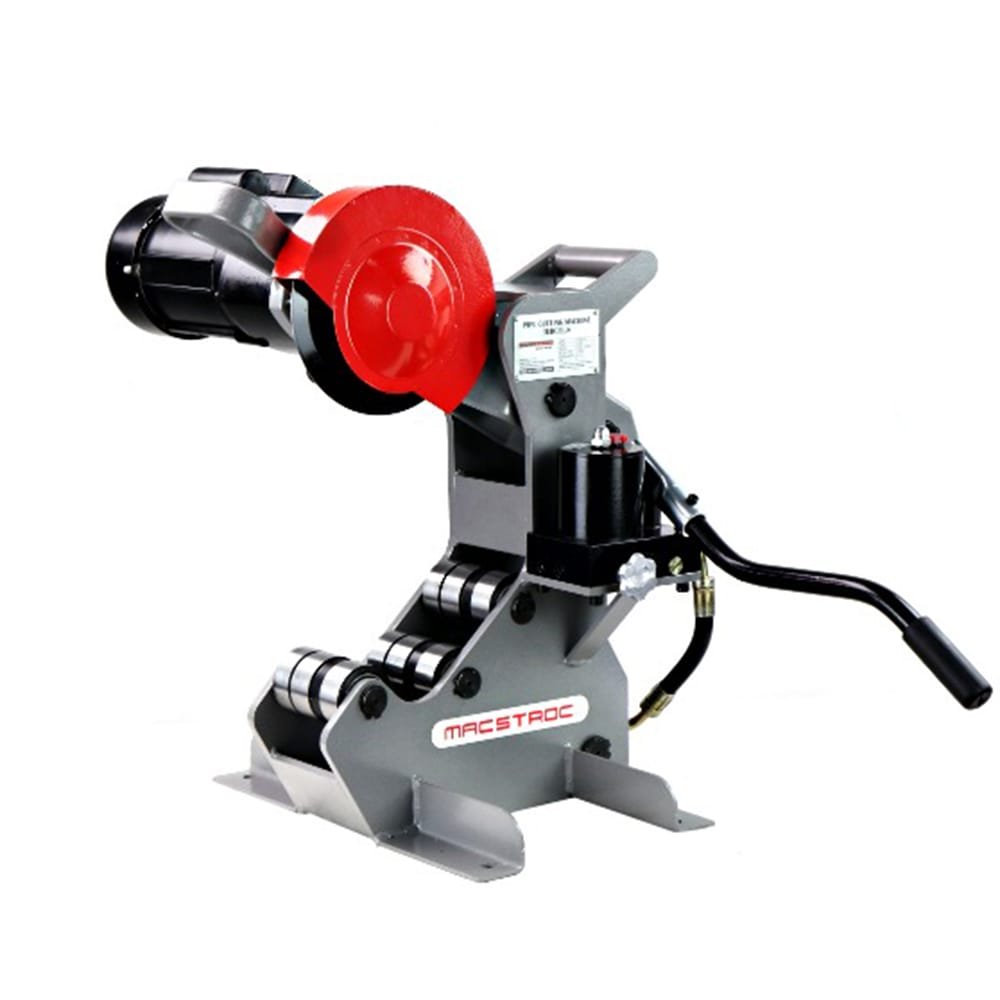

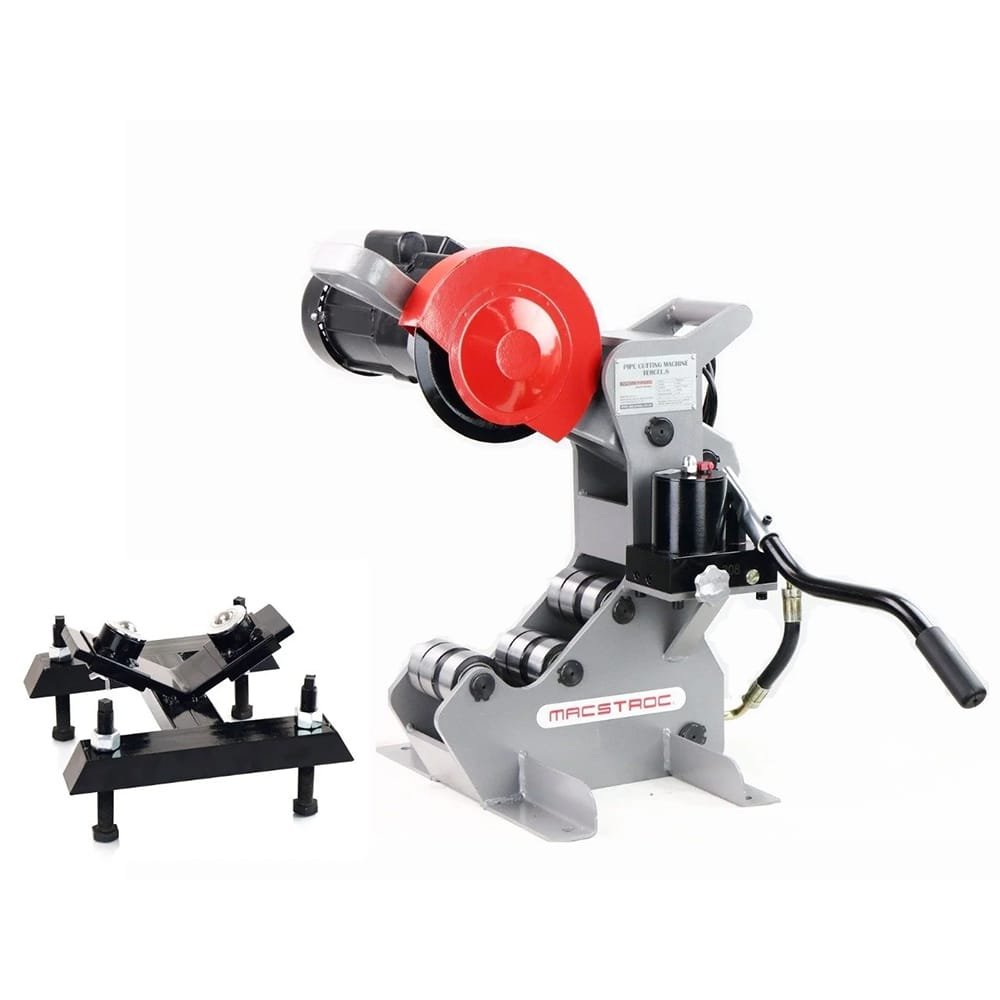

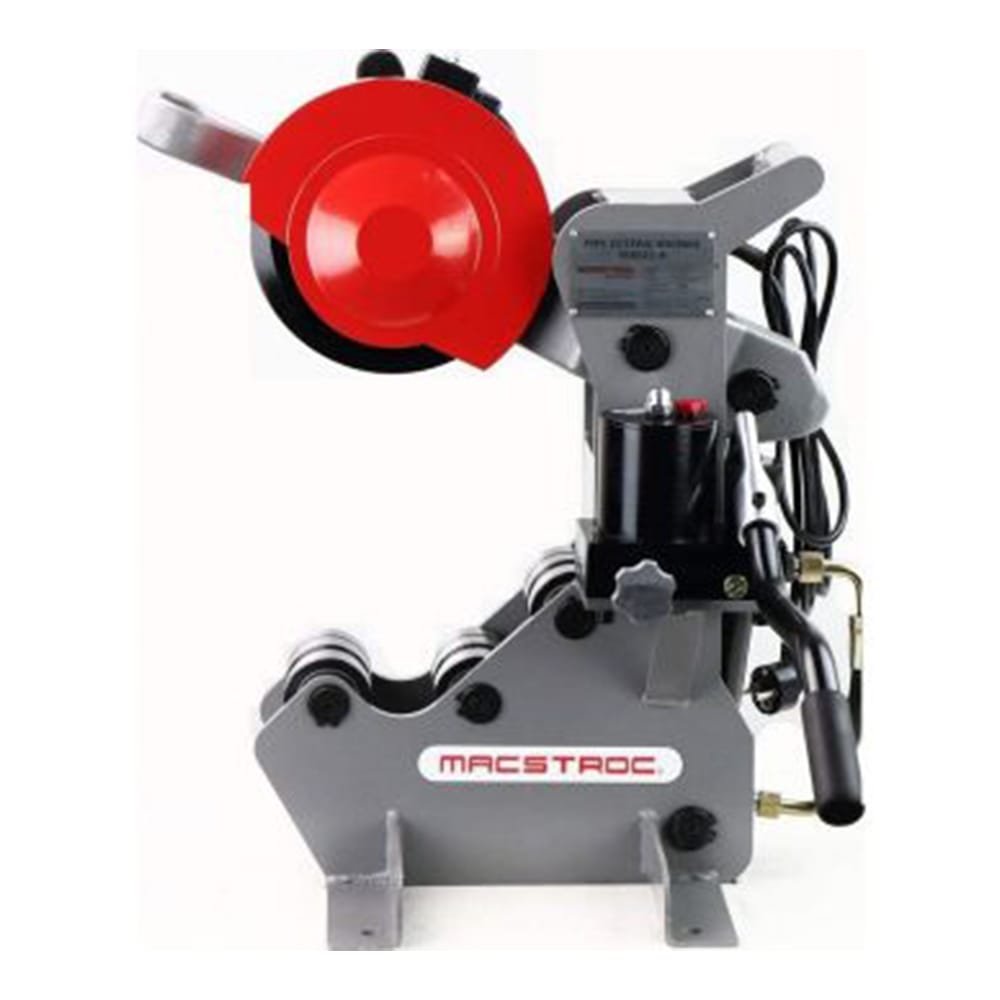

Macstroc TERCEL.8 / TERCEL.8X Electrohydraulic Pipe Cutter

The Macstroc TERCEL.8 and TERCEL.8X are electrohydraulic pipe cutters designed for cold cutting schedule 10/40 steel and galvanised pipes, producing clean edges without sparks, abrasive dust, or open flames.

Electrohydraulic Cold Pipe Cutting for Professional Pipe Fabrication

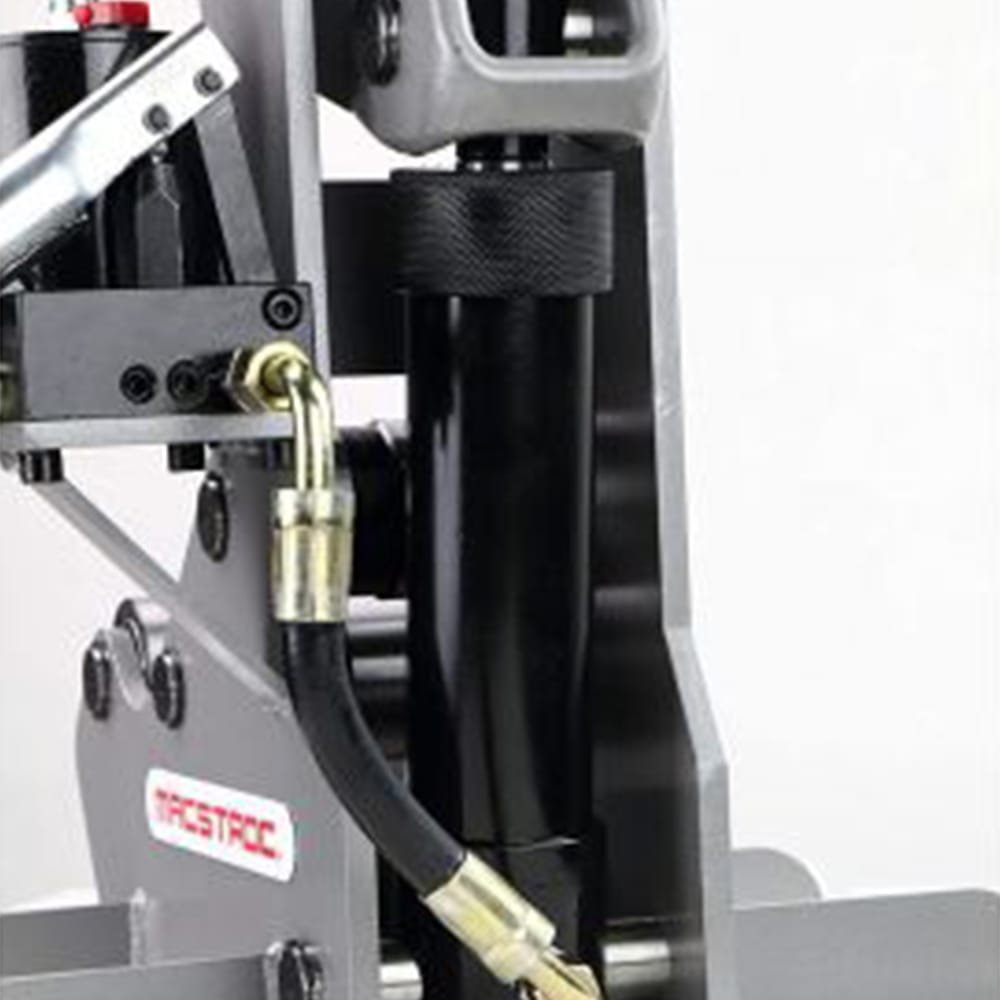

The TERCEL series combines electrohydraulic cutting with a hydraulic hand pump that provides easy feeding for controlled pipe cutting. The TERCEL.8 is designed to cut 2-inch to 8-inch schedule 10/40 steel and galvanised pipes, while the enhanced TERCEL.8X expands the cutting range to start from 1/2 inch. Both models are powered by a 550W induction motor operating at 24 RPM and produce clean pipe ends suitable for further threading or grooving, making them suitable for professional pipe fabrication and installation projects across Oman and the GCC.

Macstroc TERCEL.8 and TERCEL.8X Features and Technical Capabilities

• Electrohydraulic Cutting System: Utilises hydraulic feeding to deliver controlled pipe cutting with clean edge formation.
• Cold Cutting Operation: Cuts pipes without generating sparks, abrasive dust, or open flames.
• Model Options: TERCEL.8 cuts 2-8 inch pipes, while TERCEL.8X extends the cutting range from 1/2 inch to 8 inches.
• 550W Induction Motor: Provides reliable cutting performance using a 220V, 50/60Hz single-phase power supply.
• 24 RPM Spindle Speed: Delivers controlled cutting performance for professional pipe fabrication.

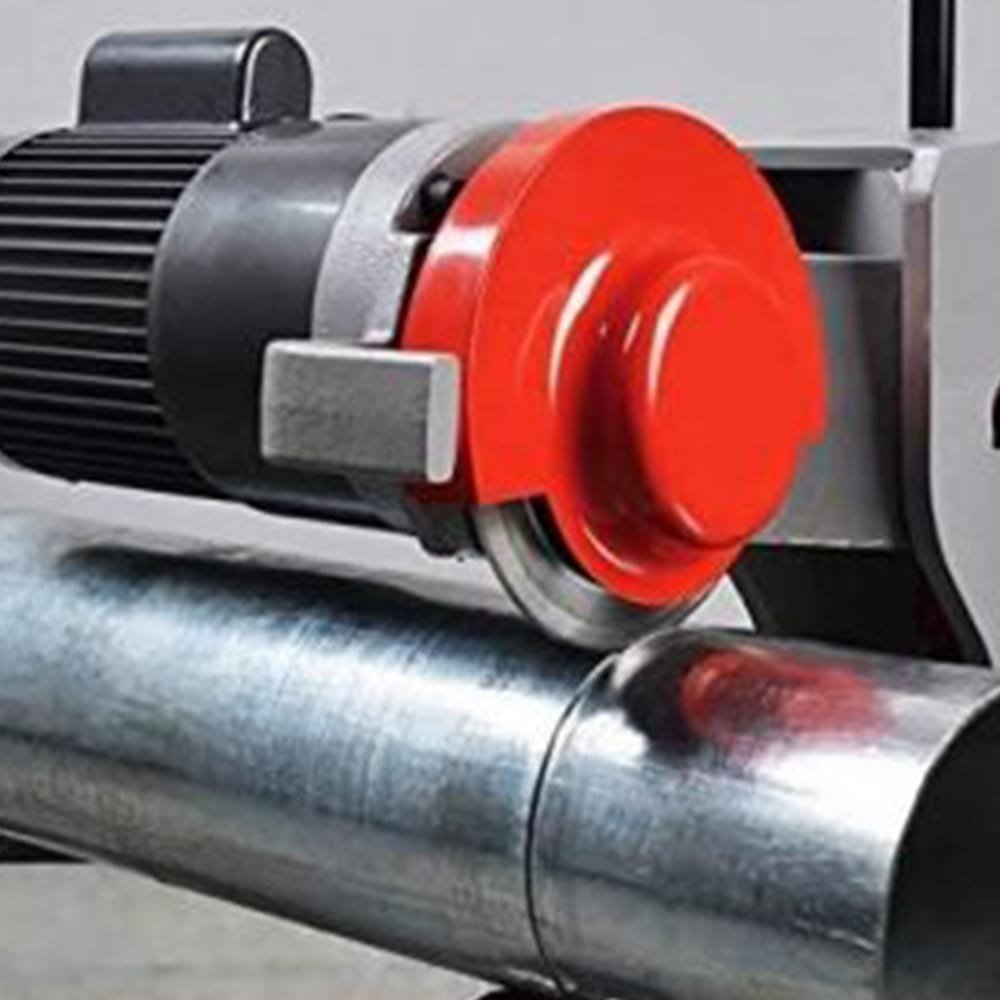

• Clean Edge Cutting: Produces pipe ends suitable for subsequent threading or grooving operations.
• Heavy-Duty Operation: The TERCEL.8 incorporates a heavy-duty ON/OFF switch for straightforward machine operation.

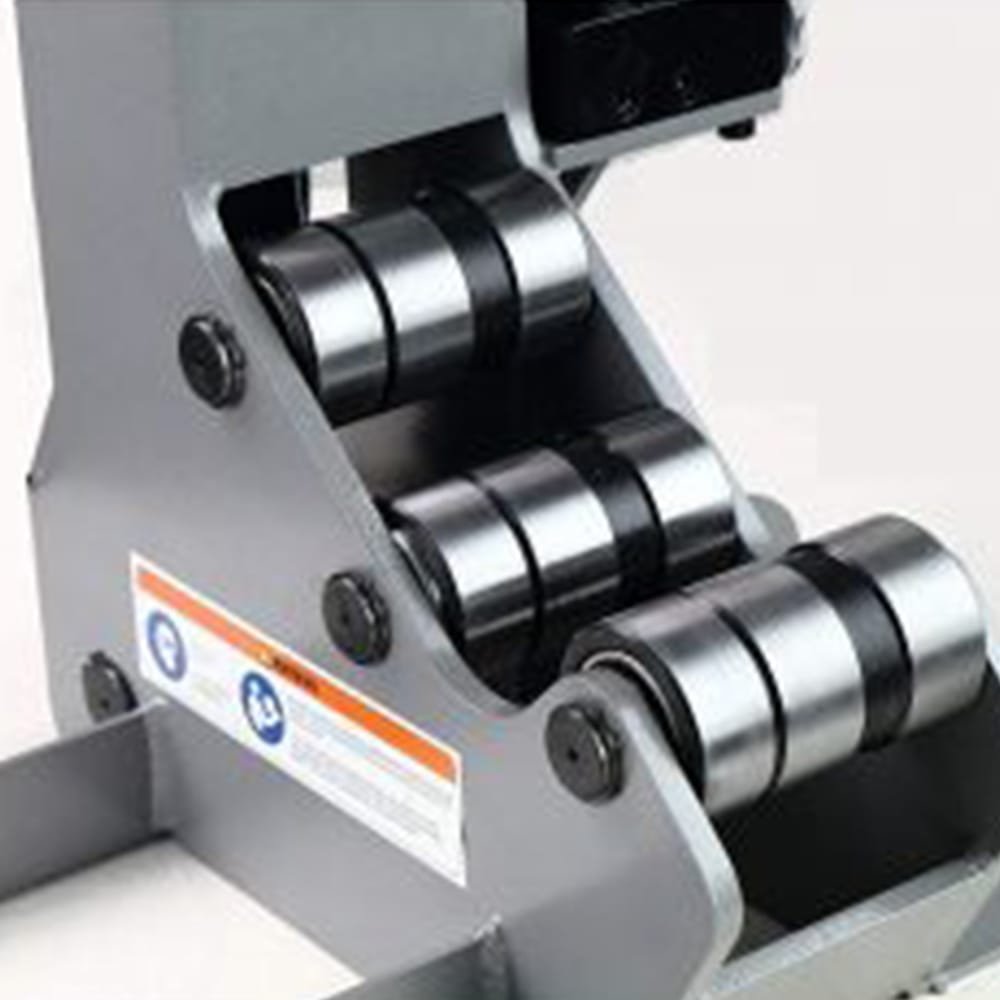

• Ball Bearing Pipe Support: The TERCEL.8 is supplied with MH1032 ball bearing pipe support to assist stable pipe positioning during cutting.
• Portable Equipment Design: Available in 65kg (TERCEL.8) and 70kg (TERCEL.8X) configurations to suit different operational requirements.

Applications for Steel and Galvanised Pipe Cutting

• Steel Pipe Cutting: Designed for cutting schedule 10/40 steel pipes.
• Galvanised Pipe Cutting: Suitable for cutting schedule 10/40 galvanised pipes.
• Pipe Threading Preparation: Produces pipe ends suitable for subsequent threading operations.
• Pipe Grooving Preparation: Allows processed pipes to be grooved after cutting.

Macstroc TERCEL Pipe Cutters – Available Through iBuild in Oman

As an authorised technical partner for Macstroc products in Oman, iBuild provides professional pipe fabrication equipment supported by local availability, technical expertise, and lifecycle support.

From model selection through technical guidance and lifecycle support, iBuild helps contractors and industrial professionals choose the appropriate TERCEL electrohydraulic pipe cutter for specification-driven construction and industrial projects across Oman.
