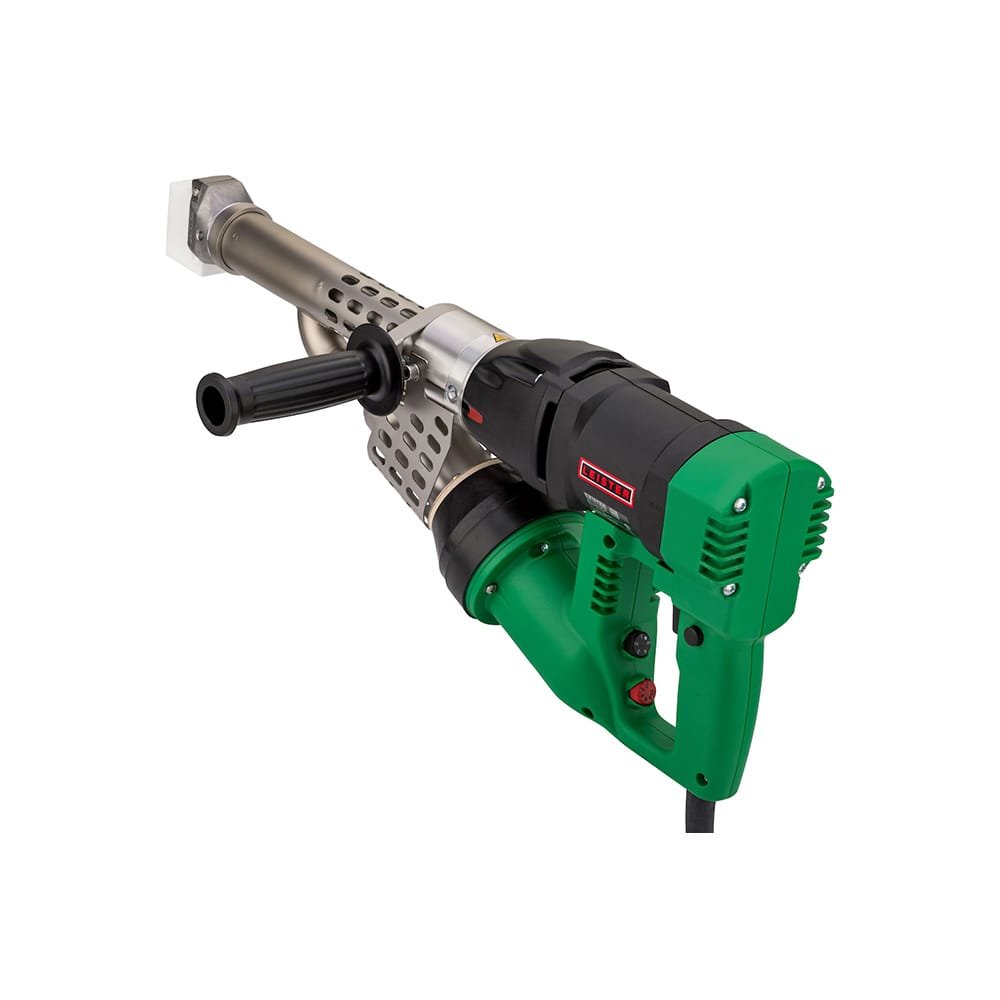

Leister FUSION 3C Handheld Extrusion Welder

The Leister FUSION 3C is a 3200 W handheld extrusion welder designed for structural joint welding of HDPE, LDPE, LLDPE, and PP thermoplastic sheet from 15 mm to 25 mm thickness, delivering up to 3.6 kg/h material output through a compact motor-on-top body configuration with multiple holding options – engineered specifically for equipment construction, container fabrication, and structural plastic welding applications where access constraints and operator position variability are defining operational parameters.

Compact High-Output Extrusion Welding for Equipment and Container Fabrication

Equipment construction and container fabrication in thermoplastics present a distinct set of welding access challenges. The joint geometries inside and around tanks, enclosures, process vessels, and fabricated equipment housings require an extruder that can be guided accurately from multiple positions – overhead, lateral, low-level, and inside confined panel assemblies – without the operator compromising shoe contact, travel speed consistency, or bead volume control to accommodate a tool that is too long, too heavy, or too narrowly configured for single-grip use.

Standard long-body extruders at equivalent power resolve the output requirement but introduce the access and handling constraints that complex fabrication geometries cannot absorb. The FUSION 3C addresses this directly through its internal architecture: by positioning the motor on top of the body and the handle and blower below, Leister has compacted a 3200 W extruder into a 588 mm length and 98 mm width without reducing material output or structural robustness. The result is a tool that delivers the throughput of a high-power production extruder in a form factor that works inside the fabrication, not around it. For plastic equipment builders and container fabricators across Oman and the GCC, that distinction is operationally significant.

FUSION 3C Extrusion Welding Capabilities and Design Engineering

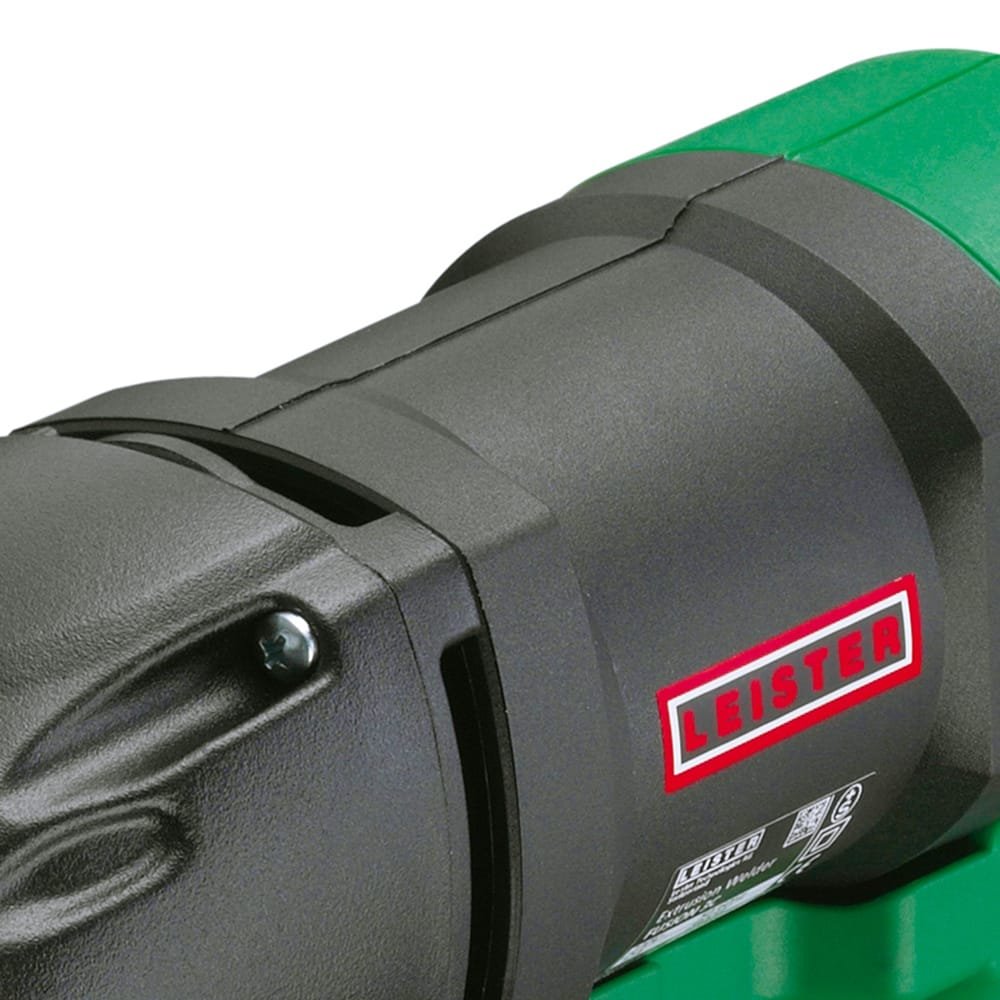

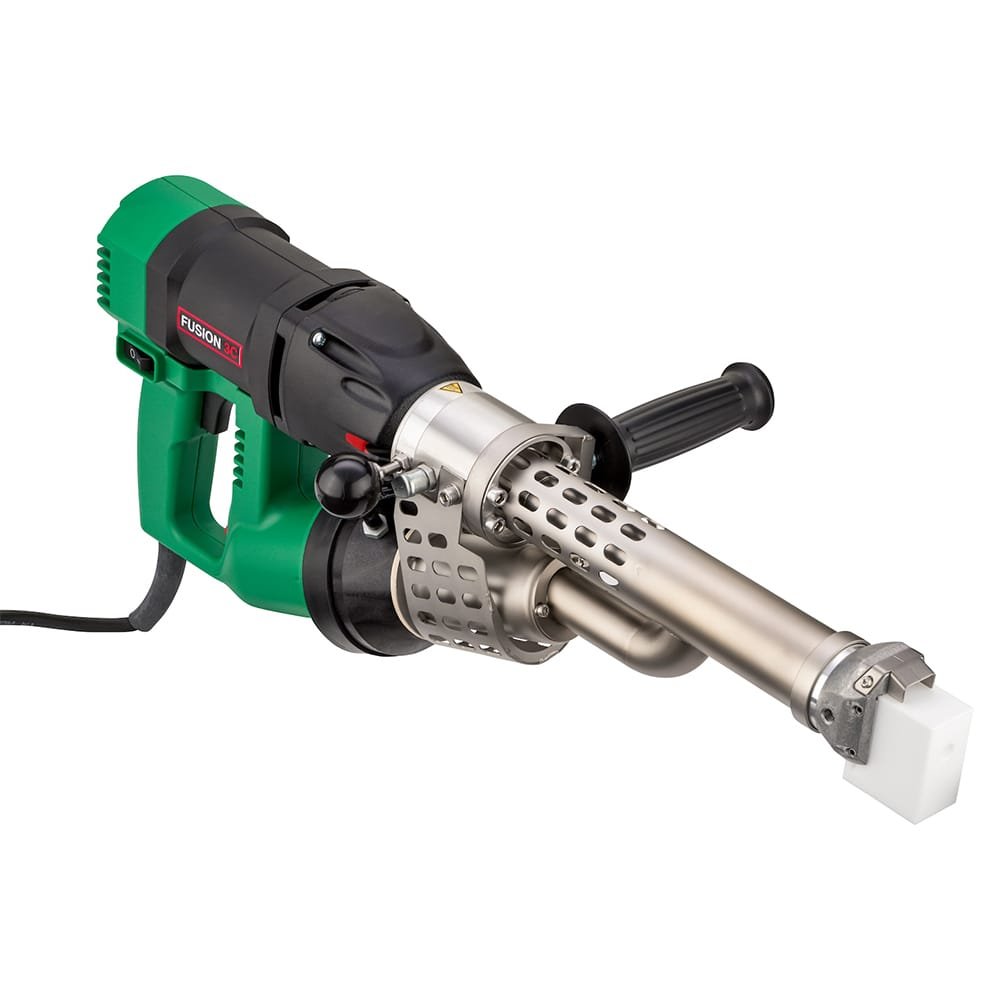

• Motor-on-Top Compact Body Architecture: The deliberate placement of the motor above the centreline – with the handle and blower positioned below – shortens the overall body length and lowers the centre of gravity relative to the handle grip, producing a more balanced and controllable tool in the varied holding positions that equipment and container fabrication requires, while achieving a compact 588 mm length at 3200 W output.

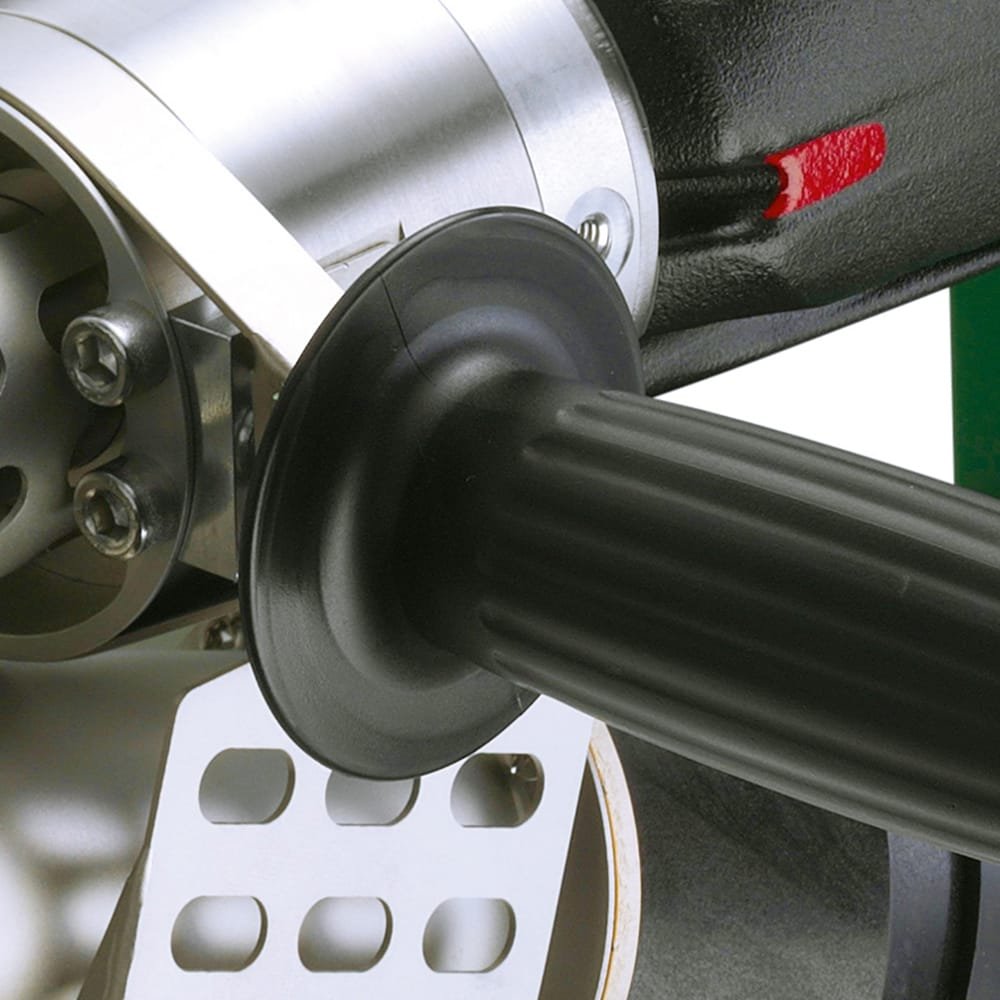

• Multiple Holding Options for Position-Variable Welding: The FUSION 3C incorporates a variety of grip and holding configurations that allow the operator to adapt to overhead, lateral, angled, and low-position weld runs without changing the extruder setup – maintaining shoe pressure and travel consistency across the full range of joint orientations encountered in equipment construction and confined-space fabrication.
• 3200 W Heating Power for Thick Sheet Structural Welding: Delivers the thermal input necessary to fully plasticise welding rod and pre-heat joint faces on thermoplastic sheet from 15 mm to 25 mm thickness, sustaining structural weld quality across the cross-sectional area required for load-bearing and containment joints in fabricated equipment and vessel construction.
• Material Output up to 3.6 kg/h with 4 mm Rod: Achieves 2.0 to 2.5 kg/h with 3 mm rod and 2.7 to 3.6 kg/h with 4 mm rod, measured with PE – providing the volumetric throughput that makes the FUSION 3C productive on structural weld programmes in equipment and container fabrication without requiring the operator to sacrifice access for output capacity.
• Adjustable Extrusion Volume: The operator can set material output within the rated range to match the joint geometry, sheet thickness, and welding shoe profile of each weld run – providing the process control that varies bead volume appropriately across the range of joint types and access positions encountered within a single fabricated assembly.
• Compatible with 3 mm and 4 mm Welding Rod: Accepts both 3 mm and 4 mm welding rod in HDPE, LDPE, LLDPE, and PP grades, accommodating different project rod specifications and allowing output rate to be adjusted through rod diameter selection in combination with the adjustable extrusion volume control.
• Internal Air Guide with Air-Heated Screw: Routes heated air internally to the extrusion screw, maintaining consistent melt temperature throughout the plasticisation zone and ensuring fully conditioned material reaches the welding shoe across the full output range – supporting weld integrity in both the higher-throughput and reduced-volume operating modes.
• Robust Construction for Fabrication Environment Demands: The FUSION 3C is built for the handling realities of equipment construction sites and fabrication workshops – where an extruder is set down on steel, repositioned repeatedly across a shift, and exposed to the surface contact, dust, and mechanical handling that active production environments impose on tooling throughout a working day.

Equipment Construction and Container Fabrication Applications in Oman and the GCC

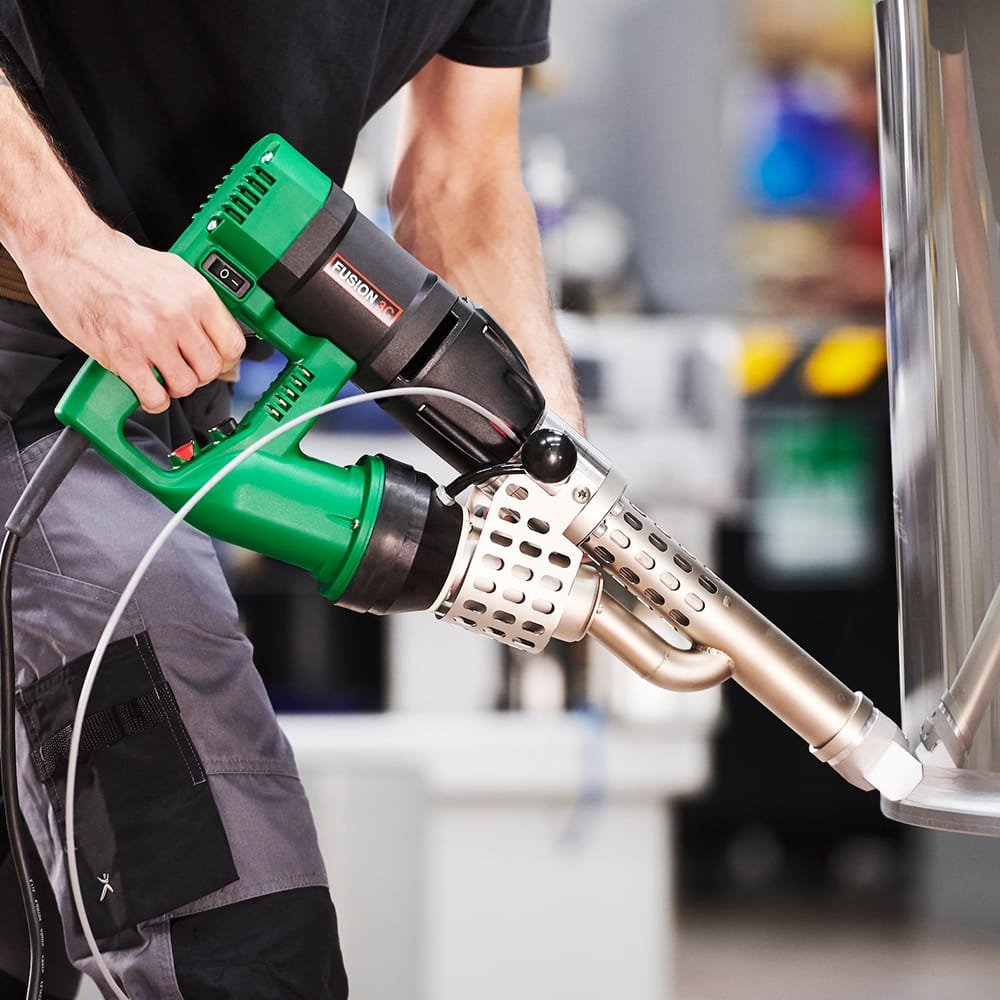

• Plastic Equipment Housing and Enclosure Fabrication: Welds structural joints on HDPE and PP equipment housings, electrical enclosures, and process equipment covers where internal panel geometry and confined corner joints require a compact extruder capable of maintaining consistent shoe contact from multiple grip positions within the fabricated structure.

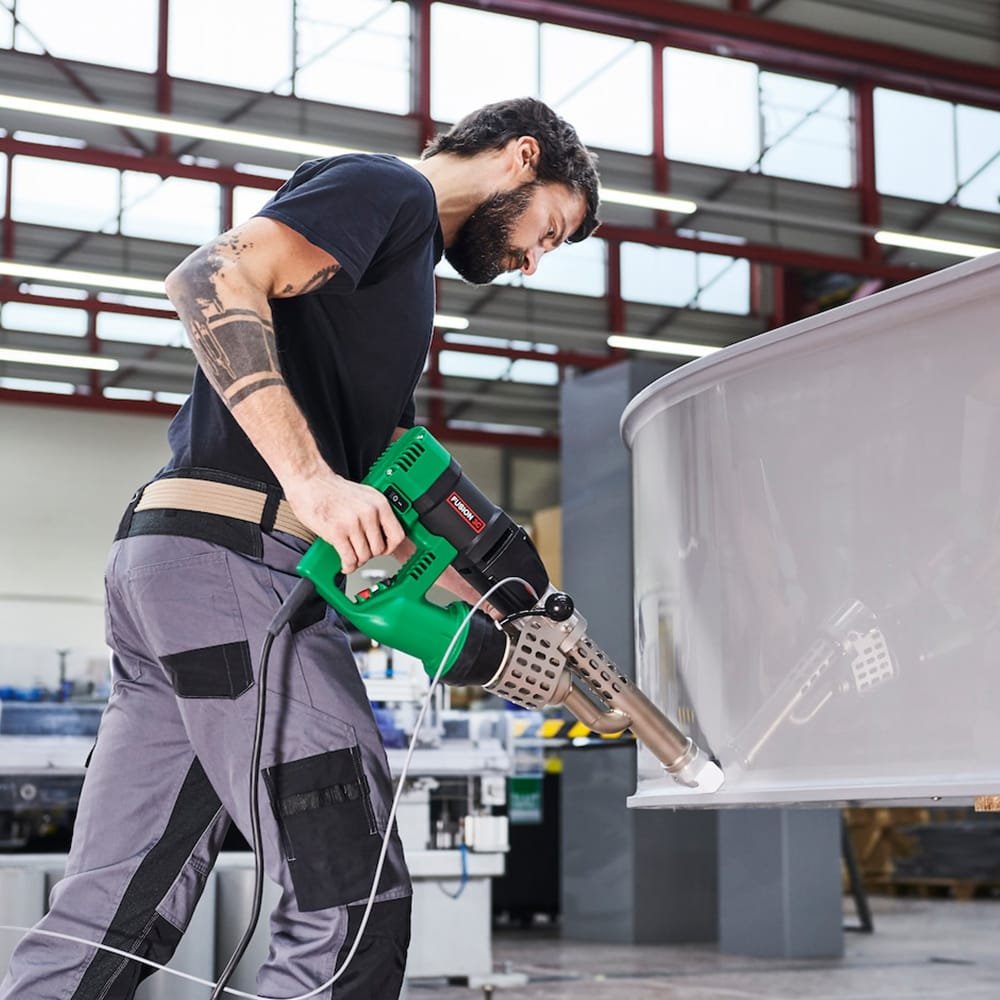

• Chemical and Process Container Construction: Applies high-volume structural extrusion welds to thick-wall chemical containers, process tanks, and industrial storage vessels from 15 mm to 25 mm sheet thickness, where the FUSION 3C’s compact body allows access to internal joint faces that long-body extruders at equivalent power cannot reach without panel disassembly.
• Overhead and Multi-Orientation Structural Welding: The multiple holding options and compact body make the FUSION 3C suitable for overhead extrusion welding on the underside of platforms, equipment bases, and structural assemblies – where sustained overhead operation at 6.9 kg with a tool that accommodates varied grip positions is operationally viable in a way that heavier or single-grip extruders are not.
• Secondary Containment Bund and Sump Construction: Produces structural extrusion welds on thick HDPE and PP secondary containment structures, spill sumps, and process area bunds in industrial and petrochemical facilities across Oman and the GCC, where weld joint integrity underpins both containment performance and regulatory compliance.

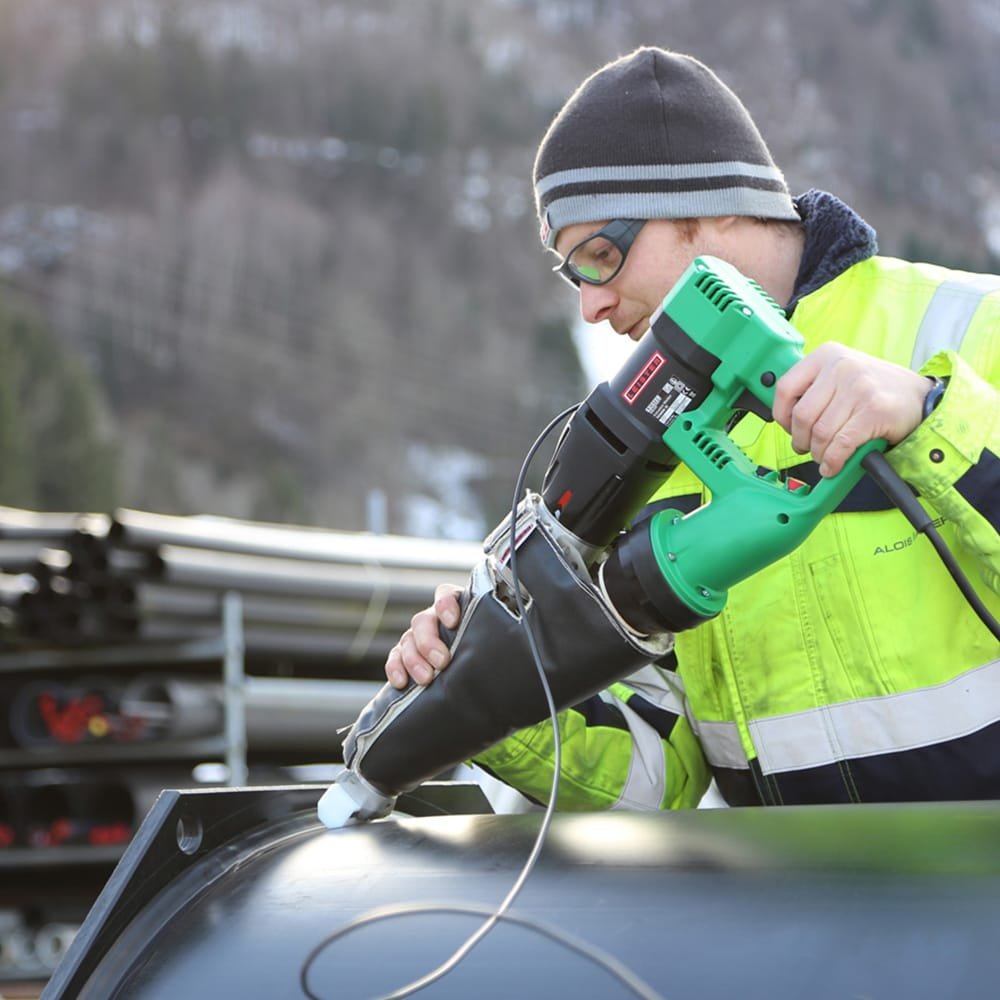

• On-Site Structural Plastic Repair and Modification: Provides the high-output handheld extrusion welding capability required for field repair and structural modification of thick thermoplastic equipment components and container assemblies on site – where removing the fabrication to a workshop is not operationally viable and weld quality must match the original structural specification.

Leister FUSION 3C – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing plastic fabricators, equipment builders, and industrial construction teams with direct access to the FUSION 3C alongside compatible Leister welding shoes, welding rod in HDPE and PP grades, and the full range of extrusion welding accessories. As a manufacturer-authorised technical partner, iBuild supports welding shoe selection, rod specification, and extrusion volume configuration for each fabrication application – ensuring the FUSION 3C is correctly set up for the material grade, sheet thickness, and joint geometry of the project from the point of first use.

For equipment construction specialists, container fabricators, industrial contractors, and structural plastic welding teams across Oman and the GCC requiring a compact, high-output extrusion welder that performs across the full range of access positions and joint geometries that complex fabrication demands, iBuild is the authorised local source for the Leister FUSION 3C – backed by in-country technical expertise and comprehensive manufacturer-authorised lifecycle support.
