Leister MINIFLOOR Drive Unit

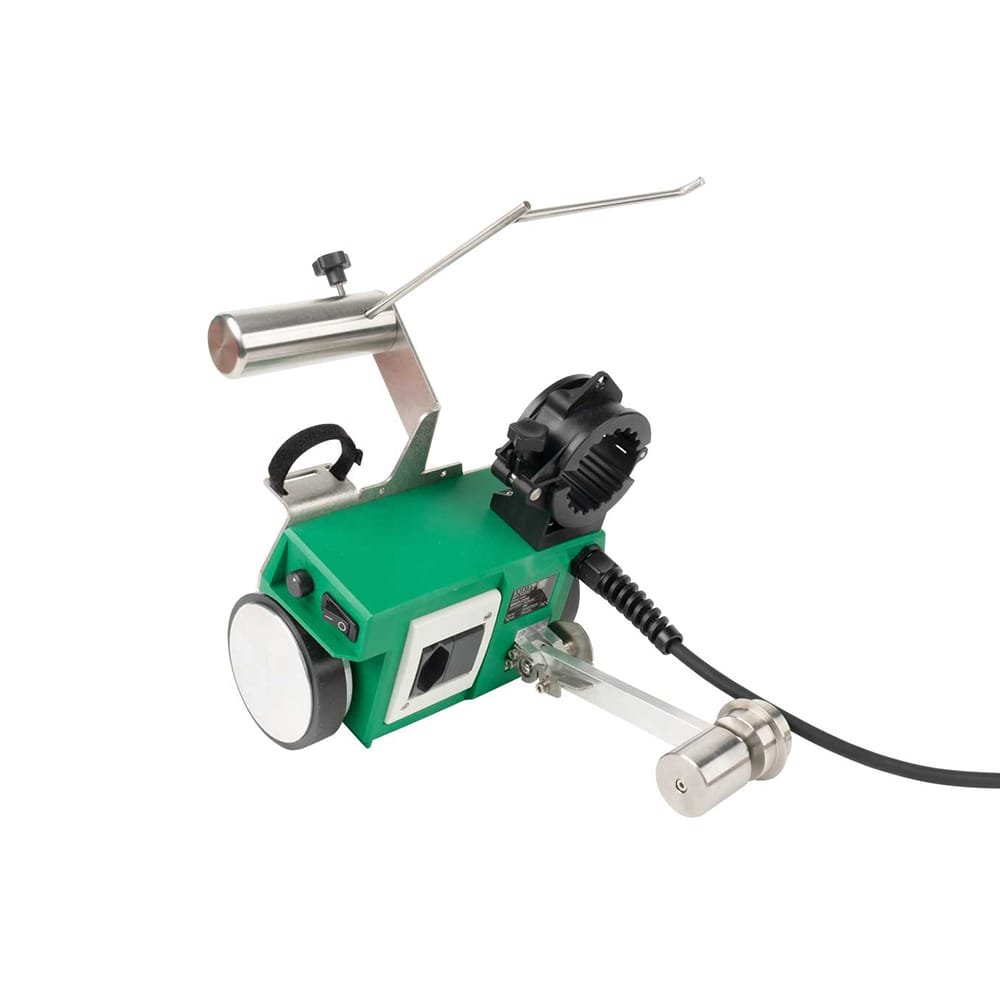

The Leister MINIFLOOR is an automatic floor welding drive unit that converts the Leister TRIAC heat gun into a complete automatic floor welder via quick-clamp assembly – operating at speeds from 0.5 to 4.5 m/min with a dual-axis groove-tracking guide arm, wall-to-wall welding capability to within 51 mm of walls, low underside clearance for confined fixture environments, and compatibility with all Leister and Weldy speed welding nozzles for flooring in a drive unit weighing 5.3 kg.

Automatic Floor Welding Performance in Confined and Standard Floor Installation Environments

Resilient floor covering installation programmes – commercial interiors, public buildings, healthcare facilities, transport vehicles, and industrial production areas – combine two welding requirements that standard automatic floor welders address incompletely. The first is productivity: manual floor welding is slow, physically demanding, and produces seam quality that varies with operator technique and fatigue over the course of a working shift. An automatic drive unit that maintains consistent nozzle travel speed and groove tracking eliminates both constraints, delivering uniform seam quality at twice the speed of manual welding across the full length of every joint run.

The second requirement is access. Standard automatic floor welders cannot approach walls closely enough to complete seams from wall to wall in one continuous machine pass – requiring manual connection welds at both room ends that add time, introduce seam discontinuity, and reduce the quality consistency of the finished floor. In confined environments such as train carriages, bus interiors, and spaces with pre-assembled low-clearance fixtures, standard machines cannot fit beneath the obstruction at all. The MINIFLOOR is engineered for both scenarios. Its tool-right positioning enables approach to within 51 mm of walls. Its compact 245 mm height enables continuous welding beneath pre-assembled bench frames and low-clearance fixtures. And at 5.3 kg drive unit weight, it is practical to carry, position, and manoeuvre across the full range of floor welding environments without the physical demand that heavier automatic machines impose on the operator across a full installation shift.

MINIFLOOR Drive Unit Capabilities and Floor Installation Engineering Features

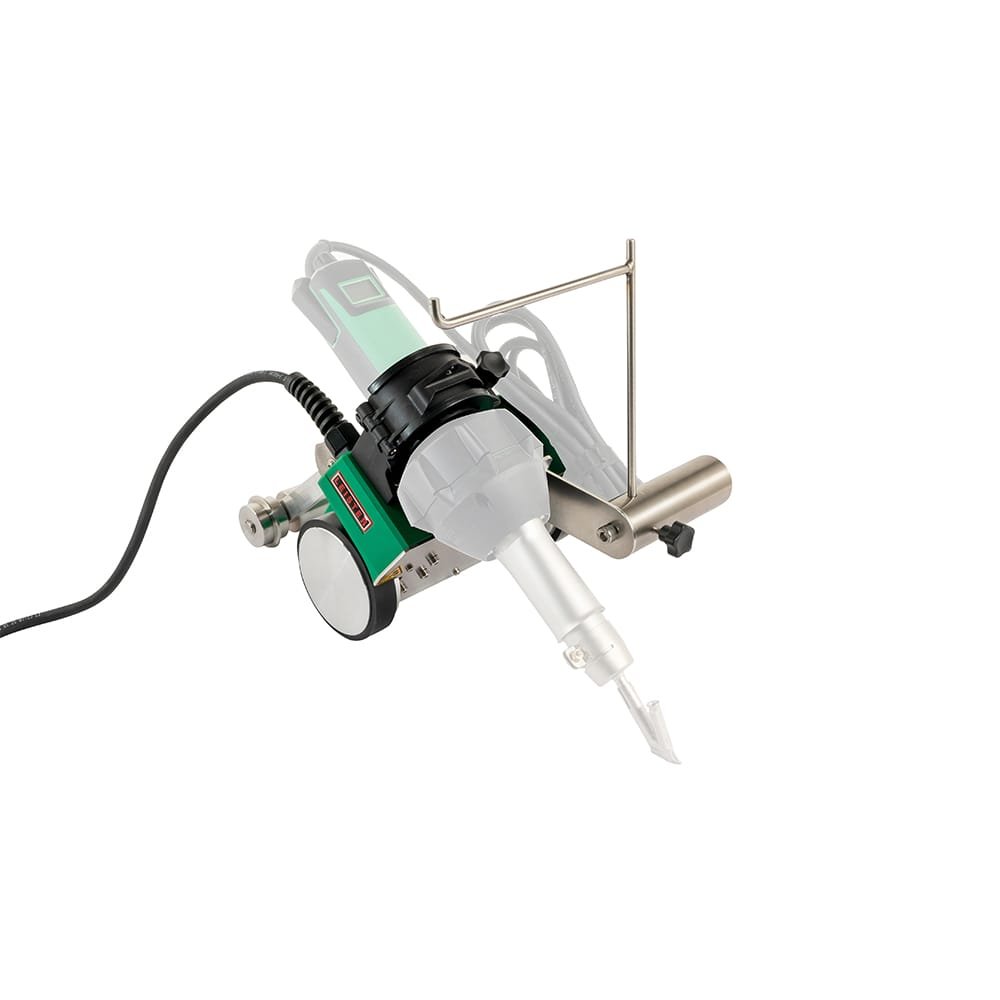

• Quick-Clamp TRIAC Integration for Rapid Assembly and Disassembly: The quick-clamp lock on the holder assembles and disassembles the TRIAC heat gun to the MINIFLOOR drive unit within seconds – enabling rapid transition between automatic machine welding and hand welding for detail areas, without tools and without interrupting the installation workflow for time-consuming equipment changes.
• Welding Speed over 2 m/min – Twice Manual Welding Rate: The MINIFLOOR drive unit delivers welding speeds in excess of 2 m/min on floor covering joints – double the speed achievable by a skilled manual welder – with the individually adjustable start-up speed enabling the operator to set the acceleration ramp to personal preference for smooth, controlled weld run commencement without seam quality compromise at the start of each run.
• Speed Range from 0.5 to 4.5 m/min for Material-Specific Control: The full speed range accommodates different floor covering materials, welding rod specifications, and joint preparation conditions – enabling the operator to select the optimum speed for each material and ambient temperature combination while maintaining the consistent nozzle travel that automatic floor welding delivers over manual technique.

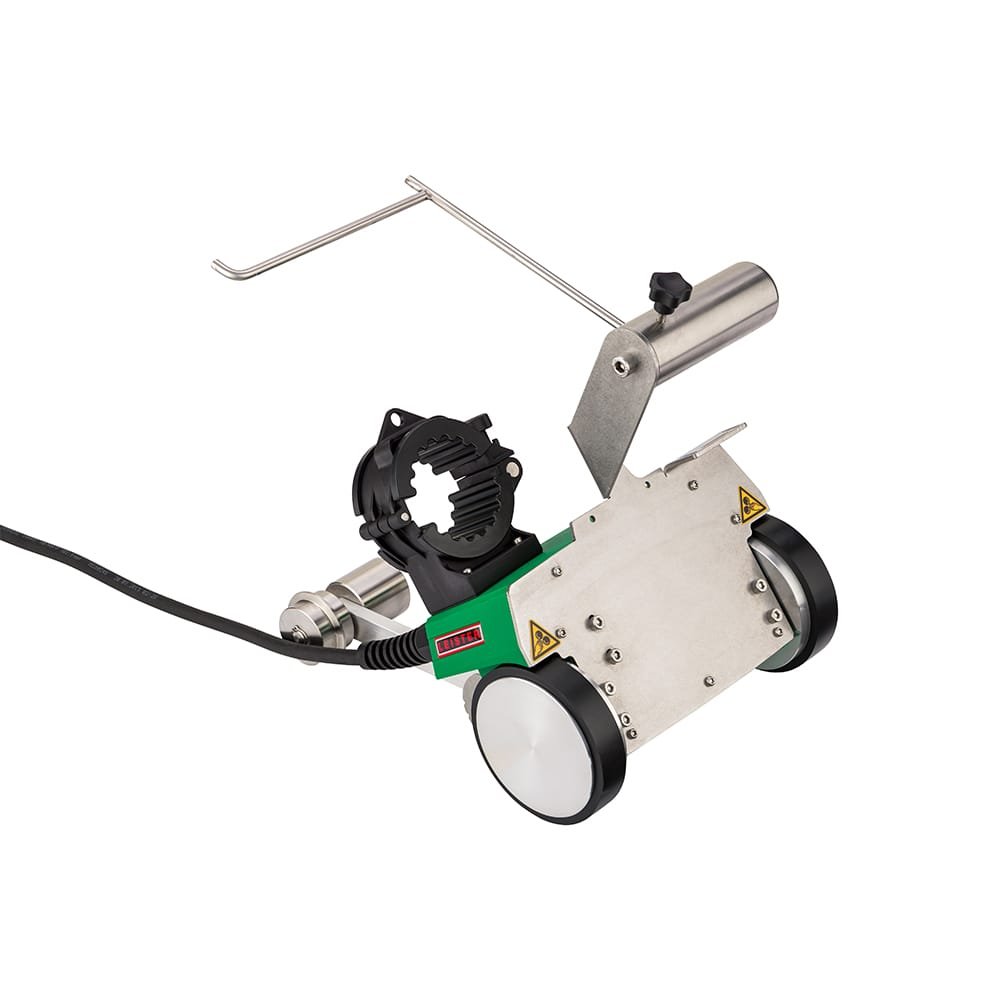

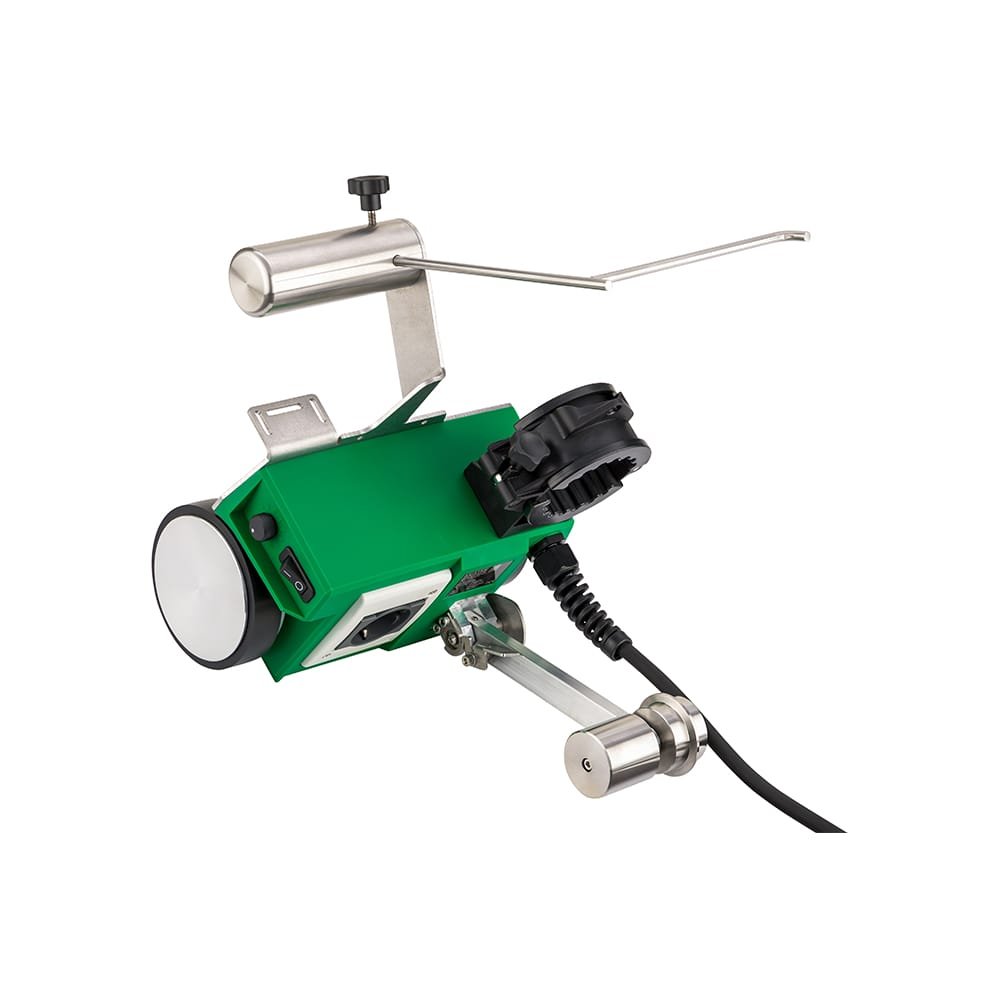

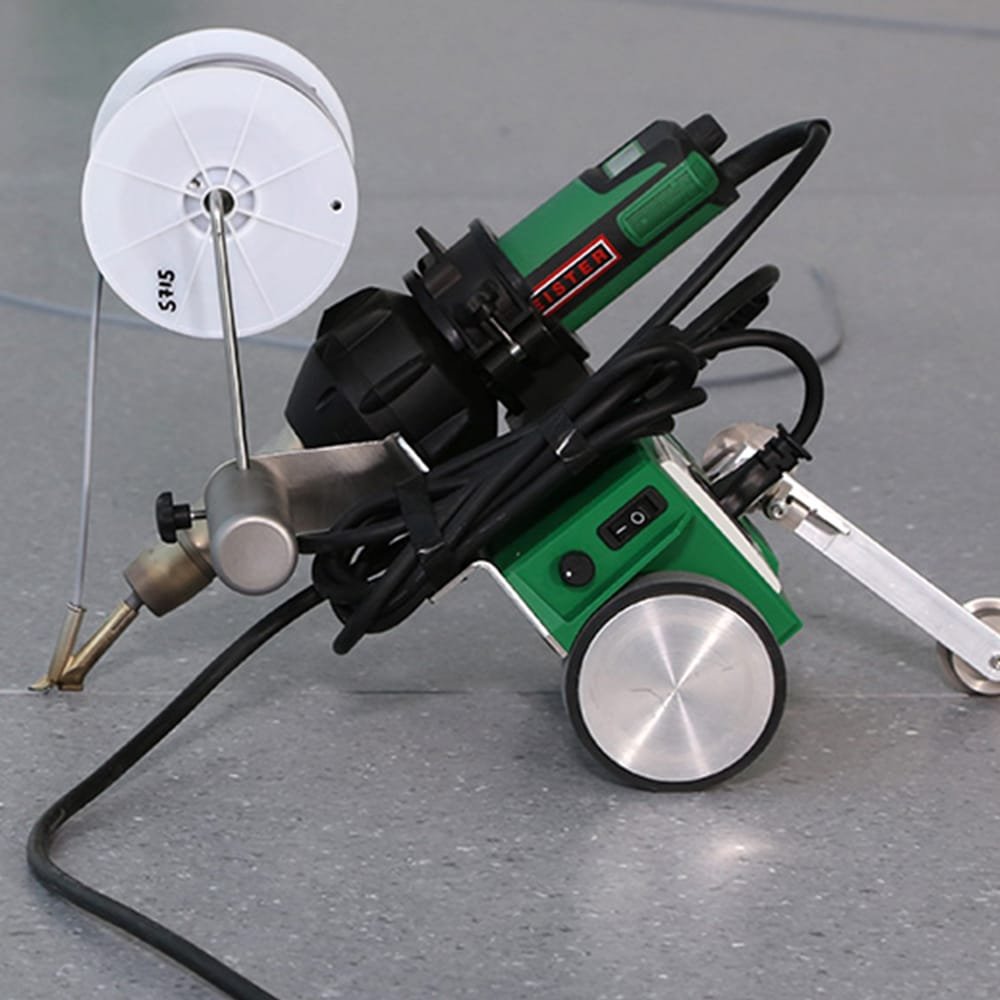

• Dual-Axis Guide Arm with Groove-Tracking Roller: The guide arm is quickly positioned in the prepared groove and the guide roller tracks precisely along the joint line throughout the weld run – maintaining nozzle alignment even where groove preparation is imperfect or the joint line deviates slightly from straight. The dual-axis design compensates for groove variation in two planes, producing a consistently centred weld bead regardless of minor groove inconsistencies in the prepared floor covering.

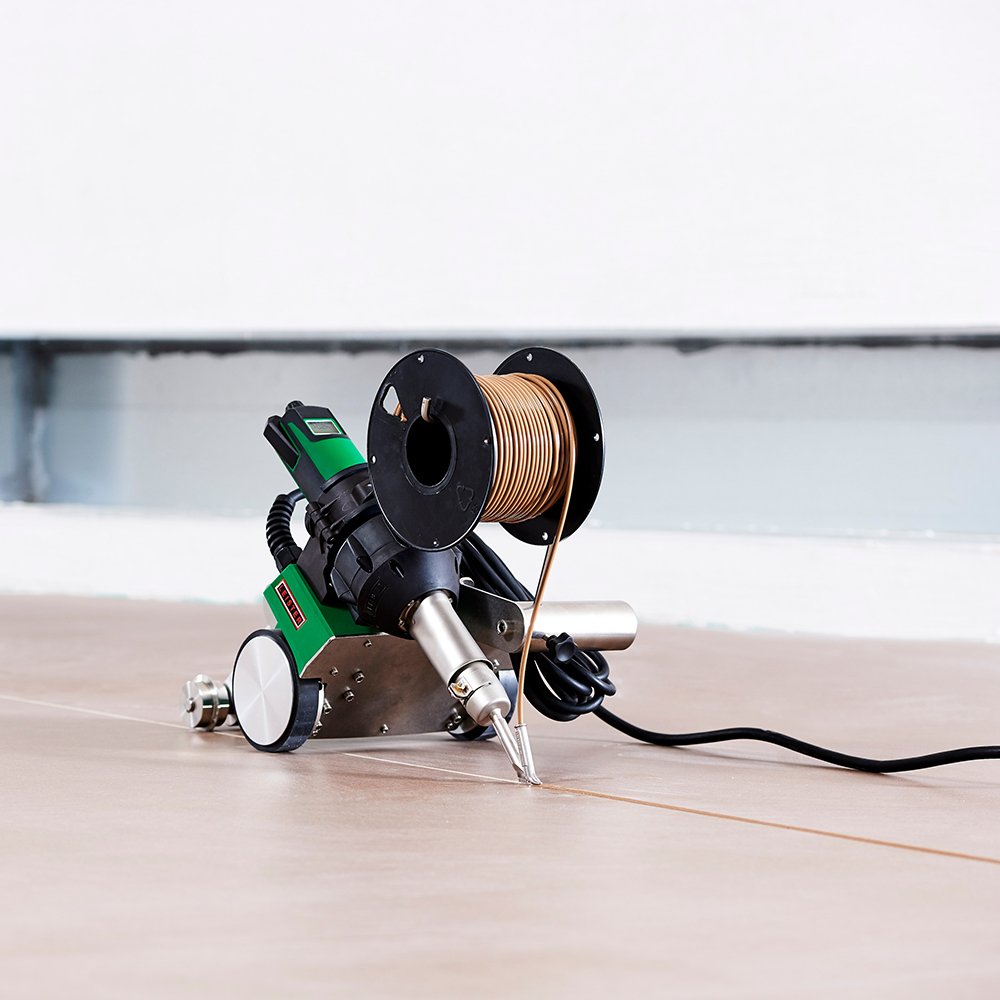

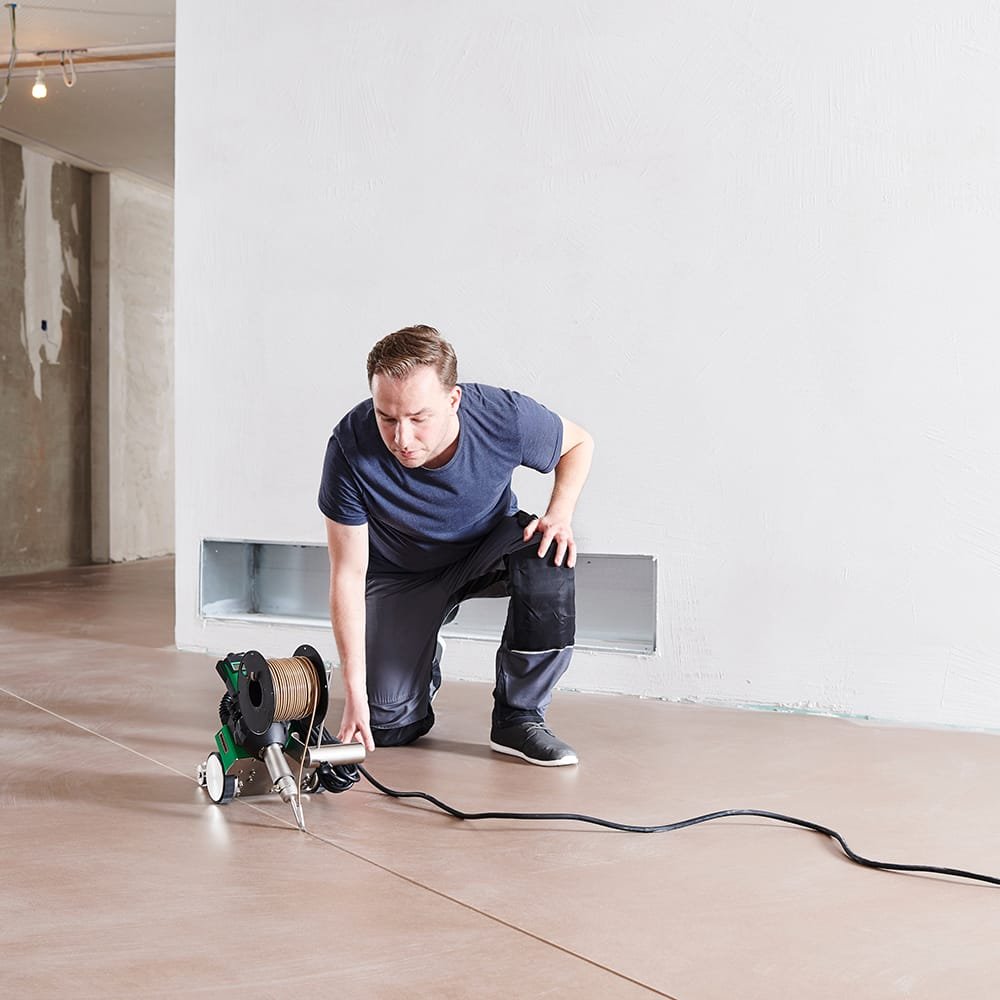

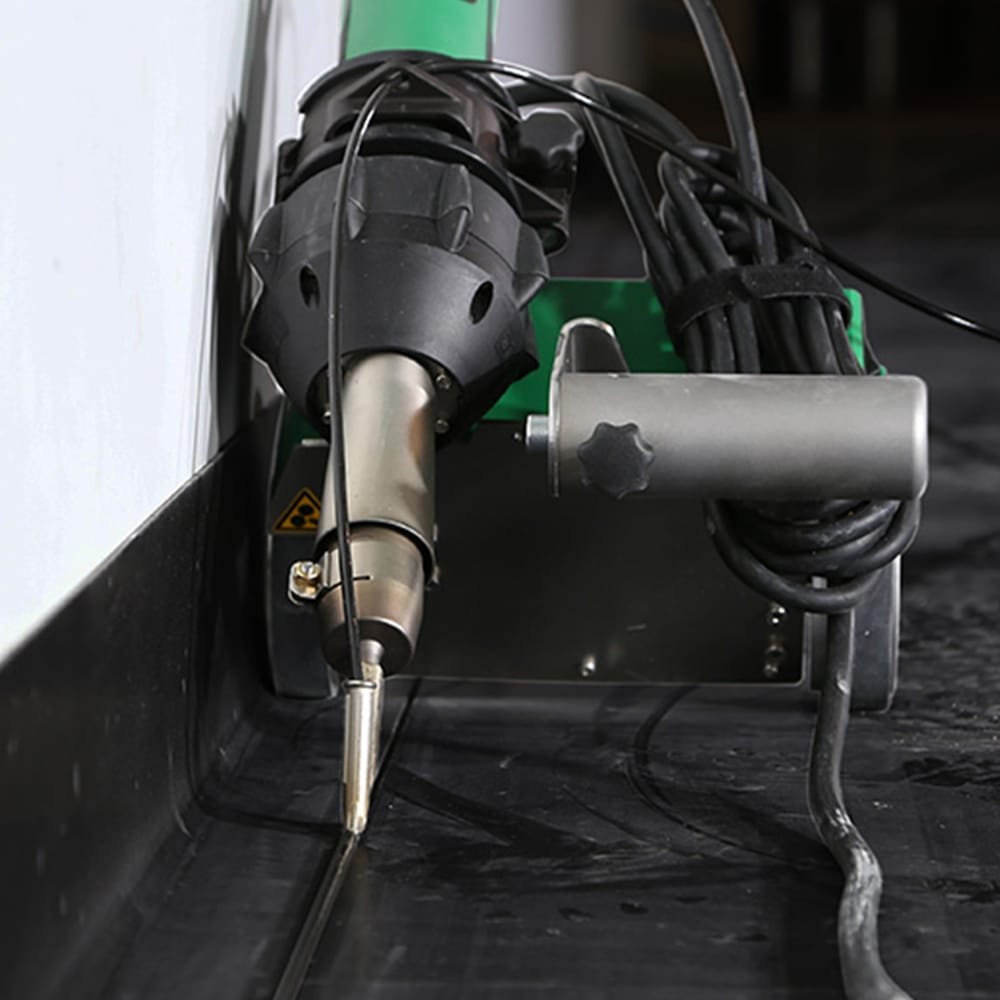

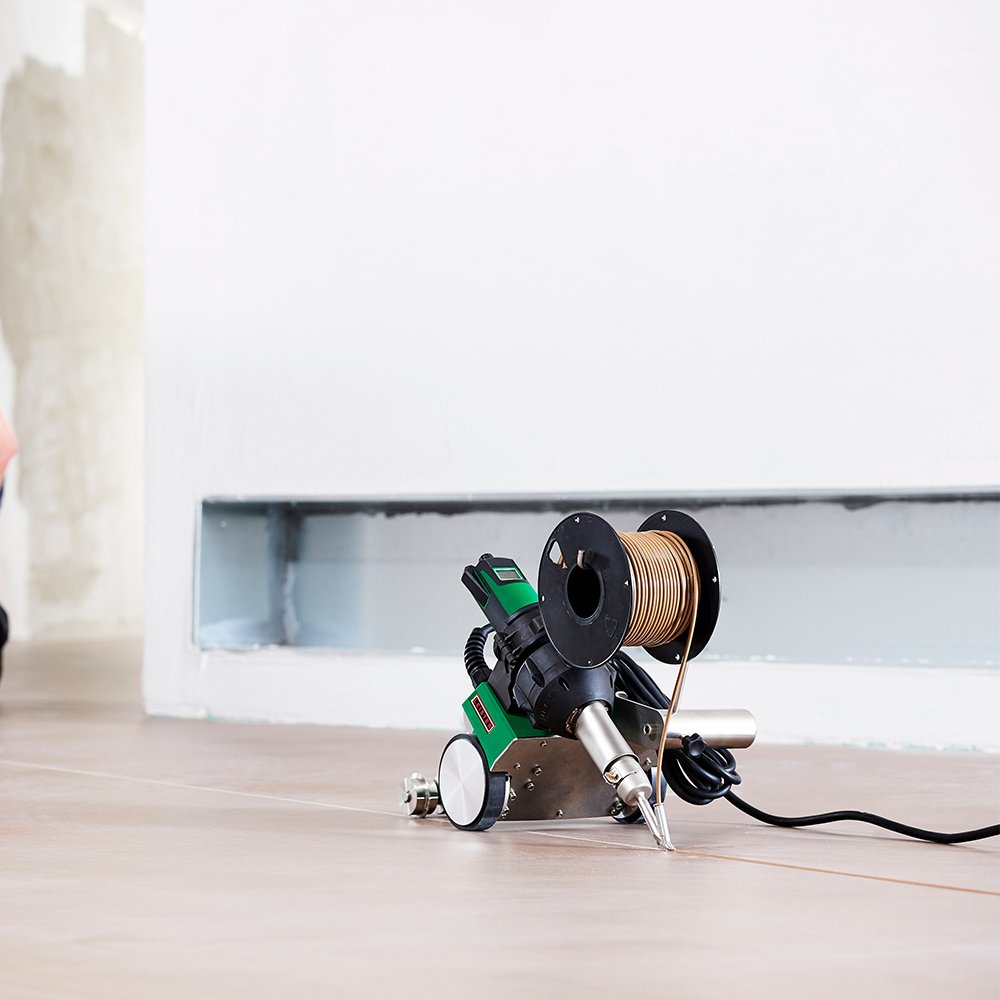

• Wall-to-Wall Welding with 51 mm Minimum Wall Distance: The TRIAC heat gun is positioned to the outside right of the drive unit, enabling the MINIFLOOR to approach walls, skirting boards, and perimeter profiles to within 51 mm – sufficient for most standard installation profiles including L-angle base profiles and common fillets. This allows each seam to be welded from wall to wall in a single machine pass with only one transition, eliminating the manual perimeter connection welds that standard automatic floor welders require at both room ends.

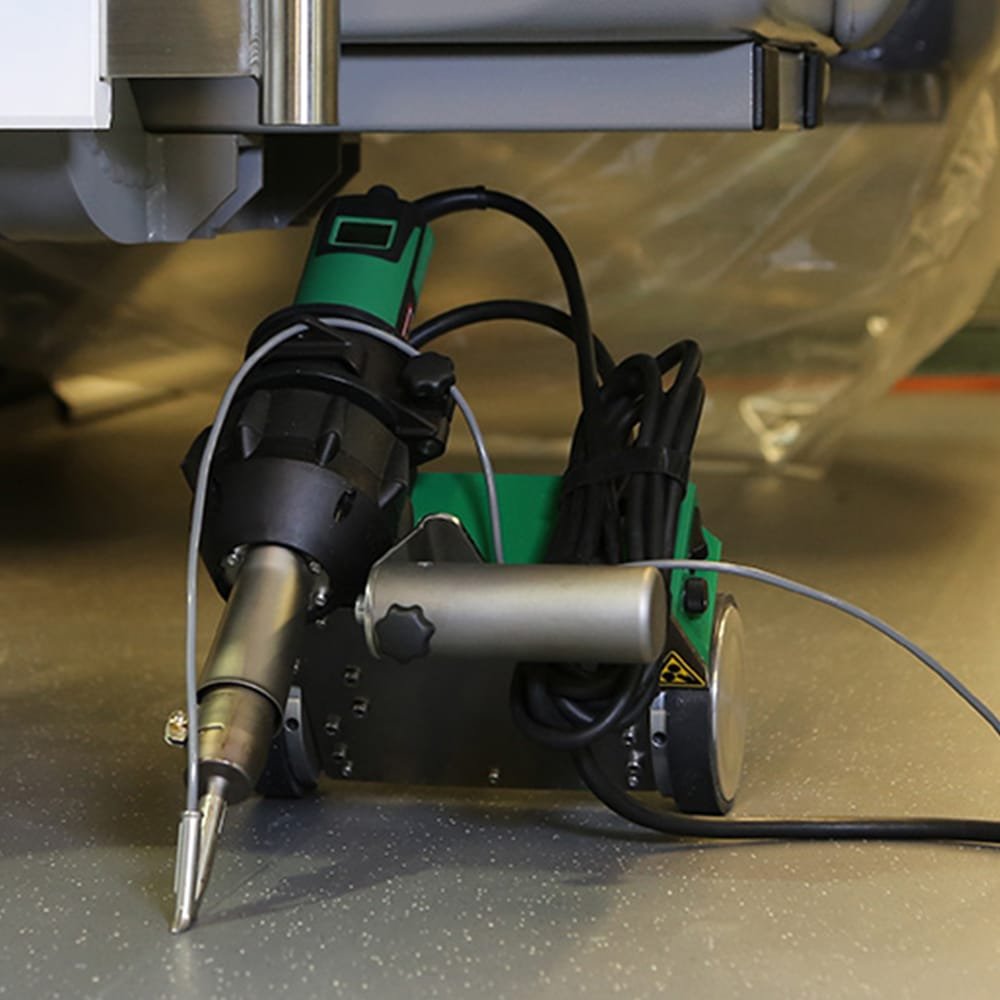

• Low Underside Clearance for Confined Fixture Environments: The compact 245 mm height allows the MINIFLOOR to weld continuously beneath pre-assembled bench frames, seating structures, and fixed low-clearance installations in trains, buses, coaches, and public transport vehicles – enabling complete floor seam welding in confined interiors without disassembly of the fixtures or manual welding in the restricted space beneath them.
• Productive from 1.2 m Seam Length: The MINIFLOOR is operationally effective from seam lengths as short as 1.2 m – making it worthwhile to assemble and use the drive unit on short seam sections as well as long runs, rather than reverting to manual welding for sections below a minimum length threshold that reduces productivity on fragmented floor layouts with multiple short seam segments.
• Compatibility with All Leister and Weldy Speed Welding Nozzles for Flooring: The MINIFLOOR accepts the complete range of Leister and Weldy speed welding nozzles for floor covering applications, enabling operators to use their existing nozzle inventory without additional nozzle investment and to select the nozzle geometry appropriate to each floor covering material and welding rod specification within the standard nozzle range.

Automatic Floor Welding Applications for the Leister MINIFLOOR in Oman and the GCC

• Commercial and Institutional Resilient Floor Covering Installation: Delivers automatic welding speed and seam consistency across PVC, linoleum, and rubber floor covering seam networks in commercial offices, retail environments, hospitals, schools, and public buildings across Oman and the GCC – where installation programme schedule and finished seam quality are both acceptance criteria that manual welding speed and consistency cannot reliably satisfy at scale.

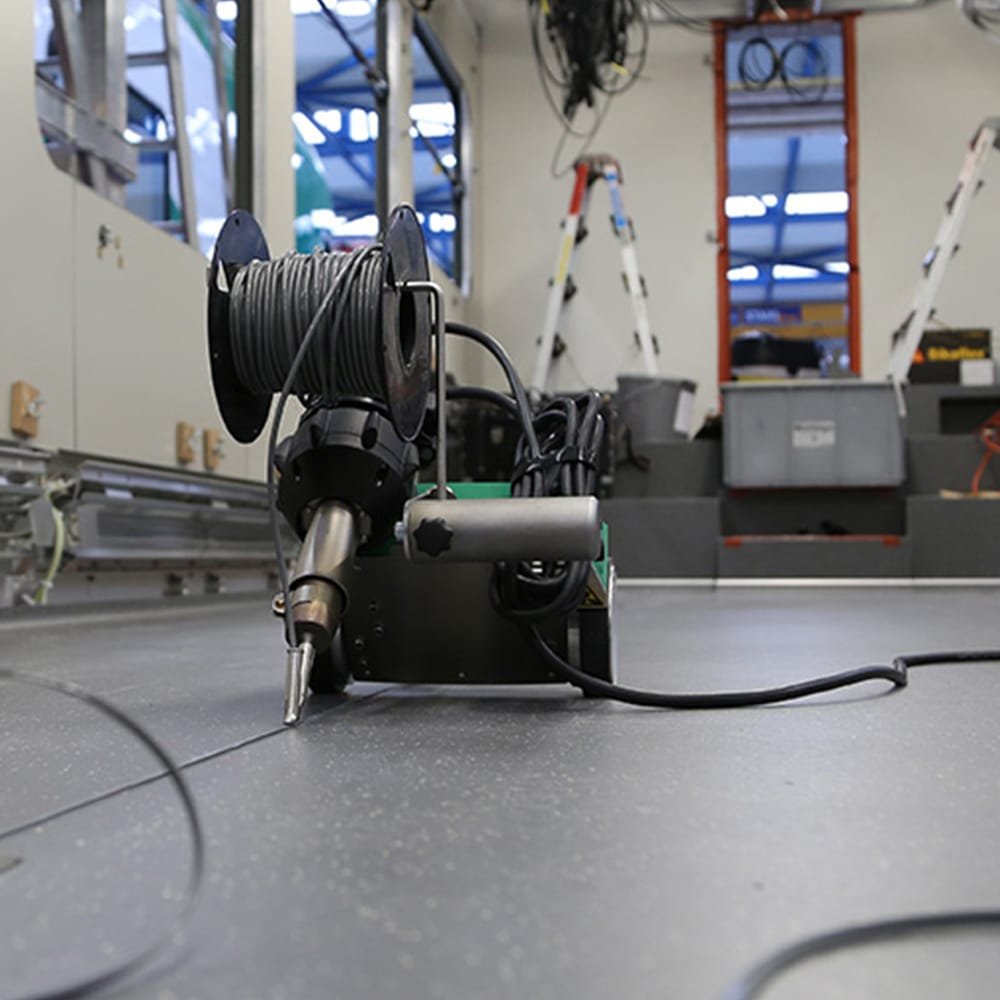

• Public Transport Vehicle Floor Seam Welding: The low underside clearance and compact form factor enable continuous floor seam welding beneath pre-assembled bench frames, seat pedestals, and equipment mountings in train carriages, buses, coaches, and marine vessel interiors – where fixture disassembly to access the floor for welding is not operationally viable during refurbishment or new build fitting out.
• Healthcare and Hygiene-Critical Floor Installation: Provides the consistent, fully automatic weld seam quality required in healthcare facilities, clinical areas, and food production environments where floor seam integrity and continuity are functional hygiene requirements – and where the seam quality variation of manual welding creates potential hygienic non-compliance in finished floor installations.
• Confined Space and Low-Clearance Area Floor Welding: Enables productive automatic floor welding in confined installation environments – under fixed furniture, in equipment rooms, in low-ceiling service areas, and beneath pre-installed infrastructure – where manual welding is the only alternative when standard automatic machines cannot fit, and where the MINIFLOOR provides machine-speed and quality without the access constraint.
• Wall-to-Wall Large-Area Seam Completion on Commercial Floor Projects: Eliminates manual perimeter connection welds on large-area commercial floor installations by enabling the MINIFLOOR to complete each seam continuously from wall to wall in a single machine pass – reducing total installation time, improving seam continuity at the perimeter, and removing the quality variable of manually welded wall connections from the finished floor.

Leister MINIFLOOR Drive Unit – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing floor installation contractors, interior fit-out specialists, and transport vehicle refurbishment teams with direct access to the MINIFLOOR drive unit alongside the compatible Leister TRIAC heat gun, speed welding nozzles, and the full range of Leister floor welding accessories. As a manufacturer-authorised technical partner, iBuild supports nozzle selection, speed setting configuration for specific floor covering materials, and provides the lifecycle support that keeps the MINIFLOOR system performing to specification across continuous floor installation use.

For floor installation contractors, interior construction specialists, and transport vehicle fit-out teams across Oman and the GCC requiring an automatic floor welding drive unit that delivers machine-speed seam quality in confined access environments, wall-to-wall reach, and the portability of a 5.3 kg system, iBuild is the authorised local source for the Leister MINIFLOOR – backed by manufacturer authority and in-country technical support.
