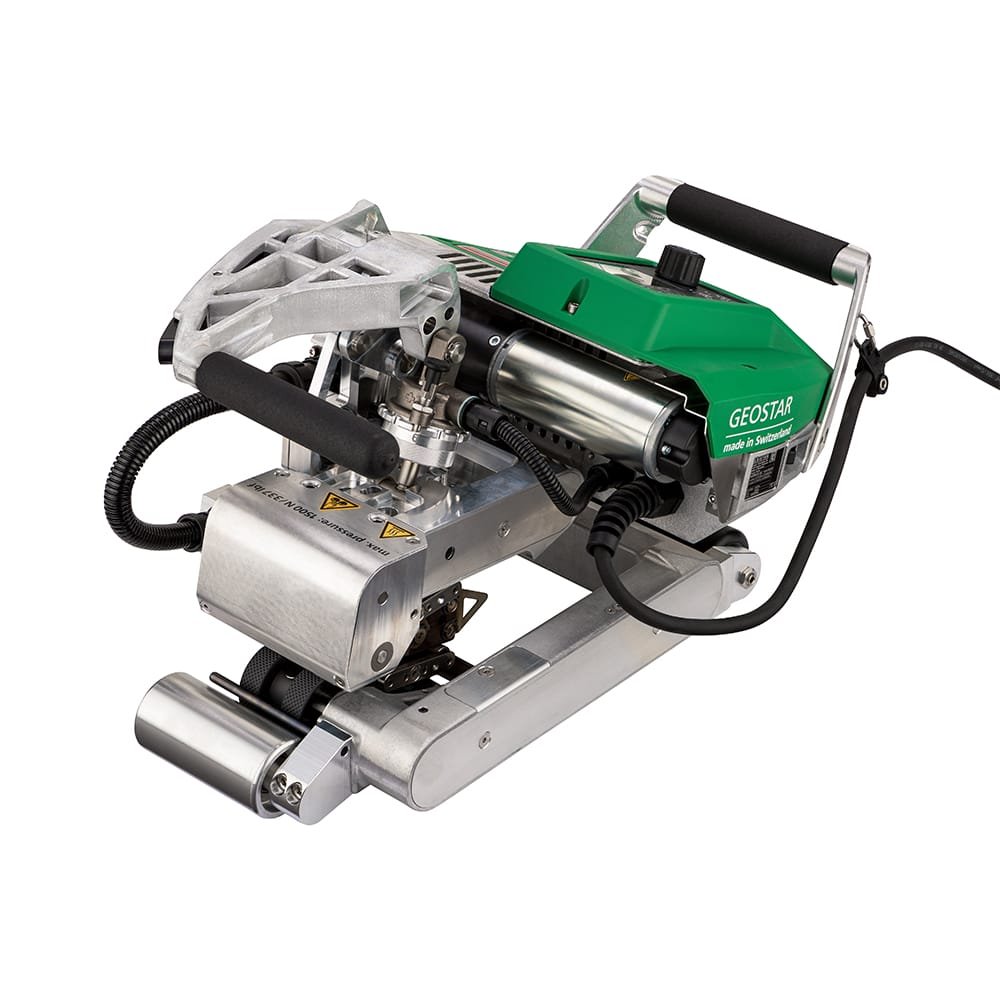

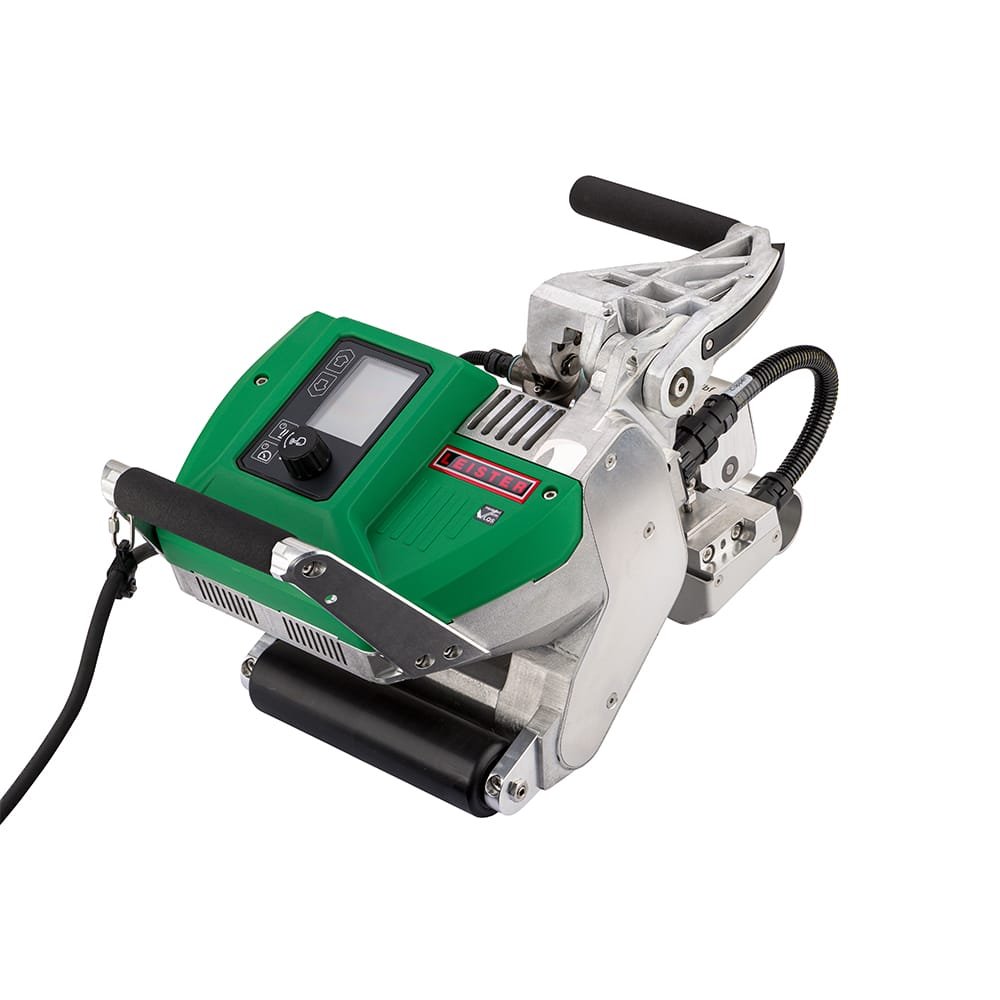

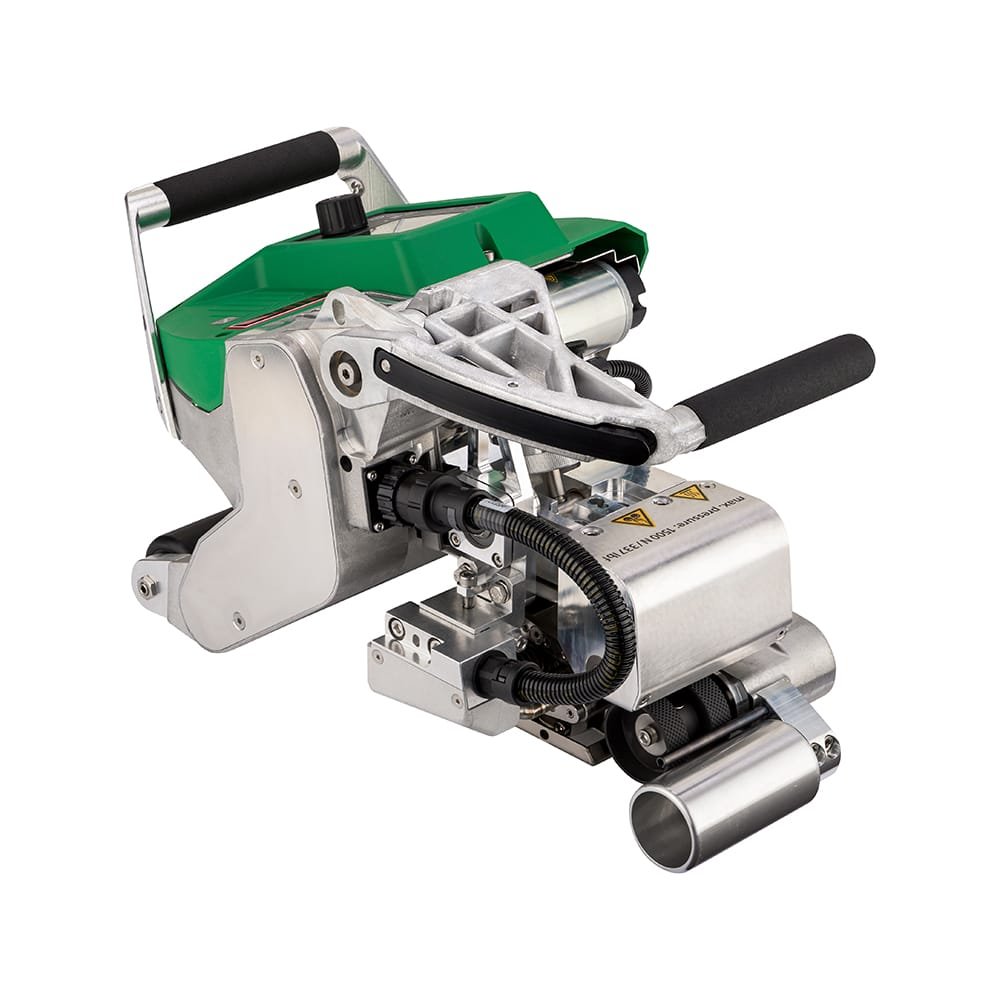

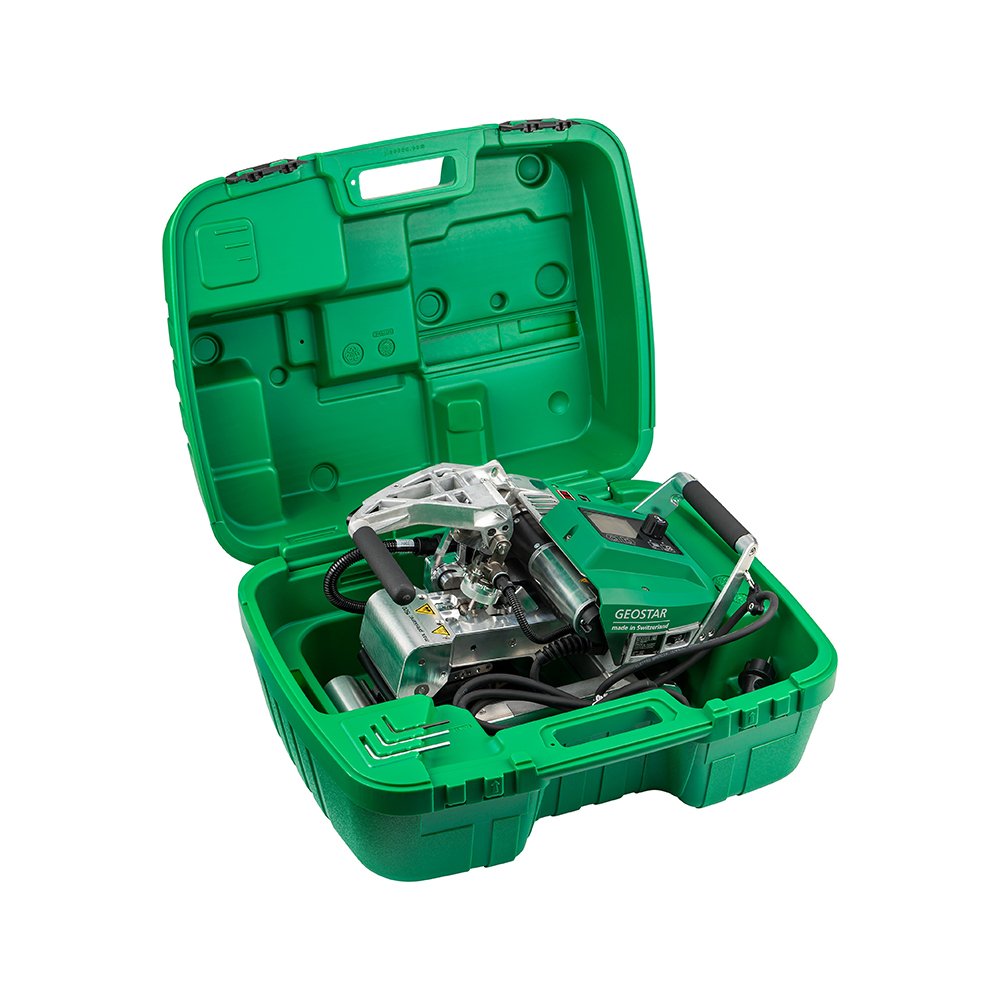

Leister GEOSTAR G5 LQS Automatic Hot Wedge Welding Machine

The Leister GEOSTAR G5 LQS is a 2800 W automatic hot wedge welding machine for geomembrane overlap welding in civil engineering applications, delivering speeds up to 12 m/min with the Leister Quality System recording speed, temperature, and pressure parameters across each weld run – with GPS location tagging and built-in Wi-Fi for wireless data transmission, PDF and CSV export, and quality documentation generation through the LQS app.

LQS-Integrated Geomembrane Welding for Documented Civil Infrastructure Projects

Civil and environmental infrastructure projects involving geomembrane containment systems – landfills, mine impoundments, water reservoirs, and gas barriers – operate under quality assurance frameworks that demand more than a functional weld seam. They require demonstrable evidence that every metre of installed weld was produced within the specified temperature, speed, and pressure parameters, that the location of each weld run on the installed liner is traceable, and that this evidence exists in a format that can be submitted to project clients, environmental regulators, and certification bodies as part of the project handover documentation package.

Manual compilation of weld records from operator logs introduces the gaps, inconsistencies, and transcription errors that undermine quality assurance credibility and create liability exposure at handover. The GEOSTAR G5 LQS eliminates that risk. Its LQS system captures speed, temperature, and pressure continuously throughout each weld run, links each data record to a GPS position, and transmits the data wirelessly via built-in Wi-Fi to the LQS app – where quality documentation, tables, and graphics are generated automatically and exported as PDF or CSV for direct inclusion in project QA submissions. The weld record is complete, accurate, and location-specific before the machine reaches the end of the panel run.

GEOSTAR G5 LQS Performance, Data Capability, and Site Engineering Features

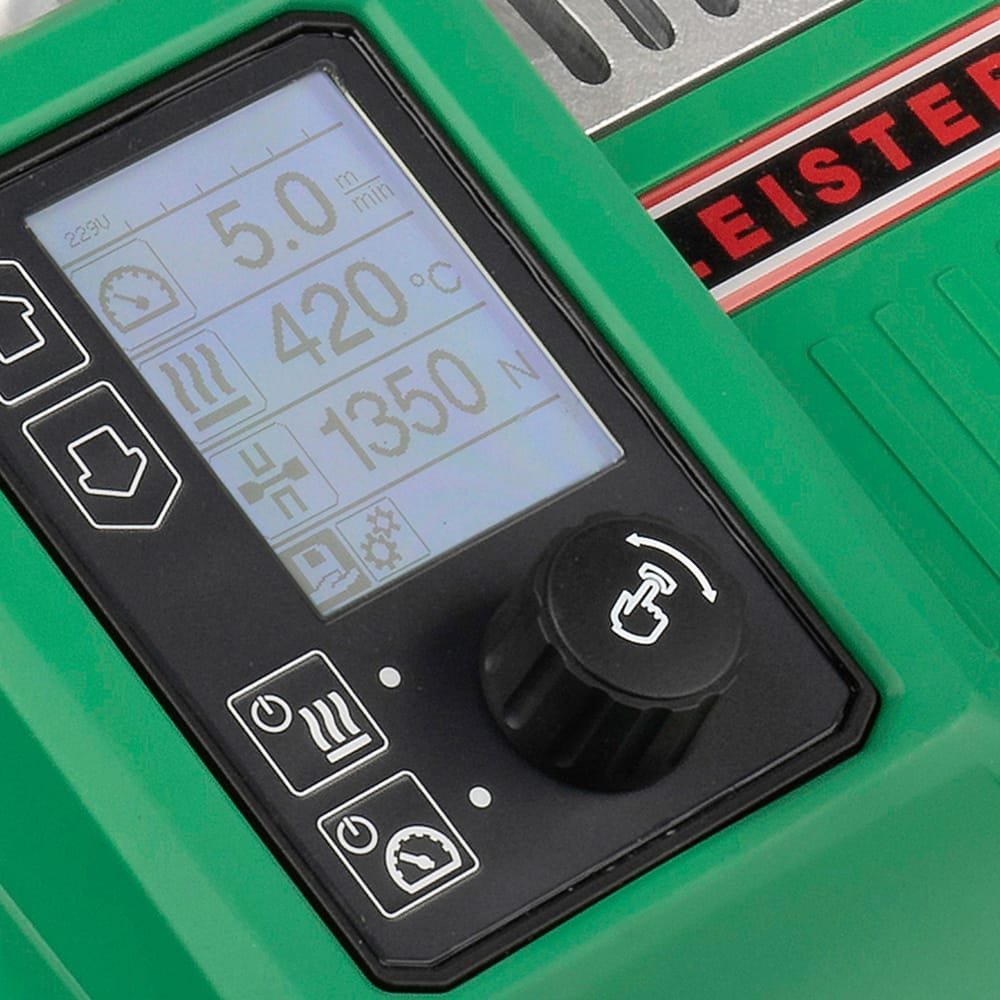

• Leister Quality System (LQS) Data Recording: Continuously captures welding speed, wedge temperature, and welding pressure throughout every weld run, creating a complete and uninterrupted parameter record for each seam that satisfies the quality assurance documentation requirements of civil infrastructure project specifications and environmental regulatory submissions.
• GPS Location Recording: Tags each weld data record with GPS coordinates, linking the parameter history of every weld run to a specific physical location on the installed liner – enabling quality inspectors, project engineers, and certifiers to verify that each section of geomembrane was welded within specification at its confirmed installation position.
• Built-In Wi-Fi for Wireless Data Transmission: Transfers LQS weld data wirelessly from the machine to the LQS app without cable connection or manual data extraction, enabling real-time quality monitoring during active installation and removing the data transfer step from the end-of-shift quality administration process.
• LQS App with PDF and CSV Export: The LQS app processes transmitted weld data into quality documentation, tabular reports, and graphical outputs that can be exported as PDF for client and regulatory submission or as CSV for integration with project data management systems – generating the audit-ready weld quality record the project requires without post-processing effort.
• Welding Speed up to 12 m/min: Operates across a speed range from 0.8 to 12 m/min, delivering large-area installation productivity on straight panel runs while accommodating the reduced speeds required at panel starts, terrain transitions, and detail weld areas within the same machine and parameter set.
• Closed-Loop Temperature Control from 80 to 460 °C: Maintains wedge temperature precisely at the operator-set value throughout the weld run, compensating for speed variation, ambient temperature change, and supply voltage fluctuation – sustaining the thermal consistency that LQS parameter records must reflect as evidence of specification compliance across the full length of each seam.

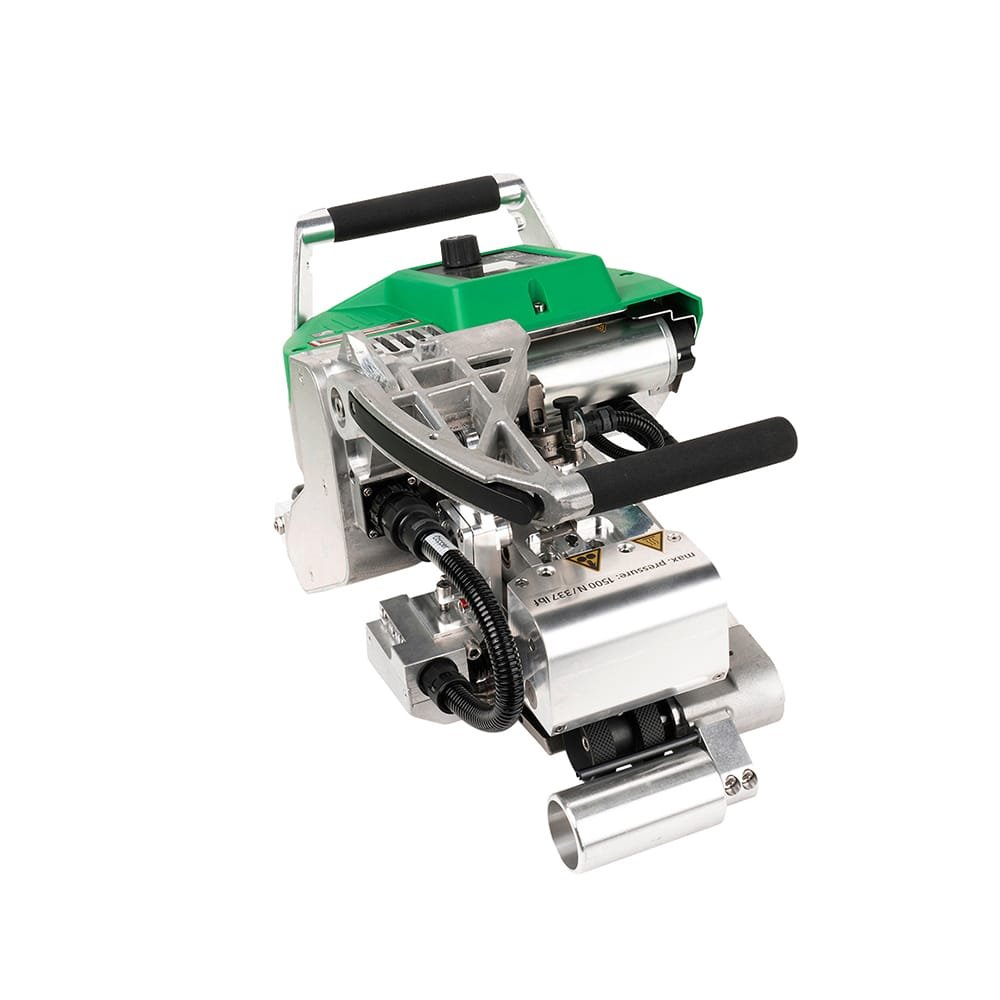

• Maximum Welding Pressure of 1500 N: Applies up to 1500 N of clamping force through steel sharp diagonal drive rollers across the 2 x 15 mm dual weld seam width and up to 150 mm overlap, producing the consolidation pressure and seam cross-section that containment liner structural and hydraulic performance specifications require.
• Sub-One-Minute Hot Wedge Exchange: The 90 mm copper hot wedge is replaced in under one minute without specialist tools, minimising machine downtime when transitioning between geomembrane material types or replacing a wedge at the end of its operational life – maintaining installation programme productivity during active liner placement.
• Aluminium Frame with Maintenance-Accessible Design: The sophisticated aluminium construction provides structural rigidity while enabling optimal access to mechanical components for cleaning, conversion, and servicing – reducing maintenance time on site and allowing the machine to return to production quickly after scheduled or reactive servicing interventions.
• Ergonomic Single-Handed Operation: The integrated clamp and handle lock mechanism allows the operator to guide the GEOSTAR G5 LQS with one hand during active welding, maintaining machine direction and weld quality while the other hand manages liner panels, terrain obstacles, and site navigation across the installation area.

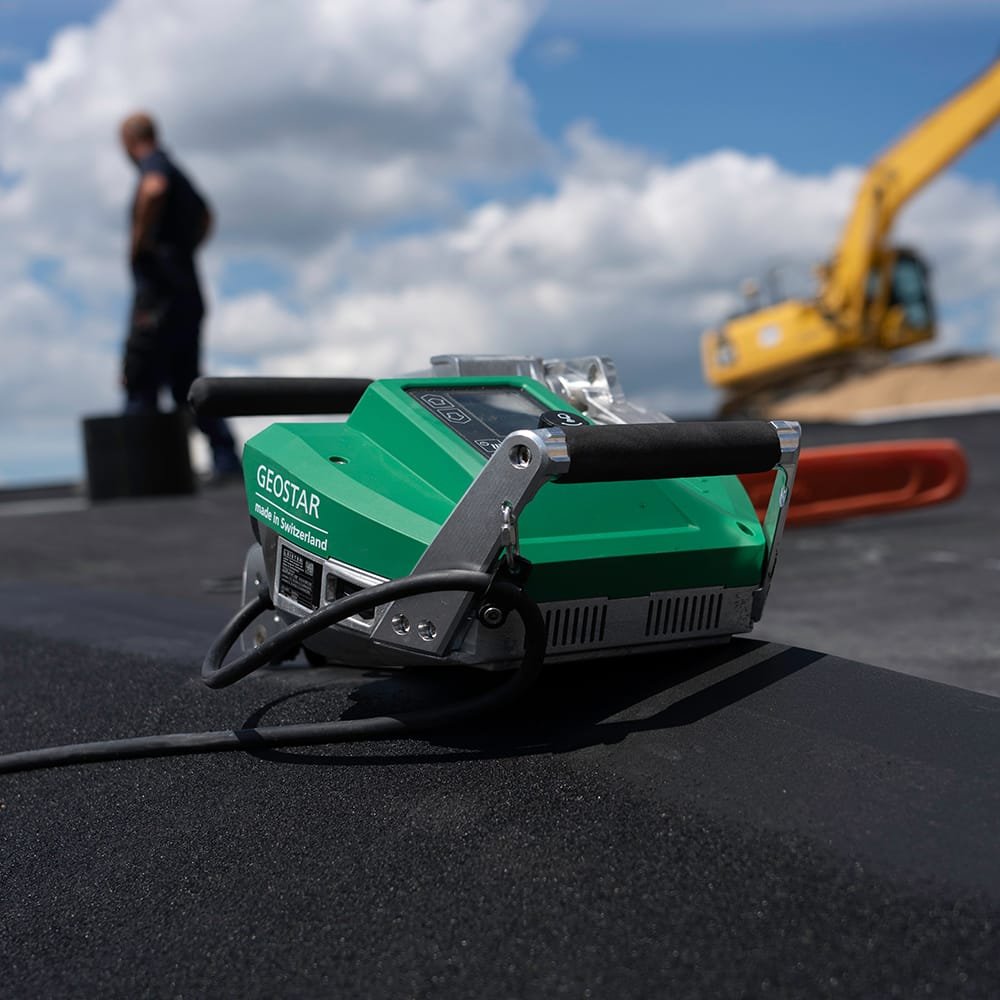

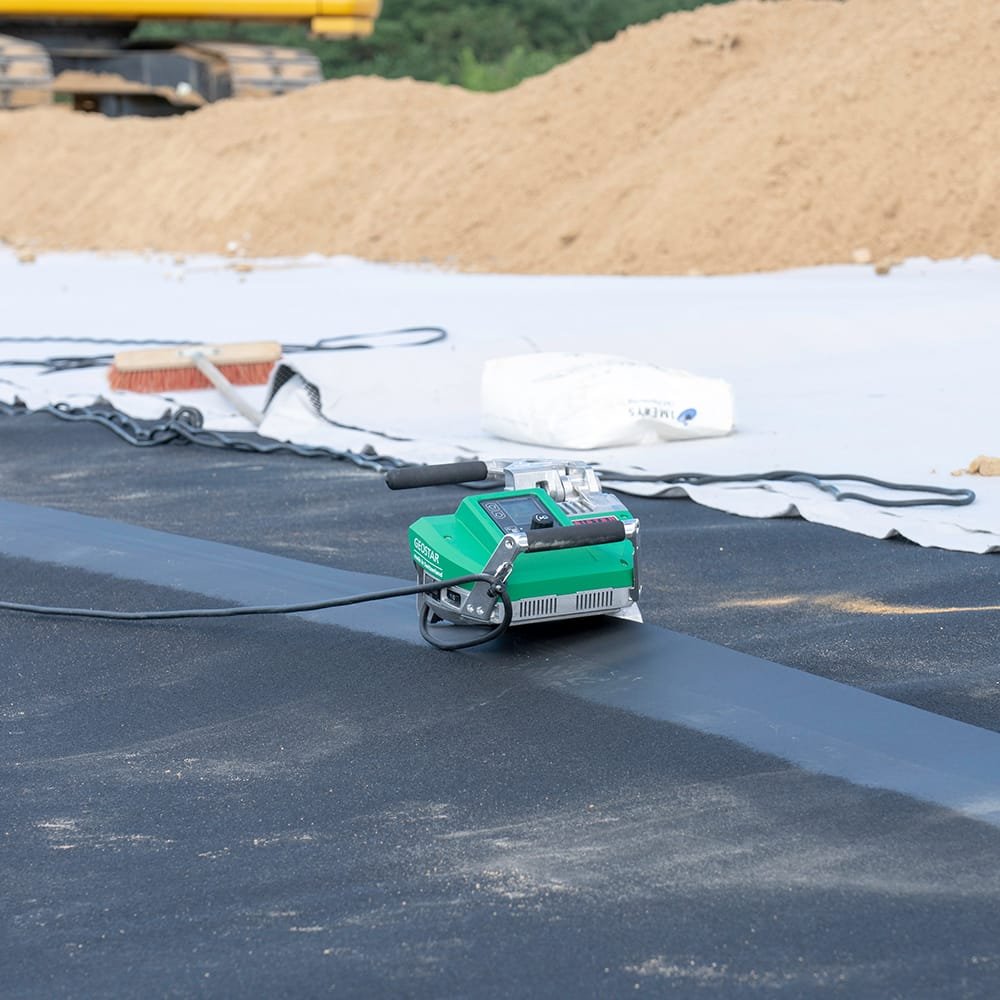

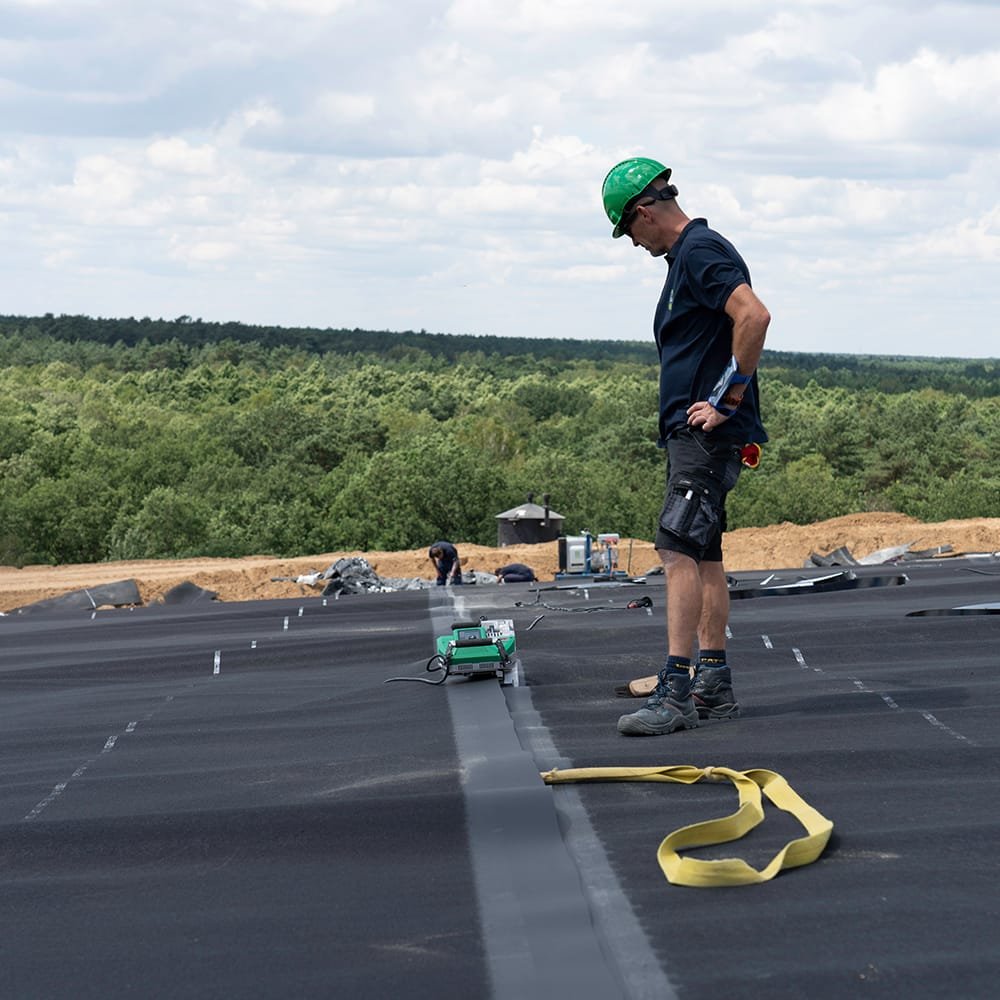

LQS-Documented Geomembrane Welding Applications in Oman and the GCC

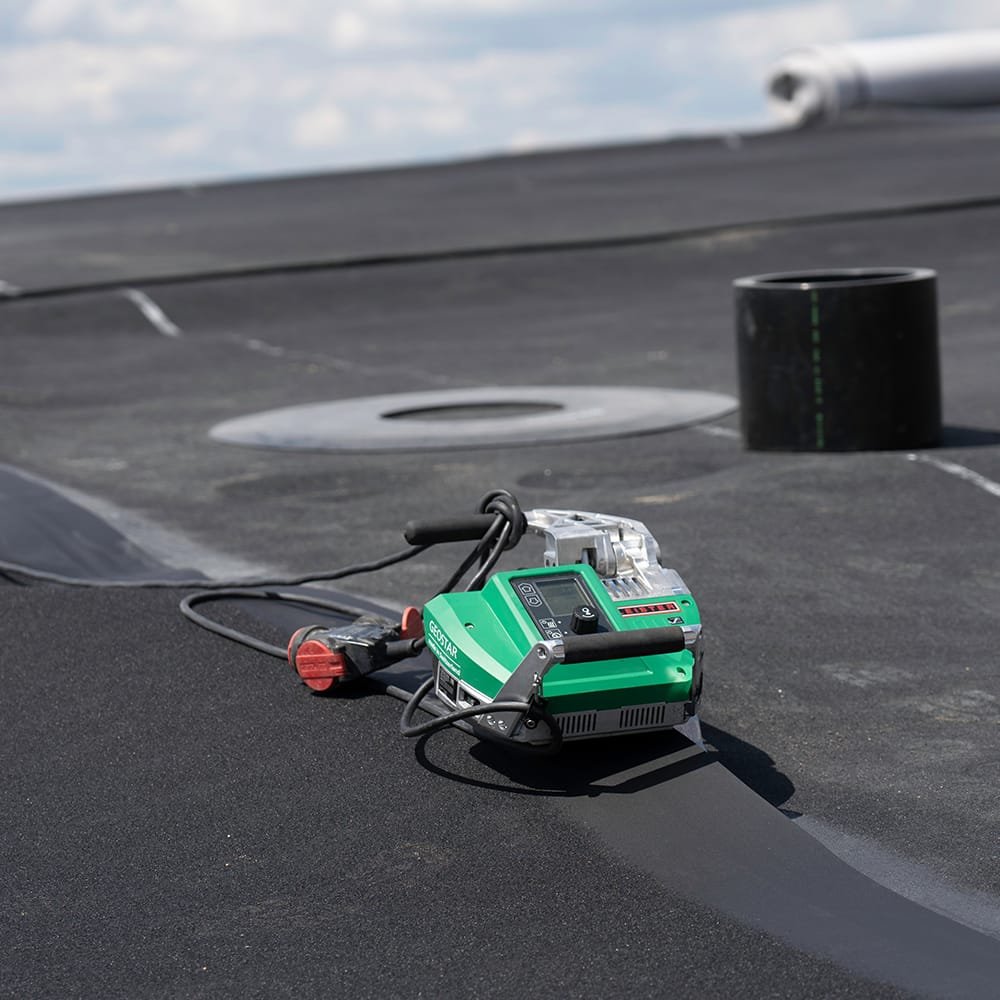

• Regulatory-Grade Landfill and Hazardous Waste Containment Liner Installation: Produces GPS-tagged, parameter-documented weld records for primary and secondary geomembrane liner systems in landfill and hazardous waste containment facilities where environmental regulatory bodies require traceable, instrument-generated evidence of weld specification compliance across every installed seam.
• Water Reservoir and Potable Water Infrastructure Lining: Delivers documented weld quality assurance for potable water storage reservoirs, treated water retention ponds, and water supply infrastructure liners across Oman and the GCC – where project clients and water authority certifiers require LQS-grade weld records as a condition of system commissioning approval.
• Mine Tailings Impoundment and Environmental Barrier Installation: Provides the speed, material range coverage, and GPS-tagged LQS documentation required for geomembrane liner installation in mine tailings containment facilities where environmental permit conditions mandate traceable weld quality evidence and site regulators review installation records as part of the permitting process.
• Multi-Material Geomembrane Projects Requiring Unified Documentation: The GEOSTAR G5 LQS welds FPO, HDPE, LDPE, PP, TPO, and other specified geomembrane materials within a single machine and LQS documentation framework – enabling consistent quality record generation across all liner zones of a project where different material specifications apply to different installation areas.
• Project Handover and Client Certification Documentation: The LQS app PDF and CSV export capability produces the structured, location-referenced weld quality documentation that civil engineering clients, independent certifiers, and environmental regulators require as part of the formal project handover package on geomembrane liner installation contracts across Oman and the wider Gulf region.

Leister GEOSTAR G5 LQS – Authorised Supply and Technical Support Through iBuild in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing civil engineering contractors, geomembrane installation specialists, and project quality managers with direct access to the GEOSTAR G5 LQS alongside the full range of compatible hot wedges, drive rollers, and Leister geo-welding accessories. As a manufacturer-authorised technical partner, iBuild supports LQS system configuration, app setup, and GPS data management for project-specific documentation requirements – ensuring the GEOSTAR G5 LQS generates quality records that meet the format and content specifications of the project QA plan from first use.

For civil contractors, environmental engineers, and geomembrane liner installation teams across Oman and the GCC whose projects require automatic hot wedge welding performance combined with GPS-tagged, Wi-Fi-transmitted, audit-ready weld quality documentation, iBuild is the authorised local source for the Leister GEOSTAR G5 LQS – supported by in-country technical expertise and comprehensive manufacturer-backed lifecycle support.
