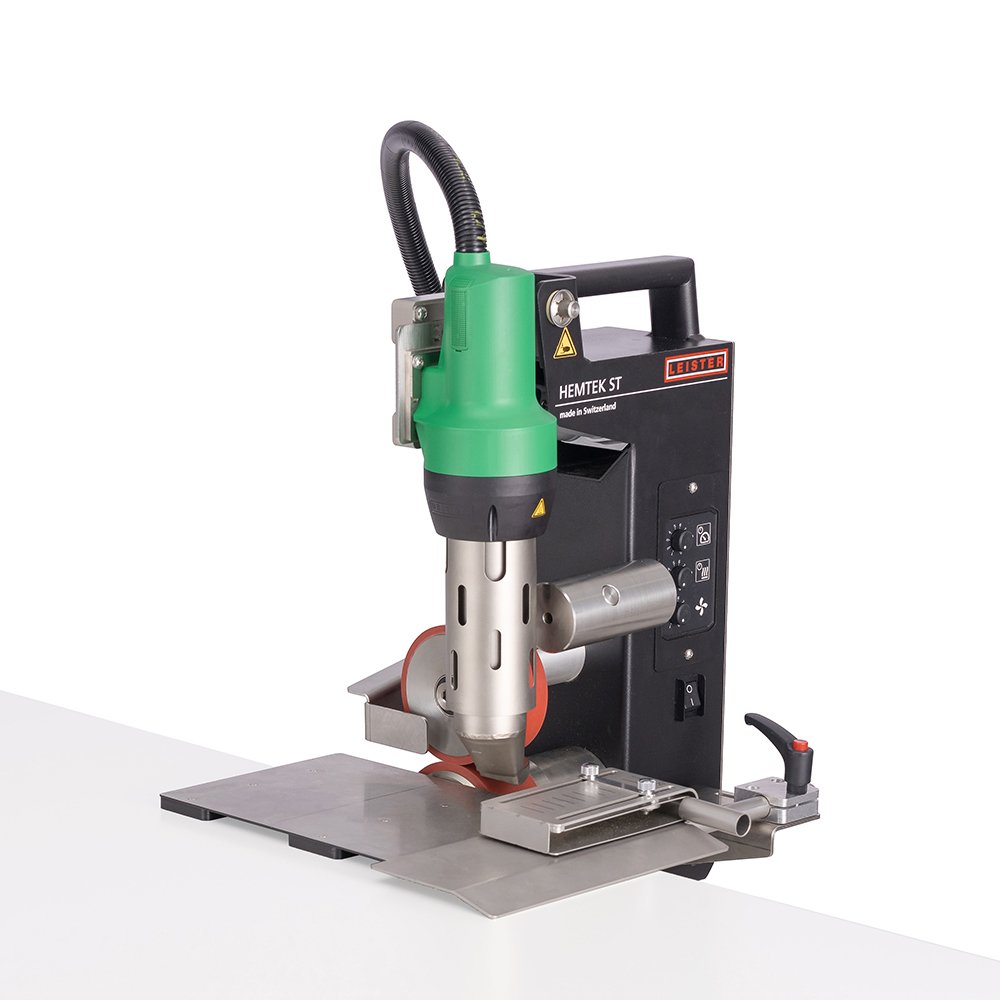

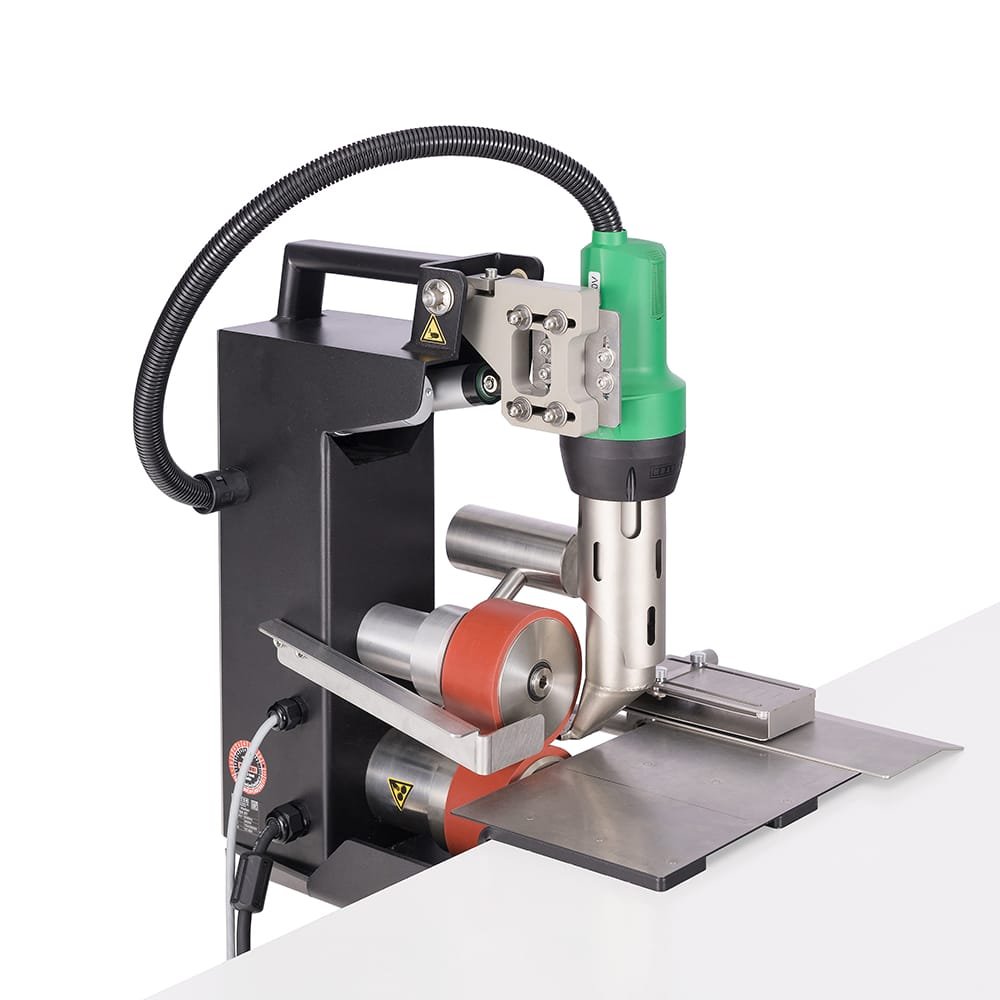

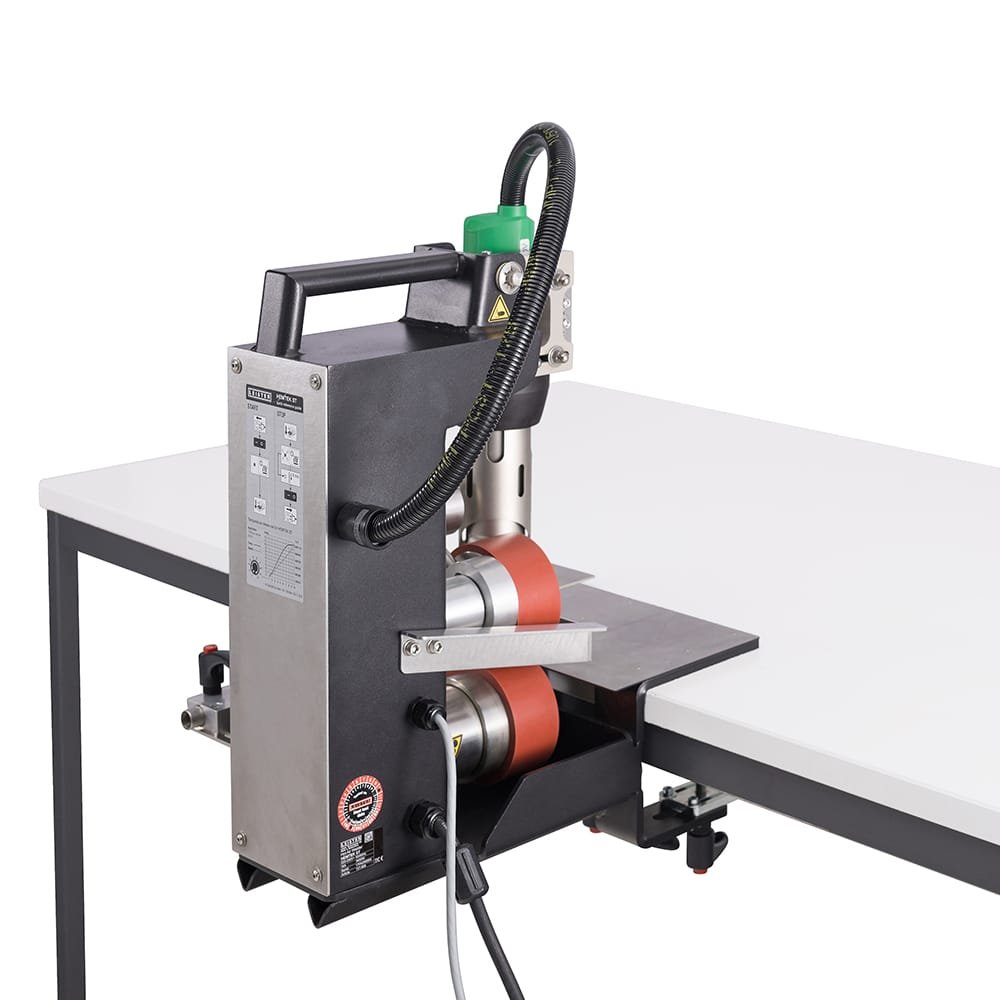

Leister HEMTEK ST Banner and Tarpaulin Hem Welding Machine

The Leister HEMTEK ST is a 3450 W dedicated hem welding machine designed for continuous hot air hem welding of PVC, PE, PP, and other thermoplastic banners and tarpaulins at speeds up to 12 m/min – with a 40 mm welding nozzle seam width, tool-free hem guide in three sizes opening to 100 mm with piping, adjustable air volume, foot pedal hands-free operation, and a single-pass process that completes hems from start to finish without pre-welding preparation or post-welding heat gun work.

Single-Pass Hem Welding for Banner and Tarpaulin Fabrication

Banner and tarpaulin fabrication operations producing finished thermoplastic products for commercial print, advertising, event, transport, and industrial cover applications share a production efficiency requirement: hem welding must be fast, consistent, and complete in a single machine pass without the handling, preparation, and finishing steps that multi-stage processes impose on every metre of hem. Material pre-treatment before welding and heat gun finishing after welding add non-productive time to every production run, create intermediate handling points where material can be misaligned or damaged, and introduce process variables that affect hem quality consistency across a production batch.

The HEMTEK ST eliminates all of these intermediate steps. From the moment the banner or tarpaulin material enters the hem guide to the point it exits the machine, the hem is formed, folded, and welded to completion in a single continuous process. No heat gun is required before or after the machine pass. No material preparation is needed prior to welding. The foot pedal transfers control to the operator’s foot, leaving both hands free to guide the thermoplastic material accurately through the hem guide and maintain tension consistency throughout the weld run – the two factors that most directly determine hem straightness and seam quality in banner fabrication. For banner makers, sign fabricators, and tarpaulin producers across Oman and the GCC, the HEMTEK ST provides the production simplicity and output consistency that single-step hem welding makes possible.

HEMTEK ST Hem Welding Capabilities and Fabrication Production Features

• Single-Pass Complete Hem Welding Process: The HEMTEK ST forms, guides, and welds banner and tarpaulin hems from start to finish in one continuous machine pass without requiring material pre-preparation before welding or heat gun finishing after the machine pass – reducing production cycle time, eliminating intermediate handling steps, and removing the process variables that multi-stage hem production introduces into seam quality consistency.
• Tool-Free Hem Guide in Three Sizes: The hem guide is available in 20 mm, 30 mm, and 40 mm configurations and adjusts without tools, enabling rapid transition between different hem widths and banner specifications during a production session – opening to 100 mm with piping for applications where the hem profile must accommodate an internal structural pipe or reinforcement rod.
• 3450 W Heating Power with Temperature Range from 100 to 650 °C: The heating system covers the full process temperature range required for thermoplastic hem welding across PVC, PE, PP, and other banner and tarpaulin materials, delivering the thermal output necessary for consistent seam fusion at speeds up to 12 m/min without thermal deficit that would compromise seam integrity or require speed reduction to compensate.
• Welding Speed up to 12 m/min with Adjustable Air Volume: The speed range from 0.8 to 12 m/min accommodates different material grades, hem widths, and production output requirements, while the adjustable air volume enables the operator to fine-tune the heat transfer to the specific thermoplastic material being welded – maintaining seam quality across material weight, composition, and thickness variations within the same machine configuration.
• 40 mm Welding Nozzle Seam Width: The 40 mm seam width provides the bond area required for structurally sound hem seams on commercial banners and tarpaulins, ensuring that the welded hem meets the peel and shear strength requirements of banner hardware attachment systems including eyelets, pole pockets, and hem clips under the tension and wind loading that installed banners and covers encounter.

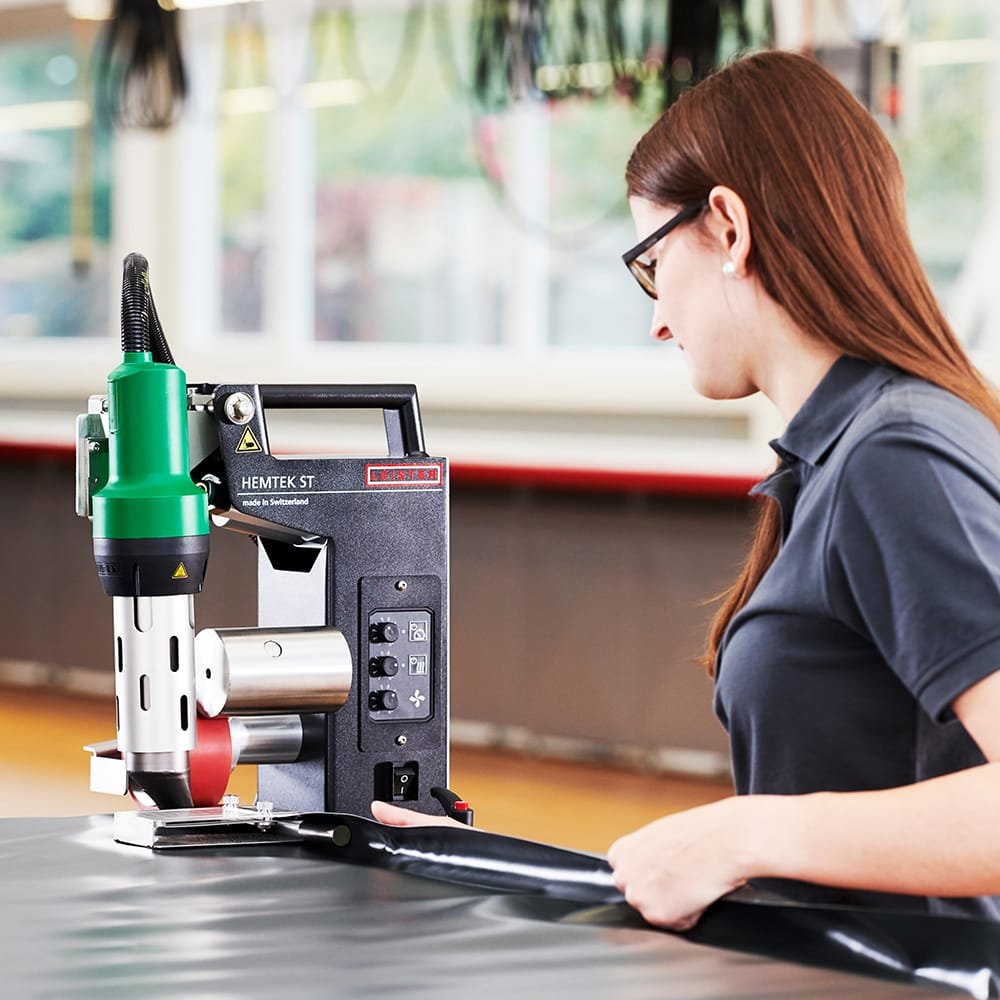

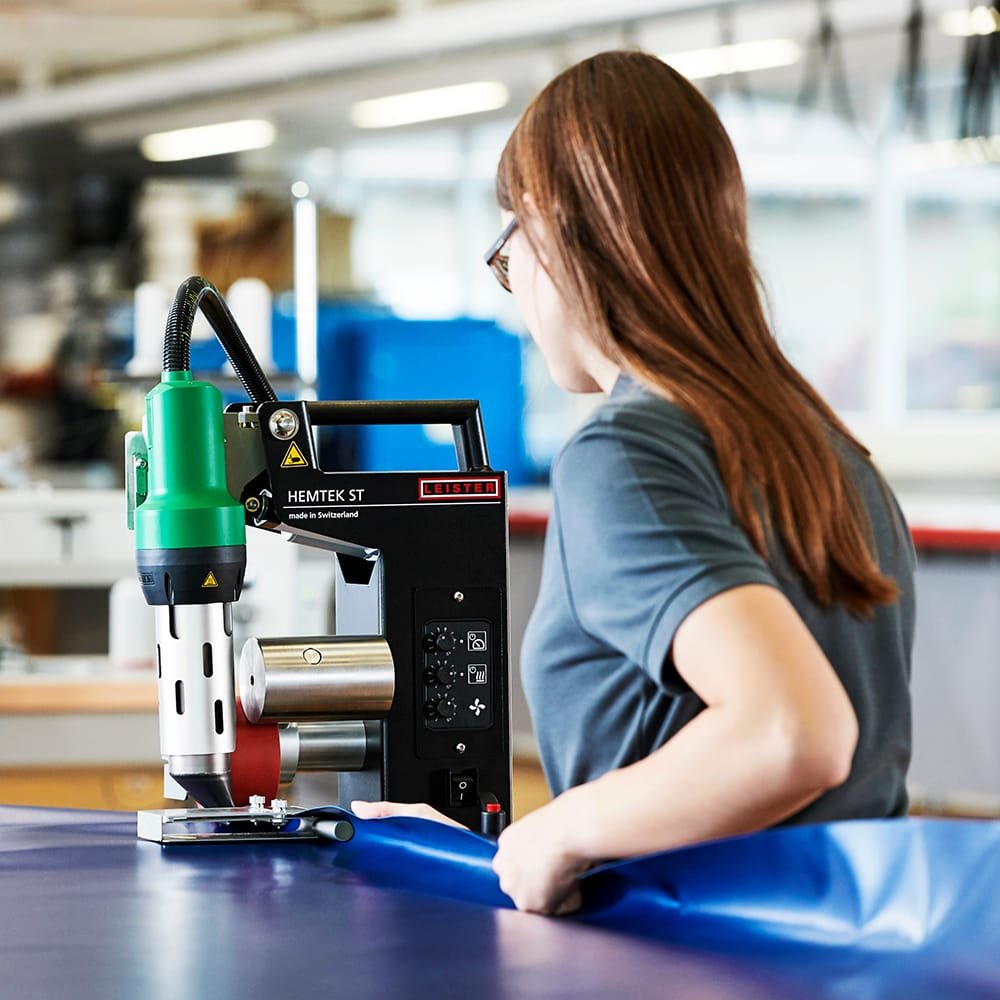

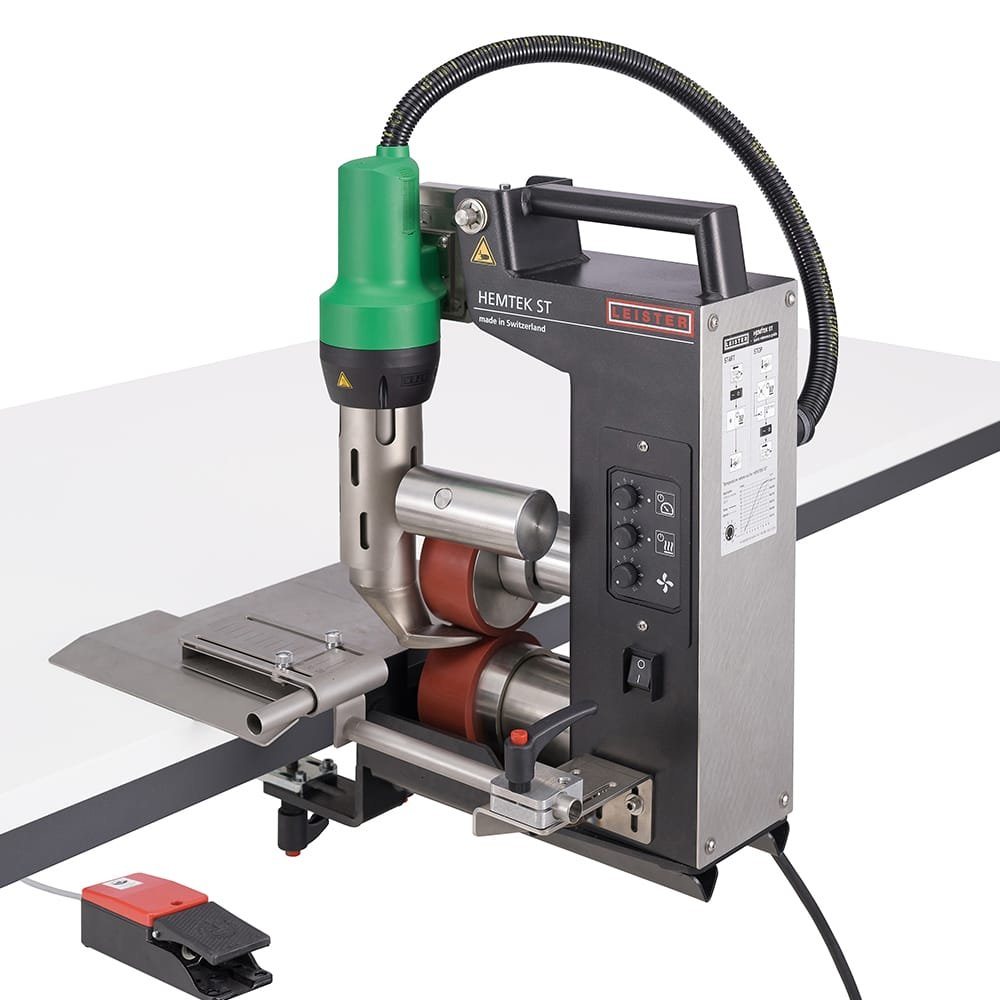

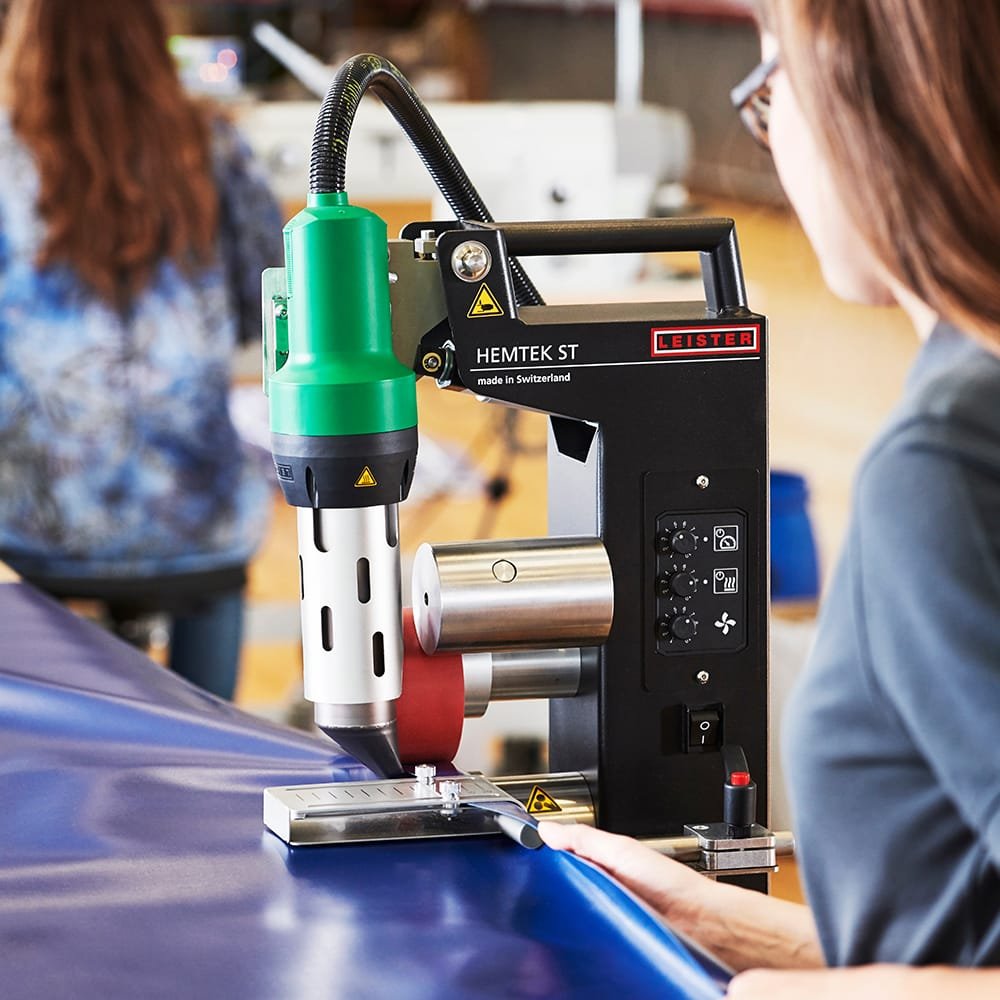

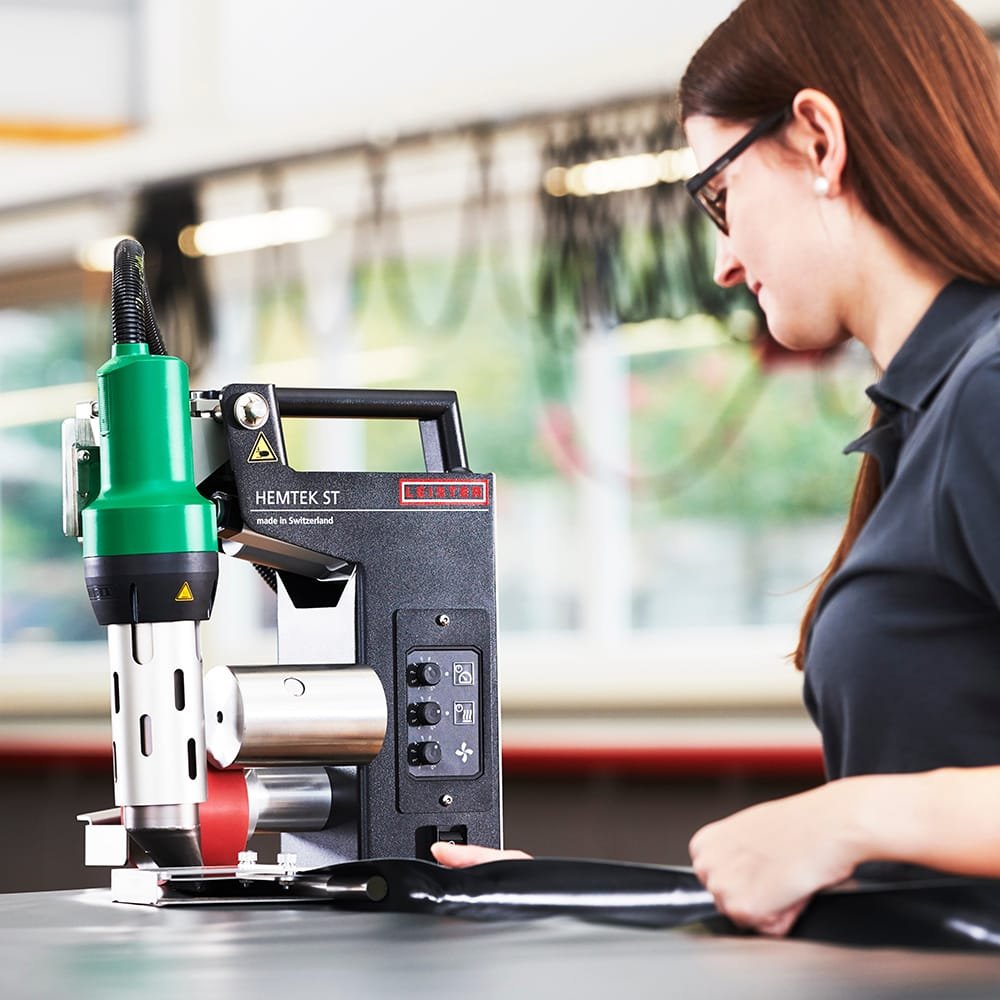

• Foot Pedal for Hands-Free Welding Control: Machine operation is controlled via foot pedal, leaving both hands free to guide the thermoplastic material through the hem guide, maintain consistent material tension, and manage banner alignment throughout the weld run – enabling the operator to focus manual and visual attention entirely on material guidance rather than dividing it between material handling and machine control.
• Quick Assembly and Minimal Floor Footprint: The HEMTEK ST assembles quickly and requires minimal production floor space, enabling banner fabrication operations to establish a productive hem welding station without extensive workshop reconfiguration – and to be operational from assembly to first weld without extended commissioning or parameter setup procedures.
• Broad Thermoplastic Material Compatibility: Welds hems on PVC, PE, PP, and other thermoplastic banner and tarpaulin materials, covering the full range of base materials used in commercial print, advertising, transport cover, and industrial tarpaulin fabrication – enabling the HEMTEK ST to serve as the single hem welding machine for fabricators working across multiple material specifications and end-use applications.

Banner and Tarpaulin Hem Welding Applications for the Leister HEMTEK ST in Oman and the GCC

• Commercial Banner and Advertising Display Fabrication: Produces finished hemmed banners for advertising, promotional, and event display applications in PVC and PE materials – where hem straightness, seam strength under hardware attachment tension, and production throughput at speeds up to 12 m/min determine the commercial viability of the fabrication operation across the Gulf region’s active advertising and events sector.
• Tarpaulin and Industrial Cover Hem Production: Welds hems on heavy-duty PVC and PE tarpaulins for transport, storage, construction site, and industrial protection applications – where hem seam integrity under wind loading, UV exposure, and mechanical handling determines the service life and performance reliability of the finished cover product.
• Transport and Freight Cover Fabrication: Produces hemmed thermoplastic covers and curtain-side panels for road transport, cargo protection, and logistics applications across Oman and the GCC – where consistent hem seam quality and pocketed piping hems that retain structural rods and rails are specification requirements of the finished transport cover product.
• Event and Exhibition Structure Fabric Welding: Fabricates hemmed PVC and PE fabric panels for temporary event structures, exhibition stands, and outdoor advertising installations – where the hem must accommodate pole pocket requirements, maintain dimensional accuracy for structural fit, and withstand the repeated tensioning and detensioning of event installation and dismantling cycles.
• Small and Medium Banner Production Operations: The compact footprint, quick assembly, and single-pass process make the HEMTEK ST operationally suitable for small and medium banner fabrication businesses across Oman and the GCC that require a dedicated hem welding machine capable of handling their full range of thermoplastic banner and cover products without a large capital investment in floor space or complex production infrastructure.

Leister HEMTEK ST – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing banner fabricators, sign makers, tarpaulin producers, and industrial cover manufacturers with direct access to the HEMTEK ST alongside compatible hem guide accessories and the technical expertise to configure the machine for specific material grades, hem widths, and production speed requirements. As a manufacturer-authorised technical partner, iBuild supports temperature and air volume setting guidance for different thermoplastic materials and provides lifecycle support to sustain HEMTEK ST performance across continuous production operation.

For banner fabrication businesses, tarpaulin producers, and thermoplastic cover manufacturers across Oman and the GCC requiring a dedicated hem welding machine that completes PVC, PE, and PP hems from start to finish in a single productive pass – with foot pedal hands-free control, tool-free guide adjustment, and immediate readiness after assembly – iBuild is the authorised local source for the Leister HEMTEK ST.
