Leister GROOVER Electric Joint Milling Machine

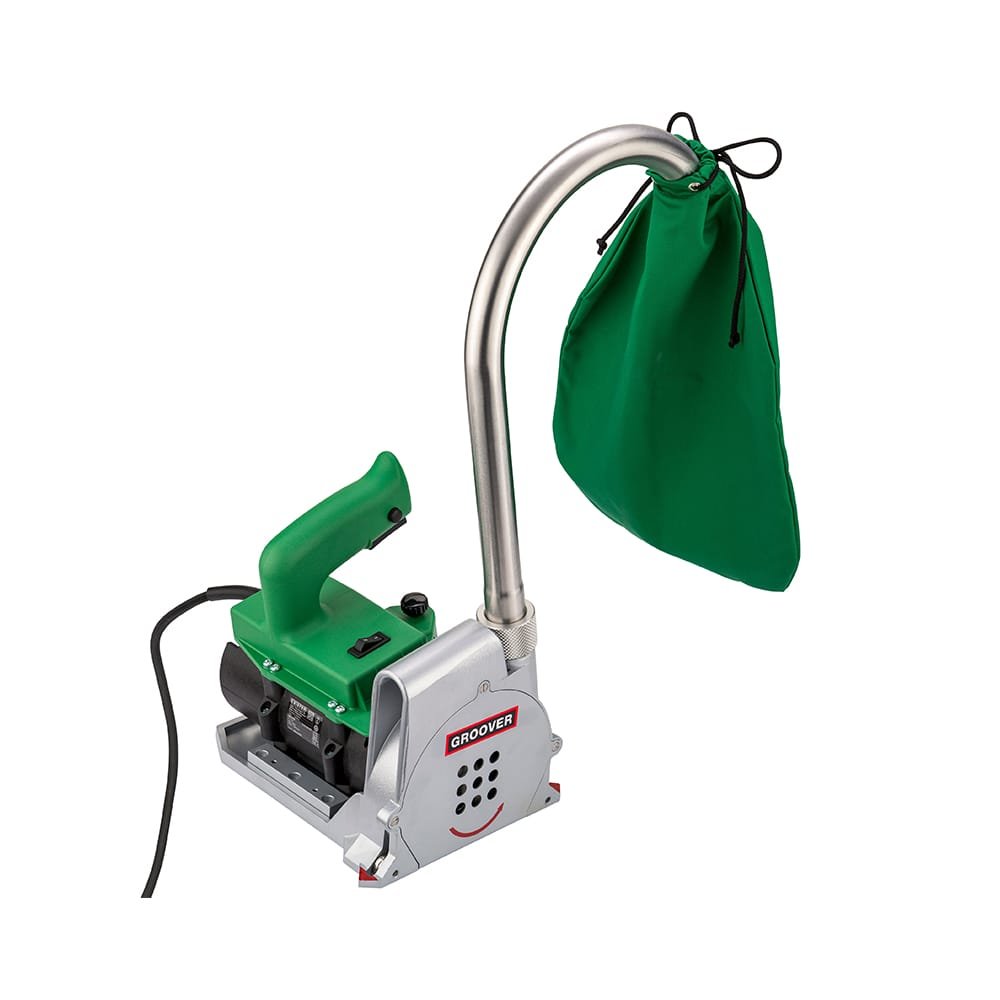

The Leister GROOVER is a 350 to 700 W electric joint milling machine designed for cutting uniform 3.5 mm weld grooves to depths of 0 to 4 mm in resilient floor coverings including PVC, PE, CV, PUR, linoleum, and rubber – preparing seams for hot air welding and cold sealant application through a 110 mm tungsten carbide trapezoidal blade, three-roller guidance system, adjustable tracking roller, and integrated dust collection via a 360-degree rotatable ejection pipe and dedicated dust bag.

Precision Joint Preparation for Resilient Floor Covering Welding and Sealing

The quality of a hot air welded or cold-sealed floor covering seam depends as much on the consistency of the prepared groove as it does on the welding process itself. A groove that varies in depth across its length produces a weld bead that fills unevenly – creating high spots, thin sections, and surface irregularities that affect both the structural integrity of the seam and its final appearance under the finished floor surface. A groove that deviates from the intended line produces a seam that the welding rod or sealant cannot follow accurately, requiring corrective trimming that adds time and introduces further quality risk.

Manual grooving tools introduce both of these failure modes. Hand-guided joint cutters vary in depth with operator pressure and fatigue. Their tracking depends on the operator’s ability to maintain a consistent line across the full joint length – a practical difficulty on long seams in large-area floor installations. The GROOVER addresses both constraints through its three-roller guidance architecture and adjustable guide roller, which maintains blade tracking and depth consistency independent of operator hand pressure variation – delivering the uniform groove profile that reliable hot air welding and cold sealing require, at the speed that professional floor installation programmes demand.

GROOVER Joint Milling Capabilities and Floor Installation Features

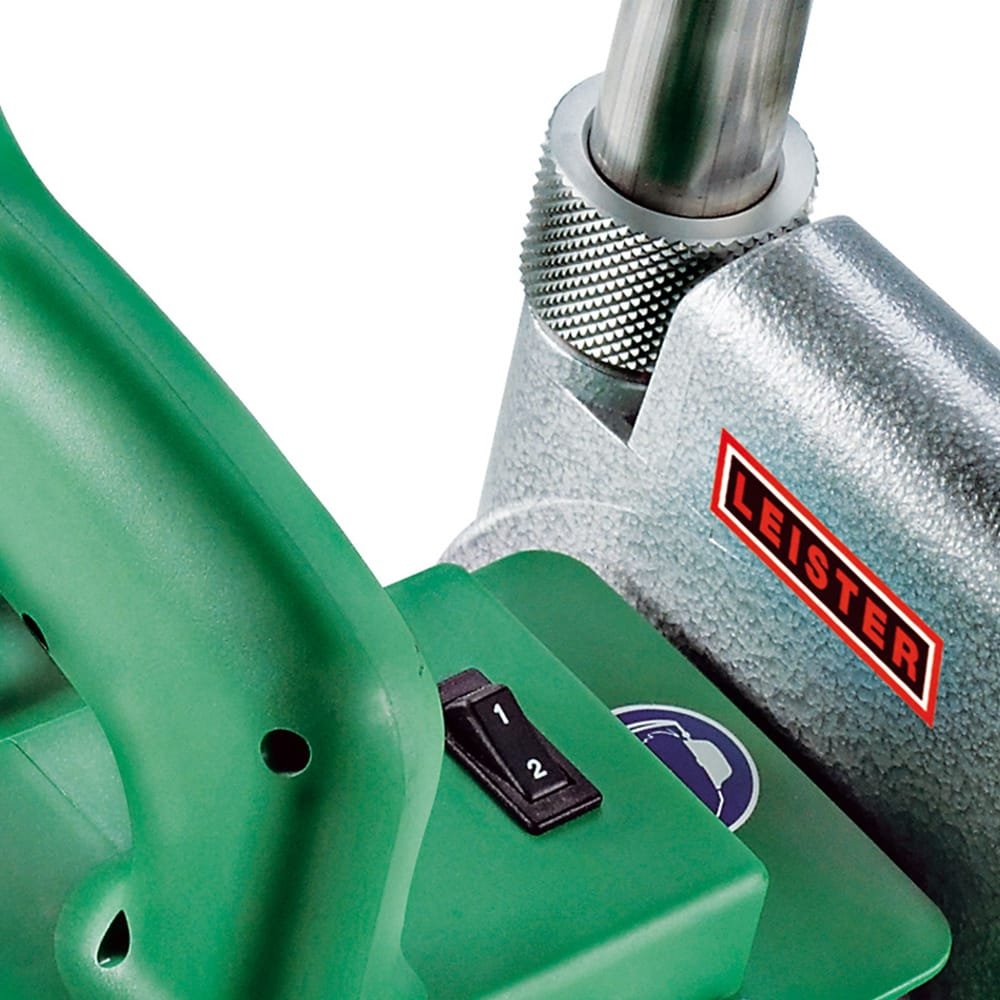

• Two-Stage Speed Control from 350 W to 700 W: A toggle switch selects between two power levels, enabling the operator to match blade speed to the specific material being milled – lower speed for denser or thicker floor coverings where a slower cut produces a cleaner groove profile, higher speed for resilient materials where maximum throughput is the priority – without requiring blade or configuration changes between speed settings.
• 110 mm Tungsten Carbide Trapezoidal Blade with 10 Teeth: The tungsten carbide blade geometry produces the 3.5 mm joint width required for hot air welding rod acceptance and cold sealant application, with the trapezoidal tooth profile maintaining consistent groove wall geometry and base profile across the full depth range from 0 to 4 mm – sustaining the groove cross-section that weld bead volume and seam integrity depend on.

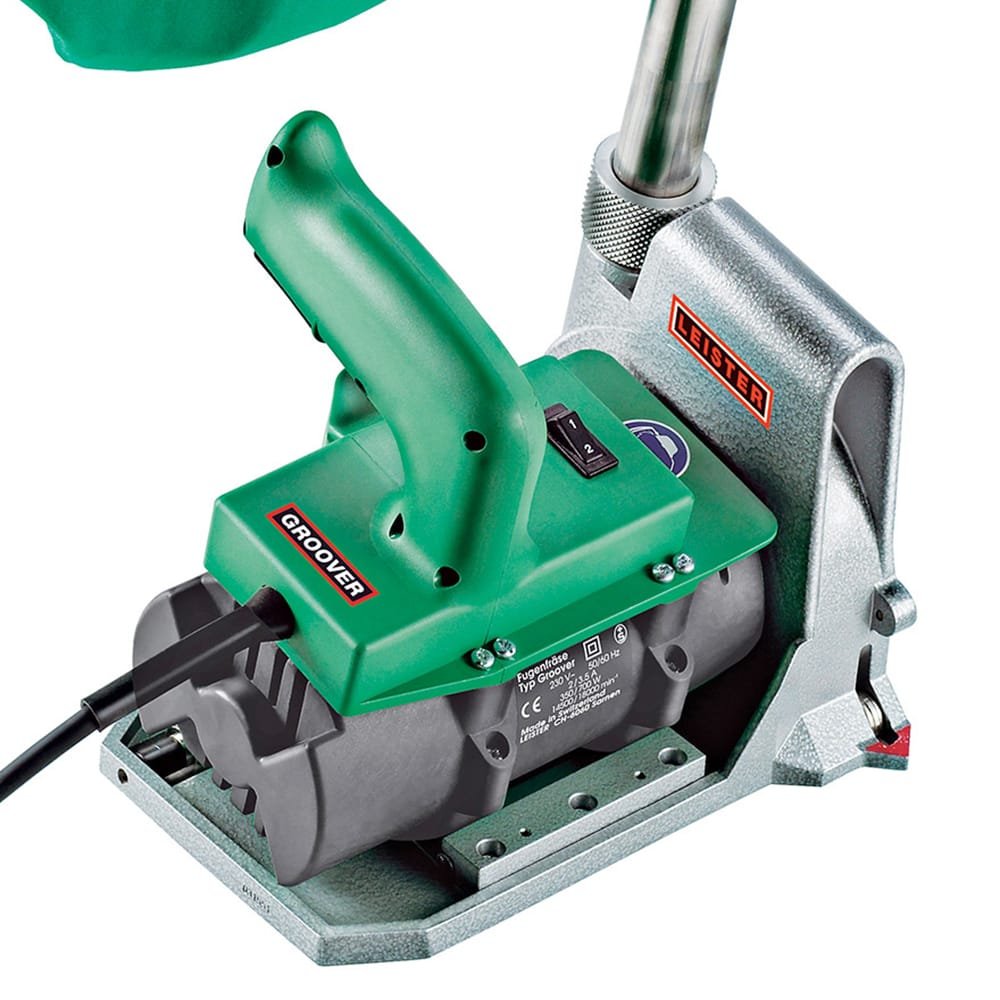

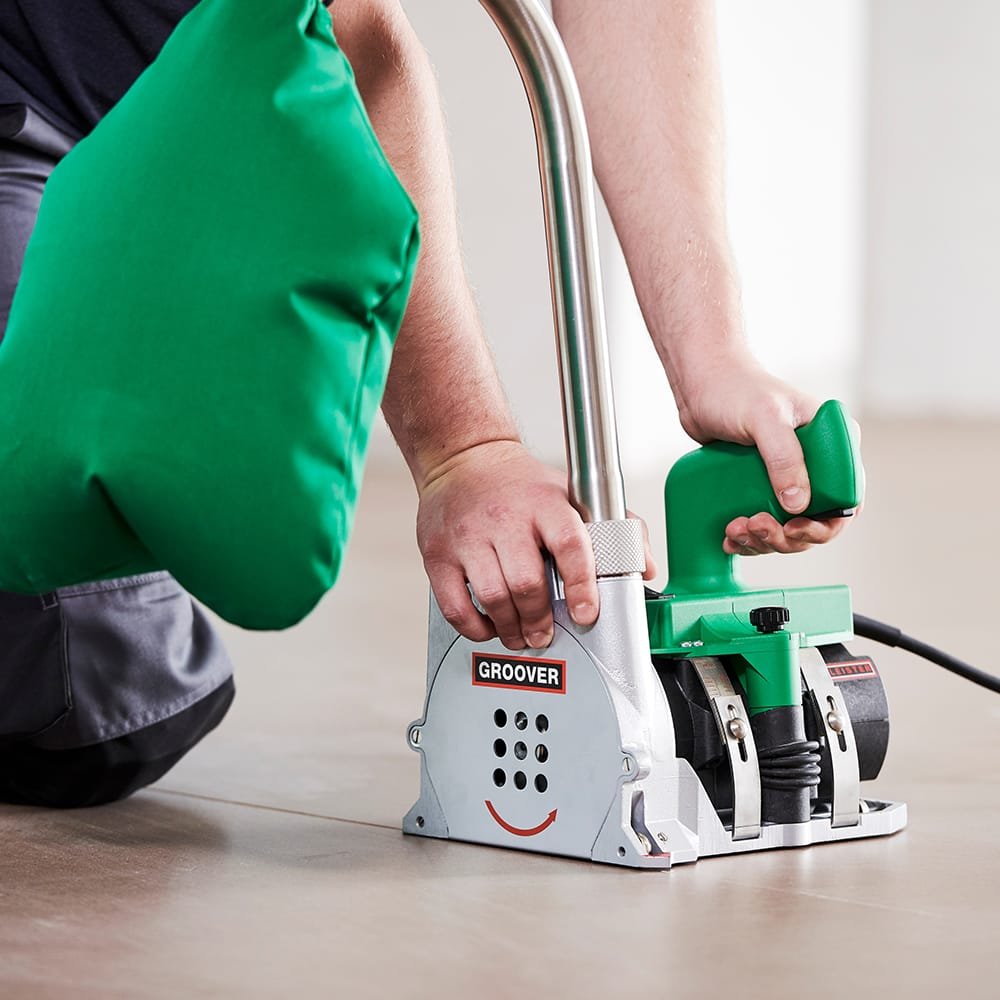

• Three-Roller Guidance for Consistent Milling Depth: The GROOVER glides on three rollers across the floor surface, distributing tool weight evenly and maintaining a stable cutting plane independent of surface variation – ensuring that groove depth remains consistent at the set level even at high milling speeds where operator-held tools would introduce depth variation through handling movement.
• Adjustable Guide Roller for Tracking Accuracy: The guide roller can be adjusted to align the blade with the joint line of the floor covering installation, maintaining straight groove tracking across long seam runs without requiring the operator to manually correct direction – reducing tracking deviation that causes the groove to wander from the seam line and compromise subsequent welding accuracy.

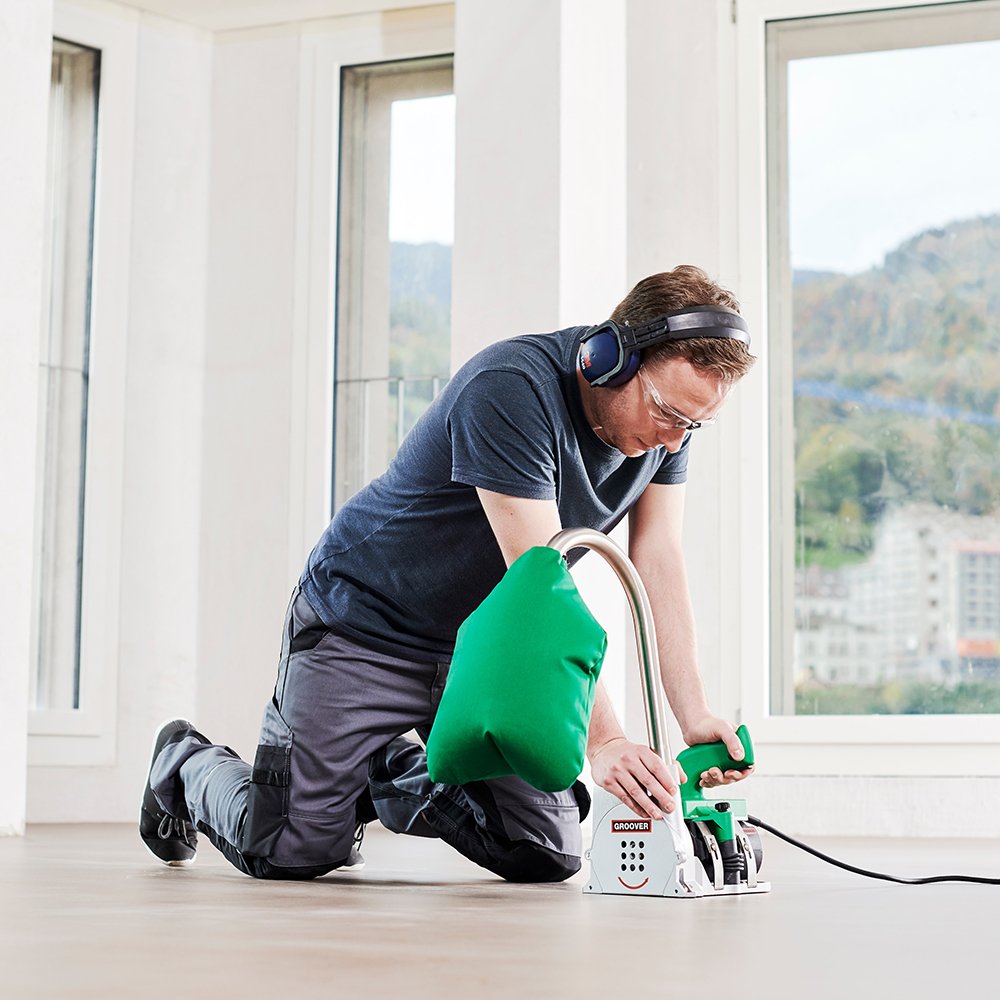

• Close-to-Edge Cutting Capability: The GROOVER is designed to cut grooves close to walls, skirting boards, and perimeter details – enabling the full joint network of a floor installation to be prepared with the same machine, including the perimeter seams and corner joints that cannot be reached with larger or less compact grooving equipment.

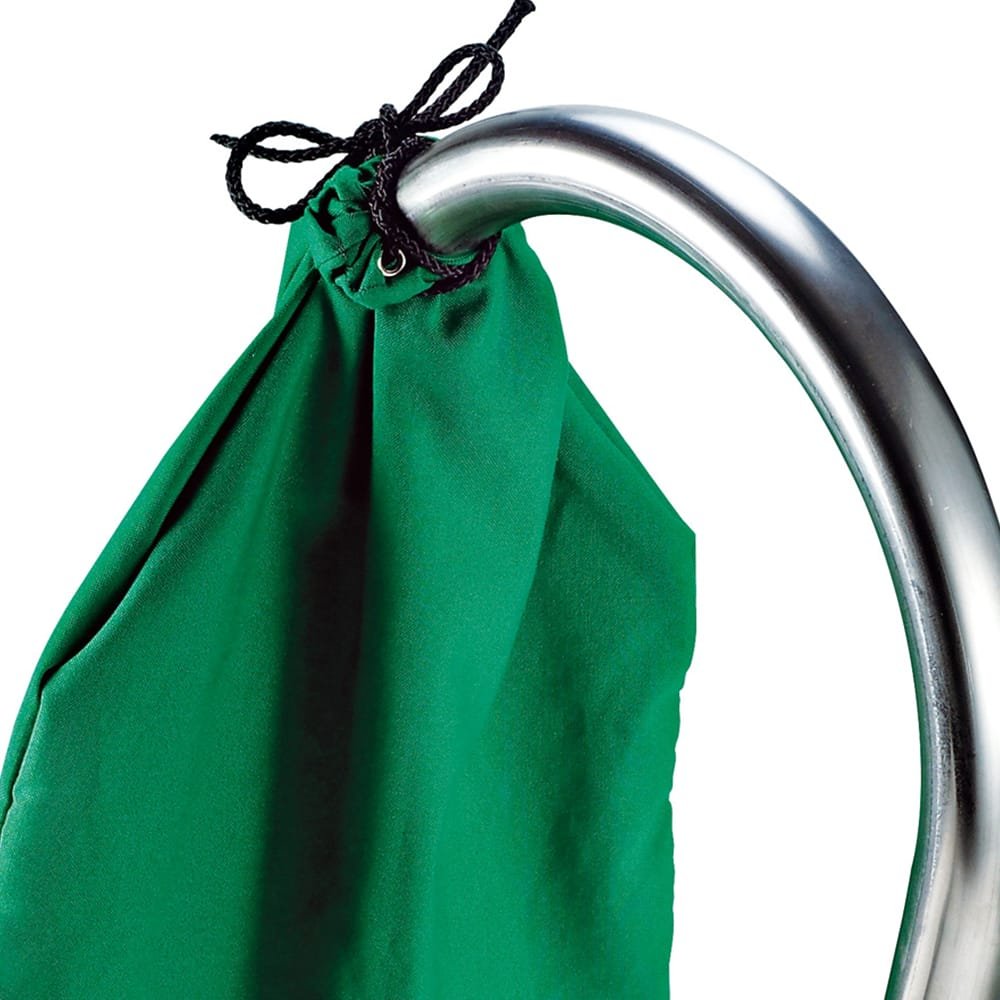

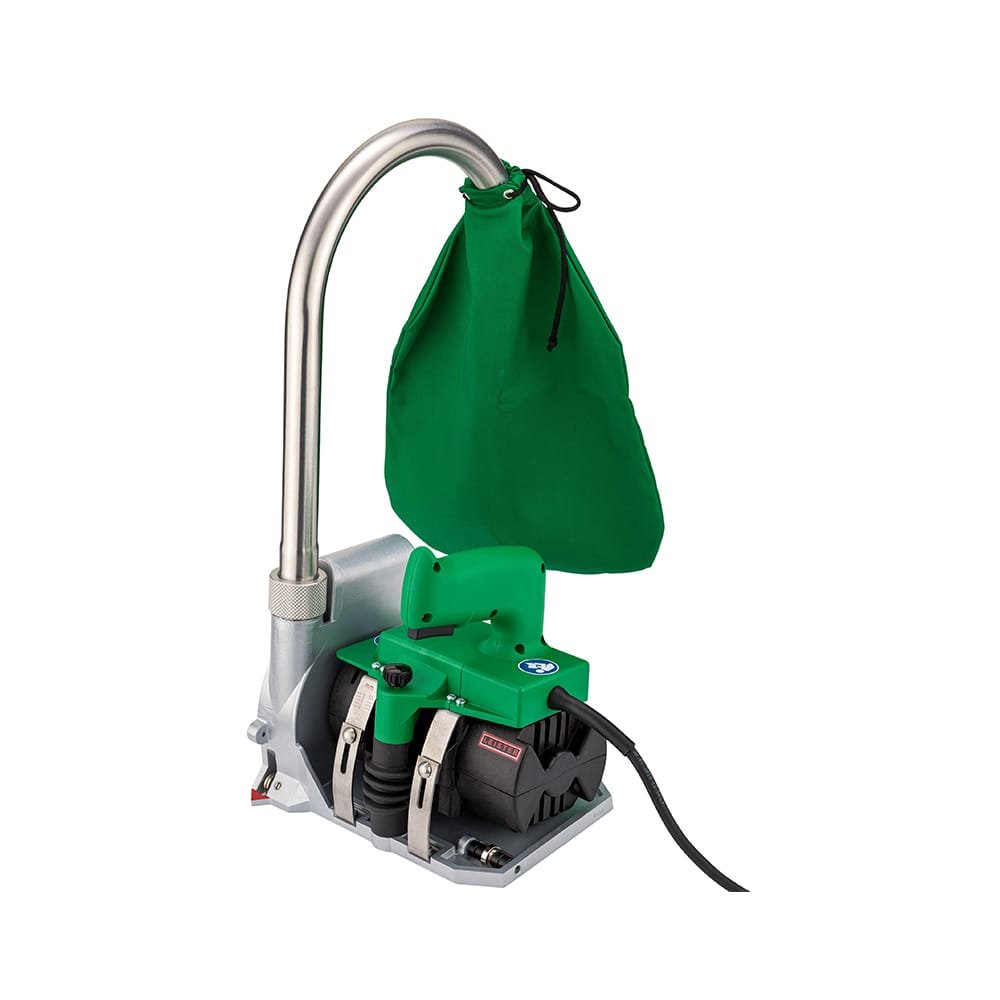

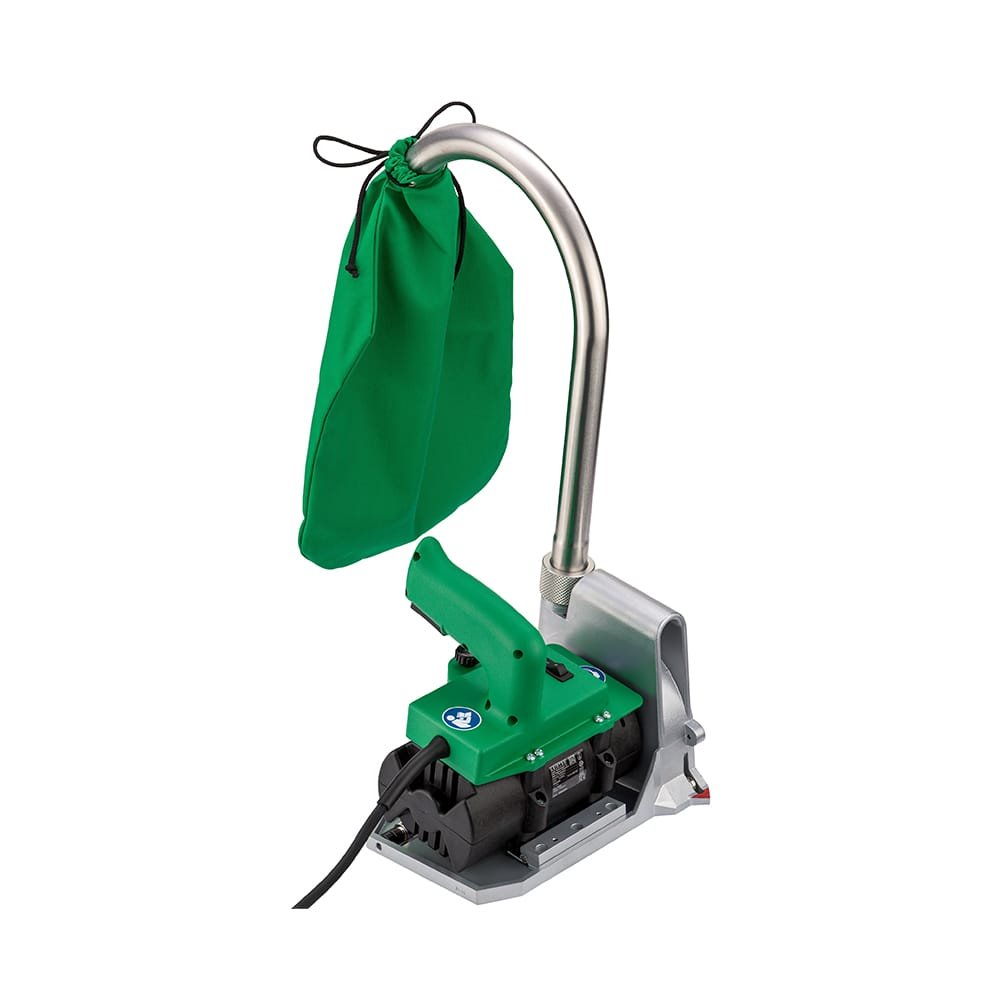

• 360-Degree Rotatable Ejection Pipe with Dust Bag: Milling particulate is collected via the rotatable ejection pipe and directed into a dedicated dust bag that attaches and detaches with a cord, enabling particle-free grooving in all working orientations and dust-sensitive environments including occupied buildings, healthcare facilities, and interior commercial spaces where airborne dust is a health, safety, and contamination concern.
• Broad Floor Covering Material Compatibility: Cuts weld grooves in PVC (vinyl), PE, CV, PUR, linoleum, and rubber floor coverings – covering the full range of resilient floor materials encountered in commercial, healthcare, education, and industrial floor installation across Oman and the GCC without requiring different blade specifications for different material types.
• Prepares Floor Coverings for Both Hot Air Welding and Cold Sealing: The 3.5 mm joint width and 0 to 4 mm depth range accommodate the groove profile requirements of both hot air welded seams – where the groove receives an extruded thermoplastic weld rod – and cold-applied sealant systems where the groove geometry determines sealant volume and surface flush consistency.

Floor Joint Milling Applications for the Leister GROOVER in Oman and the GCC

• Commercial and Institutional PVC Floor Covering Installation: Prepares weld grooves across large-area PVC and vinyl floor installations in commercial offices, retail environments, and institutional buildings across Oman and the GCC, where seam quality and surface uniformity are specified requirements for floor covering acceptance and warranty compliance.
• Healthcare and Clean Environment Floor Seam Preparation: The dust collection system makes the GROOVER suitable for joint preparation in occupied healthcare facilities, pharmaceutical production areas, and clean environments where airborne particulate from milling operations is a hygiene or contamination risk that standard grooving tools cannot mitigate.
• Linoleum and Natural Material Floor Welding Preparation: Cuts uniform grooves in linoleum and rubber floor coverings where joint preparation quality determines the adhesion and appearance of the finished hot air or cold-sealed seam – materials that respond differently to blade speed and where the two-stage speed selector enables appropriate cutting force selection.
• Education, Hospitality, and High-Footfall Floor Installation: Supports the installation of resilient floor coverings in education facilities, hospitality environments, and high-footfall commercial interiors where seam integrity determines both the service life of the floor and the facility’s ability to maintain hygiene standards across the joint network over extended use.
• Industrial and Process Area Floor Preparation: Prepares PUR and PE floor covering joints in industrial facilities and process areas across Oman and the GCC where chemical resistance, cleanability, and seam continuity are functional requirements that depend on the quality of the groove preparation as much as the welding process that follows it.

Leister GROOVER – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing floor installation contractors, interior fit-out specialists, and facilities construction teams with direct access to the GROOVER alongside compatible replacement blades, dust bags, and the full range of Leister floor welding equipment – including Leister hot air tools and automatic floor welders for the complete joint preparation and welding workflow. As a manufacturer-authorised technical partner, iBuild provides application guidance on blade selection, speed setting, and groove depth configuration for specific floor covering materials and seam specifications.

For floor installation contractors, interior construction specialists, and facilities management teams across Oman and the GCC requiring a reliable, dust-controlled electric joint milling machine that delivers consistent groove profiles across resilient floor coverings in preparation for hot air welding or cold sealing, iBuild is the authorised local source for the Leister GROOVER – backed by in-country technical expertise and manufacturer-authorised lifecycle support.
