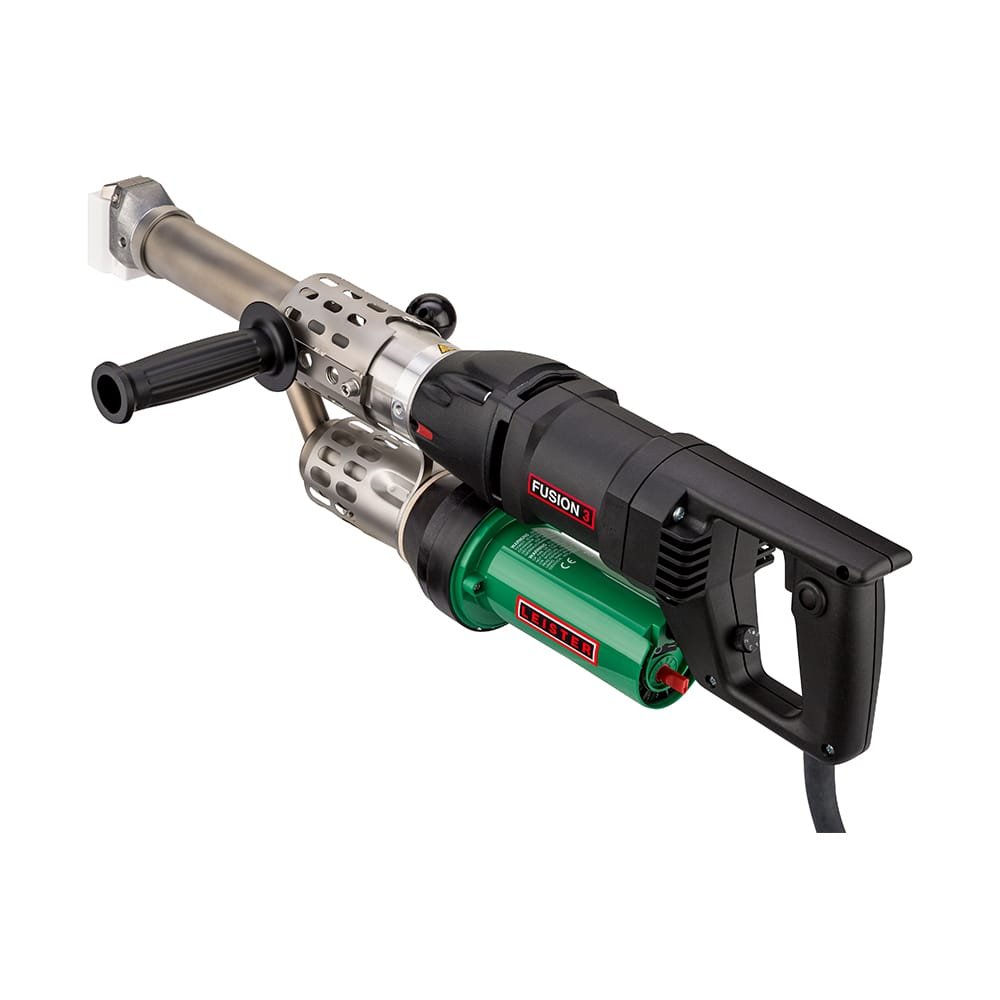

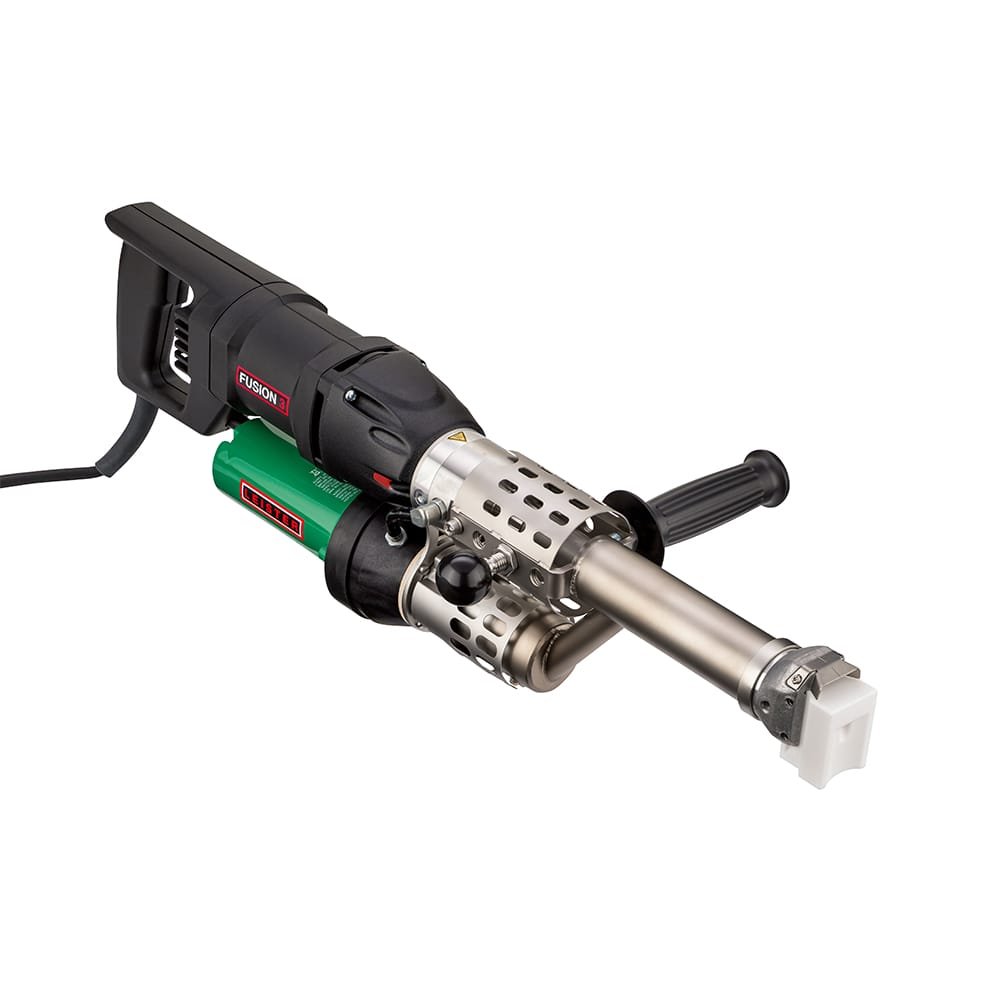

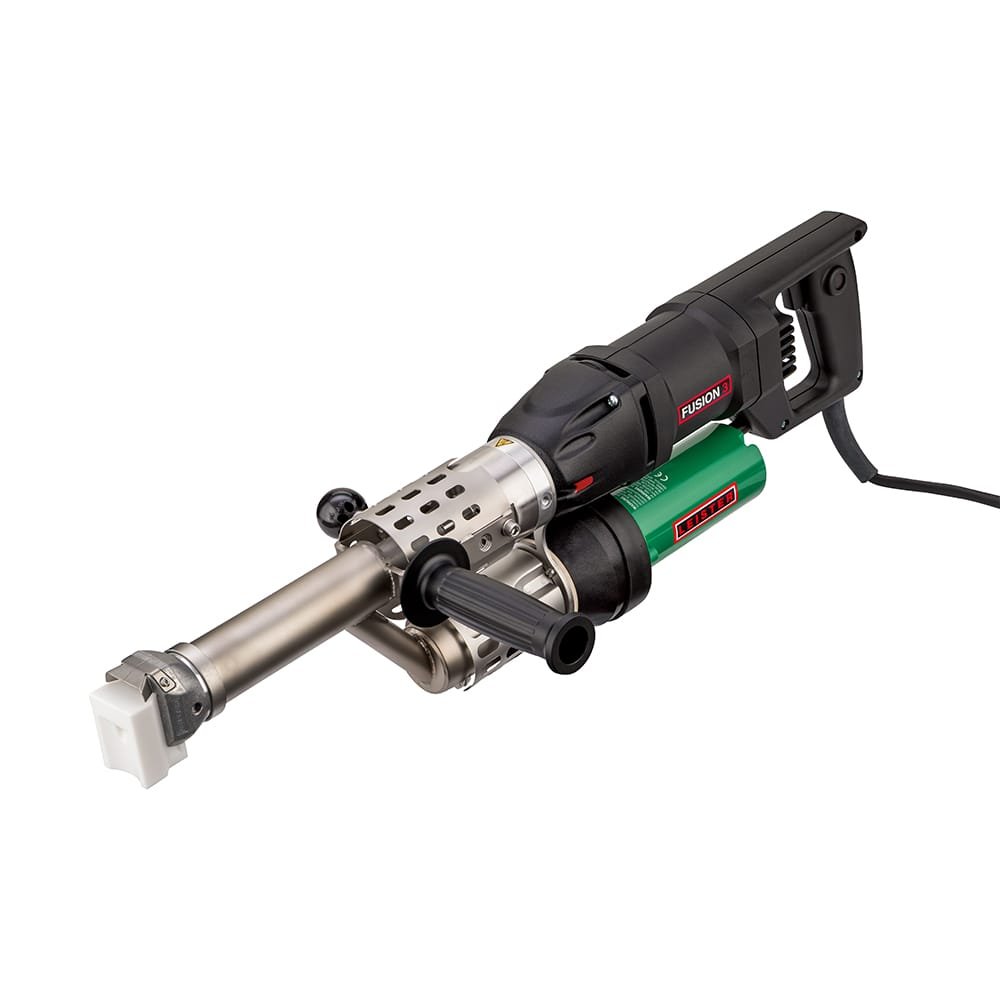

Leister FUSION 3 Handheld Extrusion Welder

The Leister FUSION 3 is a 3500 W handheld extrusion welder engineered for continuous joint welding of HDPE, LDPE, LLDPE, and PP thermoplastic sheet from 15 mm to 25 mm thickness, delivering material output up to 3.6 kg/h through a slim 90 mm wide, 670 mm long body with bilateral rod feed, adjustable output volume, and integrated cold start motor protection – configured for high-output extrusion welding on civil engineering project sites and heavy industrial fabrication environments.

High-Output Extrusion Welding for Thick Thermoplastic Sheet in Civil and Industrial Applications

Civil engineering applications involving thick thermoplastic sheet – structural tank walls, heavy containment bund panels, civil geomembrane anchor trench connections, and large-format plastic infrastructure components – require an extrusion welder that combines high material output with the ergonomic profile necessary for sustained standing operation on site. At sheet thicknesses from 15 mm to 25 mm, the extrusion weld is a primary structural joint: the material throughput rate, pre-heat consistency, and bead volume per unit length of weld directly determine whether the joint meets the strength and fusion depth requirements of the project specification.

Production efficiency on large civil projects across Oman and the GCC adds a further dimension. Where weld programmes on thick thermoplastic structures involve hundreds of metres of joint, the output rate of the extrusion welder is a direct input to project schedule. A tool that can sustain 3.6 kg/h across a full working shift – starting reliably each morning without cold start damage to the drive motor, managing rod feed from either side without interruption, and maintaining a slim enough profile for the standing and walking weld operations that civil earthworks and liner installation require – is not merely a performance specification. It is a project schedule requirement. The FUSION 3 is Leister’s engineering response to that requirement.

FUSION 3 Welding Performance and Site Engineering Capabilities

• 3500 W Heating Power for Thick Sheet Welding: Delivers the thermal input required to fully plasticise welding rod and adequately pre-heat joint faces on thermoplastic sheet from 15 mm to 25 mm thickness, sustaining weld quality and fusion depth across the complete range without the thermal deficit that lower-powered extruders introduce on heavy-section material.
• Material Output up to 3.6 kg/h with 4 mm Rod: Achieves 2.0 to 2.5 kg/h with 3 mm rod and 2.7 to 3.6 kg/h with 4 mm rod, measured with PE – providing the volumetric throughput that makes the FUSION 3 a productive instrument for large-format thick sheet weld programmes where output rate is a schedule-determining factor on civil and industrial projects.
• Adjustable Output Volume: The operator can adjust material output within the rated range to match the weld joint geometry, sheet thickness, and travel speed of the specific weld run – enabling process control that balances throughput with bead quality across varying joint profiles and site conditions.
• Bilateral Rod Feed in Two Rod Size Configurations: The FUSION 3 is available in configurations for 3 to 4 mm rod or 4 to 5 mm rod, with bilateral feed on both versions – accommodating different project rod specifications and allowing the operator to load from whichever side the working position and site geometry require without interrupting the weld run.
• Integrated Cold Start Protection for Drive Motor: The motor start-up protection system prevents the drive from engaging until the extruder screw and melt zone have reached operating temperature, protecting the drive motor from the mechanical stress of cold-viscosity thermoplastic and extending the service life of the drive system across the sustained daily start-stop cycles of active site operation.
• Slim 90 mm Wide Profile for Civil Engineering Weld Operations: The narrow 90 mm body width allows the FUSION 3 to be guided along the weld joint in a natural standing posture without the extruder body obstructing adjacent sheet surfaces or liner panels – particularly relevant for the standing and walking weld operations that geomembrane installation and structural liner welding on civil earthworks require.
• 670 mm Length for Extended Reach and Standing Operation: The long body profile provides natural handle-to-shoe distance that supports an ergonomic standing weld posture, reducing the forward lean and wrist angle compromise that shorter extruders impose on operators conducting extended linear weld runs at ground level or on sloped embankment faces.
• Internal Air Guide with Air-Heated Screw: Air is routed internally to heat the extrusion screw, maintaining consistent melt temperature throughout the screw length and ensuring fully plasticised material reaches the welding shoe across the full output range – supporting weld integrity at both minimum and maximum throughput settings.

Thick Sheet Extrusion Welding Applications for the FUSION 3 in Civil and Industrial Construction

• Civil Geomembrane Anchor Trench and Structural Connection Welding: Provides the high-output extrusion welding capability required for anchor trench terminations, panel-to-structure connections, and thick geomembrane repair welds on civil containment and environmental barrier installations across Oman and the GCC where weld cross-section and fusion depth must meet structural specification.
• Heavy Containment Bund and Sump Fabrication: Welds structural joints on thick HDPE and PP secondary containment bunds, chemical sumps, and process area spill containment structures where panel thickness from 15 mm to 25 mm requires extrusion welding at the output and power level the FUSION 3 provides.

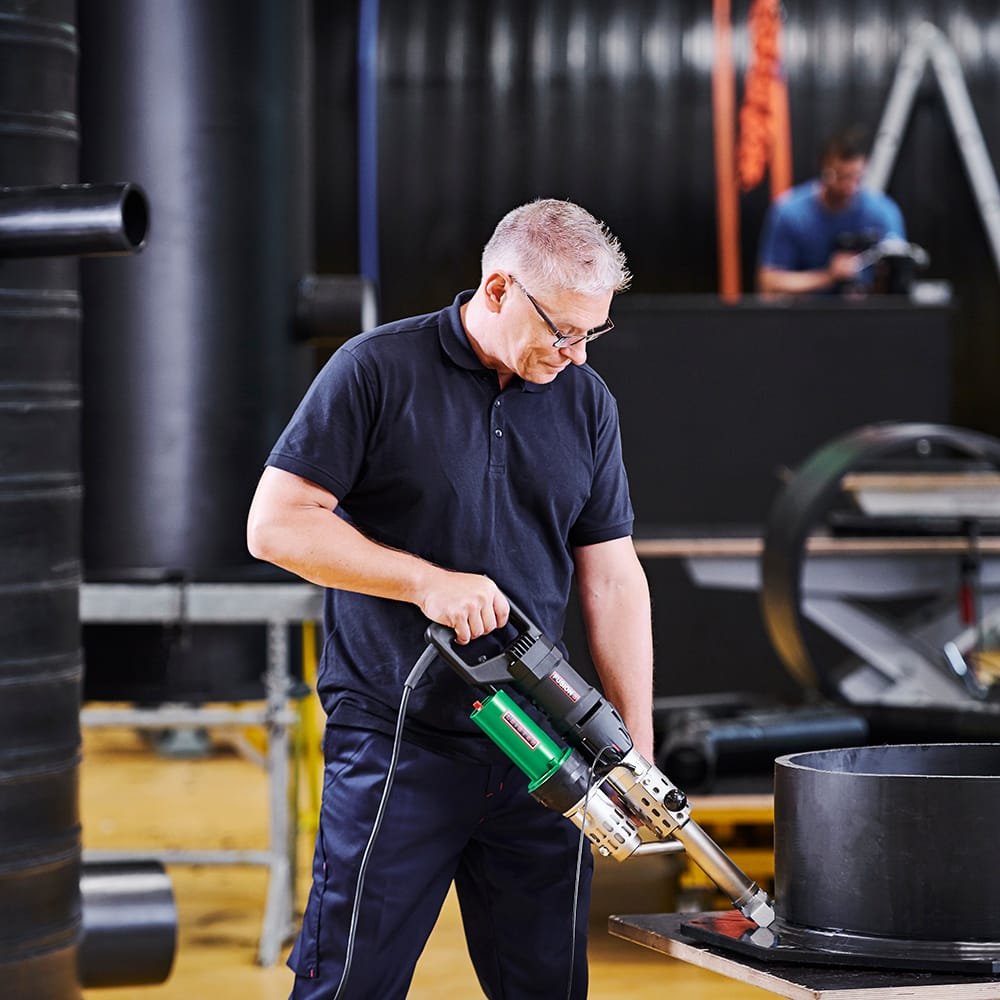

• Structural Plastic Tank and Vessel Construction: Applies high-volume extrusion weld beads to structural joints on large HDPE and PP tanks, chemical vessels, and process containment enclosures where joint cross-section must be sufficient to carry the structural and hydrostatic loads the fabricated assembly will experience in service.
• Industrial Pipe and Large-Bore Fitting Fabrication: Produces structural extrusion welds on thick-wall thermoplastic pipe joints, large-bore fittings, and manifold assemblies in process piping systems for chemical, water treatment, and industrial infrastructure projects across the Gulf region.

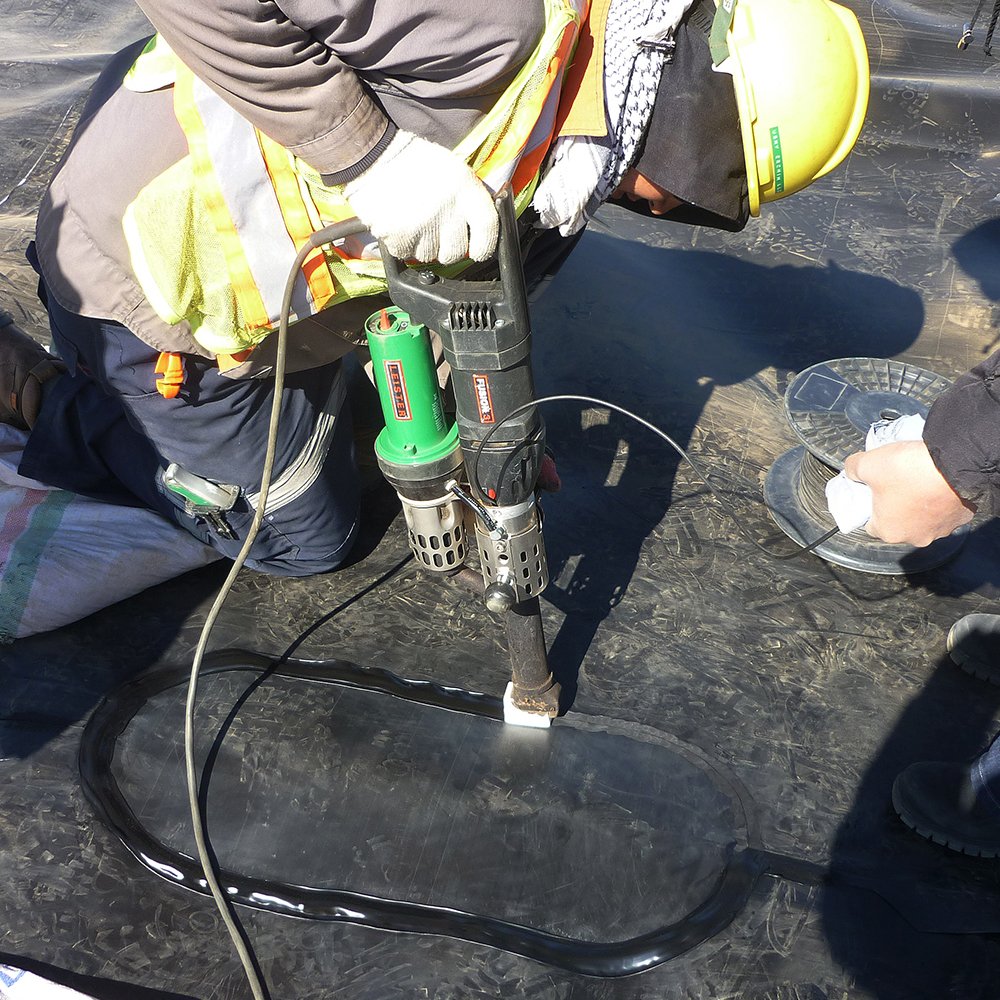

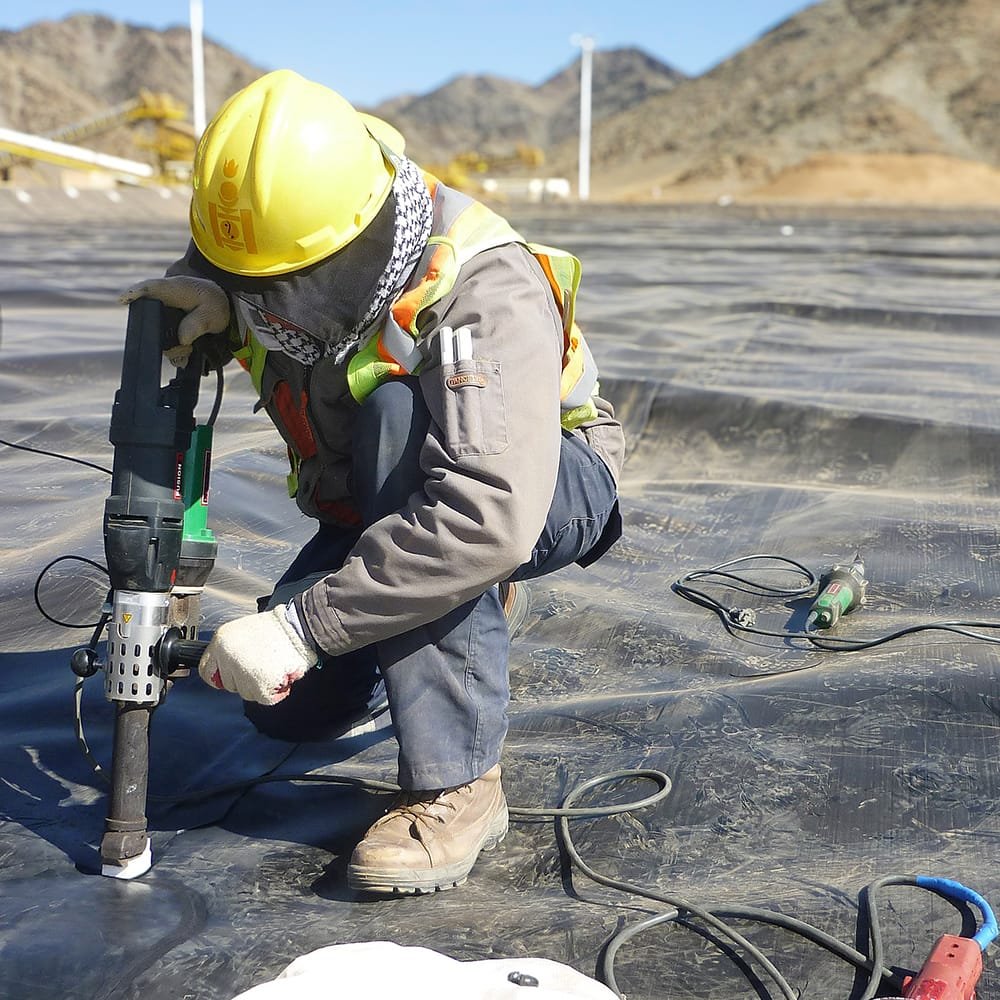

• Large-Format Liner Installation and Repair on Civil Project Sites: Supports the installation and field repair of thick geomembrane liner systems in reservoir, lagoon, and earthworks containment projects – providing the on-site extrusion welding output rate and profile suited to the standing linear weld operations that large-area liner installation programmes require.

Leister FUSION 3 – Authorised Supply and Technical Support Through iBuild in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, supplying the FUSION 3 in both rod size configurations alongside compatible welding shoes, rod stock in HDPE and PP grades, and the complete Leister extrusion welding accessory range. As a manufacturer-authorised technical partner, iBuild supports rod configuration selection, output volume setting guidance, and welding shoe specification for each application – ensuring the FUSION 3 is correctly configured for the sheet thickness, material grade, and joint geometry of the project from commissioning through to completion.

For civil contractors, geomembrane installation teams, structural plastic fabricators, and industrial construction engineers across Oman and the GCC requiring a high-output, site-ready handheld extrusion welder for thick thermoplastic sheet from 15 mm to 25 mm, iBuild is the authorised local source for the Leister FUSION 3 – supported by in-country technical expertise and manufacturer-backed lifecycle support.
