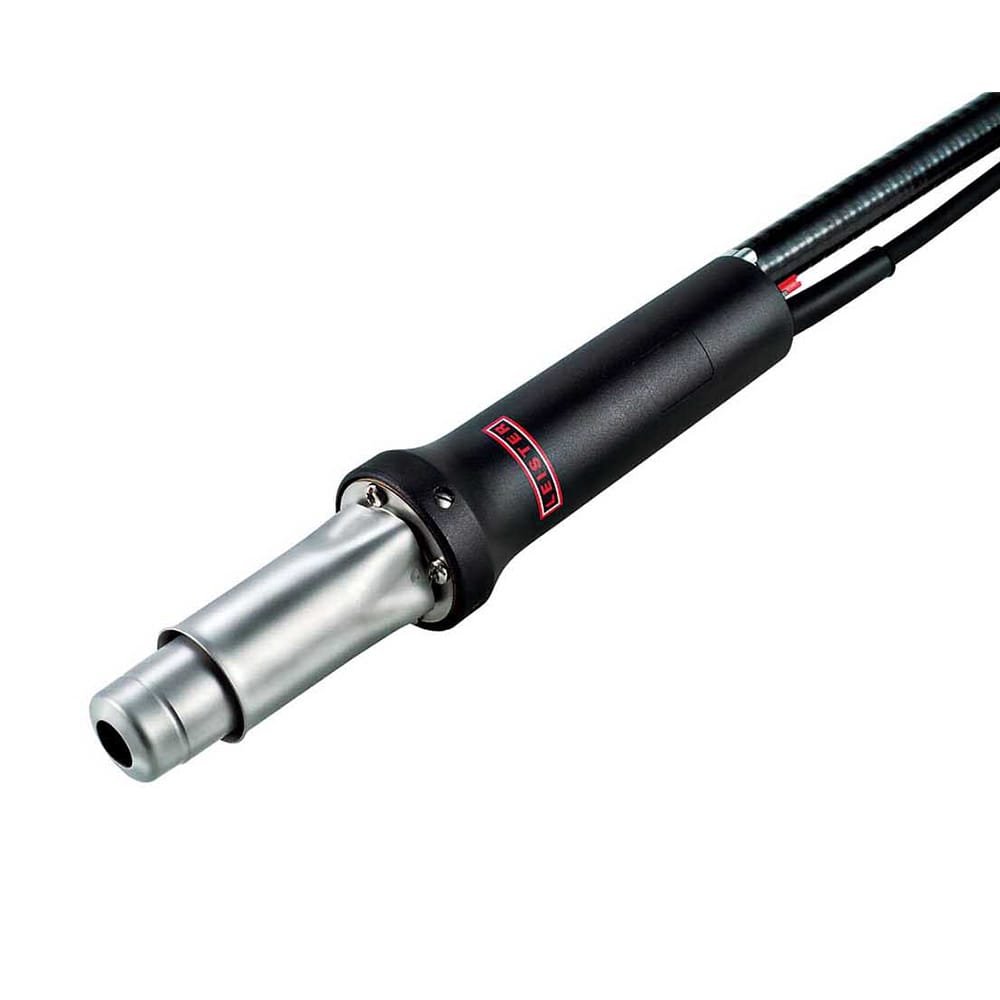

Leister DIODE S Hot Air Welding Tool

The Leister DIODE S is a 1600 W externally-fed hot air welding tool designed for manual plastic welding applications, operating via a 3 m air hose connection to a Leister MINOR, ROBUST, or AIRSTREAM blower, with stepless temperature control from 20 degrees C to 600 degrees C and electronic heating element protection for sustained performance in assembly, fabrication, and field welding environments.

Precision Hot Air Welding in Assembly and Field Fabrication Environments

Manual plastic welding tasks in assembly lines, on-site fabrication, and repair work consistently place conflicting demands on the welding tool: sufficient heating power to achieve full thermoplastic fusion, a form factor compact and light enough for extended hand-held use in restricted spaces, and the durability to sustain performance across full production shifts without compromising operator safety or weld quality.

The DIODE S resolves this through its external blower architecture. By separating the air supply from the hand tool itself, Leister has reduced the DIODE S to 0.46 kg and 265 mm in length – while retaining 1600 W of heating capability and the full 20 to 600 degrees C temperature range that diverse thermoplastic welding applications require. The result is a hand tool that handles like a precision instrument and performs as a production-grade welding device, supplied with the correct air volume and pressure from a dedicated Leister blower unit positioned separately from the operator’s hand.

DIODE S Features and Operational Capabilities for Hot Air Plastic Welding

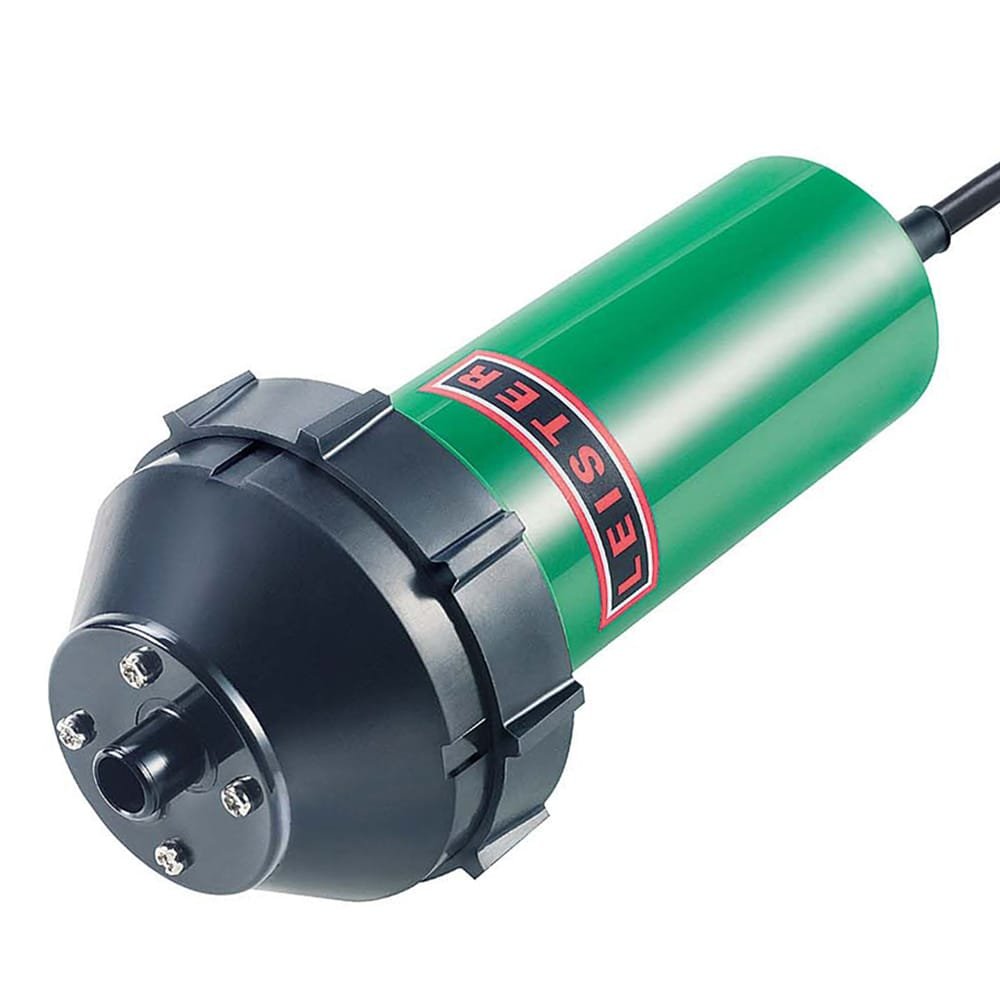

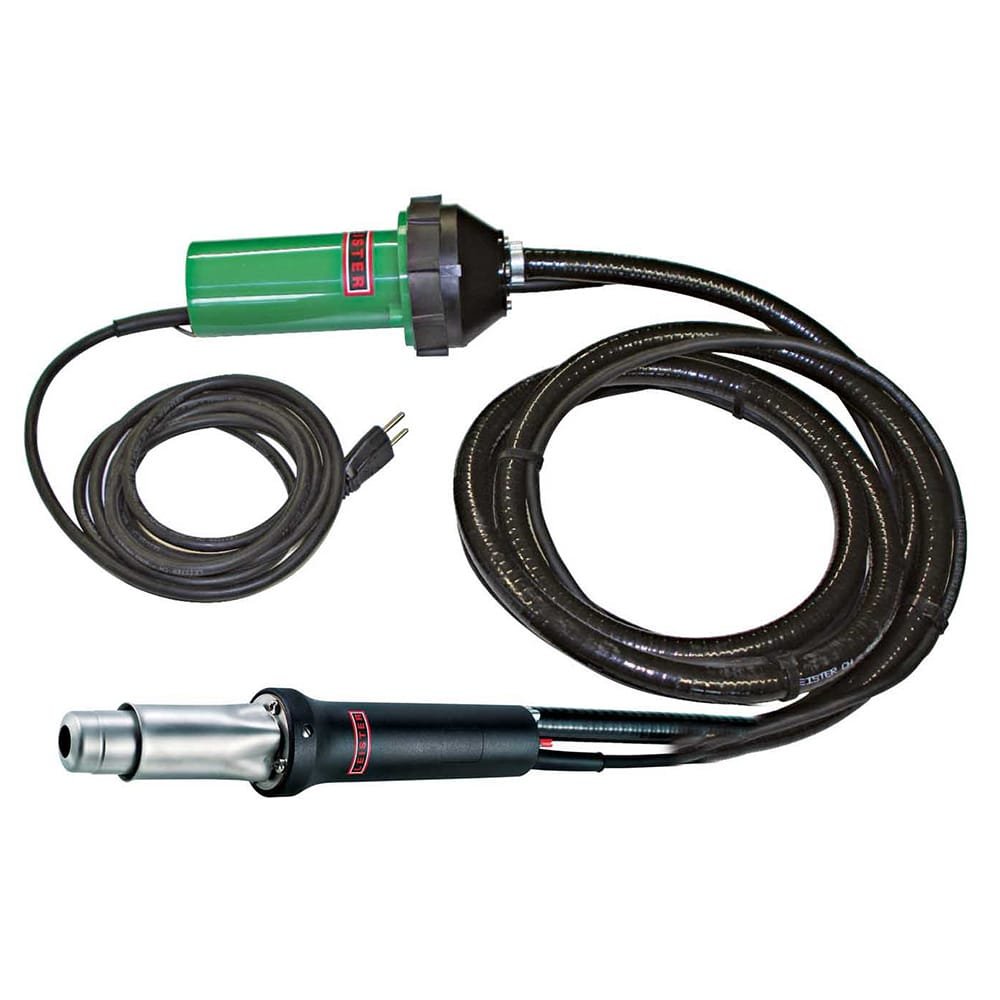

• External Blower Architecture: Connects to Leister MINOR, ROBUST, or AIRSTREAM blowers via a 3 m air hose, relocating the air supply unit away from the operator’s hand – reducing tool weight to 0.46 kg and enabling access to confined joint geometries and restricted assembly spaces that conventional integrated-blower tools cannot reach.
• 1600 W Heating Power: Delivers 1600 W through a compact 57 mm diameter tool body, providing the thermal output necessary for full thermoplastic fusion across a broad range of plastic welding materials and joint configurations without requiring a larger or heavier tool format.
• Stepless Temperature Control from 20 to 600 °C: A rotary knob provides continuous, stepless adjustment across the full temperature range, allowing operators to precisely match air temperature to the welding material and joint specification without fixed preset steps that may not align with process requirements.
• Electronic Heating Element Protection: Monitors and protects the heating element against thermal overload conditions, extending element service life and reducing the frequency of element replacement in continuous production or intensive field use environments.
• Cooled Protective Tube: The tool body incorporates a cooled protective tube that maintains a safe surface temperature during operation, protecting the operator’s hand from heat transfer during sustained use at elevated welding temperatures.
• Dual Nozzle Compatibility: Available with either push-fit or screw-on nozzle attachment, accommodating the broad range of Leister quick welding nozzles and drawing nozzles – enabling operators to select the nozzle geometry appropriate to the joint profile, material, and welding technique required.
• Outdoor Use Rating: Designed and rated for outdoor deployment, making the DIODE S suitable for site-based plastic welding and repair work in the field conditions common to civil, infrastructure, and industrial construction projects across Oman and the Gulf region.
• Compact Ergonomic Form Factor: At 265 mm length with a 40 mm handle diameter and 0.46 kg operating weight, the DIODE S is dimensioned for comfortable single-hand operation over extended welding sessions – reducing operator fatigue and maintaining control precision across the full duration of the work.

Hot Air Plastic Welding Applications for the Leister DIODE S in Oman and the GCC

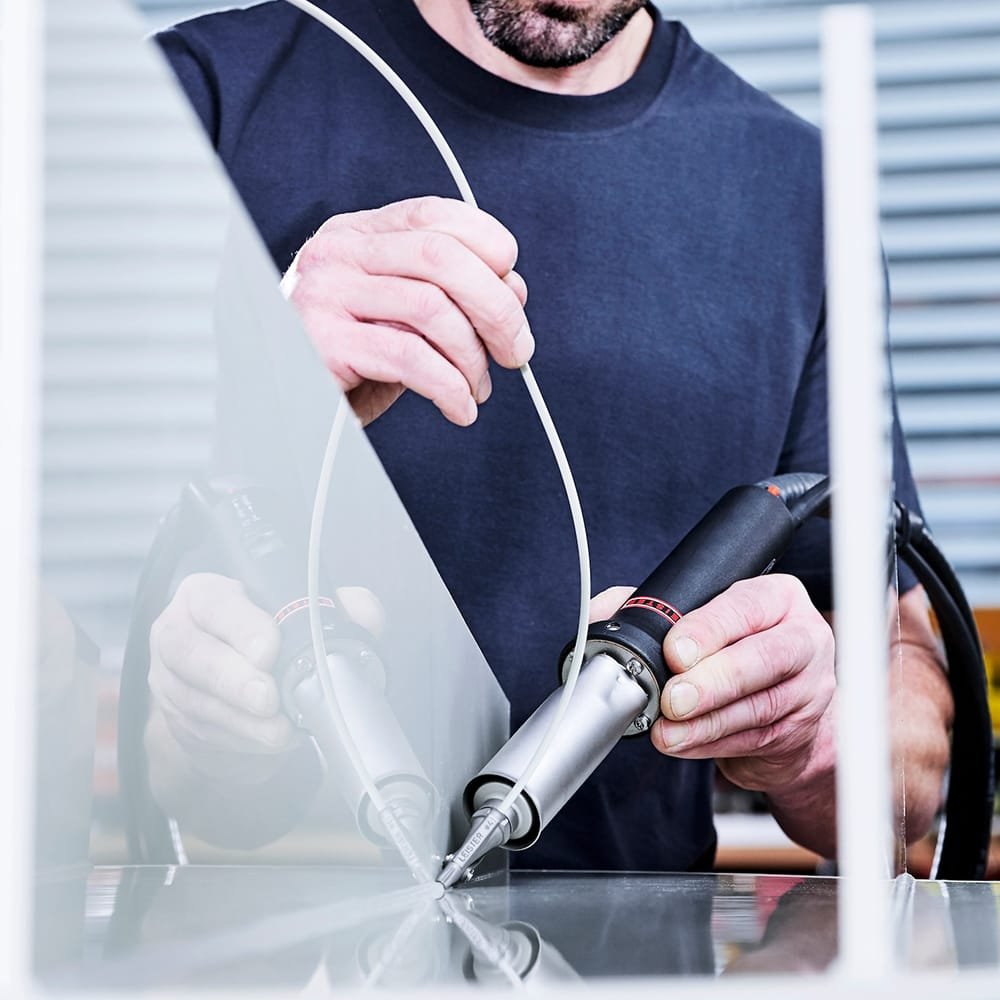

• Thermoplastic Assembly and Fabrication: Provides the controlled hot air output required for welding joints, seams, and patches on engineered plastic components in production assembly environments where weld quality and process repeatability are specification requirements.
• Confined Space and Restricted Access Welding: The compact 265 mm length and 57 mm tool diameter enable the DIODE S to reach joint geometries and assembly locations inaccessible to larger hot air tools, maintaining full weld capability in constrained working conditions.

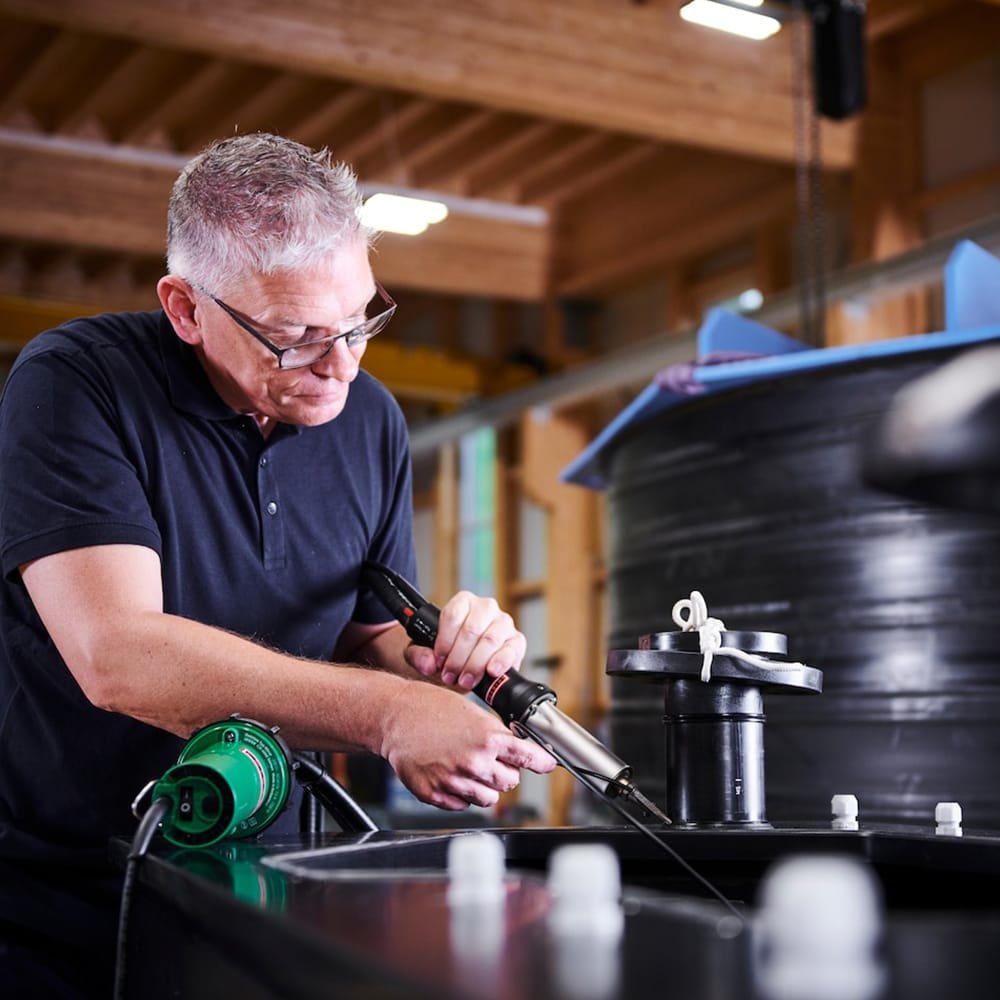

• On-Site Plastic Repair and Modification: The outdoor use rating and external blower compatibility make the DIODE S suitable for site-based repair of plastic liners, tanks, ducts, and fabricated assemblies across civil, industrial, and infrastructure project environments in the Gulf region.
• Multi-Material Thermoplastic Welding: The stepless 20 to 600 degrees C temperature range accommodates the process temperature requirements of different thermoplastic materials – allowing a single tool to be used across PE, PP, PVC, and other commonly specified materials within the same facility or project.

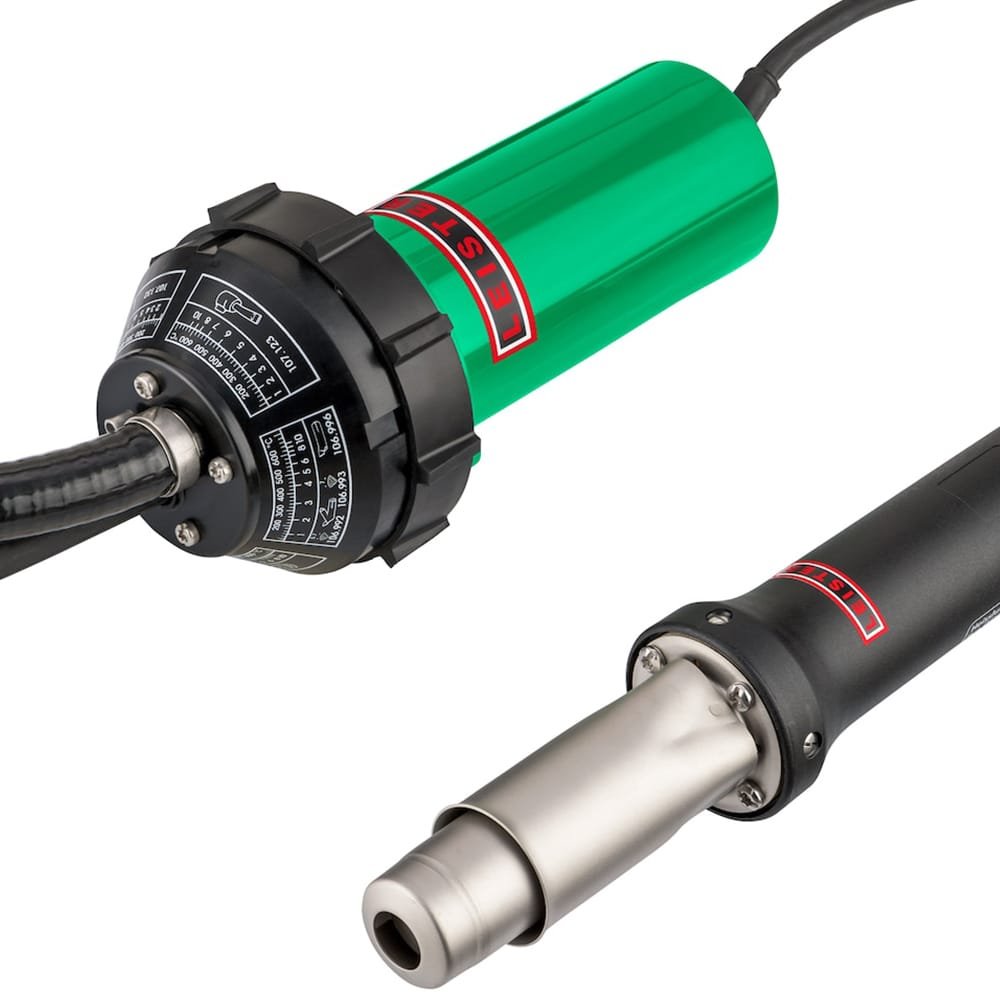

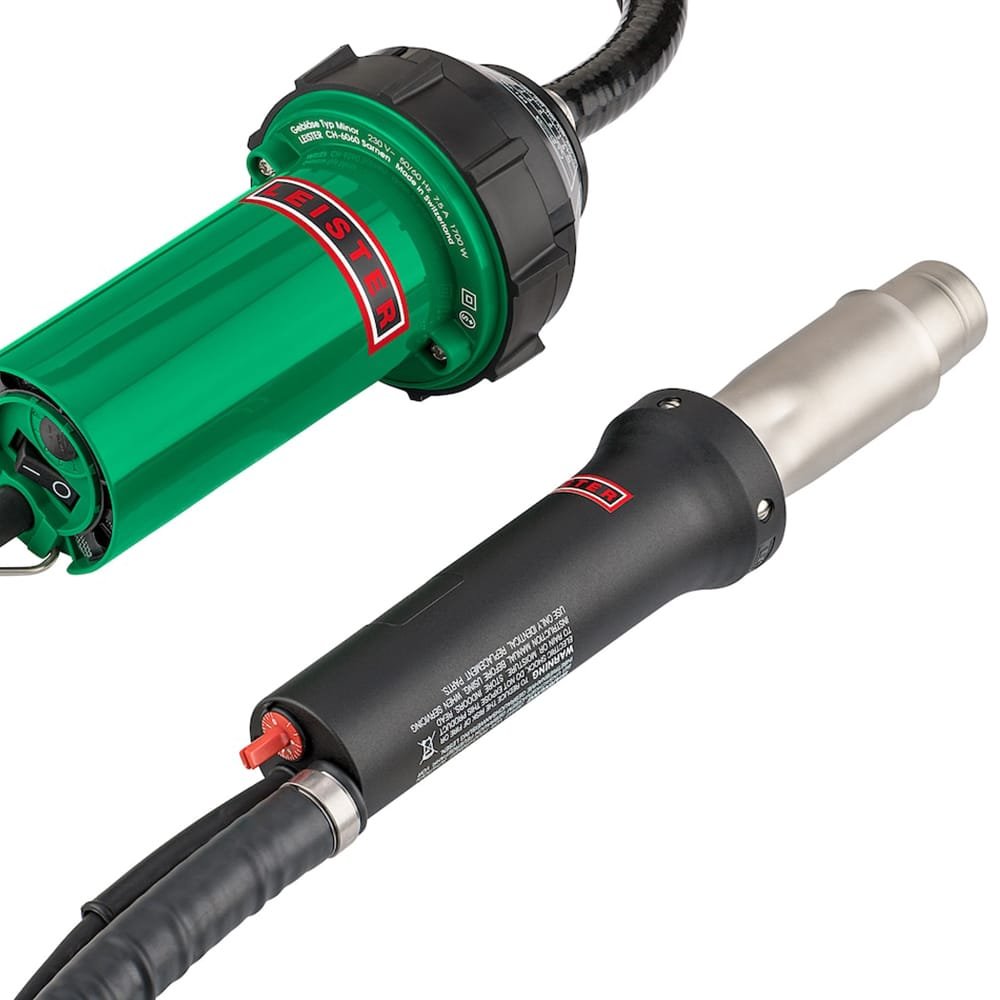

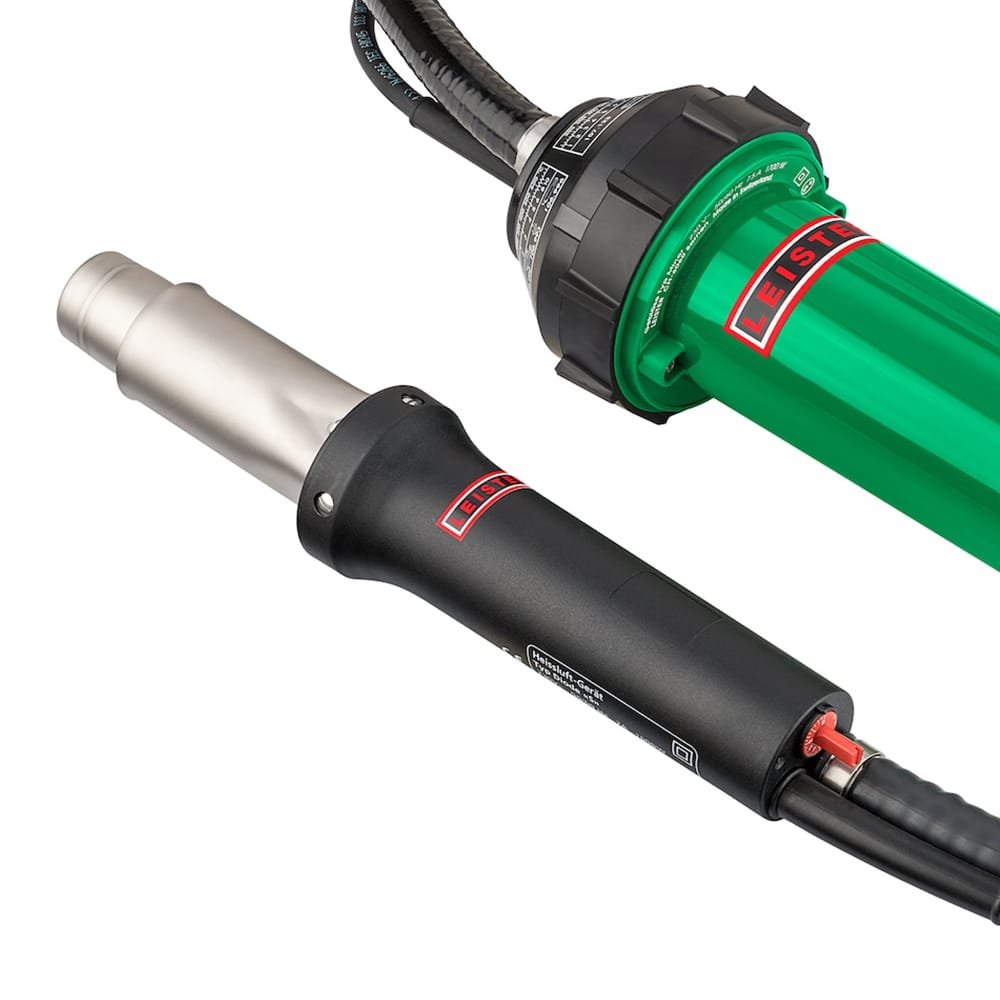

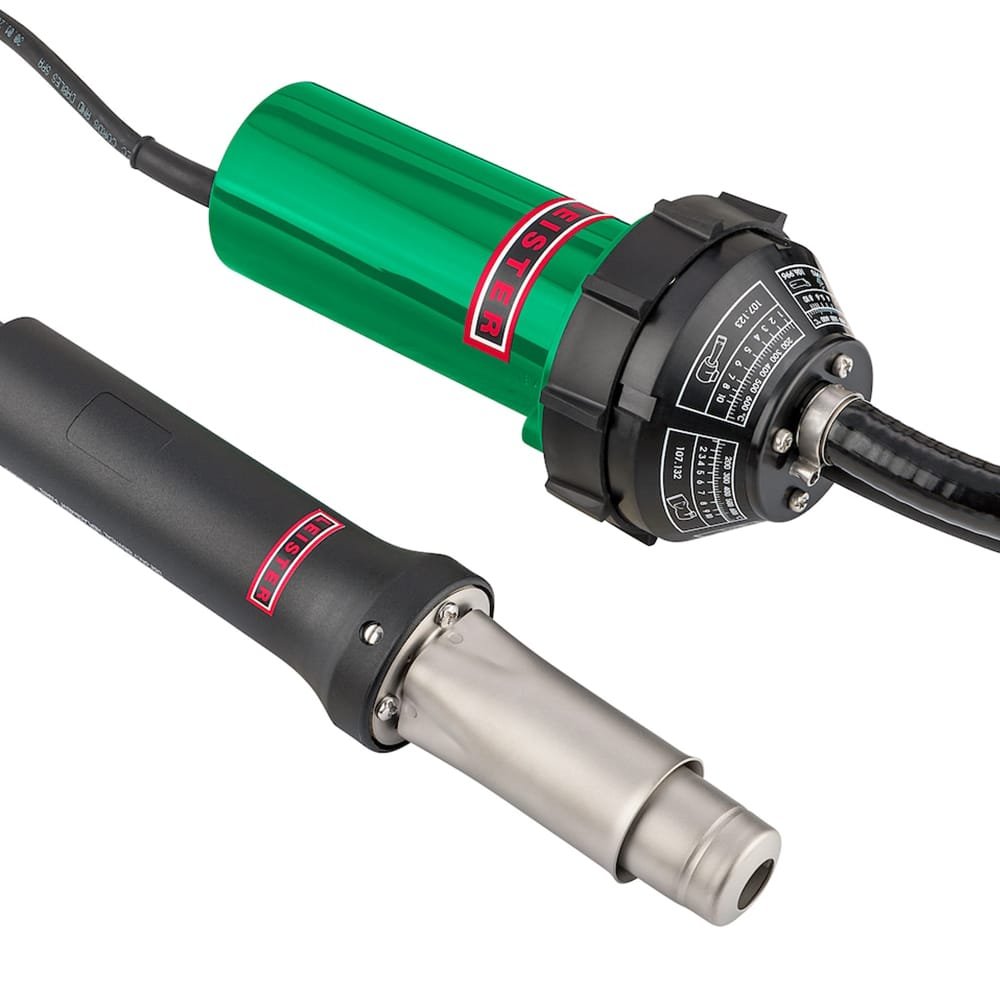

• Production Line Integration with Leister Blower Systems: Operates as the hand tool element within a complete Leister welding system alongside AIRSTREAM ST, AIRSTREAM 100, MINOR, or ROBUST blowers – enabling production facilities to standardise on a single air supply platform serving multiple DIODE S tools across different workstations.

Leister DIODE S – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing direct access to the DIODE S alongside the full range of compatible Leister blowers, nozzles, and welding accessories. As a manufacturer-authorised technical partner, iBuild supports correct tool and blower pairing for specific welding applications, ensuring the DIODE S is configured for optimal performance from the point of commissioning.

For plastic fabricators, assembly contractors, civil works specialists, and industrial maintenance teams across Oman and the GCC requiring a lightweight, field-capable hot air welding tool with full Leister system compatibility, iBuild provides the local availability, technical guidance, and lifecycle support the application demands.
