Leister PENWELD 305-A Hot Air Welding Tool

The Leister PENWELD 305-A is a 1000 W externally-fed hot air welding tool designed for precision draw welding in apparatus construction, tank fabrication, and confined-space plastic welding applications – featuring an integrated ring-shaped LED work light, electronically controlled constant temperature from 60 to 450 degrees C with display of target and actual values, 310-degree rotating air connection, and a lightweight snake-skin surface hose with integrated power cable, available in multiple configurations for different access, power, and nozzle requirements.

Precision Hot Air Draw Welding in Apparatus and Tank Construction Environments

Apparatus construction and tank fabrication in thermoplastics – chemical vessel internals, process equipment liners, plastic-lined containment structures, and engineered tank assemblies – present welding access challenges that general-purpose hot air tools are not designed to address. The weld zones are frequently inside the fabricated structure, in recesses and corners where ambient lighting does not reach and where the distance from the entrance to the joint face eliminates any margin for nozzle misplacement or rod guidance error. The air hose must travel over edges, around obstacles, and through confined access openings without snagging, kinking, or pulling the welding tool off the joint line. And the temperature at the weld point must remain precisely controlled regardless of hose length or the orientation in which the tool is working.

The PENWELD 305-A is configured to meet each of these demands directly. The ring LED work light around the nozzle end of the tool illuminates the welding zone from the point of heat application – providing consistent visibility of the bead, the rod, and the substrate surface regardless of how deep inside the fabricated assembly the weld point is located. The 310-degree rotating connection at the hose entry allows the hose to reposition around the tool body as the operator moves without transmitting rotation forces to the handle or pulling the nozzle off the joint. The snake-skin surface hose passes over panel edges and into confined openings without the friction drag that standard hose surfaces create. And the electronic temperature control maintains the set temperature at the nozzle despite hose length and orientation variation – producing the process stability that structural plastic joints in apparatus and tank construction require. For plastic fabricators and tank builders operating across Oman and the GCC, the PENWELD 305-A is the precision instrument that transforms confined-space apparatus welding from a technically demanding compromise into a controlled, repeatable process.

PENWELD 305-A Technical Capabilities and Precision Welding Features

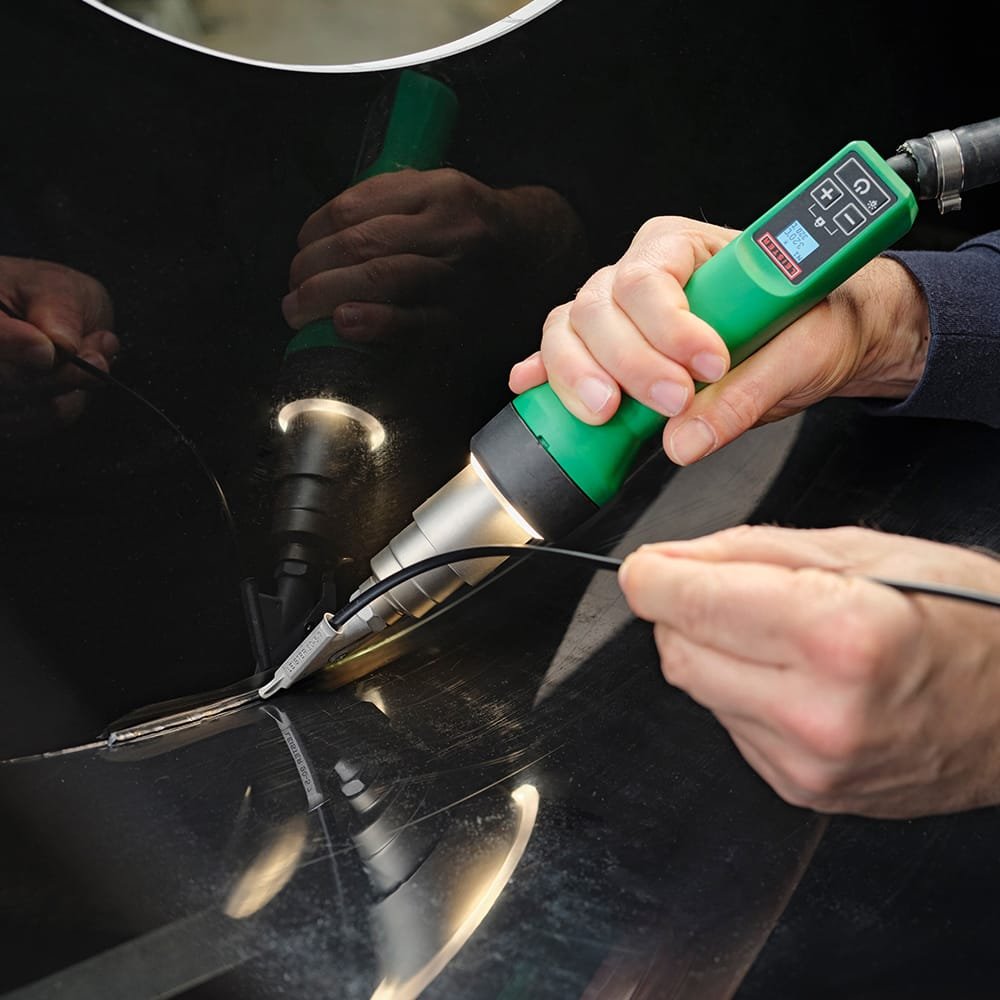

• Integrated Ring-Shaped LED Work Light: A ring LED light is built into the handle directly behind the nozzle connection, projecting warm white illumination onto the welding zone around the nozzle exit – providing consistent, shadow-free visibility of rod placement, bead formation, and substrate pre-heating in the dark interior sections, deep vessel recesses, and low-light confined spaces where apparatus and tank construction welding routinely requires the operator to work without adequate ambient lighting.
• Electronic Constant Temperature Control from 60 to 450 °C: The PENWELD 305-A uses electronic closed-loop control to maintain outlet air temperature at the operator-set value throughout the weld run, compensating for hose length, tool orientation, and ambient temperature variation – delivering the thermal precision and process reliability that accurate seam welding in apparatus construction requires, where temperature deviation affects fusion depth and bead quality in ways that are difficult to detect and costly to remediate.

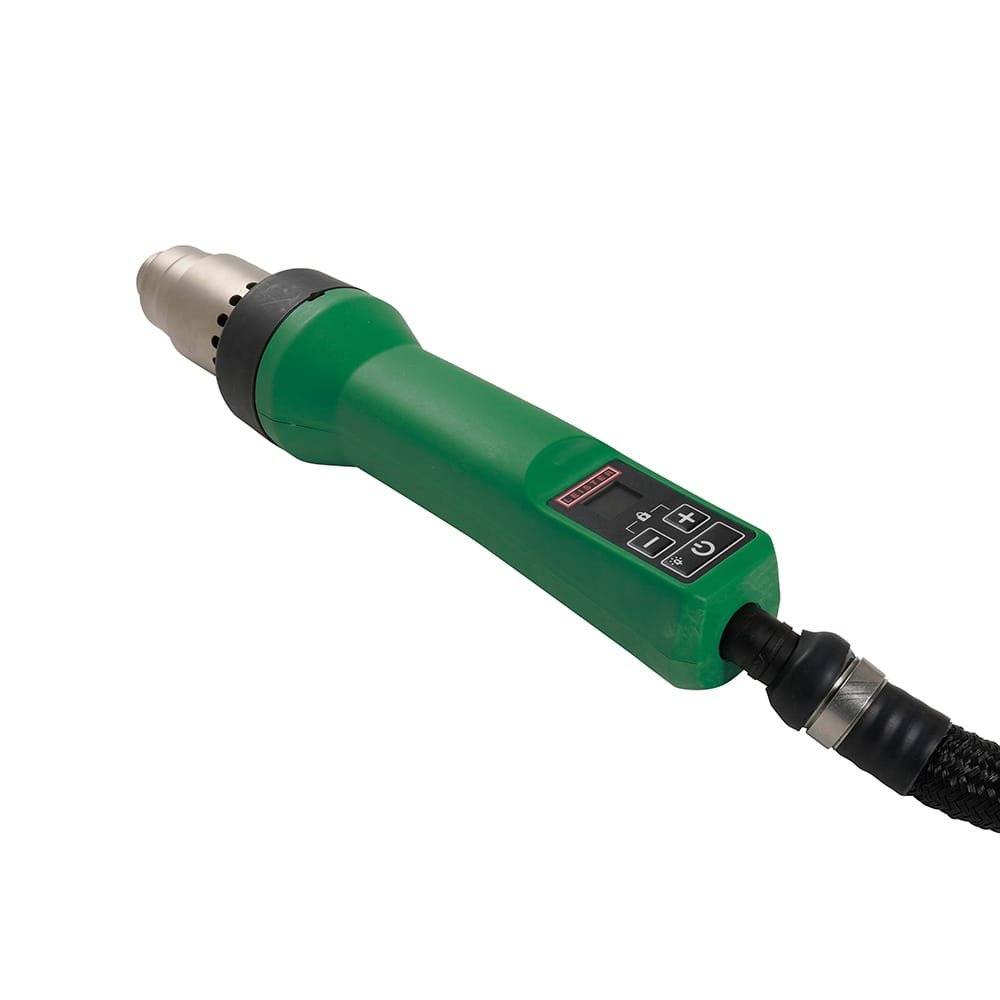

• Display of Current and Target Temperature: The onboard display presents both the set temperature target and the actual measured temperature simultaneously, allowing the operator to verify process conditions and confirm temperature stability during active welding without interrupting the weld run to check a separate instrument or rely on subjective assessment of welding quality.
• 310-Degree Rotating Air Connection: The air hose connection at the rear of the tool rotates through 310 degrees, allowing the hose to reposition around the body as the operator moves, changes angle, or transitions between joint faces – preventing hose rotation from transmitting torque to the handle during draw welding and maintaining consistent tool control and nozzle direction throughout complex access welding sequences.
• Snake-Skin Surface Hose with Integrated Power Cable: The air hose incorporates a lightweight, flexible construction with a mesh surface finish designed to slide over panel edges, frame members, and confined opening edges without resistance – eliminating the hose drag and snagging that standard hose surfaces create during draw welding inside vessel structures, reducing the pull forces transmitted to the tool handle that disrupt nozzle tracking and weld consistency.
• 0.43 kg Operating Weight with 37 mm Handle Diameter: The combination of 0.43 kg tool weight and 37 mm handle diameter produces an instrument that is held and guided like a precision writing tool rather than a power tool – enabling sustained single-hand operation with the directional accuracy and fine motor control that draw welding accurate seams in inaccessible locations demands across extended work periods.

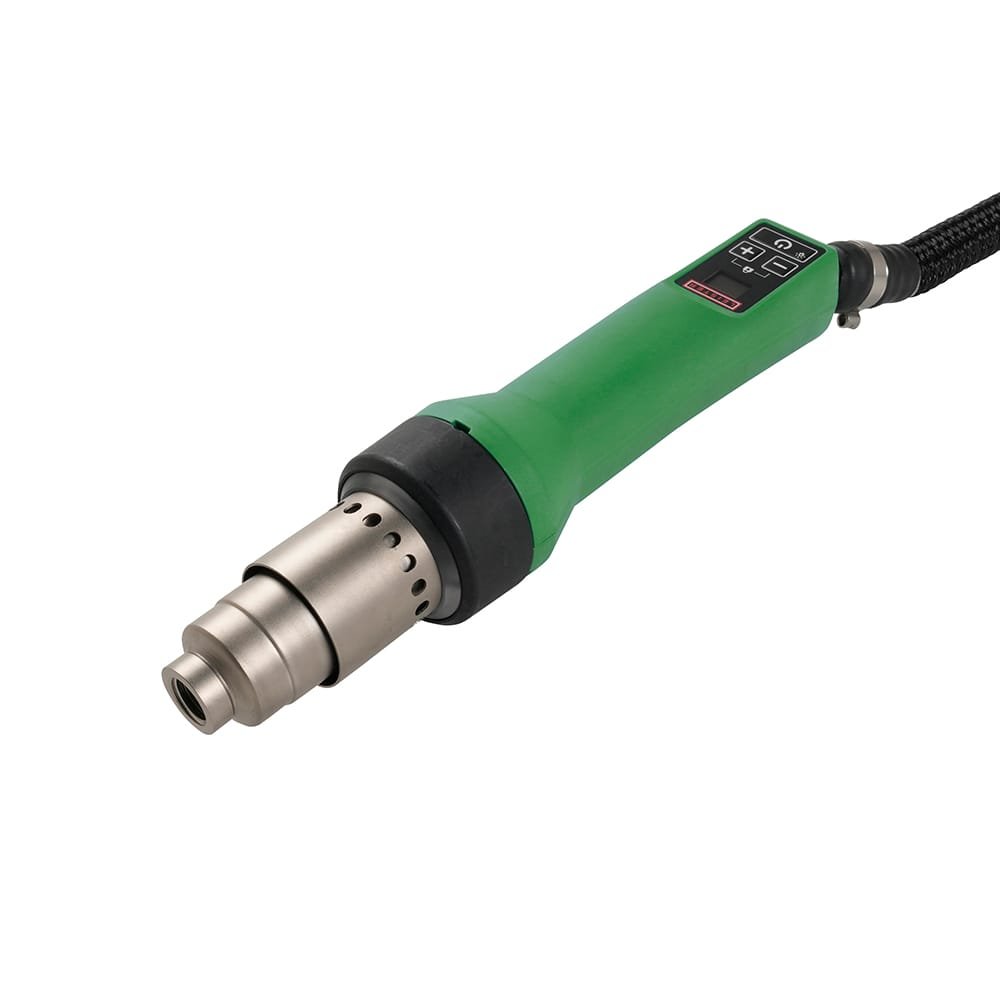

• 54 mm Tube Body for Confined Space Access: The 54 mm device diameter and 254 mm length allow the PENWELD 305-A to be inserted into vessel openings, access ports, and confined panel joints where larger tool body diameters cannot fit – enabling the full nozzle and angle adapter range to be used at the weld point without the tool body obstructing access or requiring manual clearance during the weld run.
• Multiple Version Configurations for Application-Specific Requirements: The PENWELD 305-A is available with 3 m or 8 m air hose lengths for different access depth requirements, at 1000 W and 1550 W power ratings for different material and ambient temperature conditions, and with M14 thread or plug-in nozzle connection for compatibility with different angle adapter and nozzle configurations – enabling selection of the version best matched to the specific access geometry, material specification, and nozzle requirement of each fabrication application.

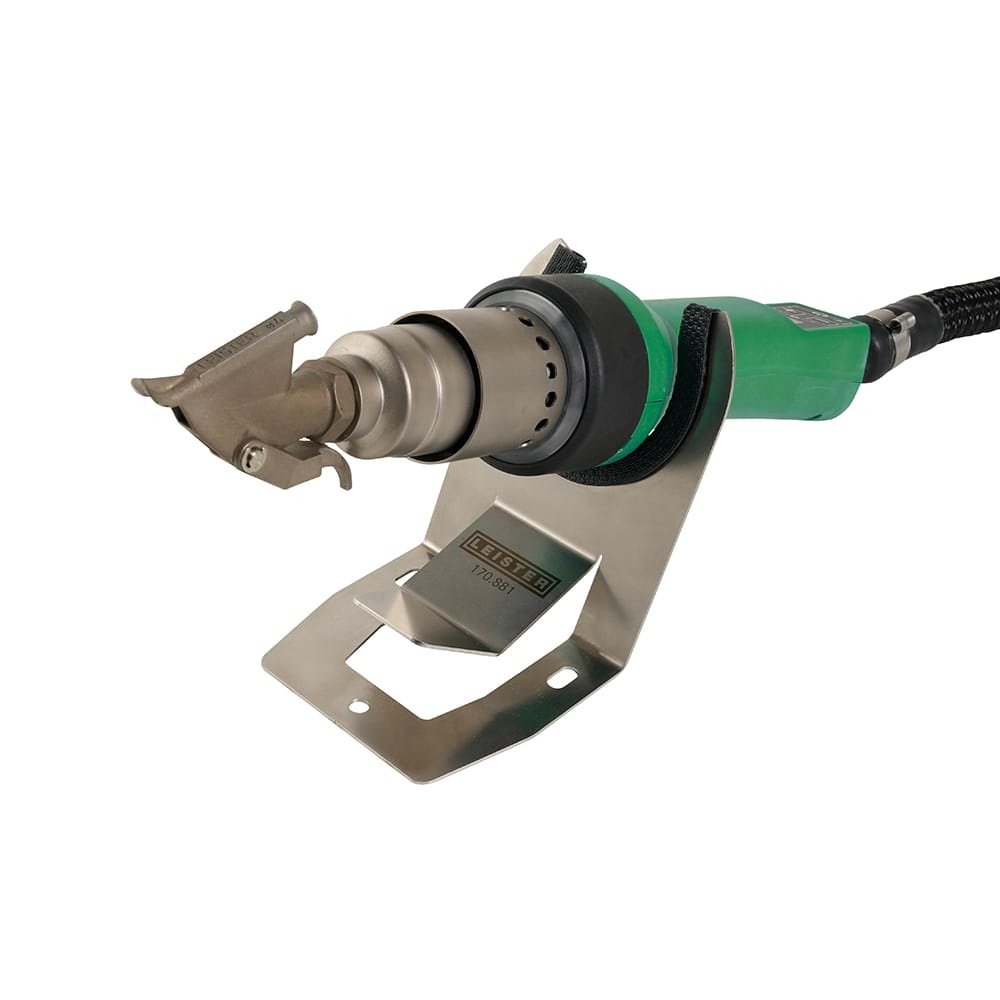

• Angle Adapter Compatibility for Inaccessible Joint Access: The comprehensive angle adapter accessory range for the PENWELD 305-A extends the tool’s reach into joint geometries and vessel sections where direct nozzle-to-joint access is not achievable – enabling draw welding in corners, behind flanges, and inside complex vessel internals where the tool body cannot be positioned directly in line with the joint axis.

Precision Hot Air Welding Applications for the Leister PENWELD 305-A in Oman and the GCC

• Chemical Vessel and Apparatus Interior Welding: Provides the LED illumination, precise temperature control, and confined access form factor required for draw welding internal joints, corner seams, and repair welds inside chemical storage vessels, process apparatus liners, and engineering plastic vessel internals – where the weld zone is beyond the reach of ambient light and the joint geometry requires a compact, precisely guided tool.
• Plastic Tank Construction and Internal Seam Welding: Welds internal structural joints in thermoplastic tanks for chemical storage, water treatment, and industrial process applications – where the 310-degree rotating connection and snake-skin hose enable the operator to work inside the tank structure through access openings without hose drag limiting reach or disrupting nozzle control during continuous seam runs.
• Apparatus and Equipment Liner Fabrication: Supports the draw welding of precision seams on plastic liners, baffles, and internal structural components in industrial apparatus and process equipment – where seam accuracy, fusion depth consistency, and process temperature stability are specification requirements that the electronic temperature control and LED work light of the PENWELD 305-A address directly.
• Confined and Low-Light Access Welding in Fabrication Environments: The integrated LED work light and compact 54 mm body make the PENWELD 305-A suitable for welding in the dark recesses, deep access points, and confined internal sections of fabricated plastic assemblies across plastic fabrication workshops and industrial construction sites in Oman and the GCC – where standard tools without illumination require the operator to work by feel rather than by sight.
• Long-Reach Welding with 8 m Hose Configuration: The 8 m hose version extends the effective working radius of the PENWELD 305-A for welding inside large vessels, deep tanks, and pipeline sections where the air supply unit must remain outside the access area – enabling continuous draw welding at distances from the blower that standard 3 m hose configurations cannot accommodate without hose extension and the associated temperature control compromise.

Leister PENWELD 305-A – Available Through iBuild, Authorised Leister Distributor in Oman

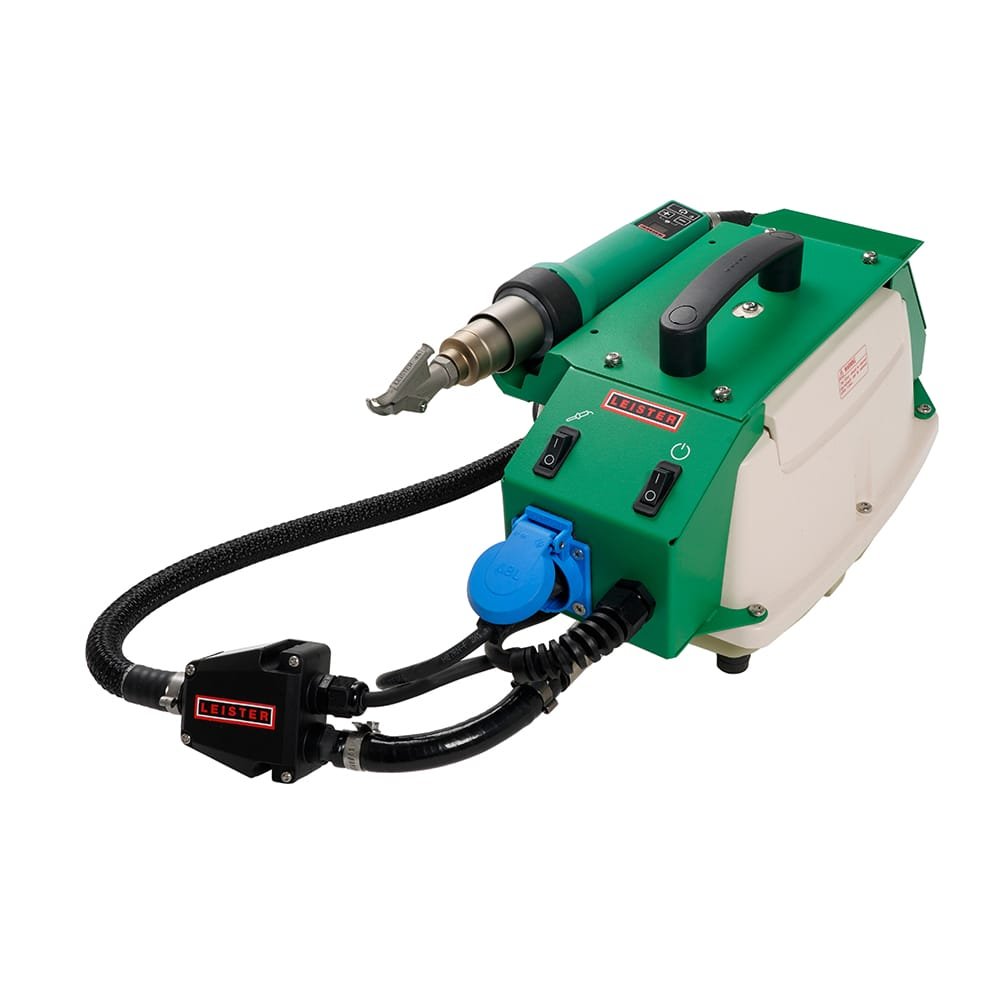

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing apparatus construction specialists, tank fabricators, plastic lining contractors, and industrial maintenance teams with direct access to the PENWELD 305-A in all available configurations alongside compatible angle adapters, nozzle accessories, and compatible Leister blower systems including the AIRSTREAM ST and AIRSTREAM 100. As a manufacturer-authorised technical partner, iBuild supports version selection – hose length, power rating, and nozzle connection type – for specific apparatus welding access requirements, and provides the lifecycle support that sustains precision tool performance across continuous fabrication use.

For plastic apparatus fabricators, tank builders, vessel lining contractors, and industrial maintenance engineers across Oman and the GCC requiring a precision hot air welding tool with LED work light, constant electronic temperature control, and the confined-space access capability that apparatus and vessel interior welding demands, iBuild is the authorised local source for the Leister PENWELD 305-A – backed by manufacturer authority and in-country technical expertise.
