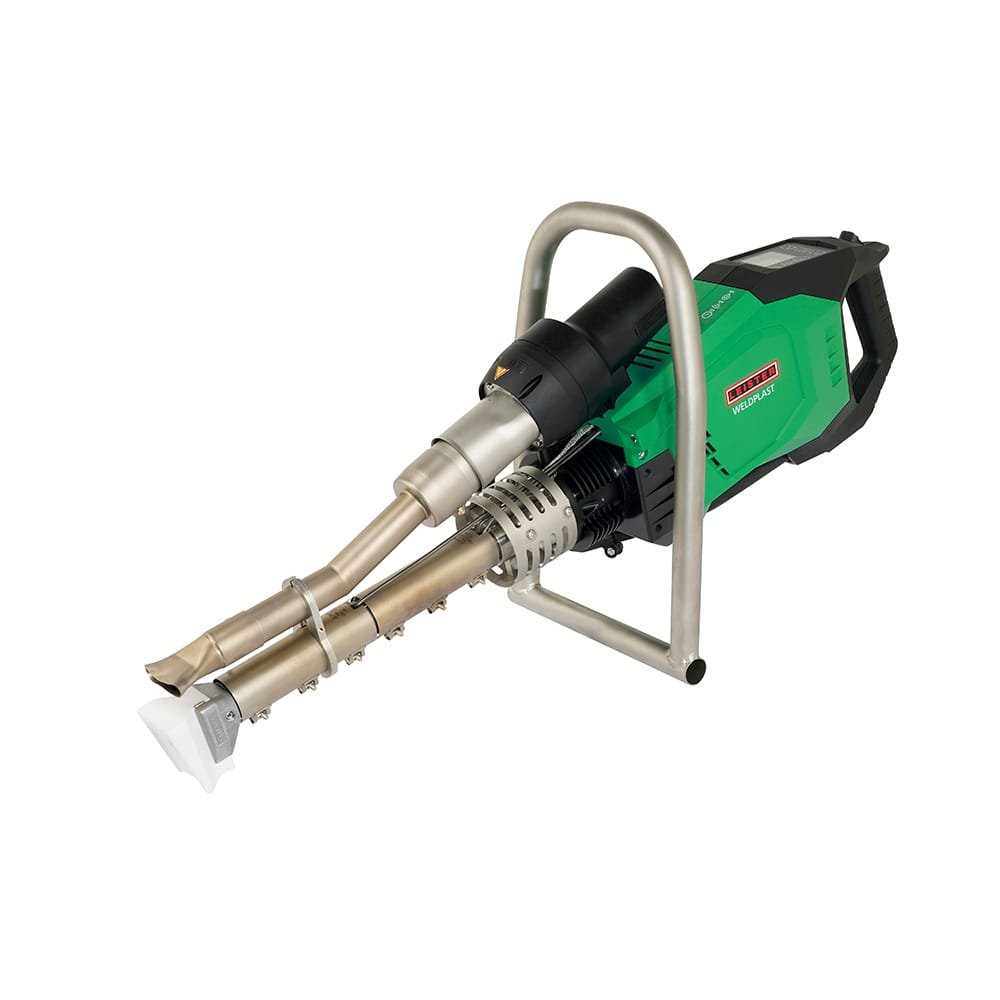

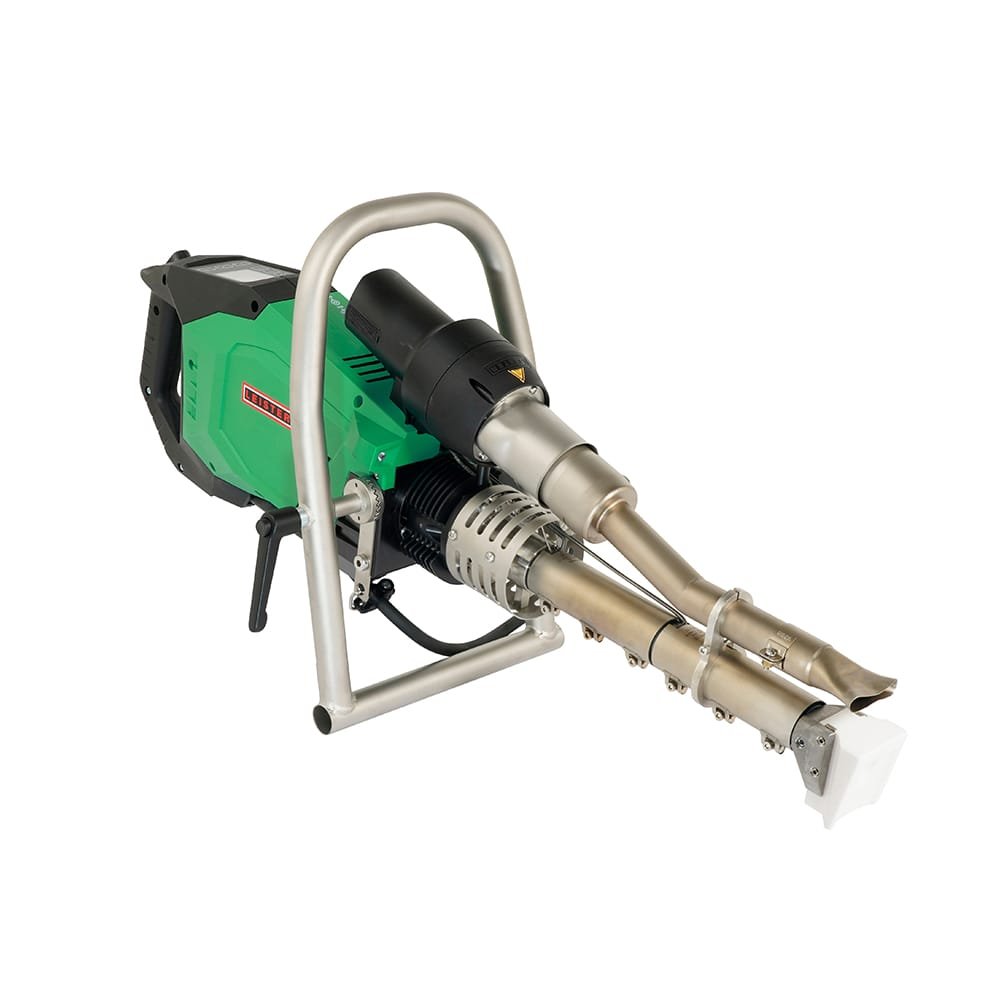

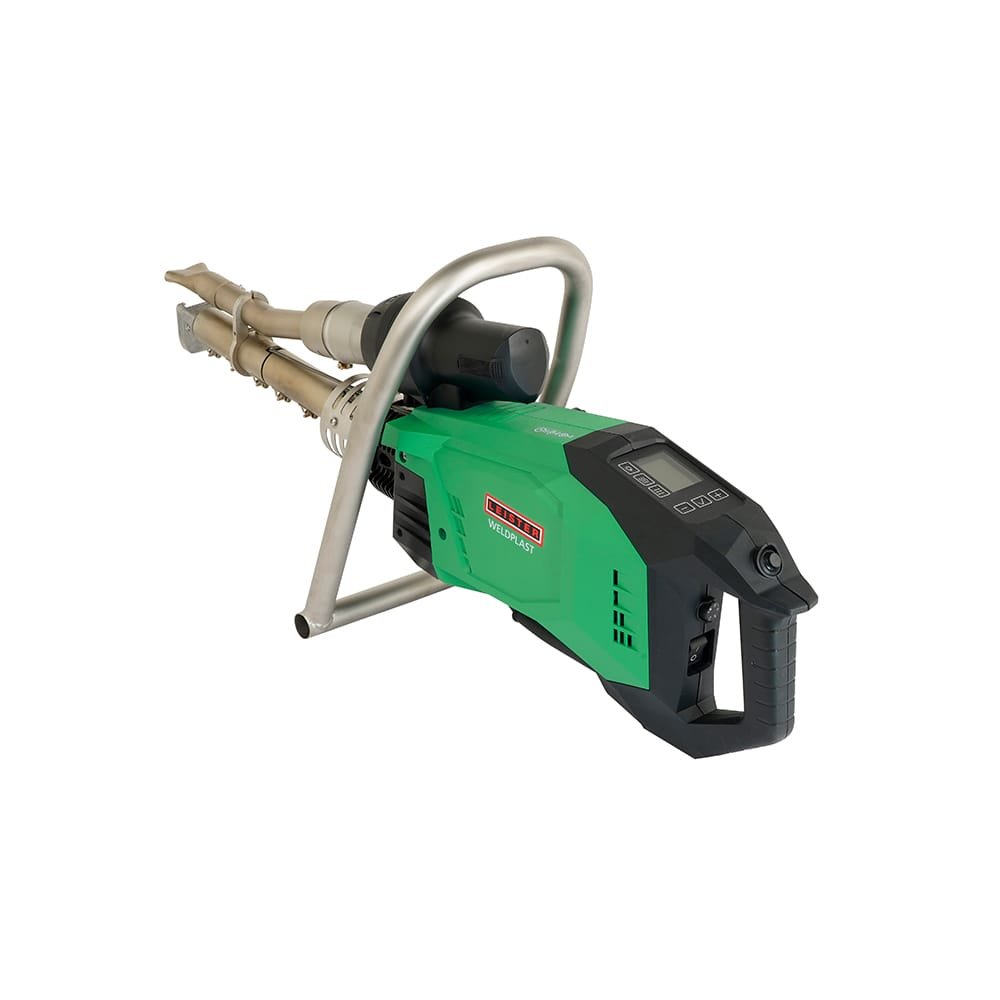

Leister WELDPLAST 605 Hand Extrusion Welder

The Leister WELDPLAST 605 is a 3680 W hand extrusion welder delivering up to 6 kg/h material output – the largest extruder in the Leister range – featuring dual brushless blower and drive motors, LQS welding parameter recording with GPS coordinates via the myLeister app, intelligent power management with undervoltage compensation, ECO mode with up to 40% energy saving, two-zone coil heater screw for PE geomembranes, closed-loop air temperature control, external air guide, bilateral rod intake, LED working light, bow handle with multiple grip positions, and below-extruder optimised cable routing – designed for extrusion welding of HDPE, LDPE, and LLDPE geomembranes from 1 mm to 3 mm in civil engineering applications including landfill containment, mine liner installation, water reservoir construction, and aquaculture facility development.

Maximum-Output GPS-Documented Hand Extrusion Welding for Civil Geomembrane Installation

Civil geomembrane installation programmes that deploy automatic welding machines for field panel seam runs also require hand extrusion welding capability for the connections, T-joints, repairs, and detail work that automatic machines cannot perform. At anchor trench connections where liner panels terminate at the perimeter structure, at T-joint intersections between field panel seams and cross-seams, and at repair patches where the liner has been damaged during installation, hand extrusion welding is the method that creates the structural bond between the geomembrane and itself or the connecting element. The output capacity of the hand extruder at these locations directly affects how quickly the connection, junction, or repair work is completed – and how that work integrates into the quality documentation programme that the installation project requires for regulatory acceptance and project handover.

The WELDPLAST 605 is engineered specifically for this civil engineering application context. Its 6 kg/h maximum output with 5 mm rod enables productive connection and repair welding on thick HDPE and LLDPE geomembrane sections. Its LQS system with GPS coordinate recording via the myLeister app generates the quality documentation that civil geomembrane projects require at every weld location – not just for the automatic seam runs, but for each hand extrusion weld joint, T-connection, and repair that forms part of the total quality assurance record of the installed liner system. Its intelligent power management compensates for the supply voltage variation that remote civil project sites produce. And its long, slim, 809 mm body with bow handle and below-extruder cable routing is configured for the standing, forward-progress welding posture that large-area civil site extrusion welding requires across the terrain conditions of active liner installation projects in Oman and the GCC.

WELDPLAST 605 Performance, Documentation, and Civil Engineering Site Features

• Up to 6 kg/h Output – Leister’s Largest Hand Extruder: Achieves 3.9 to 4.8 kg/h with 4 mm rod and 4.9 to 6 kg/h with 5 mm rod, measured with PE – providing the volumetric throughput that productive connection welding, T-joint fabrication, and repair extrusion on civil geomembrane installations requires. The 6 kg/h maximum output at 5 mm rod makes the WELDPLAST 605 the highest-output hand extruder in the Leister civil engineering range, matched to the bead volume requirements of the connection and joint work that completes a professional geomembrane liner installation.

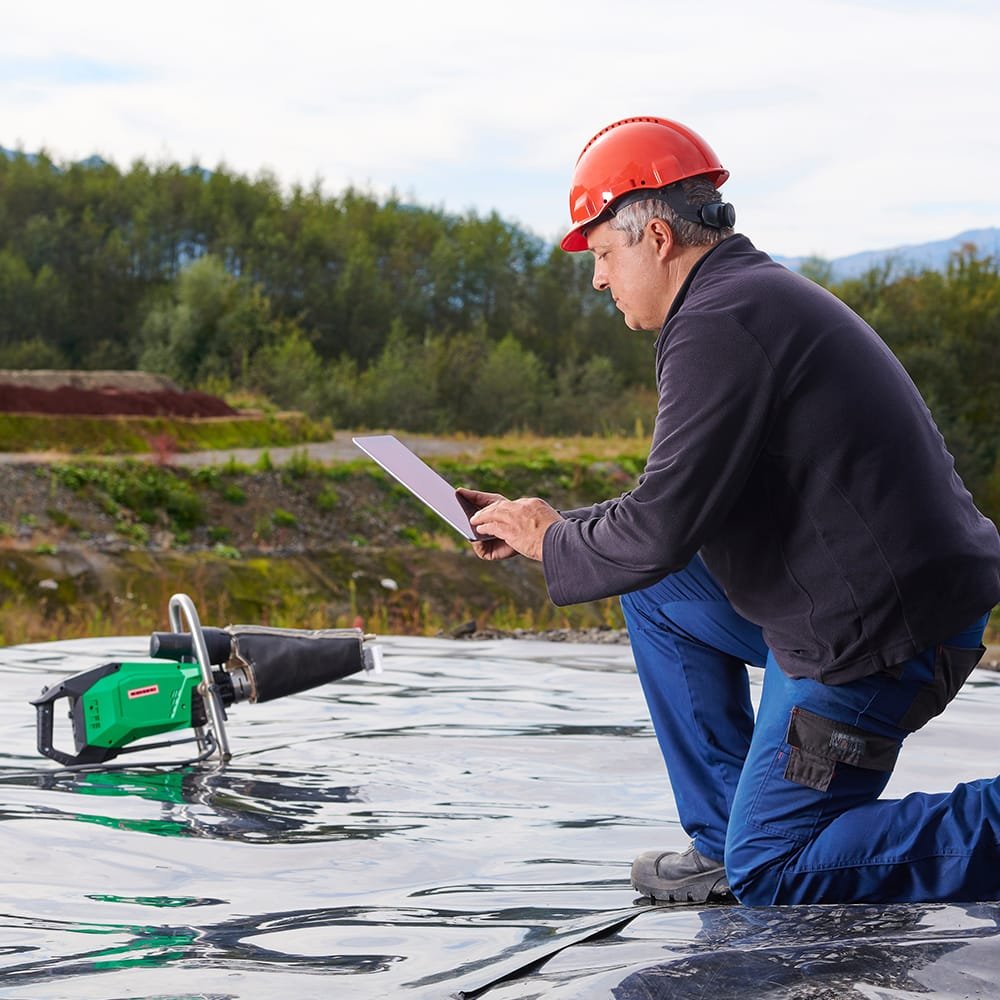

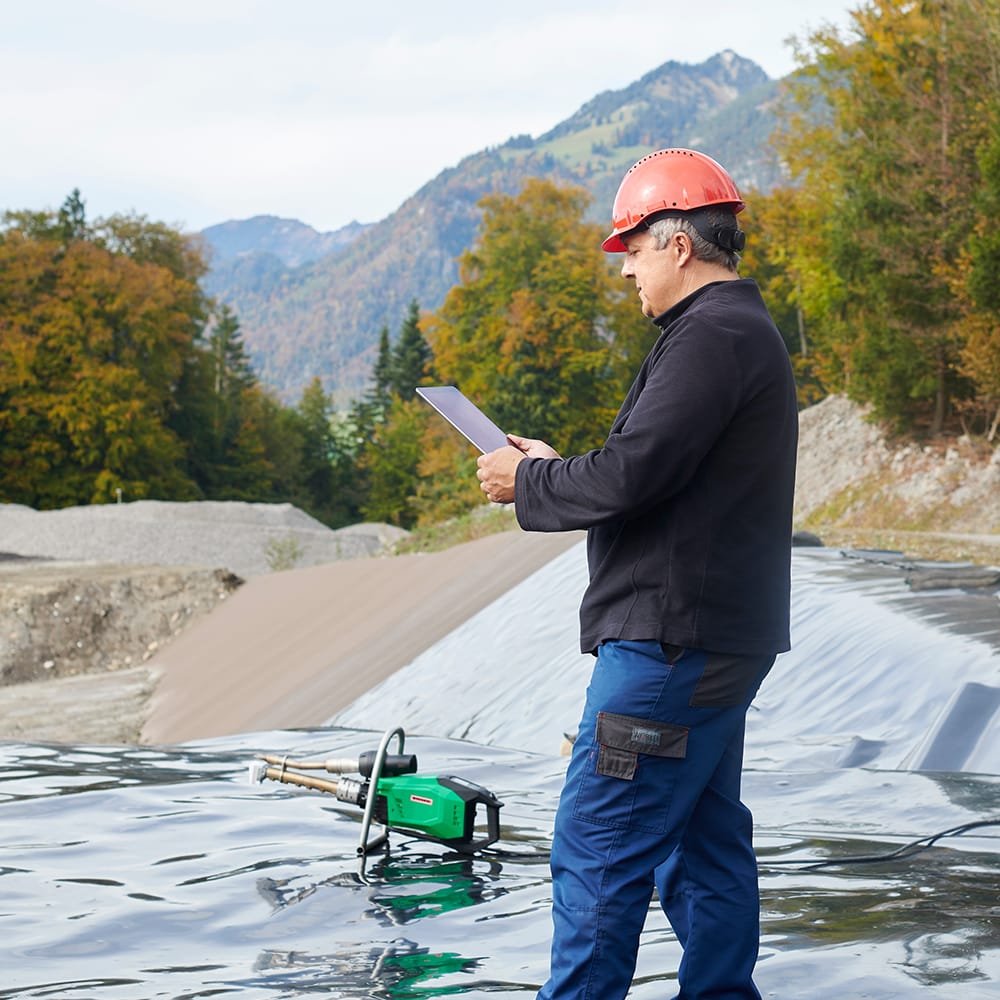

• LQS Welding Parameter Recording with GPS Coordinates: The Leister Quality System records welding parameters continuously throughout each hand extrusion weld run and captures the GPS coordinates of each weld location via the myLeister app – creating a position-referenced quality record for every T-joint, connection weld, and repair patch completed with the WELDPLAST 605. This GPS-tagged documentation integrates the hand extrusion welding quality record with the LQS data from the GEOSTAR and TWINNY automatic welders, providing a complete and consistent quality assurance dataset across the full installed liner system for regulatory submission and project handover.
• Dual Brushless Drive and Blower Motors: Independent brushless motors for both the rod drive system and the hot air blower eliminate carbon brush wear and replacement from both motor systems – providing the sustained performance and minimal maintenance that intensive civil site hand extrusion welding demands across multi-week large geomembrane installation programmes. Both motor systems benefit from the extended service life that brushless technology delivers, reducing the maintenance interventions required to keep the extruder performing at specification throughout the installation programme.
• Intelligent Power Management with Undervoltage Compensation: The power management system compensates for supply voltage reduction up to a defined threshold – maintaining the required welding temperature and drive output against the generator supply variation, long extension cable voltage drop, and site electrical supply instability that remote civil project sites across Oman and the GCC produce during active liner installation operations. Consistent output quality is maintained under moderate undervoltage conditions without the operator needing to manually adjust parameters in response to supply variation.
• ECO Mode – Up to 40% Energy Saving During Work Breaks: When the WELDPLAST 605 is stationary during work breaks or positioning transitions, ECO mode reduces heating power and blower output by up to 40% – maintaining the extruder at a reduced standby state that recovers quickly to full operating temperature when welding resumes, rather than maintaining full power output unnecessarily during the repeated pauses that active civil installation work involves. This energy saving reduces the load on site generator supply and extends the productive operating time available from the site power infrastructure.
• Two-Zone Coil Heater Screw Specifically Designed for PE Geomembranes: The extrusion screw with two-zone coil heating is designed specifically for the melt behaviour of HDPE, LDPE, and LLDPE geomembrane materials – providing controlled progressive heating across the two screw zones that achieves full, uniform plasticisation of the geomembrane PE rod at the output rate the WELDPLAST 605 delivers, without the overheating risk in the first zone or the under-plasticisation in the second zone that a single-zone heating approach introduces at the machine’s upper output rate.
• Closed-Loop Air Temperature Control with External Air Guide: The closed-loop control system monitors and maintains pre-heating air temperature at the set point throughout the weld run – compensating for ambient temperature variation and load changes to ensure consistent substrate pre-heating at the joint face. The external air guide delivers this temperature-controlled pre-heating air directly to the geomembrane surface ahead of the welding shoe, ensuring adequate base material temperature for fusion at the weld interface before the extrudate contacts the substrate.

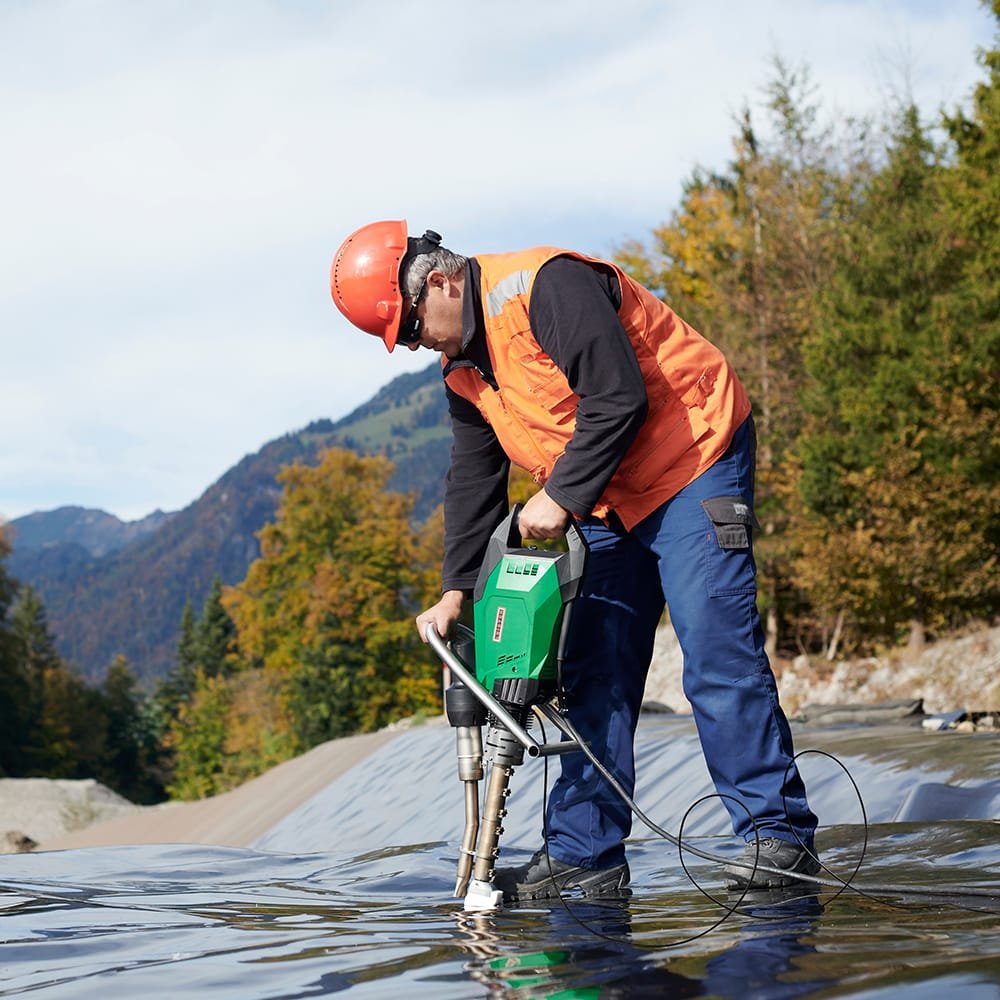

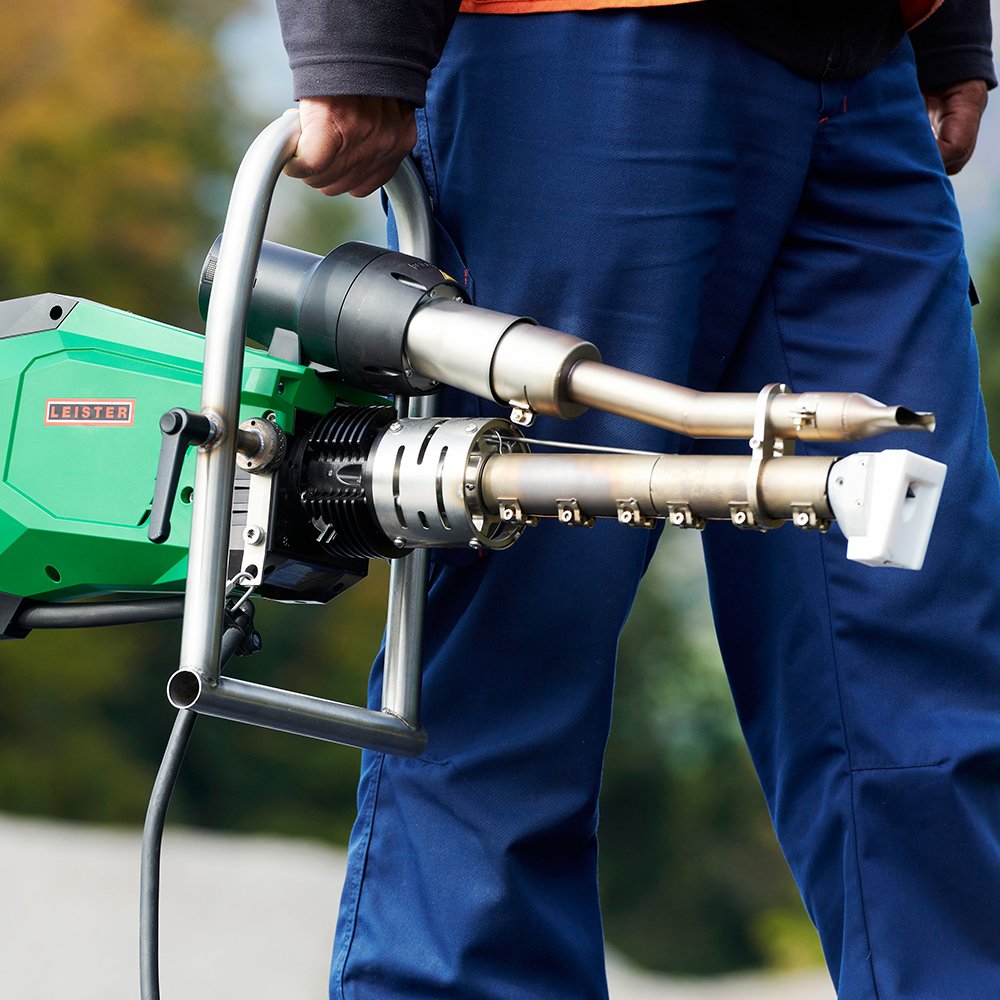

• Long Slim 809 mm Design with Bow Handle for Civil Site Posture: The 809 mm long, 140 mm wide slim body is sized for the standing, forward-progress welding posture that large-area civil geomembrane extrusion welding requires – enabling the operator to guide the extruder forward along the joint line from a natural upright stance without the stooped or awkward body position that shorter or wider extruder bodies impose on extended weld runs. The well-balanced bow handle provides multiple grip positions for safe standing, comfortable carrying, and controlled guidance during active welding.
• Below-Extruder Optimised Cable Routing: The power cable exits below the extruder body and is routed for forward-direction welding travel – keeping the cable out of the operator’s field of vision during the weld run, preventing the cable from contacting the just-completed weld bead behind the welding shoe, and enabling the extruder to be guided forwards without the cable creating an obstacle or drag force that disrupts weld speed consistency.
• LED Working Light for Weld Zone Visibility and Temperature Indication: The LED light serves two functions: it illuminates the welding zone and joint area in the shadow and low-light conditions of trenches, liner edges, and shaded site sections where ambient lighting is insufficient for accurate extrusion welding guidance, and it signals when the WELDPLAST 605 has reached operating temperature – providing a clear readiness indication before each weld run commences to confirm that the extruder is fully conditioned for the geomembrane material being welded.
• Bilateral 4 mm and 5 mm Rod Intake: Rod intake from either side of the extruder body provides the operational flexibility that different welding orientations, site access constraints, and operator positioning require during T-joint fabrication, connection welding, and repair work on civil geomembrane installations – enabling the operator to load rod from whichever side the working position and site geometry allow without repositioning the extruder or interrupting the weld.

Civil Geomembrane Extrusion Welding Applications for the WELDPLAST 605 in Oman and the GCC

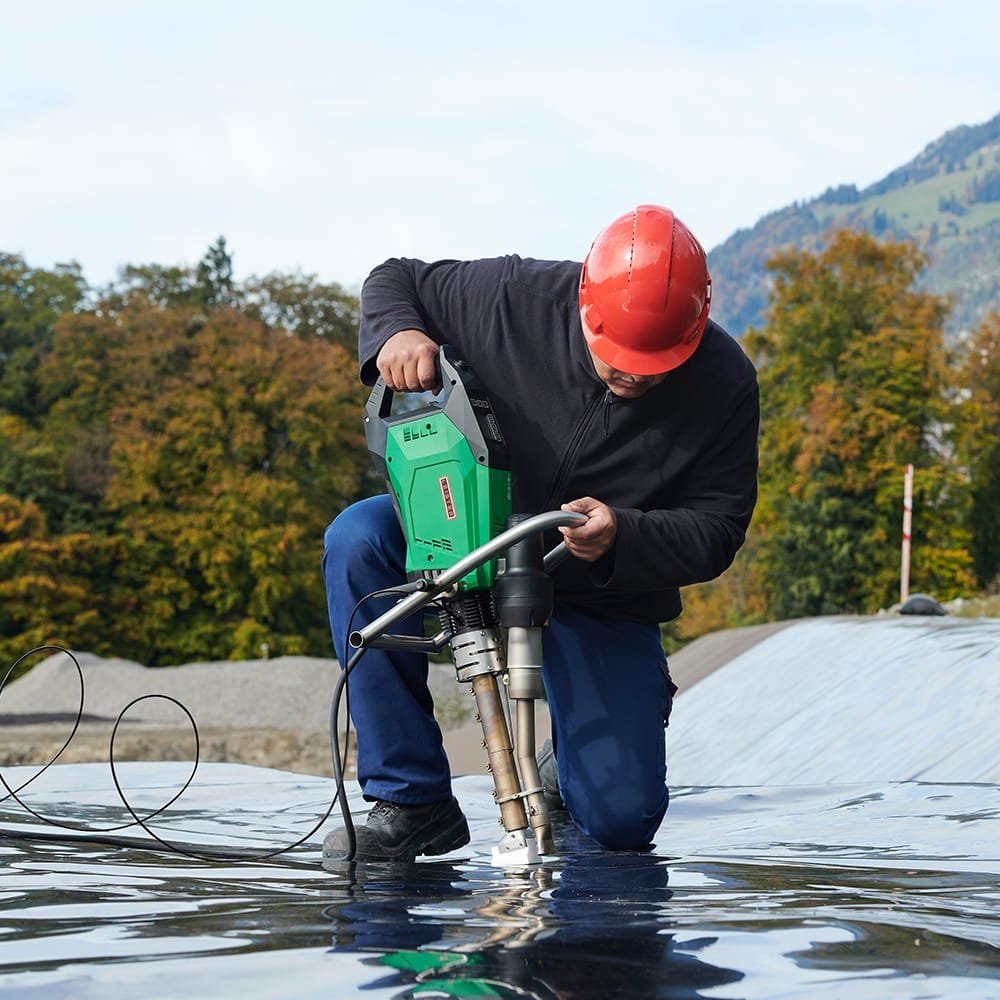

• Geomembrane T-Joint and Panel Connection Welding on Civil Liner Installations: Fabricates the T-joint connections, panel-to-panel connections, and anchor trench terminations that complete the liner installation beyond what automatic seam welders can produce – with LQS GPS documentation capturing the quality record of each connection weld to the same standard as the automatic seam run records, providing a complete and consistent quality assurance dataset for the full installed liner system on landfill, reservoir, and mine liner projects.
• Geomembrane Repair and Patch Welding on Active Civil Project Sites: Applies extrusion weld beads to geomembrane patches, repair sections, and damage remediation points identified during or after liner installation – where the WELDPLAST 605’s 6 kg/h output enables efficient repair welding at the cross-section required for structural repair weld integrity, and where the LQS GPS record documents each repair weld location and parameters for the quality assurance record of the completed liner installation.
• Landfill Containment Liner Detail Extrusion Welding: Performs detail extrusion welding at sump locations, anchor terminations, and liner-to-structure connection points in landfill containment cell liner systems – where the connection weld quality and GPS-referenced documentation contribute to the total quality assurance record that environmental regulatory acceptance of the containment liner system requires at project handover.
• Mine and Aquaculture Facility Liner Connection Work: Welds connections, repairs, and special details on mine containment liner systems and aquaculture pond liner installations – where the WELDPLAST 605’s specific design for HDPE, LDPE, and LLDPE geomembrane materials ensures melt quality and bead integrity appropriate to the PE liner grades specified for containment and water retention applications across civil projects in Oman and the GCC.
• Reservoir and Water Infrastructure Liner Extrusion Weld Completion: Completes the connection welds, edge terminations, and repair work on civil water infrastructure reservoir liners, canal waterproofing geomembranes, and water retention liner systems – where the GPS-documented LQS quality record from the WELDPLAST 605 supplements the automatic welder seam records to provide project clients and water authority certifiers with complete quality evidence across the full liner installation.

Leister WELDPLAST 605 – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing civil engineering contractors, geomembrane installation teams, and environmental project specialists with direct access to the WELDPLAST 605 alongside compatible 4 mm and 5 mm HDPE and LDPE welding rod, welding shoes for different joint geometries, and technical guidance on myLeister app LQS GPS configuration to align hand extrusion weld records with the quality assurance framework of the project. As a manufacturer-authorised technical partner, iBuild supports material-specific parameter optimisation for HDPE, LDPE, and LLDPE geomembrane grades, rod specification selection, and lifecycle support to sustain WELDPLAST 605 performance across intensive civil liner installation programmes.

For civil engineering contractors, geomembrane installation teams, and liner programme managers across Oman and the GCC requiring Leister’s largest civil engineering hand extruder with 6 kg/h output, GPS-tagged LQS documentation aligned with the GEOSTAR and TWINNY quality assurance system, dual brushless motor durability, intelligent power management, and the specifically designed architecture for HDPE, LDPE, and LLDPE geomembrane extrusion welding, iBuild is the authorised local source for the Leister WELDPLAST 605 – backed by manufacturer authority and in-country technical support.
