Leister WELDPLAST S2 Hand Extrusion Welder

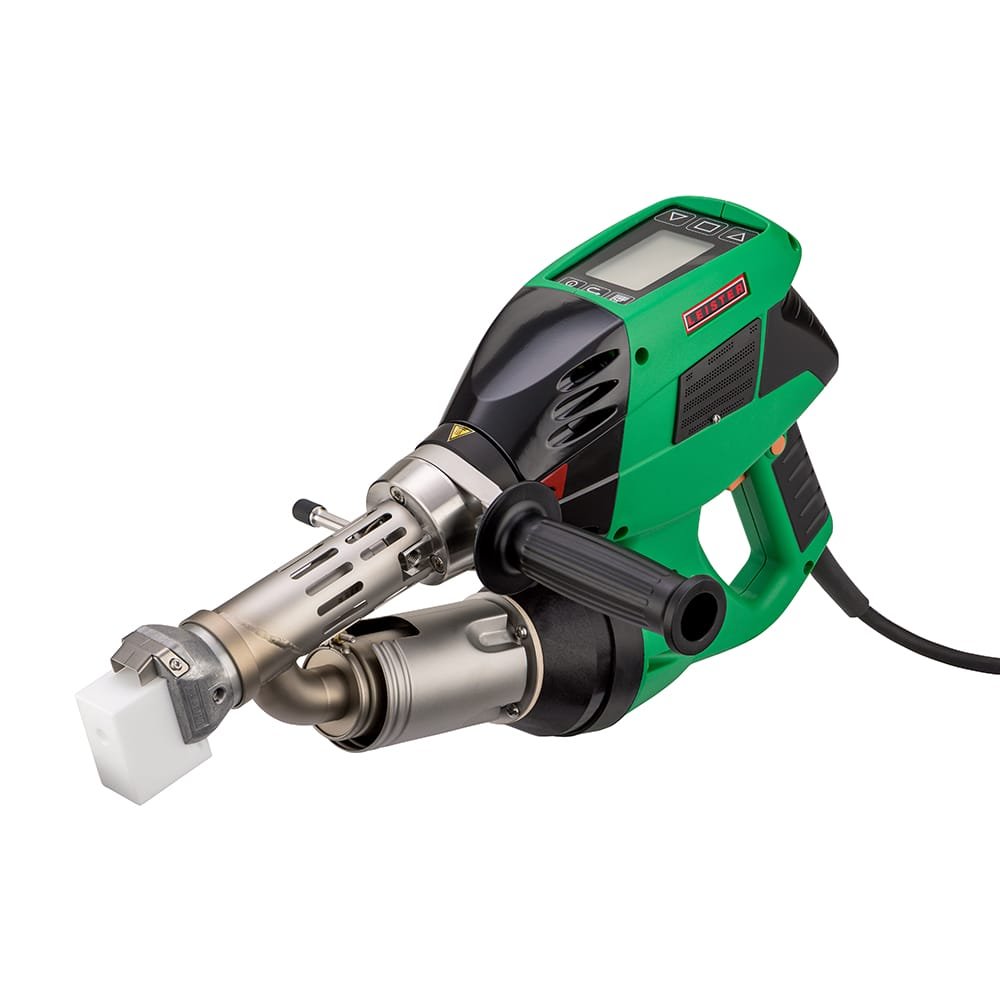

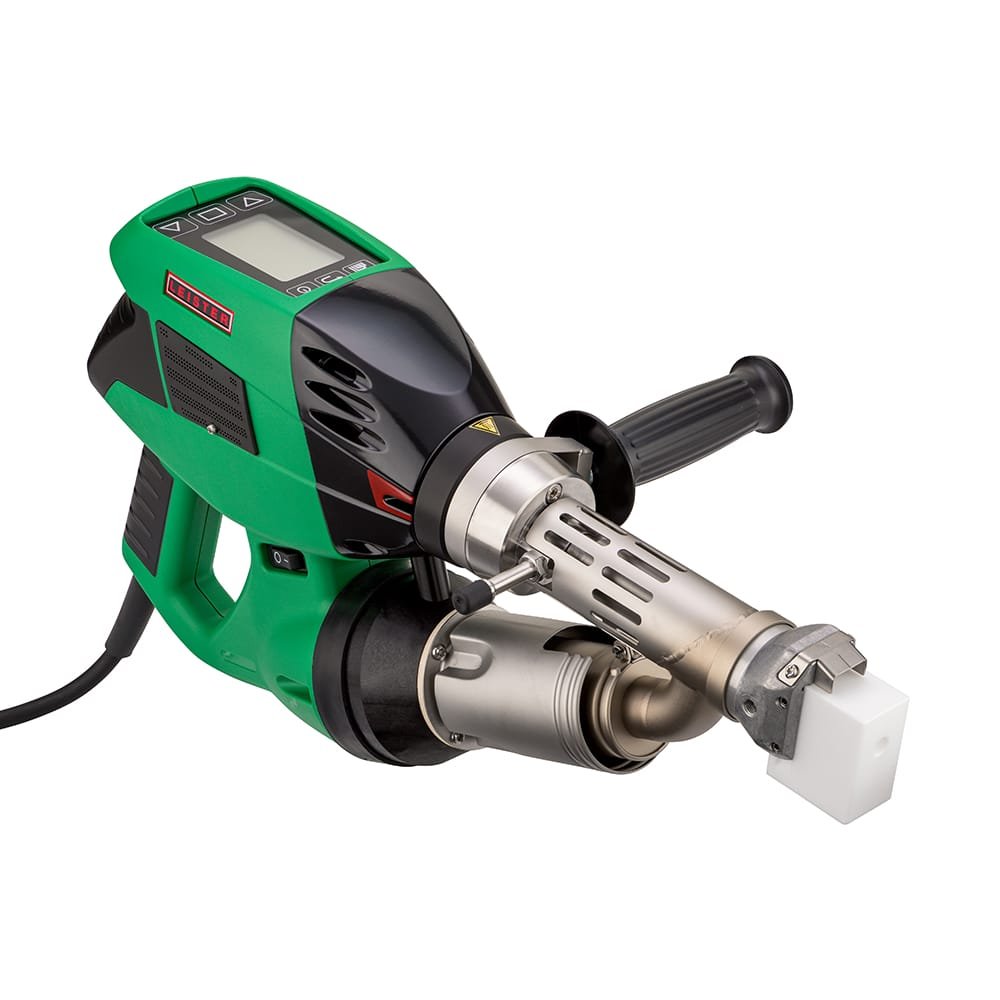

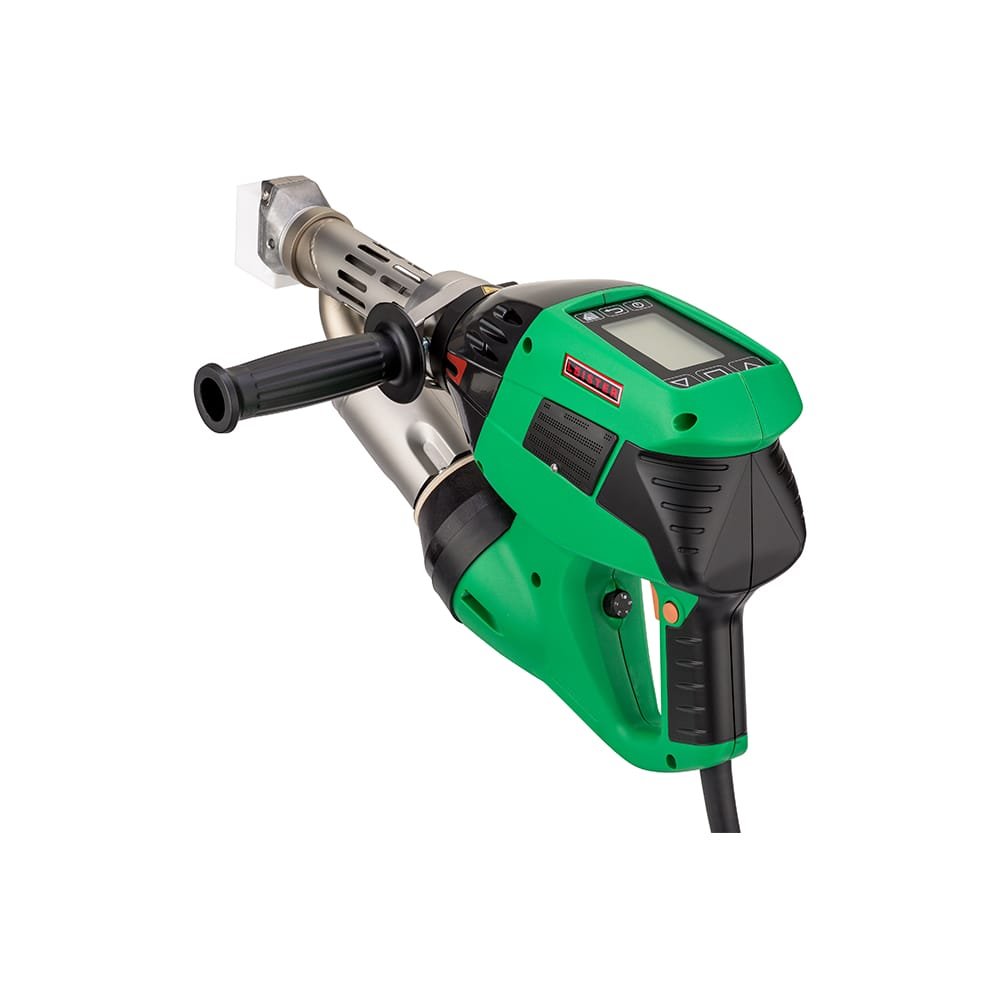

The Leister WELDPLAST S2 is a 3000 W hand extrusion welder delivering up to 2 kg/h material output with 4 mm rod, designed for HDPE, LDPE, LLDPE, and PP sheet from 10 mm to 20 mm – featuring an arrow-shaped body that narrows to a point for corner and confined access welding, 360-degree rotating welding shoe on internal air guide, multiple grip positions, HMI display with stored parameter recall, closed-loop air temperature control, coil heater screw heating, and brushless blower motor.

Compact Agile Extrusion Welding in Corners, Confined Spaces, and Complex Joint Geometries

Conventional hand extruders share a fundamental form factor constraint: a cylindrical body of uniform diameter from the rod intake to the nozzle end. This geometry is adequate for straight seam runs on open flat surfaces, but becomes an access limitation the moment the weld joint moves into a corner, an internal panel angle, a vessel interior junction, or any confined geometry where the body of the extruder must pass through the same access opening as the welding shoe. When the body diameter is wider than the access allows, the welding shoe cannot reach the joint – and the operator must revert to manual welding methods that cannot match extrusion weld quality or output.

The WELDPLAST S2 resolves this constraint through its arrow-shaped body architecture. By tapering the extruder body to a point at the nozzle end, the WELDPLAST S2 reduces the profile that must pass through confined openings and fit into internal corners to the narrowest practical cross-section at the point where access is most restricted. This enables the welding shoe to reach joint geometries – internal angles, panel corners, vessel junction details, and confined structural plastic assemblies – that standard cylindrical extruder bodies cannot access without obstructing the joint approach. Combined with the 360-degree rotating welding shoe that maintains correct orientation to the joint line regardless of the extruder body angle, and multiple grip positions that adapt the handling posture to each working orientation, the WELDPLAST S2 extends productive extrusion welding into the access-constrained situations that other hand extruders exclude from their operational scope. For plastic fabricators across Oman and the GCC working on tanks, containers, equipment housings, and structural plastic assemblies where joint complexity and access constraint are standard fabrication realities, the WELDPLAST S2 is the correctly specified instrument.

WELDPLAST S2 Technical Capabilities and Confined Access Fabrication Features

• Arrow-Shaped Body for Corner and Confined Access Welding: The extruder body narrows progressively toward the nozzle end in an arrow-shaped profile – reducing the body cross-section at the access-critical zone near the welding shoe to the narrowest practical width while maintaining the structural rigidity and internal component geometry required for the rod drive, air guide, and screw heating systems. This taper allows the WELDPLAST S2 to enter confined access openings, fit into 90-degree internal corners, and reach joint lines in fabricated assemblies where the cylindrical body of a conventional extruder would contact the adjacent panel surface before the shoe reached the joint.
• 360-Degree Rotating Welding Shoe on Internal Air Guide: The pre-heated air guide is integrated into the tip of the extruder body, with the welding shoe mounted on this internal guide in a configuration that rotates through the full 360-degree range – allowing the shoe to maintain correct alignment with the joint line across horizontal seams, vertical joints, corner welds, and circumferential weld runs without requiring the extruder body to be repositioned around the joint axis. This continuous rotation capability maintains bead continuity and geometry consistency through the full range of joint orientations that complex fabricated assemblies present.
• 3000 W Heating Power with Up to 2 kg/h Output: The 3000 W heating system delivers the thermal output required for productive extrusion welding at up to 2 kg/h with 4 mm rod – achieving 0.6 to 1.3 kg/h with 3 mm rod and 1 to 2 kg/h with 4 mm rod, measured with PE – providing the bead volume and throughput that structural weld joints on 10 mm to 20 mm HDPE and PP sheet require at working speeds that maintain weld continuity without the thermal deficit that lower-powered extruders produce on thicker section material.
• Multiple Grip Positions Across the Ergonomic Body: The WELDPLAST S2 body provides multiple grip positions that the operator selects according to the weld orientation and access position required for each joint section – enabling single-handed guidance with the directional accuracy and body posture comfort that sustained extrusion welding across the varied orientations of complex fabricated assembly work requires, without the awkward wrist angle and reduced control that a single fixed grip position imposes when the working orientation changes from the position the grip was designed for.

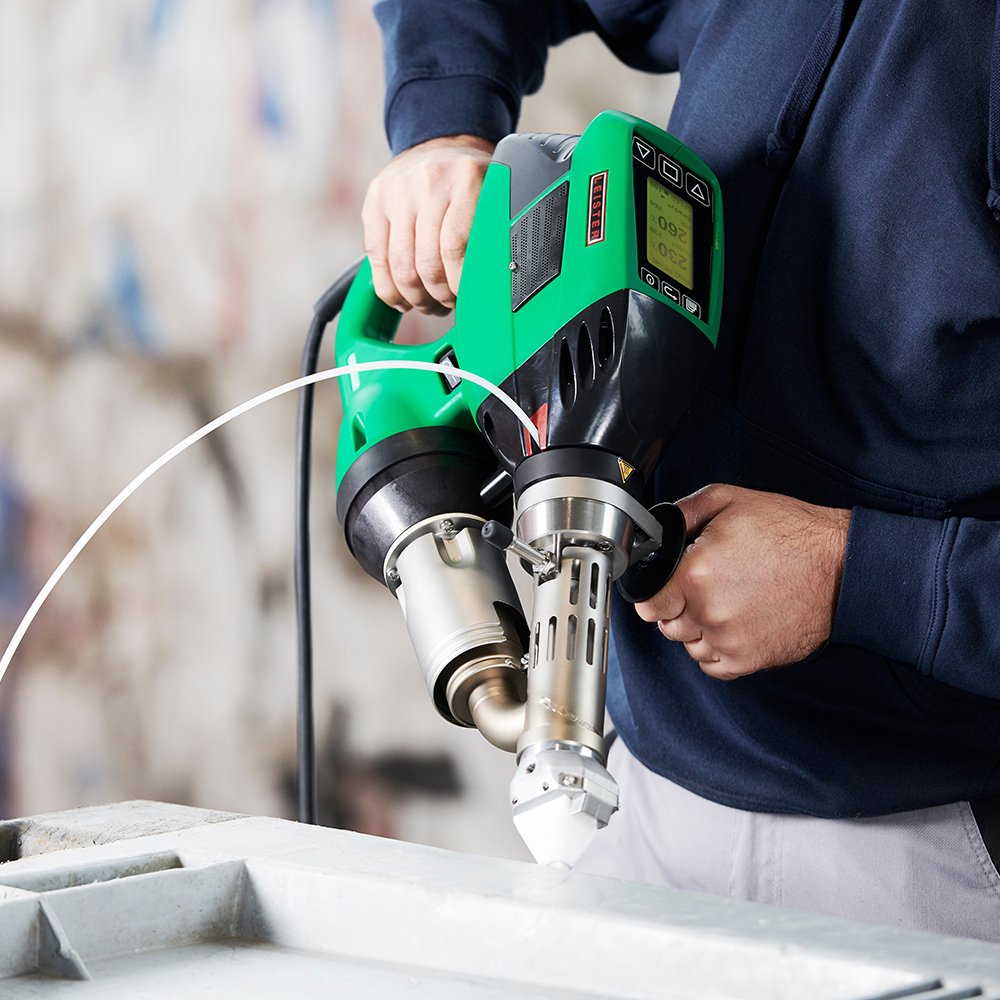

• HMI Display with Stored Welding Parameter Recall: The HMI display menu is designed specifically for extrusion welding operation – providing access to multiple stored welding parameter sets that the operator recalls by material and application type rather than entering individual parameters manually at each production start. This parameter storage capability reduces setup time between material changes and application transitions, eliminates manual entry variation, and ensures that the correct parameter combination is applied consistently across operators and production sessions without reference to external process sheets.
• Closed-Loop Air Temperature Control with Internal Air Guide: The closed-loop control system monitors and maintains air temperature at the set point throughout each weld run – compensating for ambient temperature variation and load changes to sustain consistent pre-heating air delivery through the internal air guide to the joint substrate surface ahead of the welding shoe. The internal air guide routes pre-heating air within the extruder body to the nozzle tip, keeping the external profile compact and enabling the 360-degree shoe rotation without external hose routing that would constrain the shoe movement.
• Coil Heater Screw Heating for HDPE, LDPE, LLDPE, and PP: The coil heater maintains controlled melt temperature across the extrusion screw for HDPE, LDPE, LLDPE, and PP rod materials – providing the accurate, stable screw temperature that consistent full plasticisation of these polyolefin materials requires at the WELDPLAST S2’s output range, without the temperature gradient variation across the screw length that less controlled heating approaches produce at higher output rates.
• Brushless Blower Motor for Low-Maintenance Sustained Performance: The brushless blower motor eliminates carbon brush wear and replacement from the air supply system – providing sustained blower performance across the intensive daily use that corner welding, confined access fabrication, and complex assembly extrusion welding demands from the air supply component, and reducing the maintenance access requirement to the blower motor during active production periods.
• Compact 450 mm Body at 5.8 kg for Access Management: The 450 mm length and 5.8 kg weight make the WELDPLAST S2 manageable in the confined access positions, vessel interiors, and equipment installation scenarios that corner-access extrusion welding requires – where the combination of body length, weight, and the narrowing arrow profile together determine whether the extruder can be positioned and guided accurately at the joint face without the body obstructing the access path or exceeding the operator’s ability to control placement in the constrained working position.

Corner and Confined Access Extrusion Welding Applications for the WELDPLAST S2 in Oman and the GCC

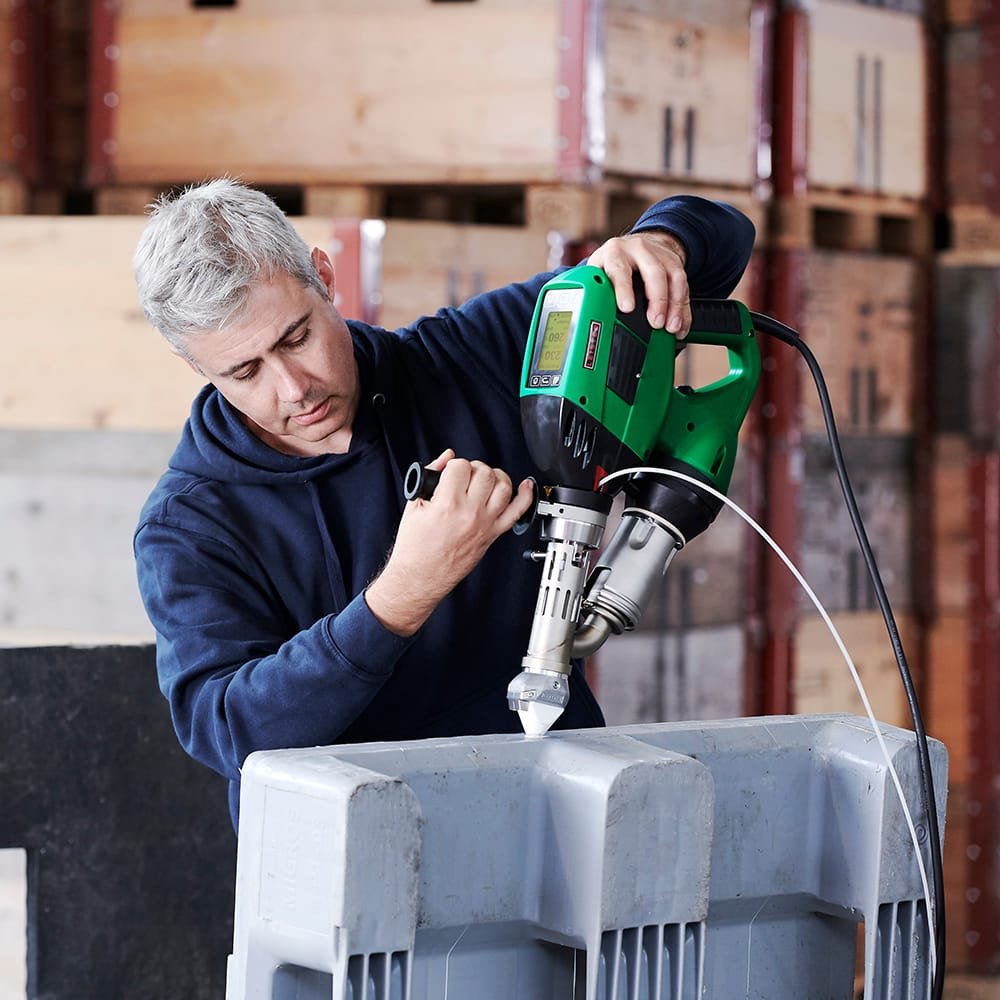

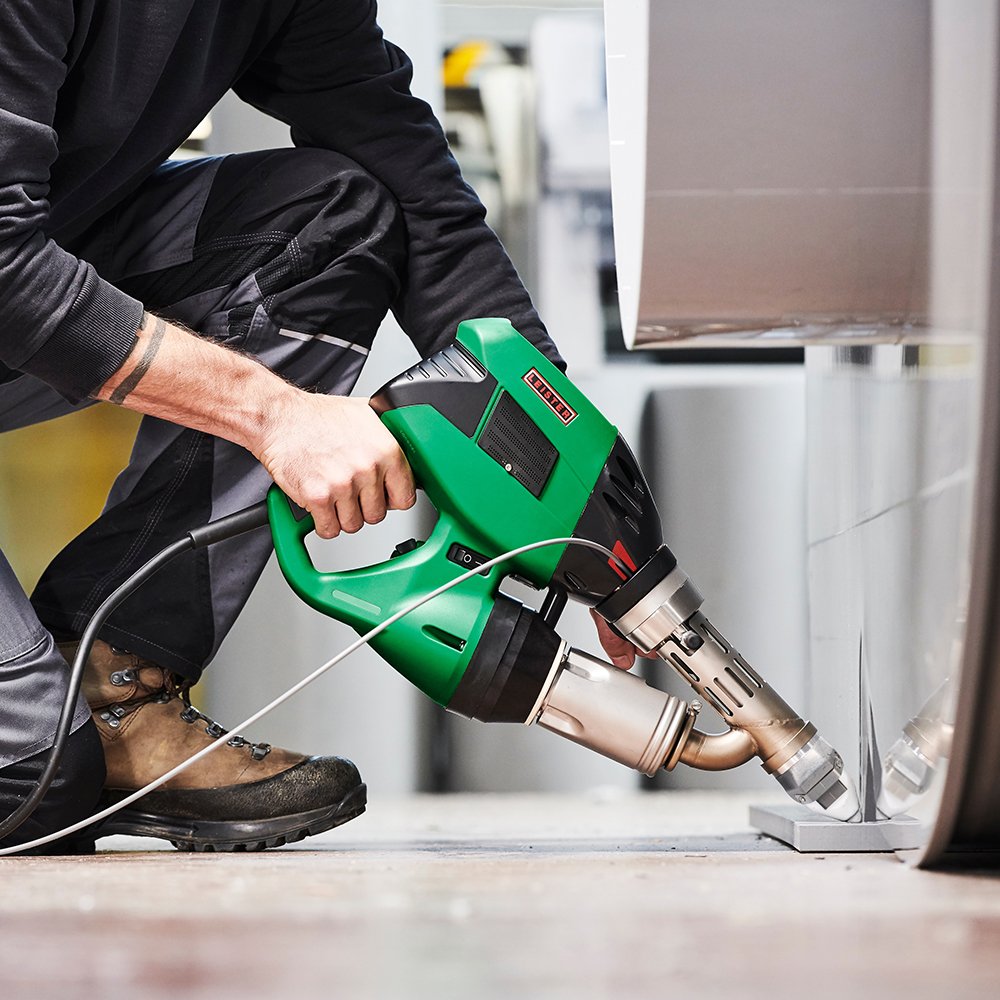

• Internal Corner and Angle Weld Fabrication in Tanks and Vessels: Reaches into the internal 90-degree corners of HDPE and PP tanks, process vessels, and containment enclosures where the arrow-shaped body accesses the joint line at the angle intersection without the body contacting the adjacent panel surface – enabling continuous extrusion weld beads through internal corners that standard cylindrical extruders cannot approach closely enough to complete without leaving a gap in the weld at the corner apex.
• Confined Panel Junction and Equipment Housing Fabrication: Welds panel junction joints, frame connections, and structural details on engineering plastic equipment housings, protective enclosures, and fabricated assemblies in confined access configurations – where the arrow body profile allows the extruder to enter the joint access space and the 360-degree rotating shoe maintains correct orientation to the joint line regardless of the angle at which the extruder body approaches the weld zone.

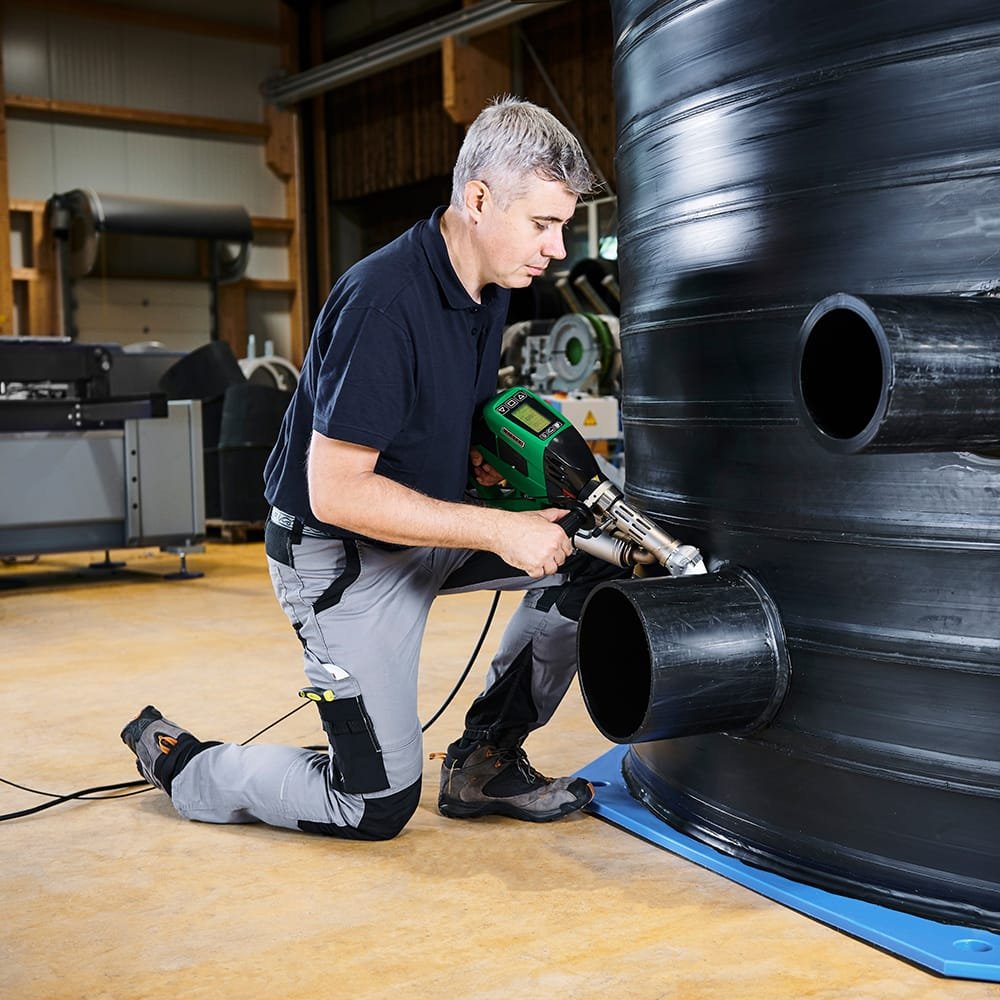

• Circumferential and Curved Joint Welding on Cylindrical Structures: The 360-degree rotating welding shoe enables continuous circumferential weld runs on cylindrical tanks, pipe connections, and curved structural plastic components – maintaining consistent bead geometry and shoe contact angle as the extruder travels around the curved joint profile without requiring the operator to reposition the extruder body at intervals to correct shoe orientation relative to the changing joint direction.
• Structural Plastic Assembly Fabrication with Variable Joint Orientations: The multiple grip positions and body geometry of the WELDPLAST S2 accommodate the varied horizontal, vertical, overhead, and angled weld run positions that structural plastic assembly fabrication on equipment frames, support structures, and engineered plastic components across industrial facilities in Oman and the GCC routinely presents – enabling productive extrusion welding across all orientations without equipment change or operator handling compromise.
• Maintenance and Repair Extrusion Welding in Restricted Access Locations: The compact arrow body and 360-degree shoe rotation make the WELDPLAST S2 the appropriate instrument for maintenance extrusion welding and repair work on installed plastic structures where access to the damaged joint or repair location is constrained by adjacent equipment, piping, or structural elements – enabling repair welds to be completed in situ without requiring removal or disassembly of the surrounding installation to provide clearance for a larger extruder.

Leister WELDPLAST S2 – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing plastic fabricators, tank and vessel construction contractors, industrial maintenance engineers, and equipment fabrication specialists with direct access to the WELDPLAST S2 alongside compatible welding shoes for different joint geometries, 3 mm and 4 mm HDPE, LDPE, LLDPE, and PP welding rod, and technical guidance on HMI parameter programming for specific material and thickness combinations. As a manufacturer-authorised technical partner, iBuild supports welding shoe selection for specific corner and access geometry requirements, material-specific parameter setup, and lifecycle support to sustain WELDPLAST S2 performance across multi-orientation fabrication programmes.

For plastic fabricators, tank and container construction teams, equipment fabrication specialists, and industrial maintenance engineers across Oman and the GCC requiring a compact, agile hand extrusion welder with an arrow-shaped body for corner access, 360-degree rotating welding shoe, multiple grip positions, and stored parameter recall for HDPE, LDPE, LLDPE, and PP sheet from 10 mm to 20 mm in confined and complex joint access environments, iBuild is the authorised local source for the Leister WELDPLAST S2 – backed by manufacturer authority and in-country technical support.
