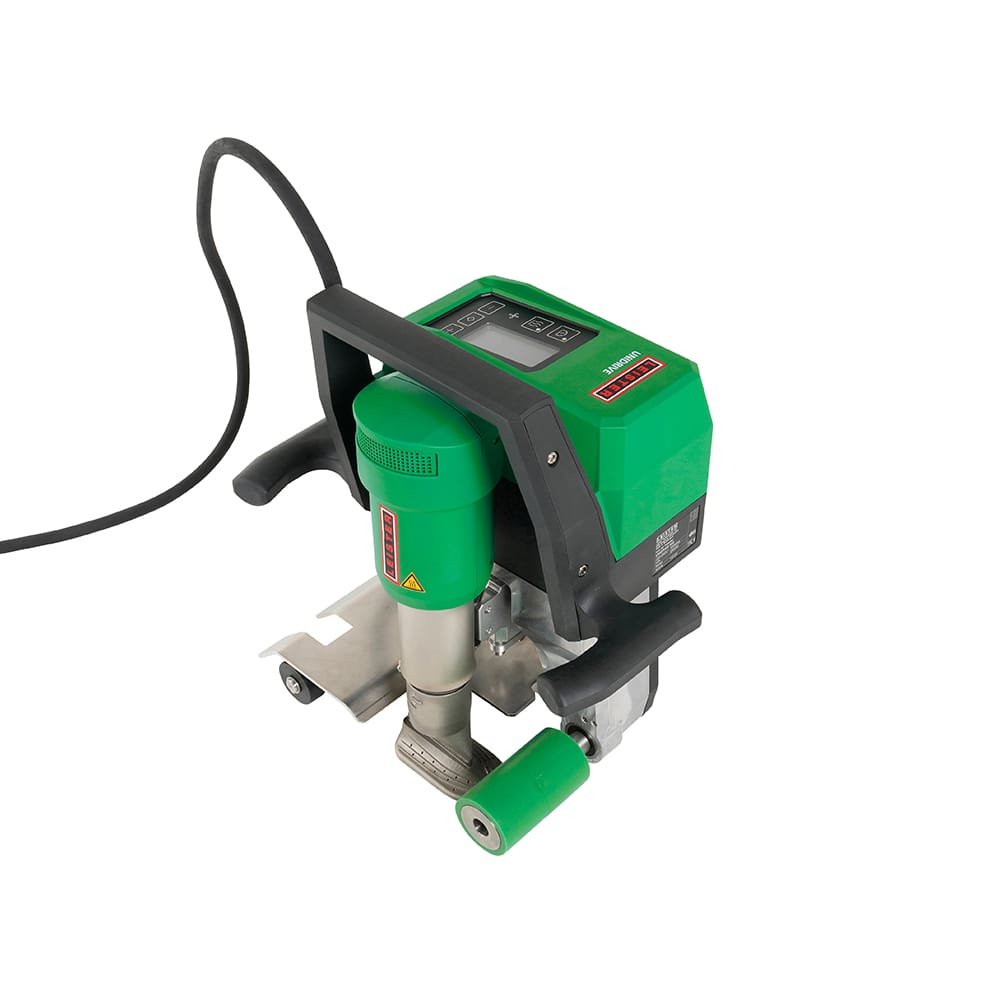

Leister UNIDRIVE 505 Pool Membrane Butt Welding Machine

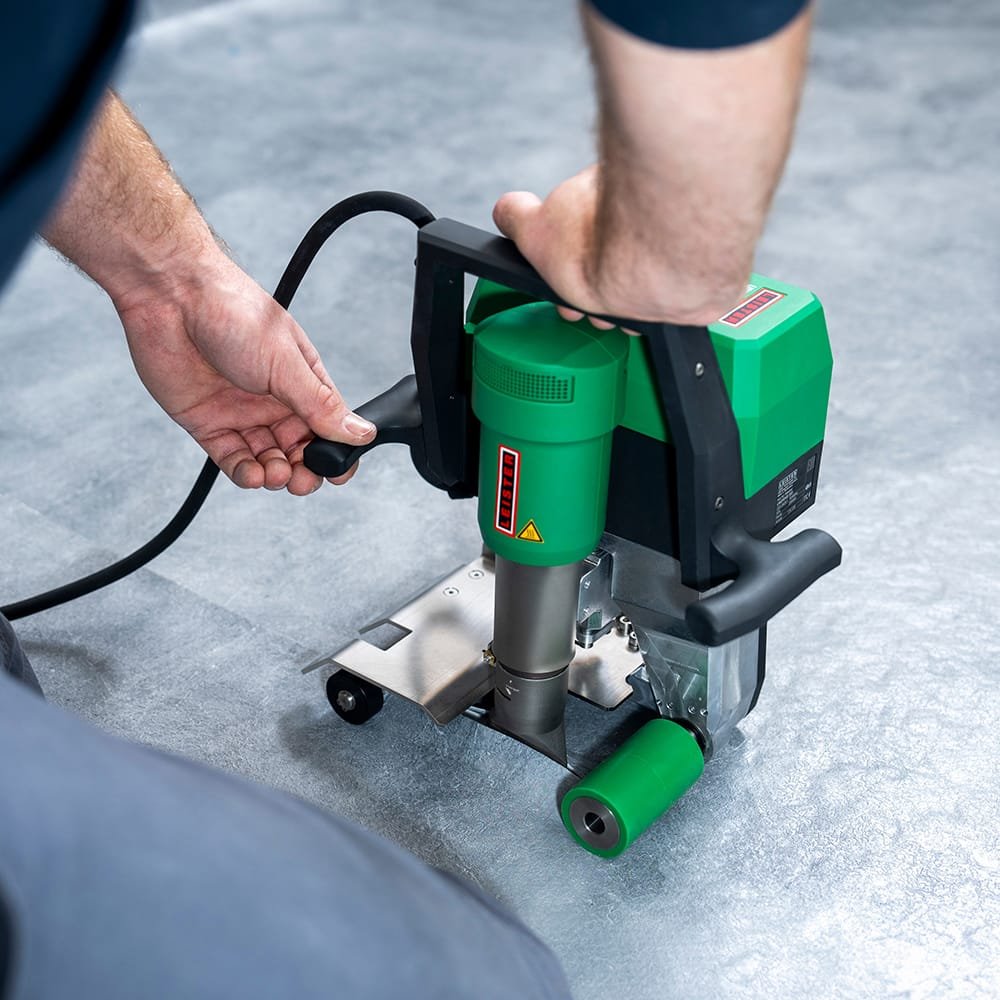

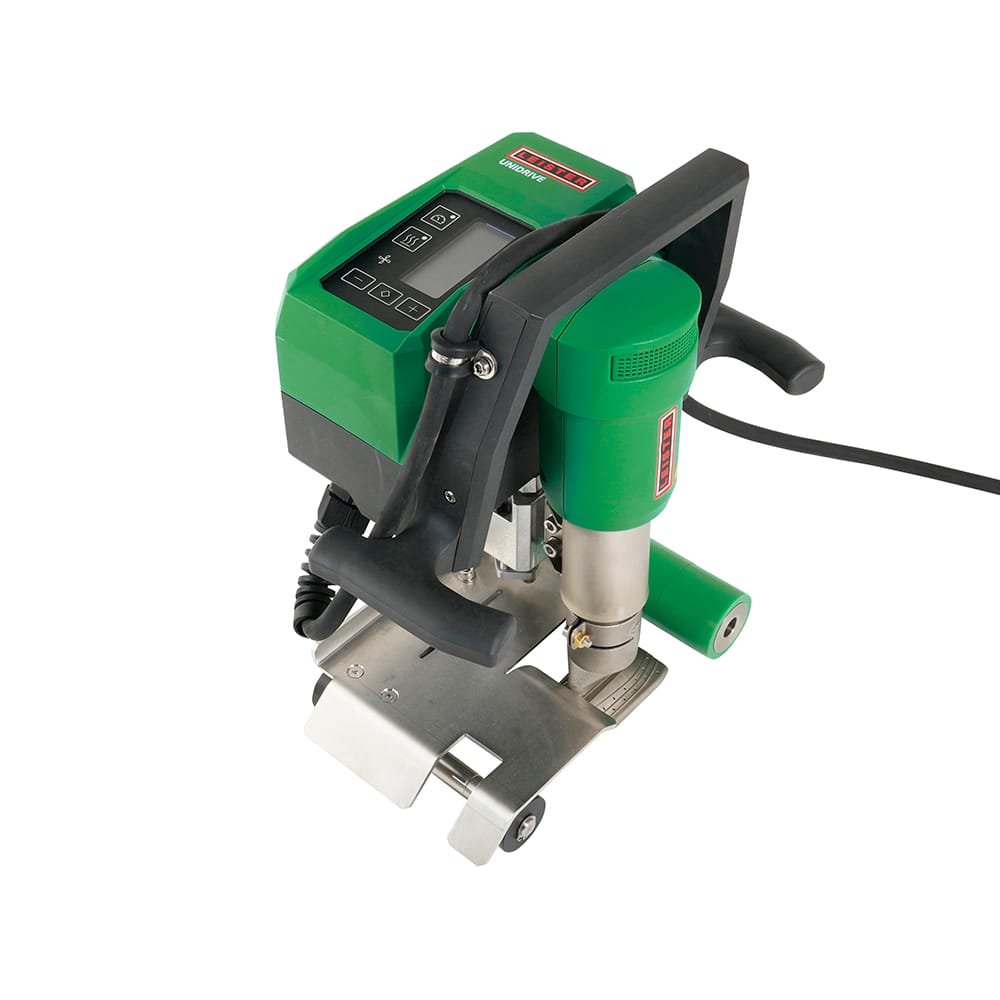

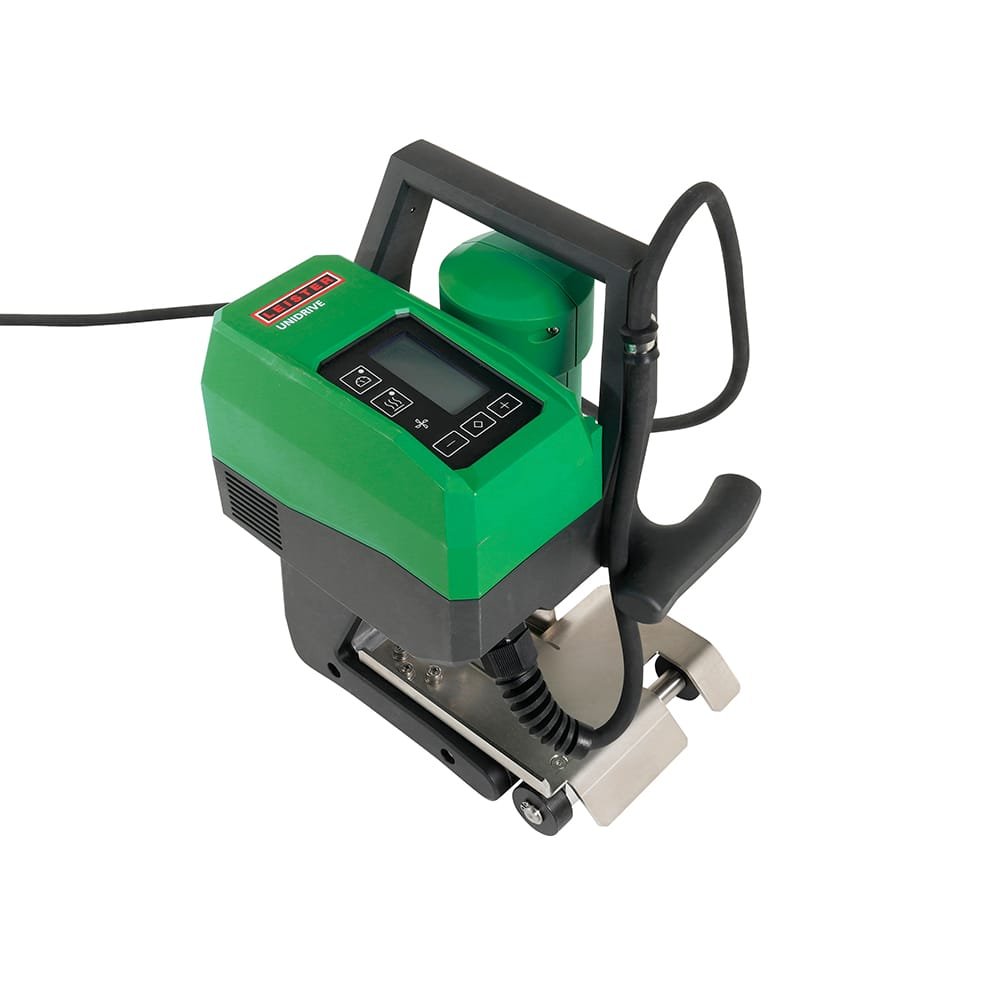

The Leister UNIDRIVE 505 is a 2300 W semi-automatic butt welding machine operating from 0.7 to 4.5 m/min across temperatures from 100 to 560 degrees C, designed for single-pass simultaneous butt welding of reinforced, digitally printed, textured, and embossed pool waterproofing membranes with an underlying welding tape – producing an almost invisible flush seam that requires no additional seam sealing, with a brushless drive and blower motor, digital display, guide notch for seam tracking, and silicone pressure rollers for consistent consolidation.

Revolutionary Butt Welding Technology for Pool Waterproofing Membrane Installation

The conventional approach to pool waterproofing membrane installation uses overlap welding – a proven method that produces structurally adequate seams but inevitably creates a raised edge at every joint. That raised edge is not merely an aesthetic concern. It creates a physical transition that pool cleaning robots must navigate, accumulating dirt in the seam profile and reducing cleaning efficiency. In illuminated pools with calm water surfaces, overlap seams on the pool floor are visible – creating a visible grid pattern that detracts from the premium pool aesthetic that high-quality pool construction projects specify and that pool owners expect in completed installations. And for digitally printed, textured, and embossed membrane surfaces – where the visual continuity of the membrane pattern is part of the design specification – an overlap seam introduces a discontinuity that no finishing treatment can fully eliminate.

Butt welding resolves these constraints by joining adjacent membrane panels edge-to-edge over an underlying welding tape, producing a seam that is flush with the membrane surface rather than raised above it. The challenge has historically been making butt welding reliably achievable on pool installation sites where operators have varying levels of welding experience and where process consistency across the full pool floor is the quality standard the client expects. The UNIDRIVE 505 addresses this through its single-pass simultaneous welding process – where the left membrane, right membrane, and butt welding tape are all joined in one machine operation at consistent speed and temperature, removing the multi-step complexity of manual butt welding approaches and delivering machine-consistent seam quality regardless of operator experience. For pool construction companies across Oman and the GCC who build pools where quality of finish is the differentiator, the UNIDRIVE 505 is the investment in installation capability that the finished product demands.

UNIDRIVE 505 Welding Process and Pool Installation Engineering Features

• Single-Pass Simultaneous Butt Welding of Membrane and Tape: The UNIDRIVE 505 welds the left membrane edge, right membrane edge, and underlying butt welding tape in a single continuous machine pass – combining three separate joining operations into one working step that the machine performs simultaneously at consistent speed and temperature. This single-pass process is the core innovation of the UNIDRIVE 505: it removes the multi-step complexity from butt welding while delivering the seam quality and consistency that the method requires.
• Almost Invisible Seam with No Additional Seam Sealing Required: The butt-welded seam produced by the UNIDRIVE 505 is flush with the membrane surface and virtually invisible on the finished pool floor – particularly in illuminated pools with a calm water surface where the absence of a raised overlap edge makes the seam practically imperceptible. No additional seam sealing step is required after welding, reducing the post-welding labour that overlap seam finishing involves and eliminating a potential source of seam quality variability from the installation process.
• Compatible with Reinforced, Digitally Printed, Textured, and Embossed Membranes: The UNIDRIVE 505 is designed for the full range of decorative and functional pool waterproofing membrane types – including reinforced liners, digitally printed pattern membranes, textured surface membranes, and embossed membranes – where maintaining surface pattern continuity across seam locations is a design and aesthetic requirement that overlap welding cannot satisfy.
• Smooth Pool Surface for Cleaning Robot Compatibility: The flush butt-welded seam profile eliminates the seam edges that accumulate dirt and algae in overlap-welded pool installations – enabling pool cleaning robots to traverse the pool floor without obstruction at the seam line and without the dirt accumulation at seam edges that requires additional manual cleaning to maintain pool hygiene standards.
• 2300 W Heating with Speed from 0.7 to 4.5 m/min and Temperature from 100 to 560 °C: The 2300 W heating system delivers the thermal output required for consistent membrane and tape fusion across the 40 mm welding nozzle seam width, with the speed and temperature range enabling the operator to set process parameters appropriate to the specific membrane material, thickness, and ambient temperature conditions of the pool installation environment.
• Brushless Drive and Blower Motor for Long Service Life: Both the drive motor and blower motor are brushless – eliminating carbon brush wear and the associated replacement intervals, motor maintenance requirements, and carbon debris contamination risks that conventional brush motors introduce into frequent-use pool installation equipment. The brushless motor system extends the UNIDRIVE 505 service life and reduces the maintenance burden on pool construction companies operating the machine across multiple installation projects.

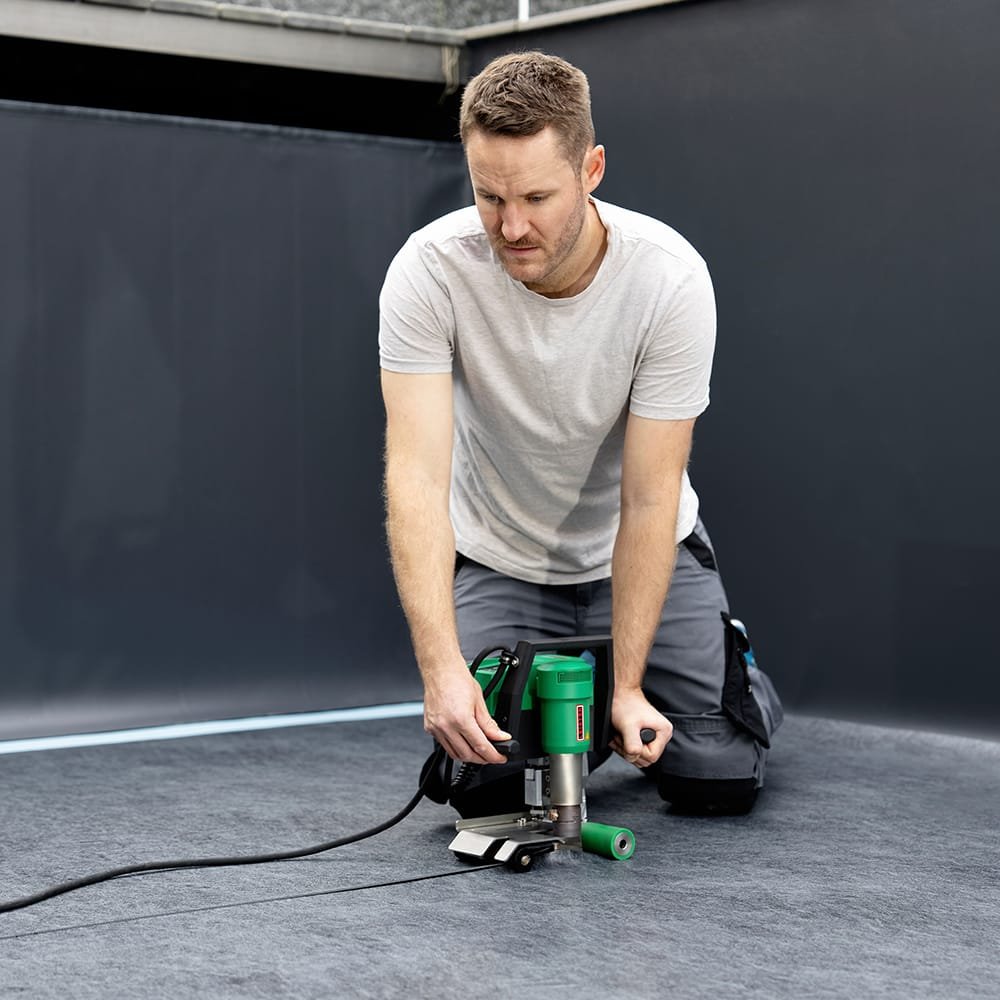

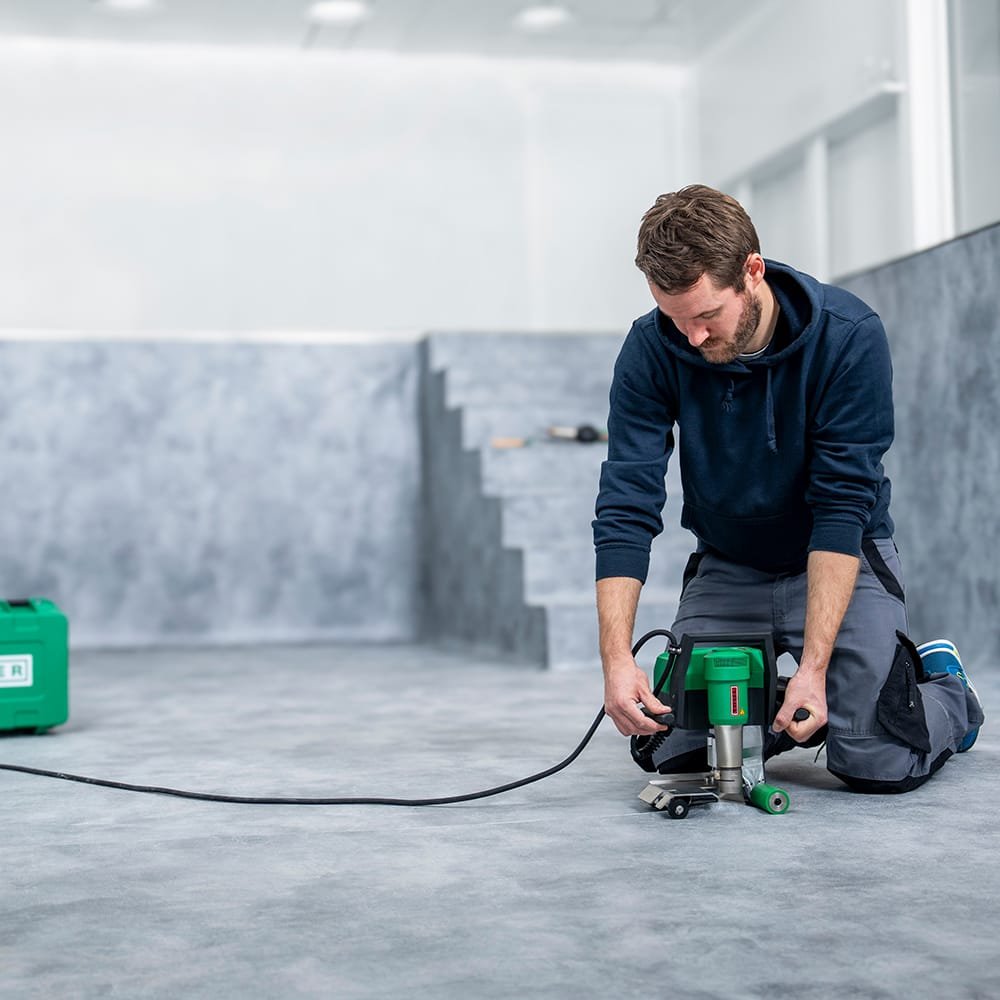

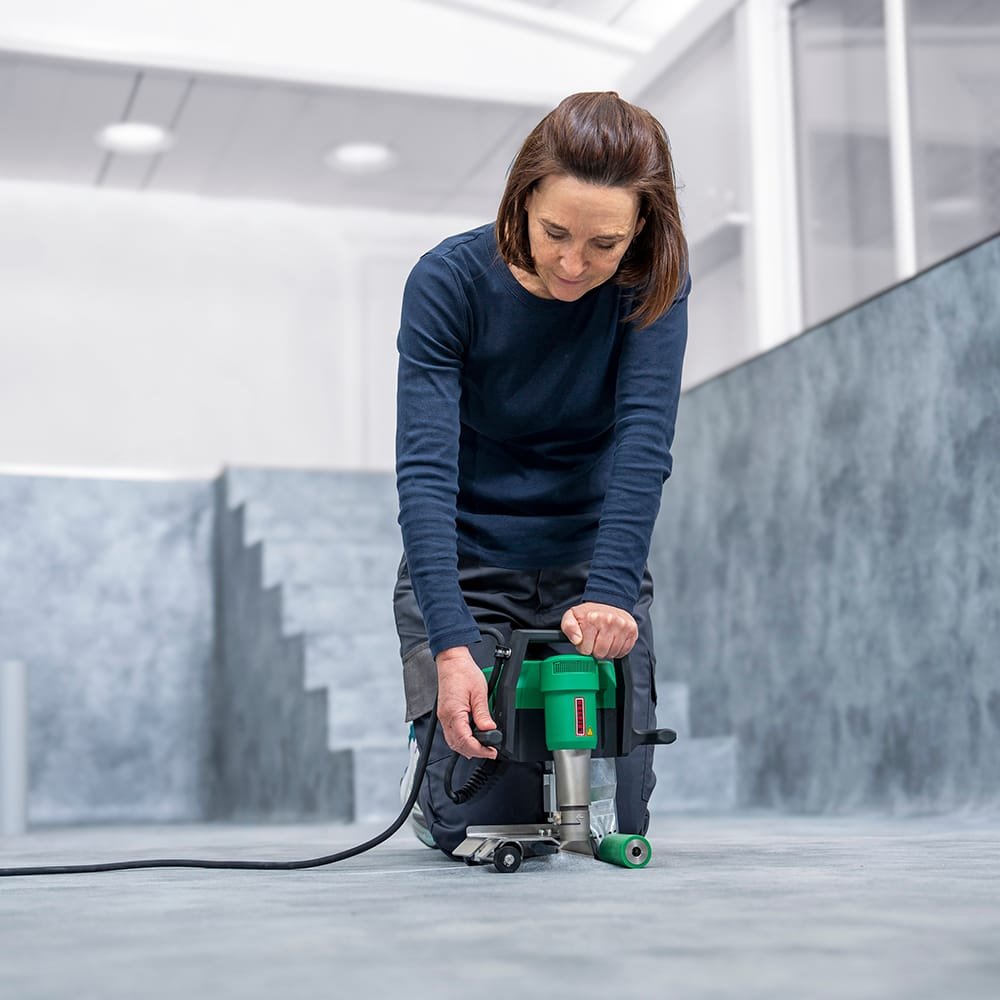

• Semi-Automatic Guidance for Fatigue-Free Extended Operation: The ergonomic semi-automatic drive system propels the UNIDRIVE 505 along the weld line at the set speed without requiring the operator to push the machine – reducing the physical effort and operator fatigue that manual welding tool guidance accumulates over extended pool floor installation sessions, enabling consistent weld quality to be maintained from the first seam to the last without performance degradation from operator fatigue.

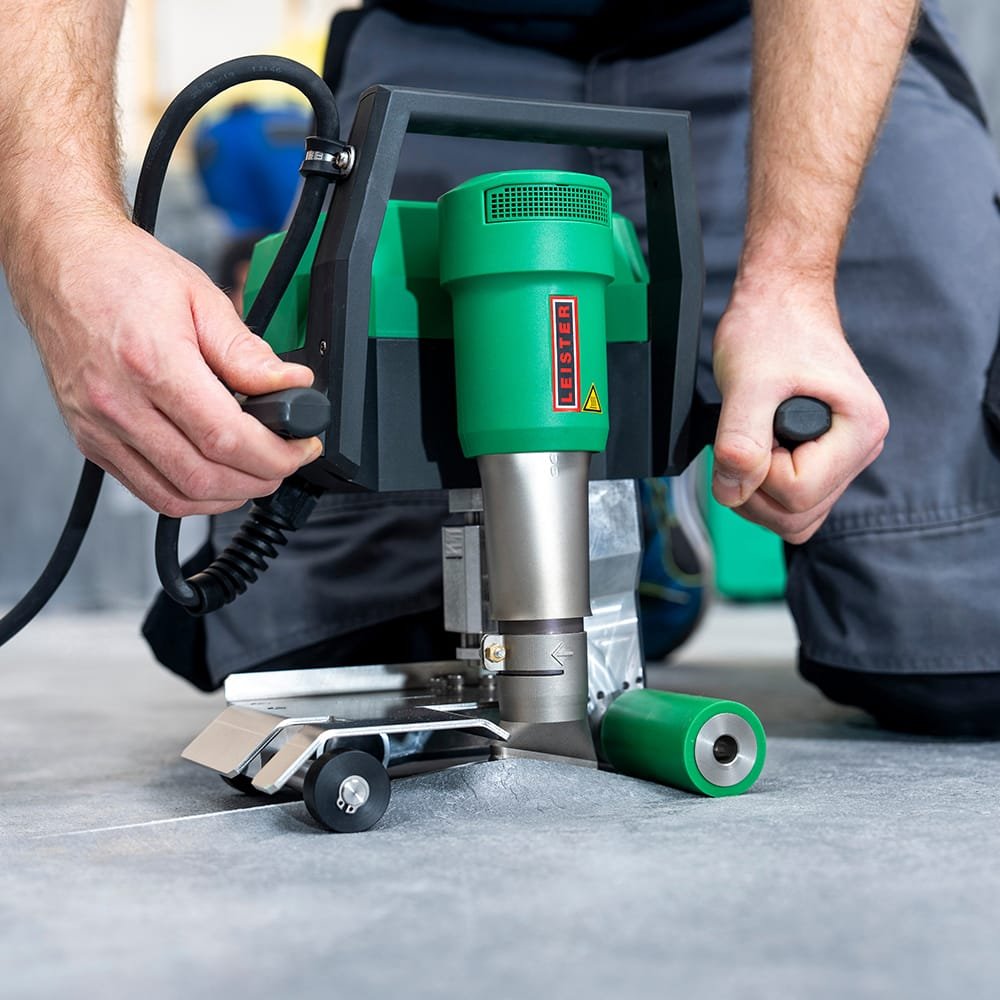

• Guide Notch and Clear Field of Vision for Accurate Seam Tracking: The clearly visible guide notch and unobstructed field of vision allow the operator to maintain accurate alignment of the machine with the butt joint and welding tape throughout the weld run – enabling precise seam tracking that keeps the machine centred on the joint line and the welding nozzle correctly positioned between the two membrane edges without requiring continuous manual correction.

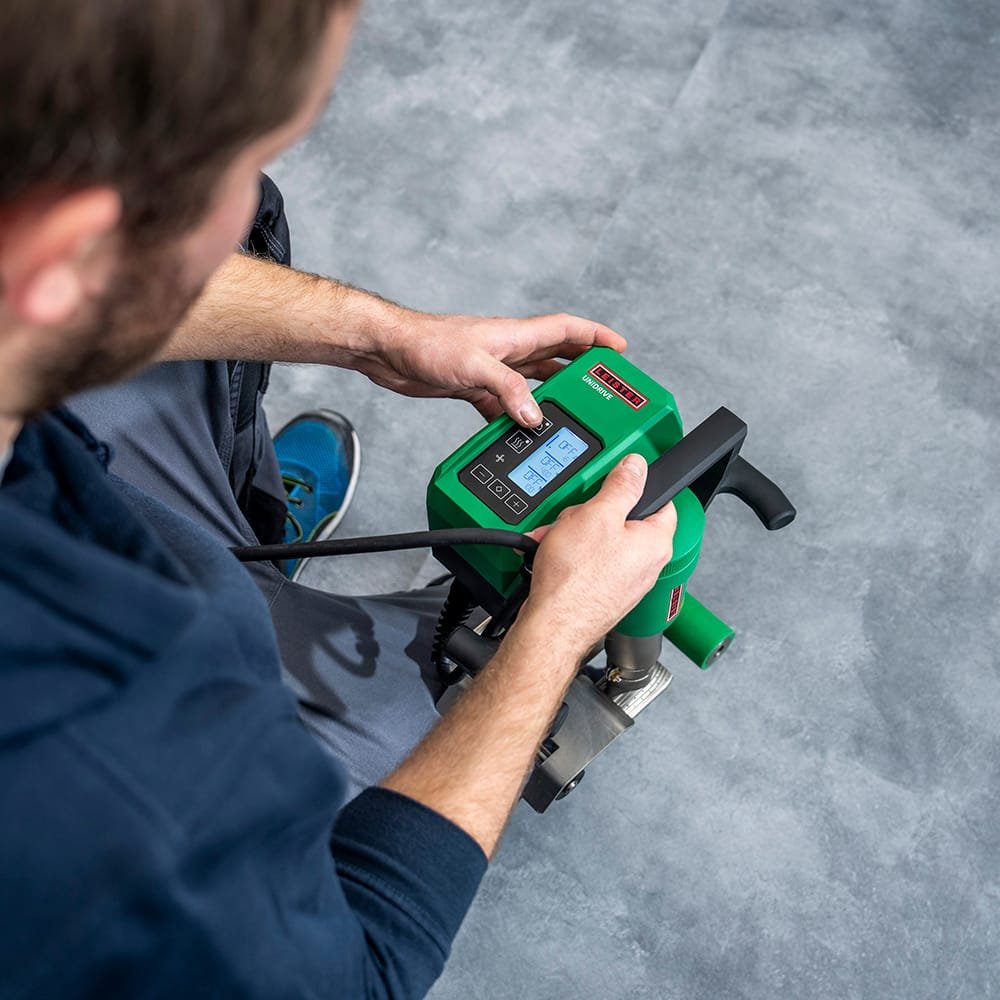

• Digital Display for Process Parameter Monitoring: The onboard digital display presents operating parameters during the weld run, giving the operator real-time visibility of temperature and speed settings to confirm that the machine is operating within the process parameters that the membrane specification requires – supporting the process consistency that professional pool waterproofing quality standards demand across the full installation.
• 40 mm Welding Nozzle Seam Width with Silicone Roller Consolidation: The 40 mm nozzle seam width covers the full width of the butt welding tape area, ensuring complete fusion across the joint profile. Silicone rollers at 50 shore A consolidate the weld immediately after the heating nozzle, applying controlled pressure to the fused membrane surfaces while they cool and set – producing a flat, uniform seam profile that achieves the flush surface finish the butt welding process is designed to deliver.

Pool Waterproofing Membrane Butt Welding Applications in Oman and the GCC

• Private and Residential Pool Waterproofing with Premium Finish: Produces butt-welded pool floor and wall membrane seams in private residential pools across Oman and the GCC – where pool owners and construction clients specify decorative, textured, or digitally printed membrane finishes that the almost invisible butt seam of the UNIDRIVE 505 complements rather than interrupts, delivering the premium installation quality that high-specification residential pool construction requires.
• Commercial and Hotel Pool Waterproofing Installation: Welds pool waterproofing membrane seams in commercial pools, hotel pools, and resort aquatic facilities – where the smooth, flush butt seam improves the bathing experience by eliminating the physical seam edge that overlap-welded pool installations present underfoot, and where pool aesthetics are a direct contributor to the facility’s commercial quality perception.
• Illuminated Pool and Show Pool Installations: The virtually invisible seam on the pool floor under illumination and calm water conditions makes the UNIDRIVE 505 the appropriate welding method for show pools, display aquatics, and illuminated pool installations in hospitality, retail, and public facility environments across the Gulf region – where the pool floor aesthetics are a design element that the installation method must not compromise.
• Digitally Printed and Decorative Membrane Pool Construction: Enables butt welding of digitally printed membrane panels where pattern continuity across the seam is a design requirement – with the flush butt seam minimising visible pattern discontinuity at the joint line in a way that the raised edge of an overlap seam cannot achieve regardless of welding quality.
• Pool Renovation and Membrane Re-lining: Provides the semi-automatic butt welding capability for pool membrane replacement and renovation projects where the client is upgrading from an existing overlap-welded liner to a butt-welded installation – delivering the improved aesthetic finish and cleaning compatibility of the butt-welded seam on pool renovation projects across Oman and the GCC without the additional seam sealing step that other methods require.

Leister UNIDRIVE 505 – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing pool construction companies, waterproofing contractors, and pool renovation specialists with direct access to the UNIDRIVE 505 alongside compatible butt welding tapes, nozzle accessories, and the technical guidance to configure the machine for specific pool membrane materials, thicknesses, and ambient temperature conditions. As a manufacturer-authorised technical partner, iBuild supports process parameter setup, operator training guidance, and lifecycle support to ensure the UNIDRIVE 505 delivers consistent butt weld quality across every pool installation project.

For pool construction companies and waterproofing contractors across Oman and the GCC investing in the butt welding capability that delivers a premium pool finish – flush, almost invisible seams on reinforced, printed, and textured membranes, with no additional seam sealing, compatible with pool cleaning robots, and achievable to a professional standard by operators across experience levels – iBuild is the authorised local source for the Leister UNIDRIVE 505.
