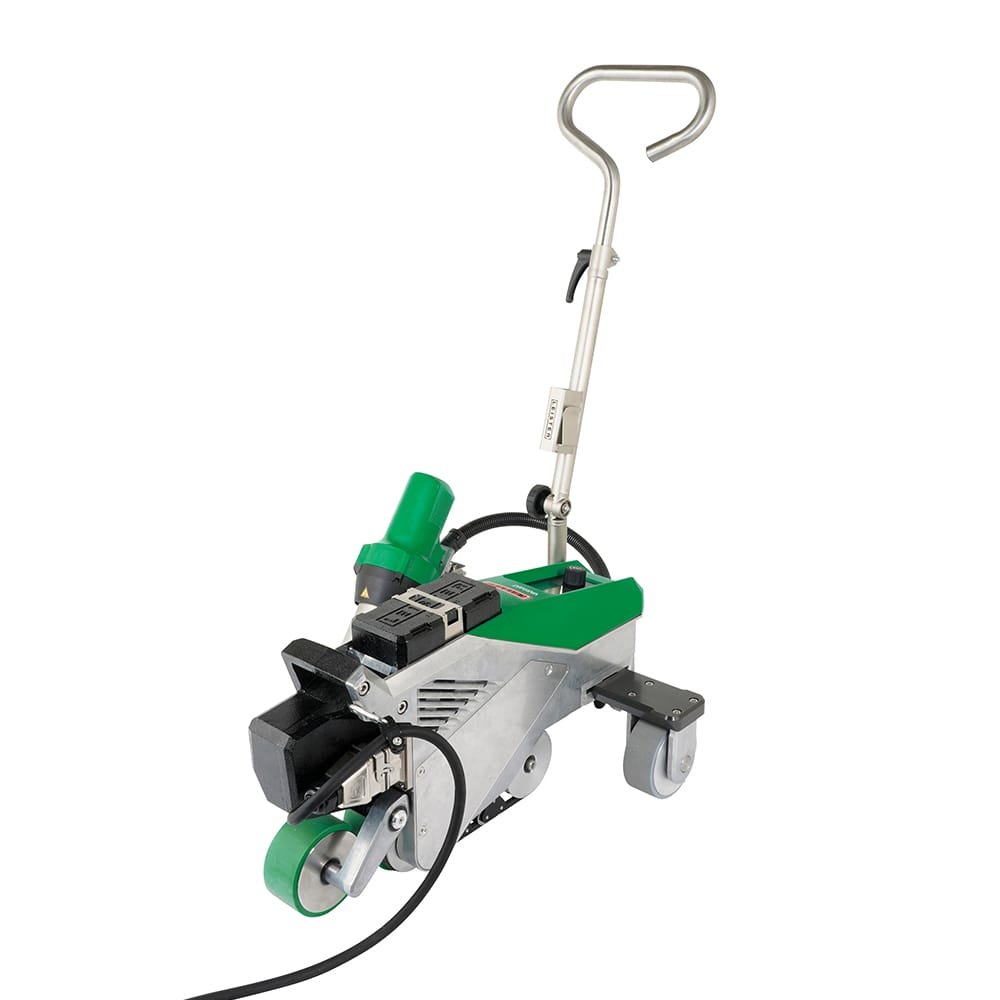

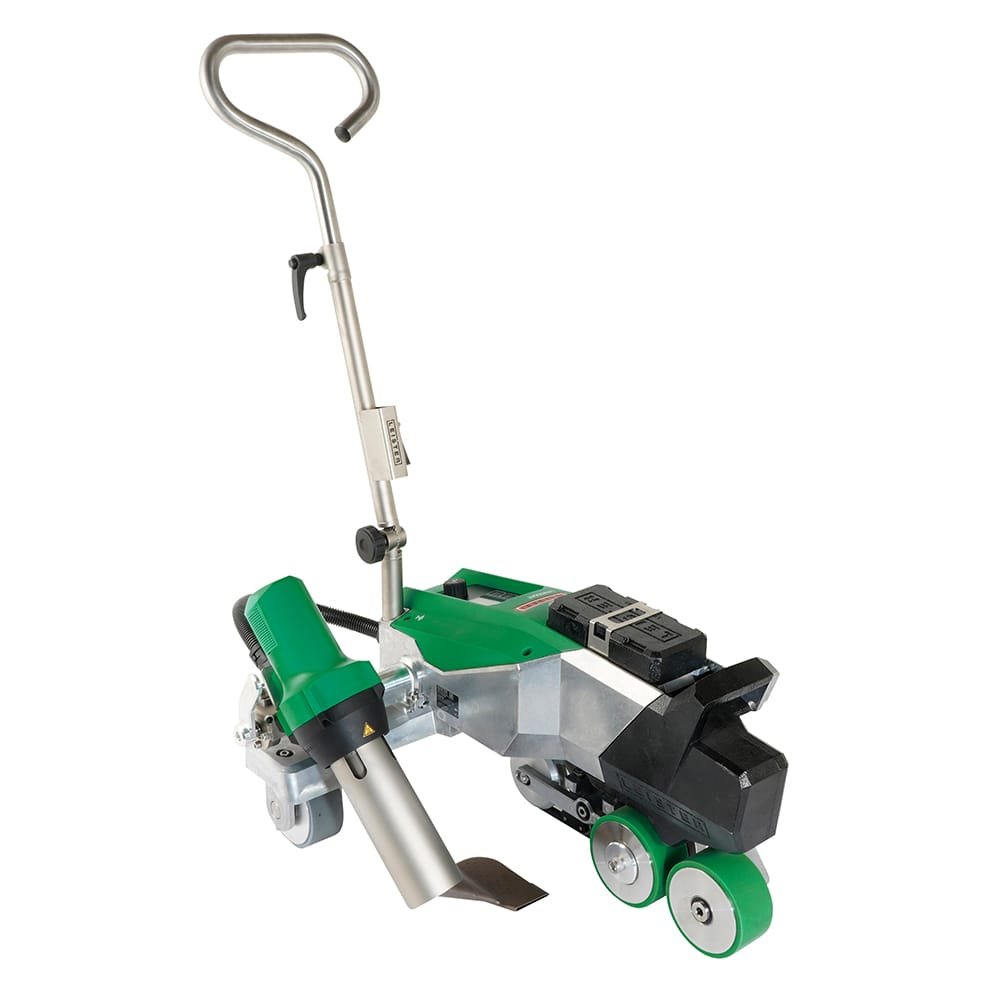

Leister VARIMAT 500 Automatic Flat Roof Welding Machine

The Leister VARIMAT 500 is a 3680 W automatic hot air welding machine operating from 1 to 12 m/min across temperatures from 100 to 620 degrees C with Monitored Welding Assistant acoustic and optical alarm output, power management for undervoltage protection up to 20% with automatic shutdown beyond the quality guarantee threshold, brushless blower motor with hybrid ceramic bearings, LED work light, easy 230 V to 400 V conversion, myLeister app welding recipe library, swivel-in nozzle mechanism, movable transport axle, air partitioning concept, and rotating adjustment knob display – welding ECB, EPDM, EVA, FPO, PIB, PO, PVC, PVC-P, TPE, TPO, and TPU thermoplastic sealing membranes on flat roofs, pool waterproofing, and tarpaulin applications.

Process-Reliable Automatic Membrane Welding for Professional Flat Roofing Operations

Professional flat roofing contractors operating across the commercial, industrial, and institutional building sectors in Oman and the GCC face a consistent set of quality assurance challenges on active rooftop construction sites. Supply voltage from generator power or extended cable runs deviates from nominal – silently reducing welding temperature and degrading seam quality in ways that the machine display cannot reveal unless the machine actively monitors and compensates for voltage variation. Parameter deviation during an active weld run – speed increase, temperature drop, or air volume change – produces a seam quality event that is only visible at the specific location in the completed seam where it occurred, not at the point of recovery. And rooftop working hours on projects with programme pressure extend into dusk and evening conditions where the welding zone cannot be adequately seen without supplementary lighting.

The VARIMAT 500 addresses each of these operational realities with engineered capabilities rather than instructions. Its power management compensates for undervoltage up to 20% – maintaining welding temperature against supply variation automatically – and shuts down if voltage drops beyond the threshold where quality can be guaranteed, preventing silently degraded seams from entering the completed installation. Its Monitored Welding Assistant triggers acoustic and optical alarms at the moment a parameter deviates beyond the set range – identifying process events in real time at the location they occur rather than leaving them for post-weld inspection to discover. And its LED work light illuminates the welding zone directly, enabling productive rooftop welding through the extended working hours that construction programme pressure requires without the weld quality compromise of working in poor visibility. For roofing contractors whose flat roofing projects are subject to process reliability expectations and who need the assurance that the machine is actively protecting seam quality throughout every weld run, the VARIMAT 500 is the appropriately specified automatic roof welder.

VARIMAT 500 Process Safety, Performance, and Operational Features

• Monitored Welding Assistant with Acoustic and Optical Alarm: The Monitored Welding Assistant continuously monitors temperature, speed, and air volume against the operator-set parameters throughout each active weld run – triggering an audible alarm and a visual signal on the display when any parameter deviates beyond the acceptable range. This real-time quality control notification identifies parameter deviation events at the moment they occur, giving the operator the opportunity to respond before the deviation extends further along the seam and enabling the deviation location to be identified and addressed rather than remaining as a latent quality concern within the completed installation.
• Power Management for Undervoltage Protection up to 20%: The power management system actively compensates for supply voltage reduction up to 20% below nominal – adjusting power draw to maintain the welding temperature set point against the voltage variation that generator supply instability, extended extension cable lengths, and site electrical infrastructure limitations produce on active rooftop construction sites across Oman and the GCC. This automatic compensation sustains seam quality under the supply conditions that the machine encounters on site without requiring the operator to monitor voltage or manually adjust parameters in response to supply variation.
• Automatic Shutdown Beyond Quality Guarantee Threshold: If supply voltage drops beyond the 20% compensation range at which welding temperature can be maintained, the VARIMAT 500 automatically shuts down rather than continuing to weld at parameters that would produce a substandard seam without visible indication to the operator – preventing the installation of silently degraded seams that would only be identified during destructive testing or post-installation failure investigation.
• Easy Conversion Between 230 V and 400 V Supply: The VARIMAT 500 can be converted between 230 V single-phase and 400 V three-phase power supply in the field – enabling the machine to be deployed on projects where only single-phase supply is available from the site electrical distribution, and then operated at full three-phase supply capacity when the project electrical infrastructure provides 400 V. This voltage flexibility avoids the equipment constraint that a single-voltage machine imposes on site deployment decisions across the varied electrical supply conditions of Gulf region construction projects.
• Brushless Blower Motor with Hybrid Ceramic Bearings: The brushless blower motor eliminates carbon brush wear and the associated maintenance intervals, while hybrid ceramic bearings in the blower motor assembly extend bearing service life under the high-speed, high-temperature operating conditions of intensive continuous rooftop welding – reducing the total maintenance requirement and extending the operational intervals between service interventions for a machine deployed intensively across a full roofing programme season.
• LED Work Light for Low-Light and Night Welding: The integrated LED work light illuminates the welding zone and nozzle area directly during active welding – enabling productive, accurate membrane seam welding in the dusk and low-light conditions that extended rooftop working hours on programme-driven construction projects require, without the weld quality and operator safety compromise of working in the welding zone without adequate illumination.
• myLeister App Welding Recipe Library: The myLeister app provides a library of verified welding recipes for specific membrane material types and ambient conditions – enabling the roofing crew to recall and apply the correct parameter set for each membrane specification at the start of each project day without relying on operator memory, hand-written parameter sheets, or manual parameter derivation from reference tables. This recipe management capability supports consistent parameter application across different operators and project sites within the contractor’s programme.
• Innovative Swivel-In Nozzle Mechanism for Fast Precise Positioning: The swivel-in mechanism positions the hot air nozzle into the membrane overlap seam at the start of each weld run quickly and accurately – ensuring correct nozzle alignment with the overlap seam from the first centimetre of machine travel and eliminating the manual positioning effort and alignment variability that manual insertion requires at each weld run start throughout the working day.

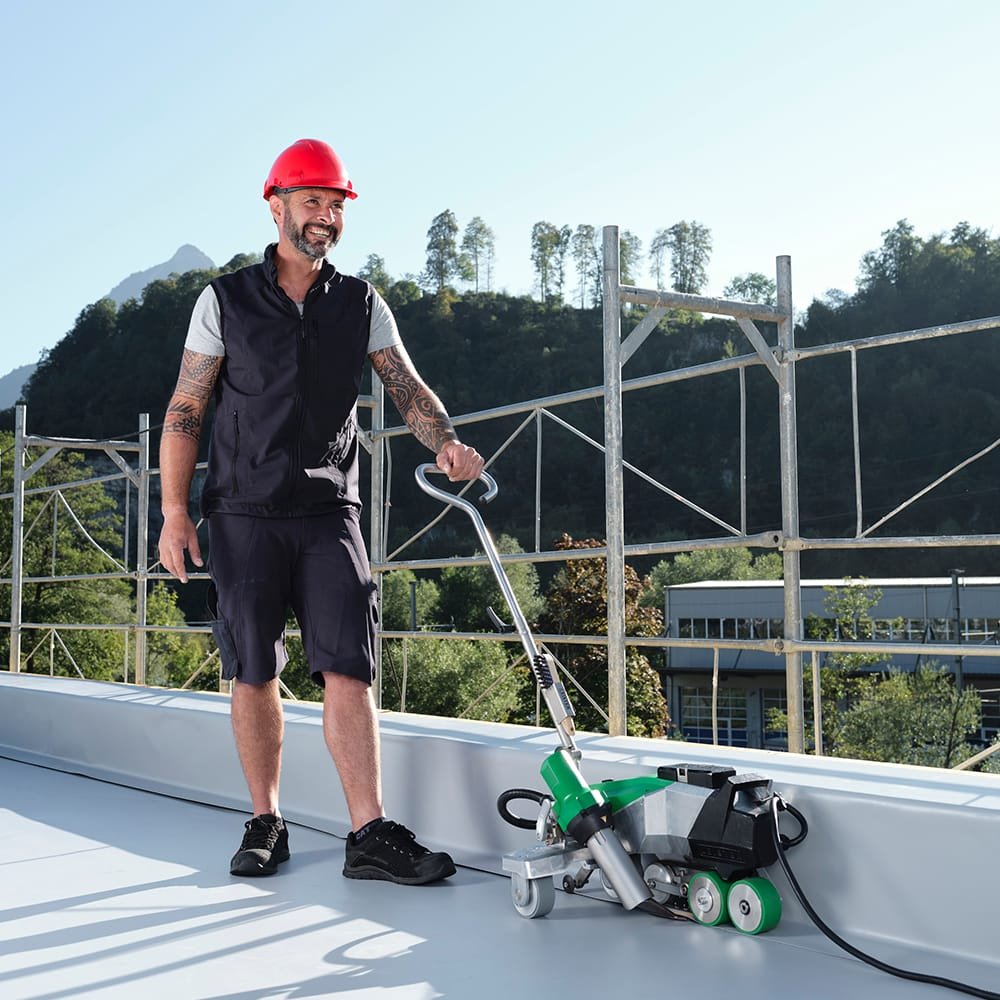

• Movable Transport Axle for Parapet Edge Tracking: The flexible transport axle maintains accurate machine tracking into parapet corners, close-to-edge positions, and the perimeter details where the roof membrane transitions between the flat deck and the parapet upstand – enabling automatic welding to continue through the areas where water ingress risk is highest without machine repositioning or reversion to manual welding at each parapet corner.
• Air Partitioning Concept for Wrinkle-Free Membrane Surface: The air delivery system is decoupled from the pressure roller mechanism – preventing hot air from lifting or displacing the membrane surface ahead of the consolidation roller during welding and minimising the membrane wrinkling that produces both optical surface irregularity and suboptimal water drainage patterns in the finished roof seam zone.

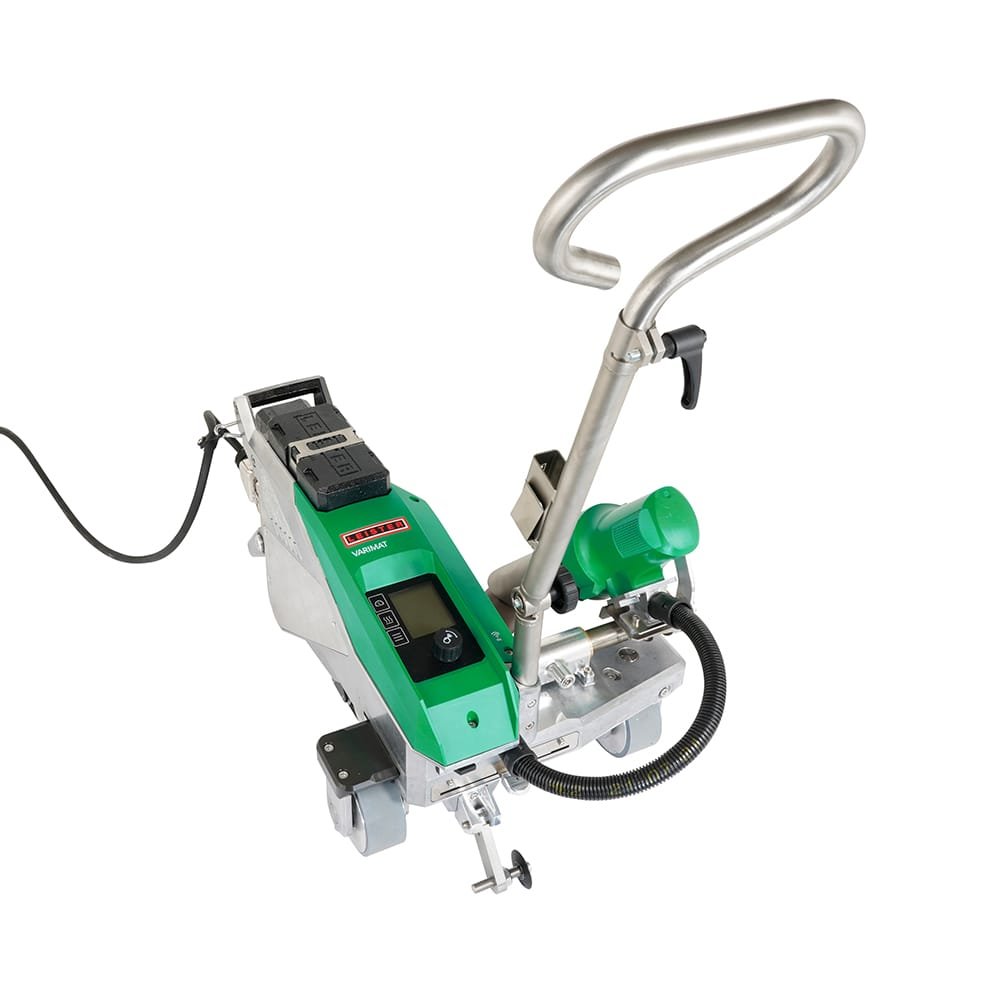

• Large Display with Rotating Adjustment Knob for Intuitive Operation: The large display with rotating knob parameter adjustment provides an intuitive, tactile interface for setting and confirming temperature, speed, and air volume during active rooftop operation – enabling the operator to adjust parameters confidently while managing the machine without the interface navigation complexity that touchscreen-only controls impose in bright outdoor lighting conditions on active rooftop sites.

Flat Roof, Pool, and Tarpaulin Welding Applications for the VARIMAT 500 in Oman and the GCC

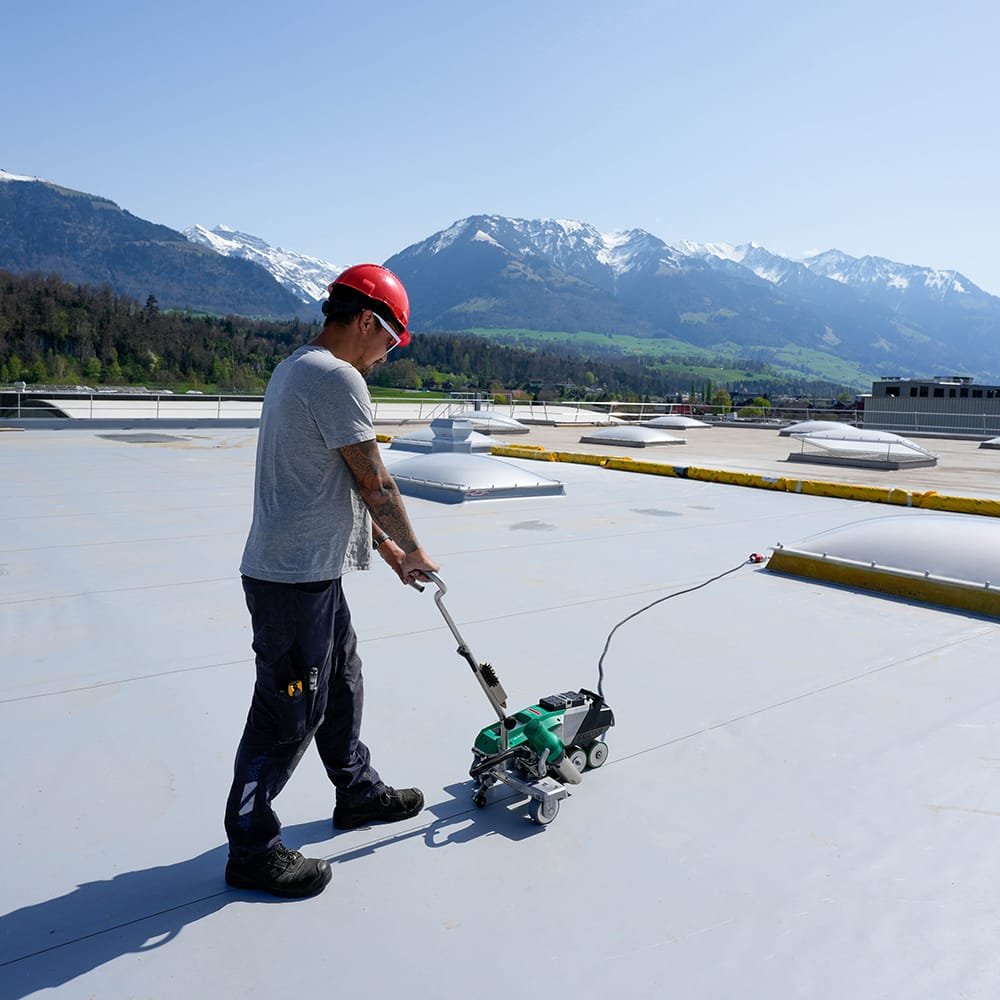

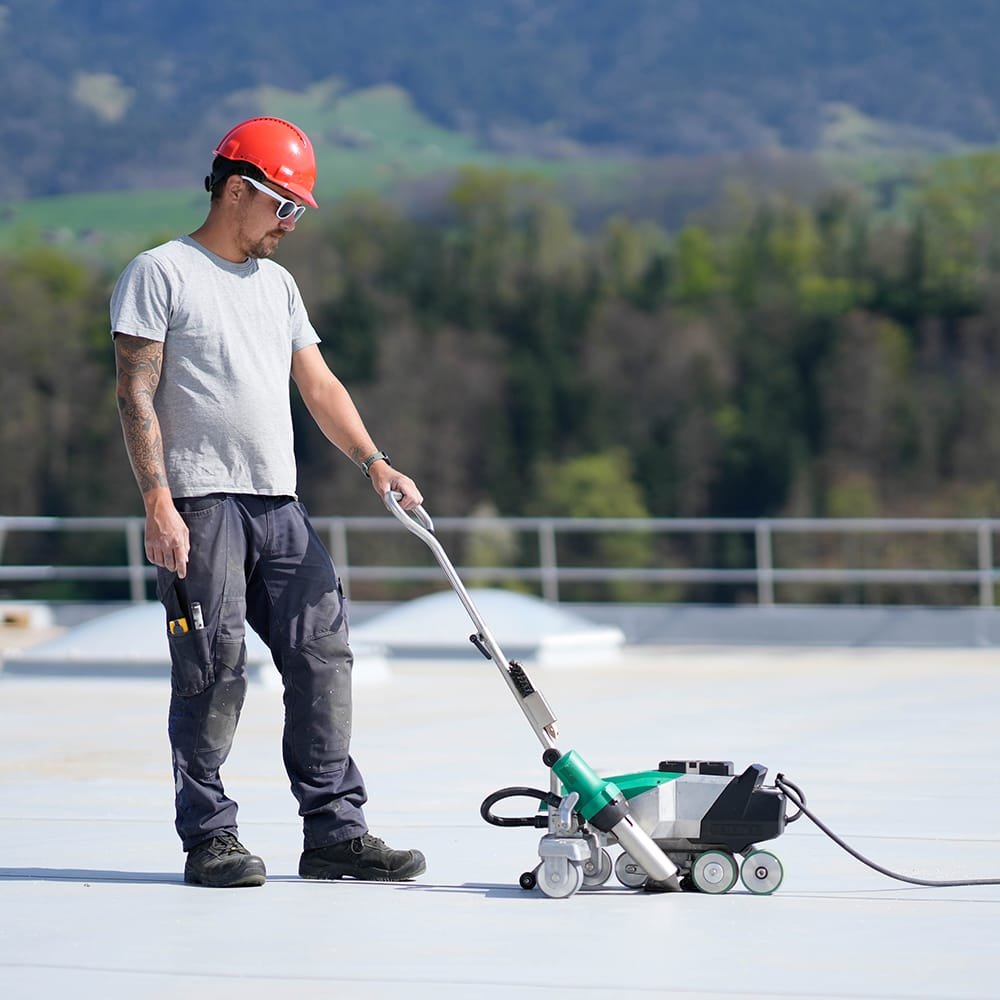

• Commercial and Industrial Flat Roof Membrane Welding with Process Monitoring: Provides monitored automatic overlap seam welding on TPO, PVC, FPO, and ECB flat roofing membrane installations on commercial and industrial buildings across Oman and the GCC – where the Monitored Welding Assistant alarm output and power management capability together provide the process reliability assurance that large-area flat roofing projects under programme pressure require from the automatic welding machine deployed on site.
• Night and Extended-Hours Rooftop Welding Programmes: The LED work light enables productive membrane seam welding in dusk and night conditions on rooftop construction programmes where working hours extend beyond daylight – maintaining the welding quality and operator accuracy that daytime welding achieves without the visual constraint of working in the welding zone without adequate illumination of the nozzle position and seam overlap alignment.
• Generator-Powered Remote and Site-Constrained Roofing Projects: The power management and undervoltage protection capability make the VARIMAT 500 specifically appropriate for flat roofing projects where the electrical supply from site generators or extended cable runs produces voltage variation that a machine without power management cannot compensate for – ensuring consistent seam quality under the supply conditions that remote commercial construction sites across Oman and the Gulf region present.
• Pool Waterproofing Membrane Seam Welding: Welds reinforced PVC, PVC-P, and TPO pool waterproofing membrane seams with the air partitioning wrinkle prevention and Monitored Welding Assistant parameter monitoring that pool waterproofing installation quality requirements demand – producing flat, visually consistent seams with the acoustic and optical alarm assurance that parameter compliance has been maintained throughout each weld run.
• Tarpaulin and Technical Textile Overlap Seam Welding: The VARIMAT 500’s 12 m/min maximum welding speed, 620 degrees C temperature ceiling, and eleven material type compatibility enable productive overlap seam welding on truck tarpaulins, industrial covers, and advertising banners as a secondary application alongside the primary flat roofing and waterproofing deployment – maximising the productive utilisation of the machine across the full range of thermoplastic membrane welding work that a professional roofing contractor’s project portfolio encompasses.

Leister VARIMAT 500 – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing roofing contractors, waterproofing specialists, and pool construction companies with direct access to the VARIMAT 500 alongside the VARIMAT 300 for contractors at the process-reliable tier without digital documentation requirements, and the VARIMAT 700 for contractors who additionally require LQS data recording and GPS quality documentation. As a manufacturer-authorised technical partner, iBuild supports VARIMAT family machine selection, myLeister app welding recipe configuration, voltage conversion setup, and lifecycle support to ensure the VARIMAT 500 delivers the process reliability and quality monitoring capability it is specified to provide throughout the contractor’s roofing programme.

For roofing contractors and waterproofing specialists across Oman and the GCC who require a professional flat roof automatic welding machine with Monitored Welding Assistant quality protection, power management undervoltage compensation, brushless motor durability, LED work light capability, and myLeister app recipe management – at the mid-specification tier of the VARIMAT family – iBuild is the authorised local source for the Leister VARIMAT 500.
