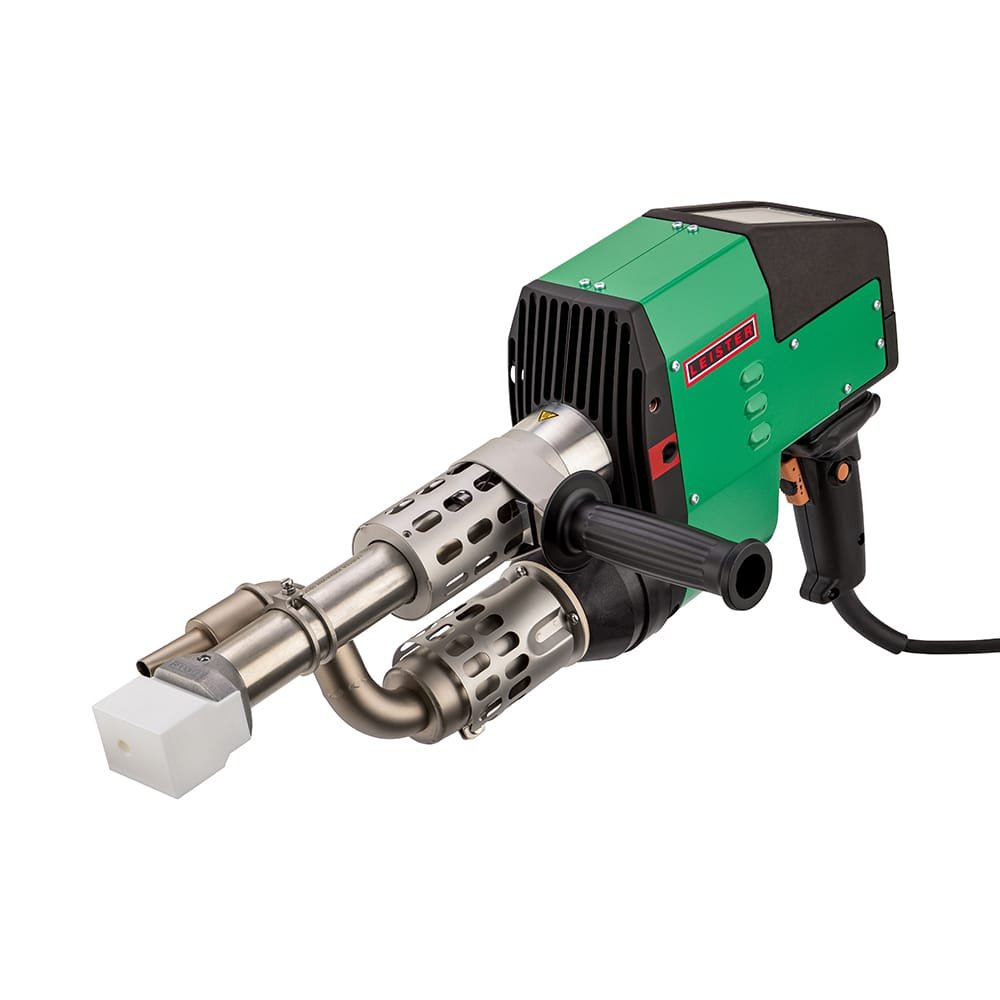

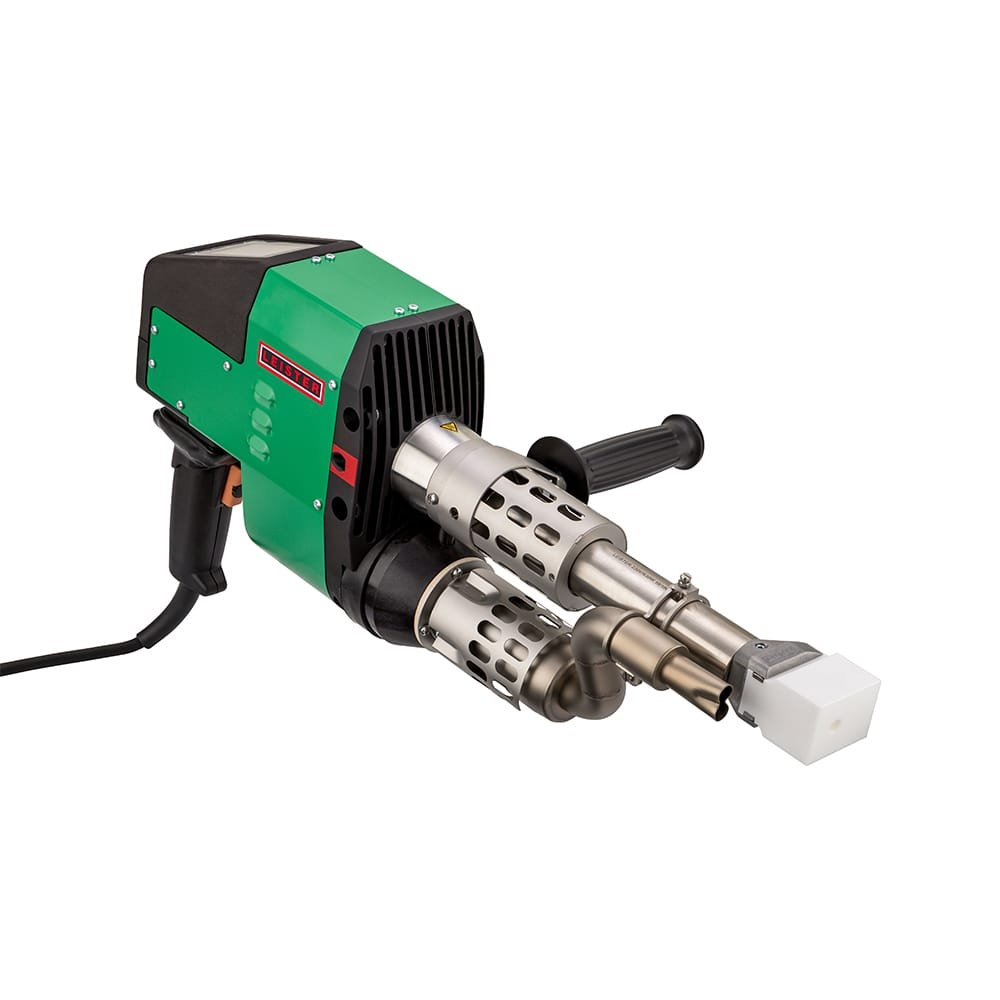

Leister WELDPLAST S4 Hand Extrusion Welder

The Leister WELDPLAST S4 is a 3680 W hand extrusion welder delivering up to 3.8 kg/h material output for HDPE, LDPE, LLDPE, and PP sheet from 15 mm to 25 mm – available in two application-specific variants: an equipment and container construction version with a lateral hot air nozzle and 3 mm to 4 mm rod intake, and a civil engineering version with a top-mounted pre-heating nozzle and 4 mm to 5 mm rod intake – with high-powered brushless blower for excellent pre-heating, closed-loop air temperature control, coil heater screw heating, external air guide, digital display, various welding shoe options, and an available angle adapter.

Application-Specific Extrusion Welding for Equipment Construction and Civil Geomembrane Work

High-output extrusion welding on thick HDPE and PP sheet from 15 mm to 25 mm spans two distinctly different application environments – equipment and container fabrication in workshops and industrial plants, and civil engineering geomembrane connection work on active outdoor project sites. These two environments impose different requirements not only on the output capacity and process control of the extruder, but on the physical orientation of the pre-heating air delivery to the joint surface. In equipment construction, the joint geometry is typically defined by the panel assembly configuration, and the hot air nozzle must direct pre-heating air laterally to the joint face as the extruder approaches from the side. In civil engineering geomembrane work, the welding shoe travels along the membrane surface and the pre-heating nozzle must address the substrate from above.

The WELDPLAST S4 acknowledges this distinction by offering two variants – each with the nozzle configuration matched to its primary application geometry rather than a single compromise design serving both. The equipment construction variant positions the hot air nozzle laterally, appropriate to the side-approach joint access of vessel and container fabrication work. The civil engineering variant mounts the pre-heating nozzle on top, appropriate to the downward pre-heat geometry of geomembrane surface welding. Both variants share the same 3680 W heating power, high-powered brushless blower, closed-loop air temperature control, and process architecture – delivering the same high-output extrusion welding performance in the nozzle configuration that each specific application requires. For plastic fabricators and civil contractors across Oman and the GCC who need a correctly specified high-output extruder for each application type, the WELDPLAST S4 provides the variant-specific configuration that performance and weld quality demand.

WELDPLAST S4 Technical Capabilities and Dual-Variant Application Features

• Two Application-Specific Variants – Equipment Construction and Civil Engineering: The equipment and container construction variant incorporates a lateral hot air nozzle that directs pre-heating air to the joint face from the side – matching the access geometry of vessel interior joints, panel angle connections, and container structural seams where the extruder approaches the joint laterally. The civil engineering variant incorporates a top-mounted pre-heating nozzle that addresses the geomembrane substrate surface from above – matching the approach geometry of geomembrane connection work, T-joints, and anchor detail extrusion welding where the welding shoe travels along the membrane surface with the pre-heating zone ahead of it.
• Variant-Specific Welding Rod Intake – 3-4 mm or 4-5 mm: The equipment construction variant accepts 3 mm and 4 mm welding rod, appropriate to the joint cross-section requirements of equipment and vessel fabrication at the 15 mm to 25 mm sheet thickness range. The civil engineering variant accepts 4 mm and 5 mm rod, providing the higher rod cross-section option that maximum-output geomembrane connection welding on heavy HDPE civil liner materials requires for bead volume at the upper output rate.
• Up to 3.8 kg/h Material Output with 4 mm Rod: Achieves 1.5 to 2.2 kg/h with 3 mm rod and 2.2 to 3.8 kg/h with 4 mm rod – providing the volumetric throughput required for productive structural weld joint fabrication on HDPE and PP sheet from 15 mm to 25 mm in both equipment construction and civil engineering applications, where the bead cross-section of these thick-section material joints demands high output rate to complete joint runs at productive speeds.
• High-Powered Brushless Blower for Excellent Pre-Heating in the High Output Class: The high-powered brushless blower delivers the airflow volume and velocity required for adequate substrate pre-heating at the elevated output rates of the WELDPLAST S4 – ensuring that the base material surface temperature reaches the fusion threshold across the full joint width ahead of the welding shoe at the speeds the 3.8 kg/h maximum output rate supports. The brushless architecture eliminates carbon brush wear and provides sustained blower performance across intensive fabrication operation.
• Closed-Loop Air Temperature Control with External Air Guide: The closed-loop control system monitors and maintains pre-heating air temperature at the set point throughout each weld run – compensating for ambient temperature variation and load changes to sustain consistent substrate pre-heating via the external air guide. The external air guide channels the temperature-controlled pre-heating air to the joint substrate surface ahead of the welding shoe, providing the targeted pre-heat zone that fusion quality on thick HDPE and PP section material requires at high output rates.
• Coil Heater Screw Heating for HDPE, LDPE, LLDPE, and PP: The coil heater maintains accurate, controlled melt temperature across the extrusion screw – providing stable screw temperature for the polyolefin rod materials the WELDPLAST S4 processes at output rates up to 3.8 kg/h, without the temperature gradient variation that less controlled screw heating produces at the upper end of the output range where thermal demand on the screw heating system is at its maximum.
• Various Welding Shoes Available for Different Joint Geometries: The WELDPLAST S4 is compatible with various welding shoe options – enabling selection of the shoe profile appropriate to the joint geometry, material, and welding position of each specific application. Different shoe profiles distribute the extrudate and consolidate the bead differently, and the availability of multiple options allows the operator to configure the WELDPLAST S4 for the joint type being welded rather than using a single-profile shoe as a compromise across different joint geometries.

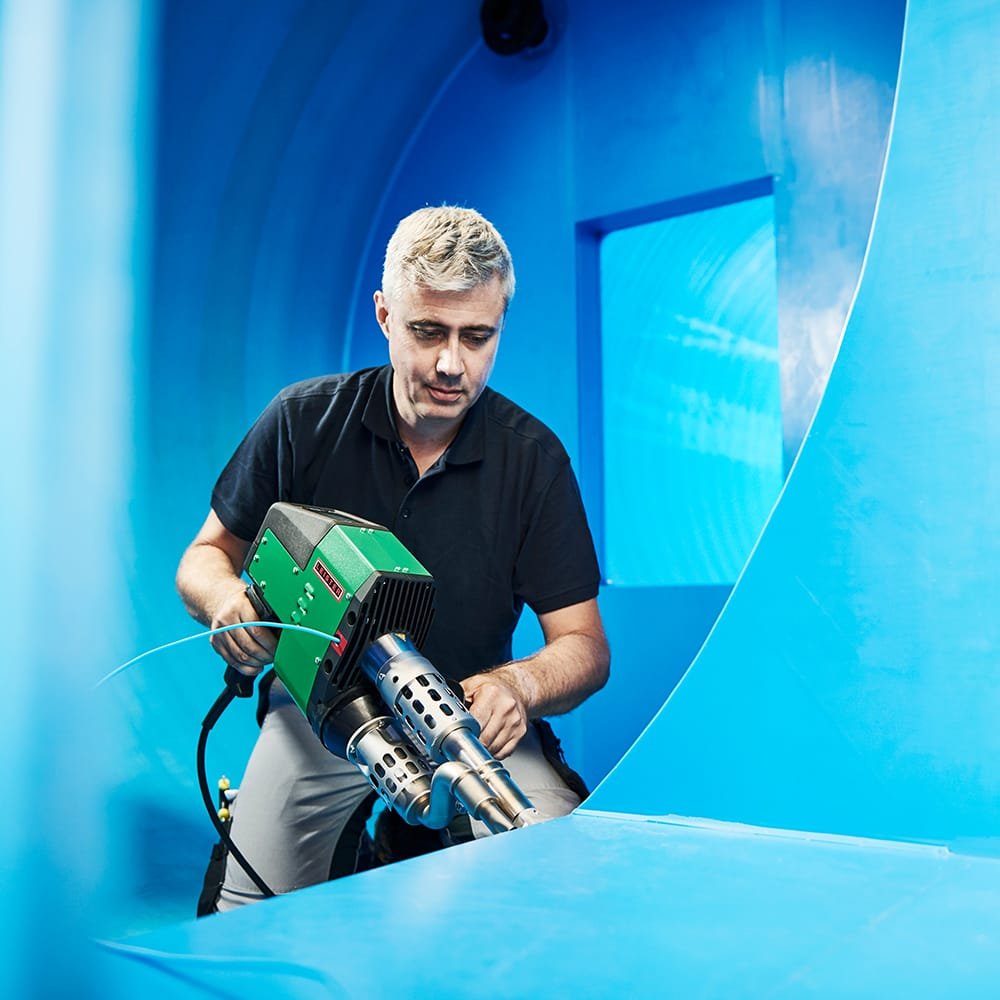

• Optional Angle Adapter for Additional Welding Position Flexibility: An angle adapter is available as an accessory, enabling the WELDPLAST S4 to be configured for welding positions and joint access angles that the standard shoe mounting position cannot serve – extending the range of joint orientations and access geometries accessible to the extruder beyond those achievable without the adapter, particularly relevant in confined vessel interior fabrication and complex joint geometry equipment construction work.

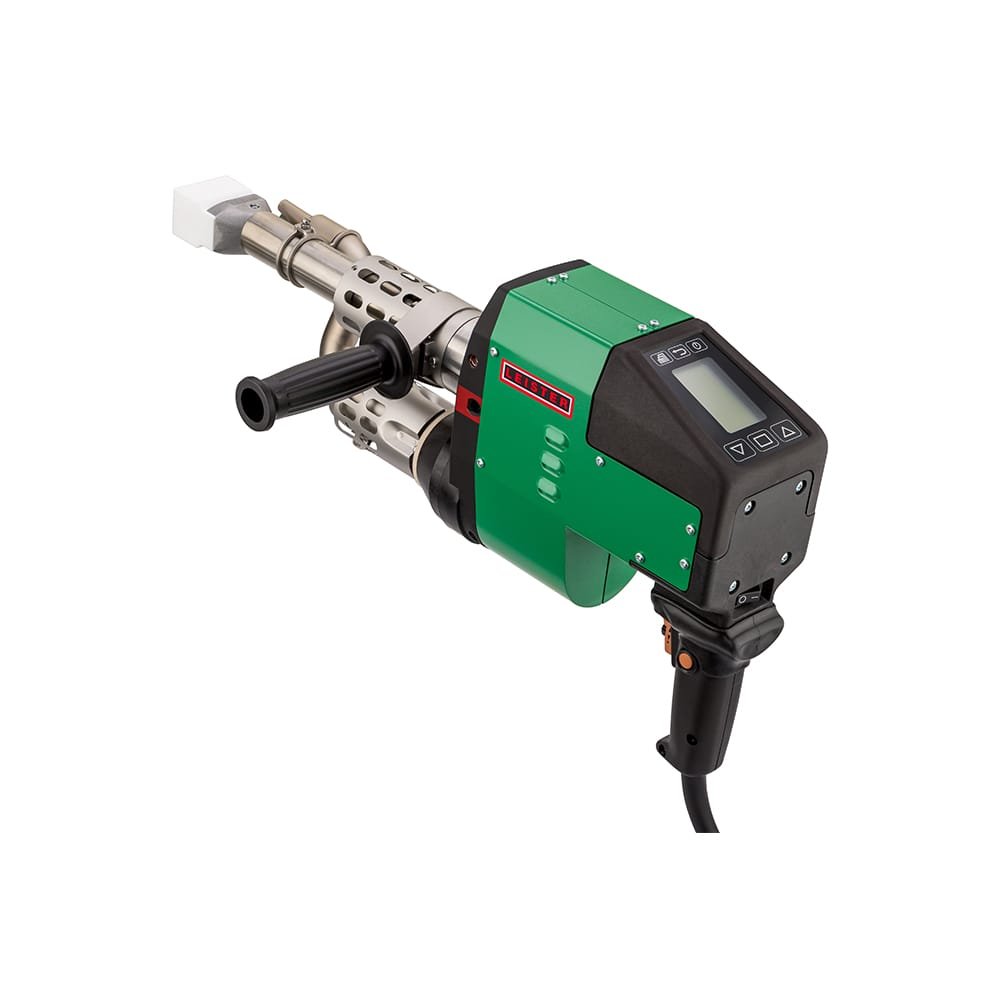

• Digital Display for Process Parameter Monitoring: The onboard digital display presents process parameters during the weld run, enabling the operator to confirm and monitor temperature and operating conditions throughout active welding – providing the parameter visibility that professional extrusion weld quality assurance on structural thick-section plastic joints requires.

High-Output Extrusion Welding Applications for the WELDPLAST S4 in Oman and the GCC

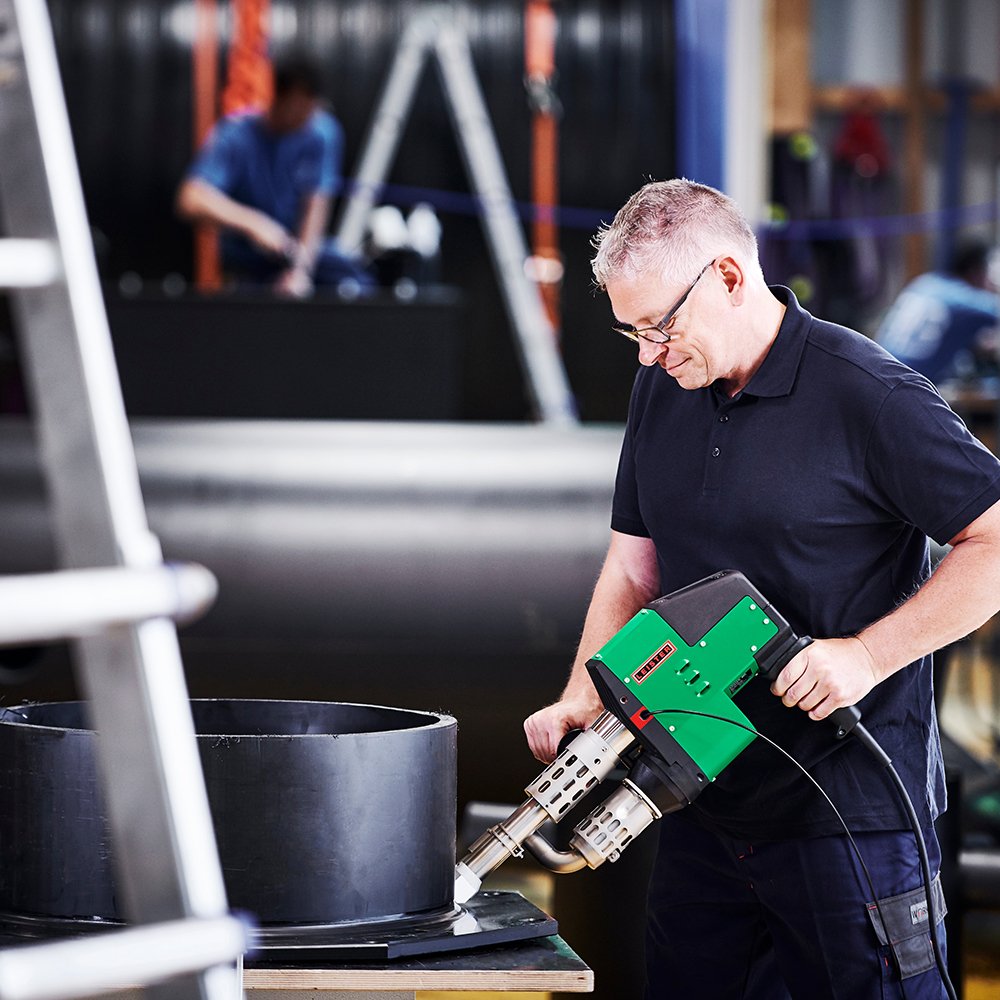

• Industrial Tank and Container Structural Joint Fabrication – Equipment Construction Variant: Produces high-output structural extrusion weld joints on HDPE and PP industrial tanks, chemical containers, process vessels, and equipment housings from 15 mm to 25 mm sheet thickness – with the lateral hot air nozzle providing the correct pre-heating air direction for the side-approach joint geometry of vessel and container fabrication, and the 3-4 mm rod intake accommodating the rod specification appropriate to the weld joint cross-section requirements of this application.
• Geomembrane T-Joint and Connection Extrusion Welding – Civil Engineering Variant: Performs high-output extrusion welding of T-joints, anchor trench connections, panel-to-structure connections, and repair patches on heavy HDPE and LLDPE geomembrane civil liner installations – with the top-mounted pre-heating nozzle providing the correct above-surface pre-heat geometry for geomembrane liner welding, and the 4-5 mm rod intake delivering the maximum bead volume that heavy civil liner connection work requires.
• Heavy Structural Plastic Fabrication on 15 mm to 25 mm Sheet: Welds the structural joints on thick-section HDPE and PP plastic fabrications including chemical containment bund panels, large-volume process containers, structural plastic components, and civil infrastructure plastic elements – where the 3680 W output and 3.8 kg/h material rate provide the bead volume and thermal input that structural joint integrity on thick-section material demands.
• Civil Geomembrane Repair and Detail Work on Active Project Sites: The civil engineering variant provides the high-output extrusion welding capability for field repair and detail work on heavy geomembrane civil liner installations across Oman and the GCC – where 4-5 mm rod with top-mounted pre-heating enables productive repair welding at the bead cross-section appropriate to the liner thickness, with the output rate of the WELDPLAST S4 enabling repair and connection work to be completed efficiently within the time constraints of active civil installation programme schedules.
• Multi-Application Operations Deploying Both Variants: For fabrication contractors and civil engineering companies whose project scope includes both equipment and container construction and civil geomembrane work, the availability of the WELDPLAST S4 in both application-specific variants – sharing the same 3680 W platform and process architecture – enables a consistent high-output extrusion welding capability across both application types without requiring different extruder platforms for each.

Leister WELDPLAST S4 – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing industrial fabricators, tank and vessel construction contractors, civil engineering teams, and geomembrane installation specialists with direct access to both variants of the WELDPLAST S4 alongside compatible welding shoes, the optional angle adapter, welding rod in 3 mm, 4 mm, and 5 mm HDPE and PP grades, and technical guidance on variant selection, welding shoe configuration, and material-specific parameter setup. As a manufacturer-authorised technical partner, iBuild supports the selection between the equipment construction and civil engineering variants based on the specific nozzle geometry, rod specification, and application requirements of each project, and provides lifecycle support to sustain WELDPLAST S4 performance across intensive extrusion welding programmes.

For industrial fabricators, equipment construction contractors, civil engineering teams, and geomembrane installation specialists across Oman and the GCC requiring a 3680 W high-output hand extruder available in correctly configured variants for equipment fabrication with lateral nozzle or civil geomembrane work with top-mounted pre-heating nozzle – on HDPE, LDPE, LLDPE, and PP sheet from 15 mm to 25 mm – iBuild is the authorised local source for the Leister WELDPLAST S4 in both variants, backed by manufacturer authority and in-country technical support.
