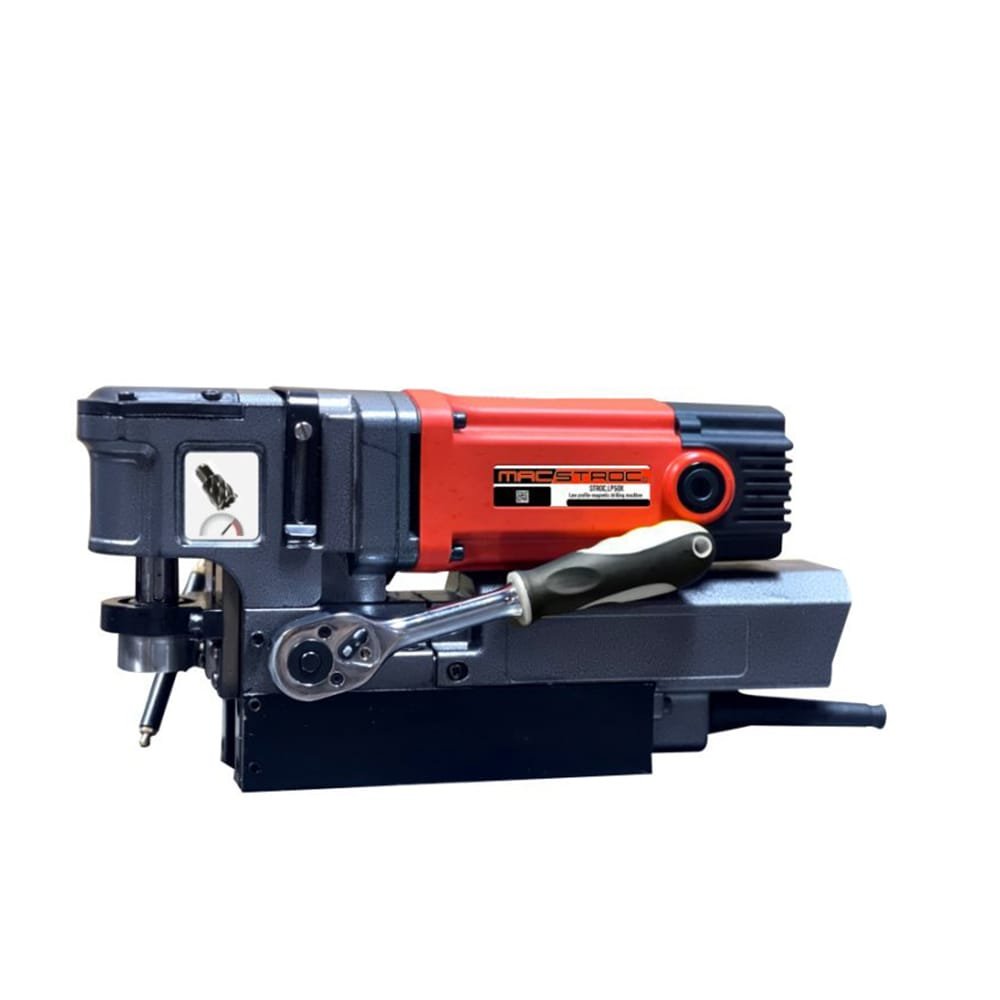

Macstroc STROC.LP50X Low Profile Magnetic Drilling Machine 50mm

The Macstroc STROC.LP50X is a low-profile magnetic drilling machine designed for annular cutting up to 50mm, twist drilling up to 12mm, and countersinking up to 40mm in restricted-height industrial workspaces.

Low Profile Magnetic Drilling for Restricted Working Spaces

The Macstroc STROC.LP50X is specifically designed for drilling applications where overhead clearance is limited. Its compact low-profile construction, combined with a powerful 1300W motor, six-speed regulation, and magnetic base, enables accurate drilling performance while maintaining accessibility in confined fabrication and industrial environments. The lock feed handle supports both left- and right-hand operation, providing flexibility for different working positions.

Macstroc STROC.LP50X Features and Technical Capabilities

• Low Profile Design: Engineered for drilling operations in spaces with limited working height.
• 50mm Annular Cutting Capacity: Supports annular cutters from Ø12mm to Ø50mm for precision hole cutting.
• Twist Drilling Capability: Accommodates twist drills from Ø1mm to Ø12mm for conventional drilling applications.
• Countersinking Capacity: Supports countersinking operations from Ø10mm to Ø40mm.
• Six-Speed Regulation: Six selectable speed settings allow drilling speed to be matched to the application and tooling.
• 1300W Total Power: Powered by a 1300W motor for industrial magnetic drilling applications.
• 950kg Magnetic Holding Force: Magnetic base securely holds the machine on ferrous work surfaces during drilling.
• 19.5mm Weldon Spindle: Equipped with a 19.5mm Weldon spindle for compatible annular cutters and accessories.
• Lock Feed Handle: Feed handle can be positioned for both left- and right-hand operation.
• 61mm Stroke: Provides a 61mm drilling stroke for controlled drilling operations.
• Compact Construction: Measures 180mm in height and weighs 11kg for improved accessibility in confined work areas.

Industrial Drilling Applications in Oman

• Restricted Height Drilling: Designed for drilling operations where overhead clearance is limited.
• Annular Cutting: Suitable for annular cutting applications up to Ø50mm.
• Twist Drilling: Supports conventional drilling using twist drills up to Ø12mm.
• Countersinking: Designed for countersinking applications up to Ø40mm.
• Industrial Metalworking: Intended for magnetic drilling operations on ferrous metal surfaces.

Macstroc STROC.LP50X – Available Through iBuild in Oman

iBuild supplies the Macstroc STROC.LP50X as part of its engineering-grade metalworking equipment portfolio in Oman. As an authorised technical partner, iBuild supports fabrication workshops, industrial manufacturers, contractors, and engineering professionals with genuine Macstroc machinery for specification-driven applications.

Alongside equipment availability, iBuild provides technical guidance, local support, and lifecycle support to help customers select the appropriate low-profile magnetic drilling solution for confined-space metalworking applications.
