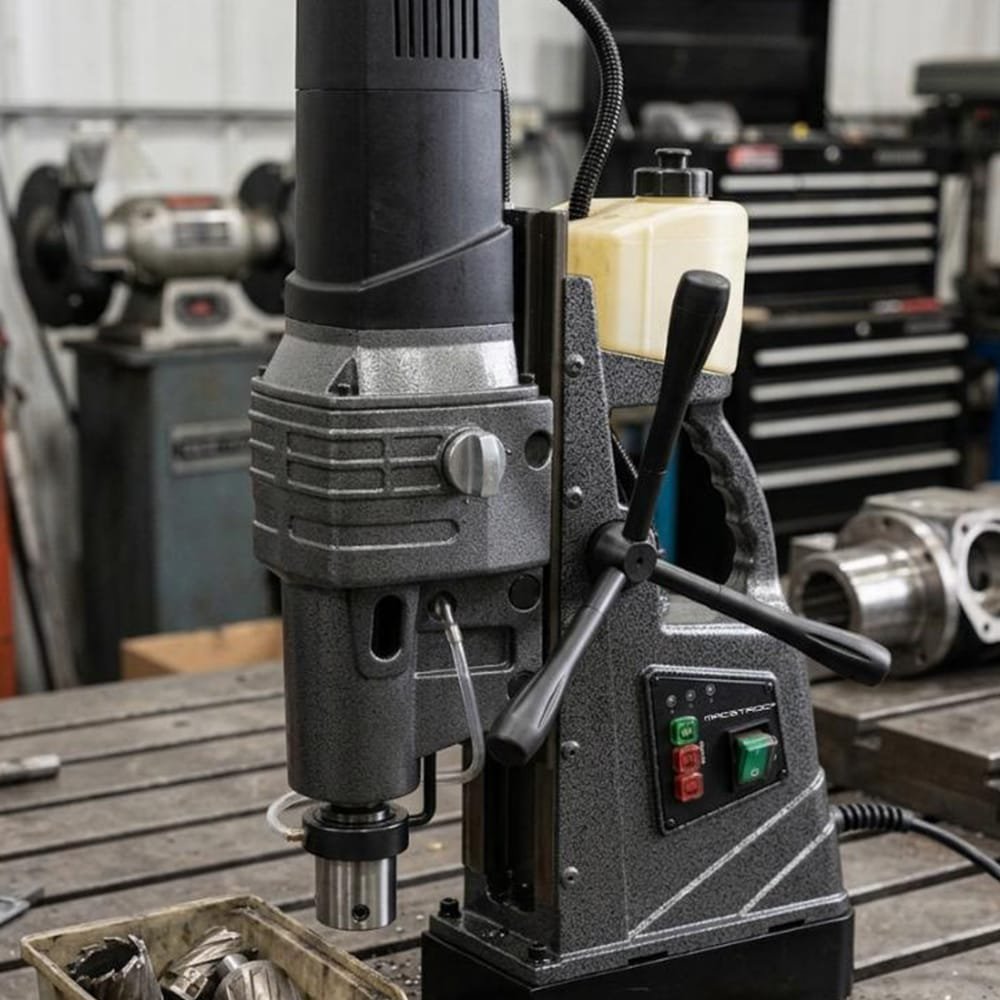

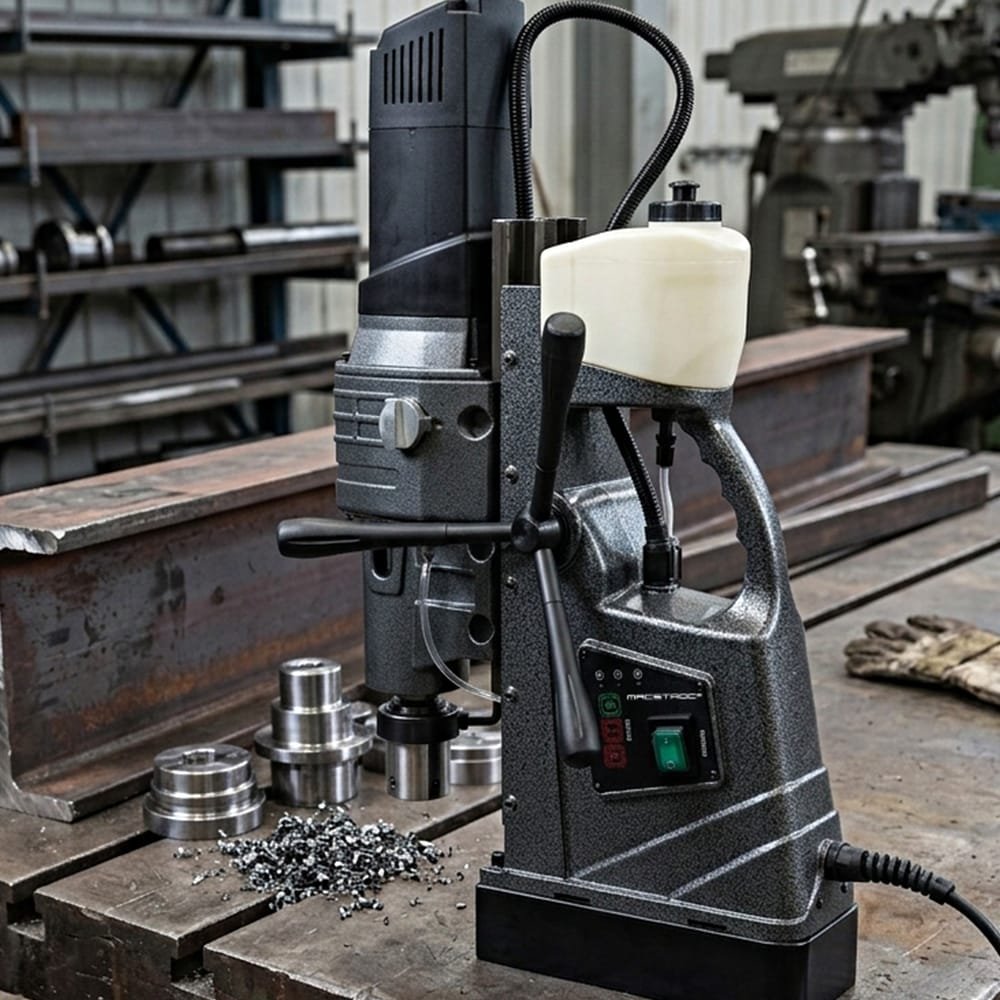

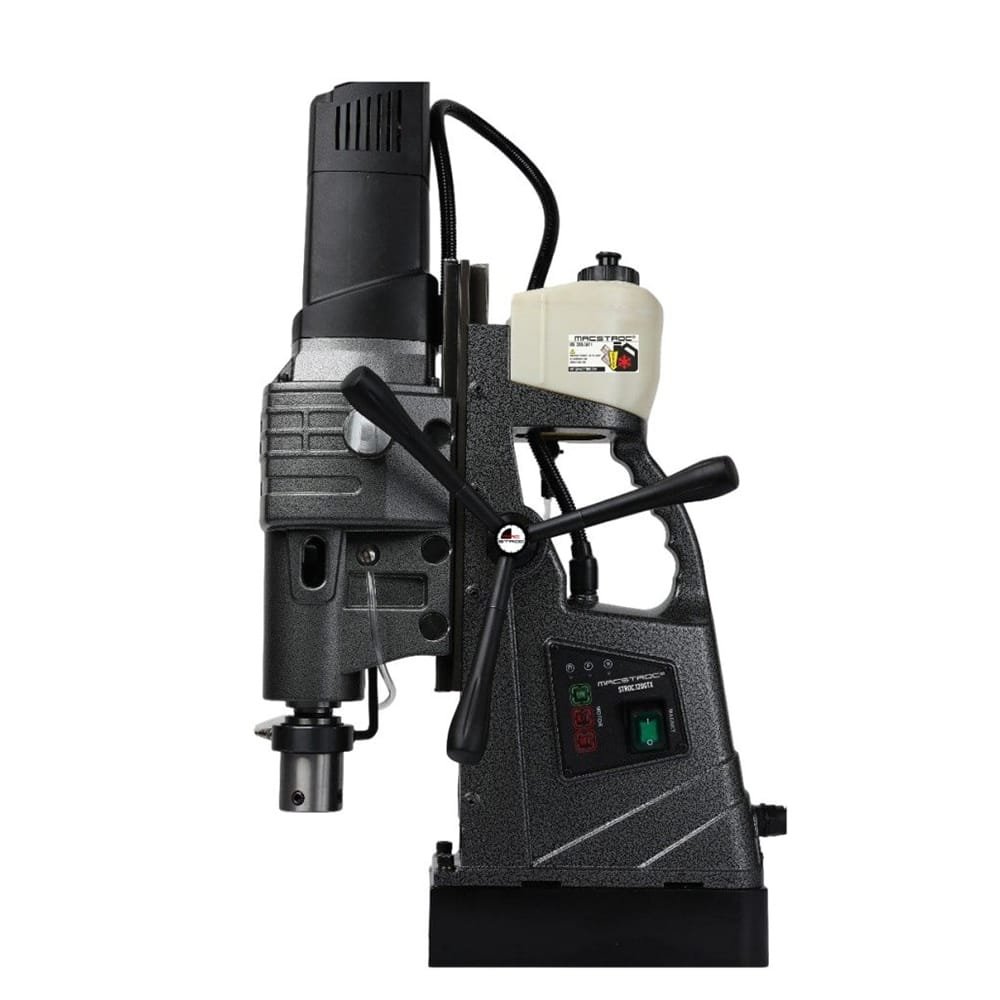

Macstroc STROC.120GTX Magnetic Drill with Tapping 120mm

The Macstroc STROC.120GTX is a heavy-duty magnetic drilling machine designed for annular cutting up to 120mm, twist drilling up to 40mm, countersinking up to 120mm, and tapping from M3 to M40.

High-Capacity Magnetic Drilling and Tapping for Industrial Metalworking

The Macstroc STROC.120GTX is engineered for industrial drilling and tapping applications requiring high drilling capacity and controlled machining performance. Equipped with a 2600W motor, a four-speed gearbox, and a heavy-duty magnetic base, the machine supports annular cutting, twist drilling, countersinking, and tapping while providing reliable performance for demanding fabrication and industrial environments.

Macstroc STROC.120GTX Features and Technical Capabilities

• 120mm Annular Cutting Capacity: Supports annular cutters from Ø12mm to Ø120mm for large-diameter hole cutting.
• Tapping Capability: Performs tapping operations from M3 to M40 for threaded hole production.
• Twist Drilling Capability: Accommodates twist drills up to Ø40mm for conventional drilling applications.
• Countersinking Capacity: Supports countersinking operations from Ø10mm to Ø120mm.
• 2600W Motor: Powered by a 2600W motor for heavy-duty drilling and tapping applications.
• Four-Speed Gearbox: Provides four selectable no-load speeds of 100, 167, 223, and 365rpm to suit different drilling operations.
• 2050kg Magnetic Holding Force: Heavy-duty magnetic base securely holds the machine during drilling and tapping operations.
• 230mm Stroke: Provides a long drilling stroke for deep drilling applications and larger tooling.
• MT-4 / MT-3 Spindle: Features an MT-4 spindle with MT-3 sleeve compatibility and Weldon sizes of 19.05mm and 31.75mm.
• Dual Voltage Operation: Operates on either 110-120V / 60Hz or 220-240V / 50-60Hz power supplies.
• Heavy-Duty Construction: Designed for industrial drilling applications requiring consistent machining performance.

Industrial Drilling and Tapping Applications in Oman

• Annular Cutting: Designed for annular cutting applications up to Ø120mm.
• Tapping Operations: Suitable for producing threaded holes from M3 to M40.
• Twist Drilling: Supports conventional drilling using twist drills up to Ø40mm.
• Countersinking: Designed for countersinking operations up to Ø120mm.
• Industrial Metalworking: Intended for heavy-duty magnetic drilling and tapping on ferrous metal workpieces.

Macstroc STROC.120GTX – Available Through iBuild in Oman

iBuild supplies the Macstroc STROC.120GTX as part of its engineering-grade metalworking equipment portfolio in Oman. As an authorised technical partner, iBuild supports fabrication workshops, industrial manufacturers, contractors, and engineering professionals with genuine Macstroc machinery for specification-driven applications.

Alongside equipment availability, iBuild provides technical guidance, local support, and lifecycle support to help customers select the appropriate high-capacity magnetic drilling and tapping solution for demanding industrial metalworking applications.
