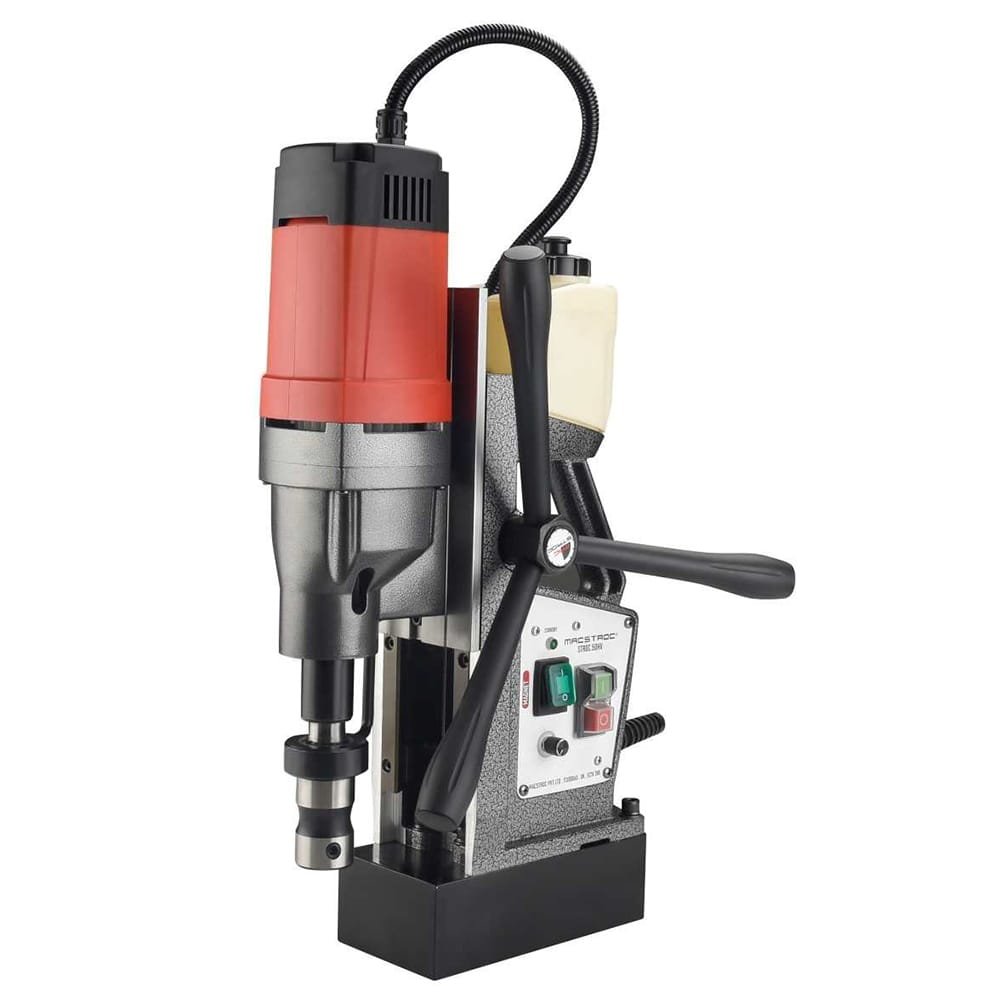

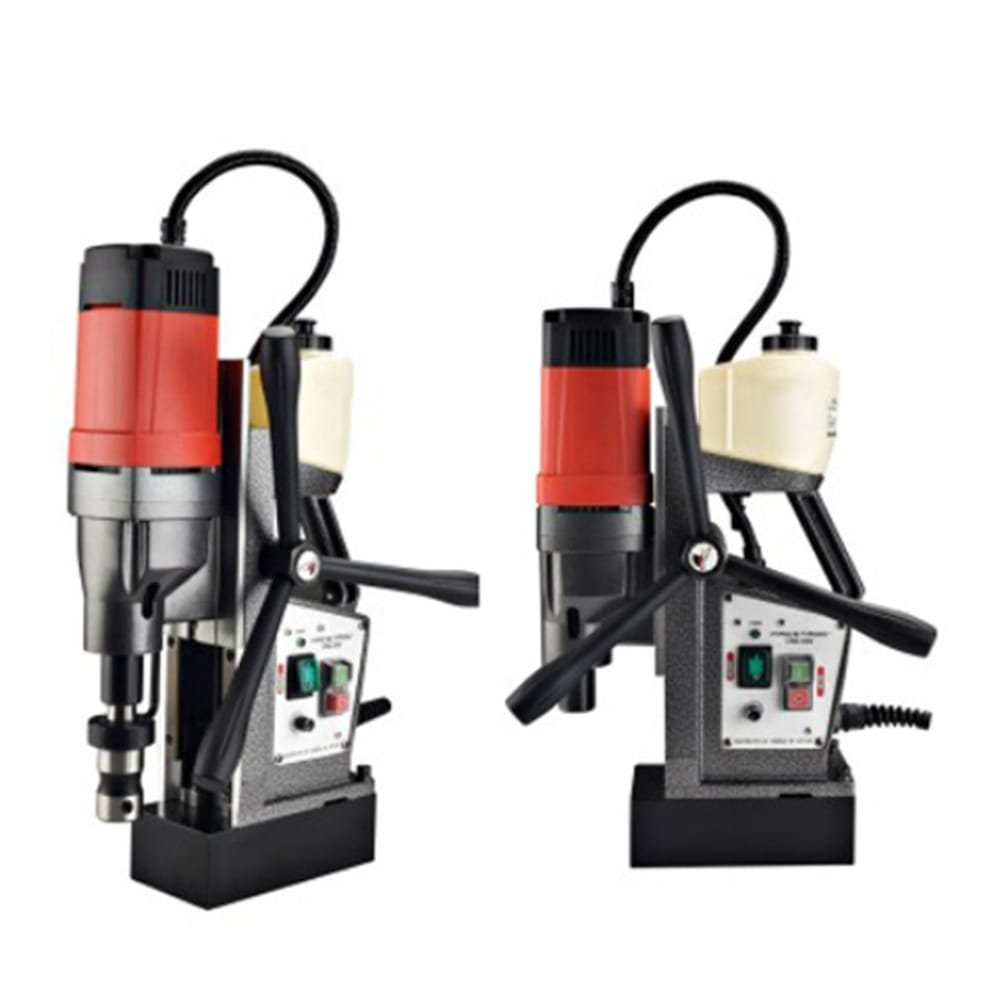

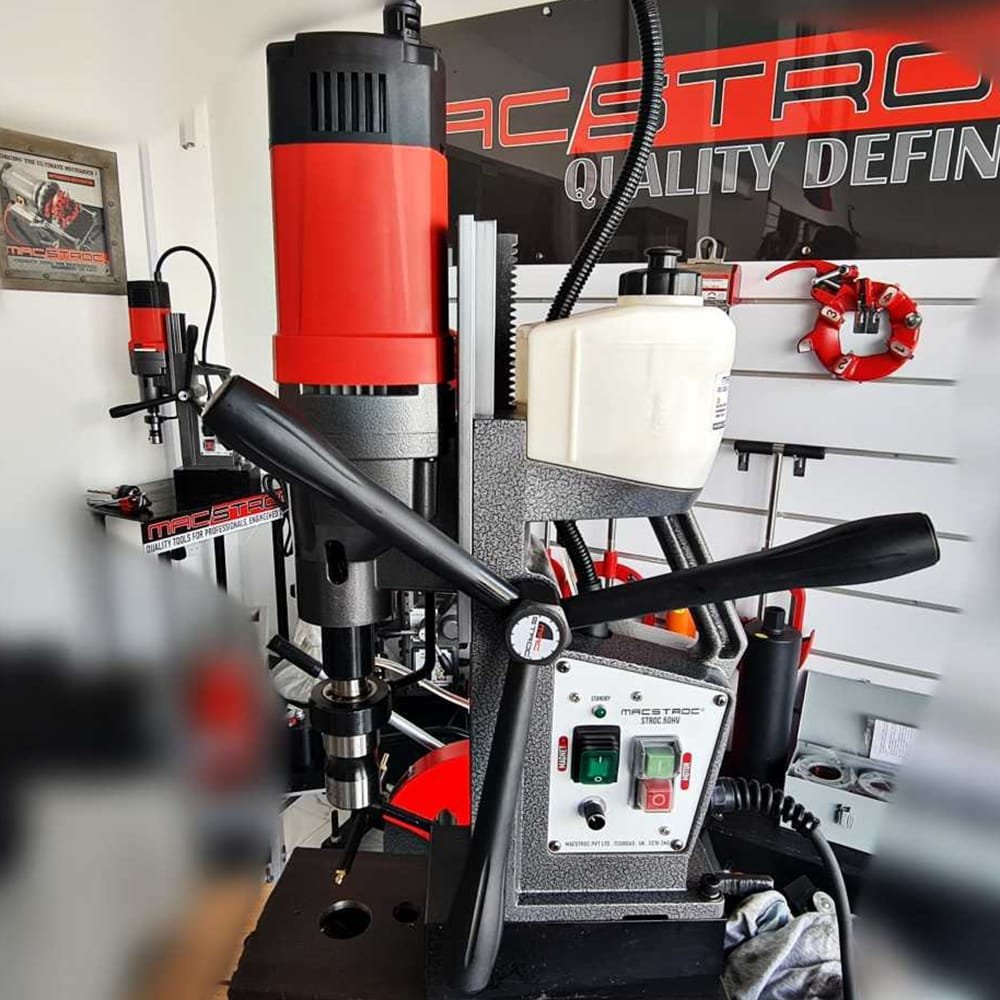

Macstroc STROC.50HV Magnetic Drilling Machine 50mm

The Macstroc STROC.50HV is a variable speed magnetic drilling machine designed for annular cutting up to 50mm, twist drilling up to 27mm, and countersinking up to 55mm for industrial metalworking applications.

Precision Magnetic Drilling for Industrial Metal Fabrication

The Macstroc STROC.50HV is engineered for industrial drilling applications requiring stable support, accurate hole sizing, and versatile drilling capability. Equipped with a powerful motor, step-down gearbox, integral auto-cooling function, and an external cooling device, the machine supports annular cutters, twist drills, and countersinking tools. Its 1400kg magnetic holding force and extendable spindle height provide stable operation across a wide range of metal drilling applications.

Macstroc STROC.50HV Features and Technical Capabilities

• 50mm Annular Cutting Capacity: Supports annular cutters from Ø12mm to Ø50mm for precision hole cutting in industrial metal applications.
• Twist Drilling Capability: Accommodates twist drills from Ø1mm to Ø27mm, expanding the machine’s drilling versatility.
• Countersinking Capacity: Supports countersinking operations from Ø10mm to Ø55mm.

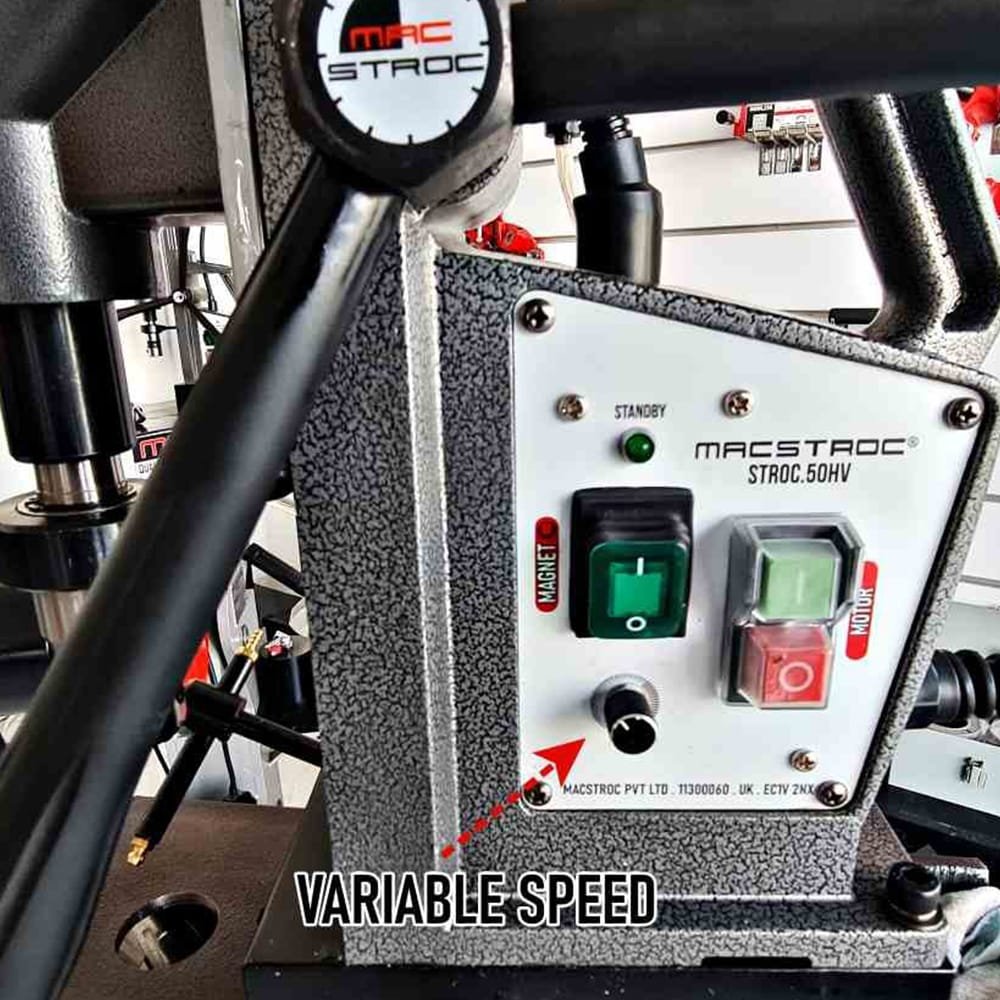

• Variable Speed with Step-Down Gearbox: Combines variable speed control with a step-down gearbox to support controlled drilling across different applications.
• 1700W Motor: Powered by a 1700W motor for industrial drilling performance.

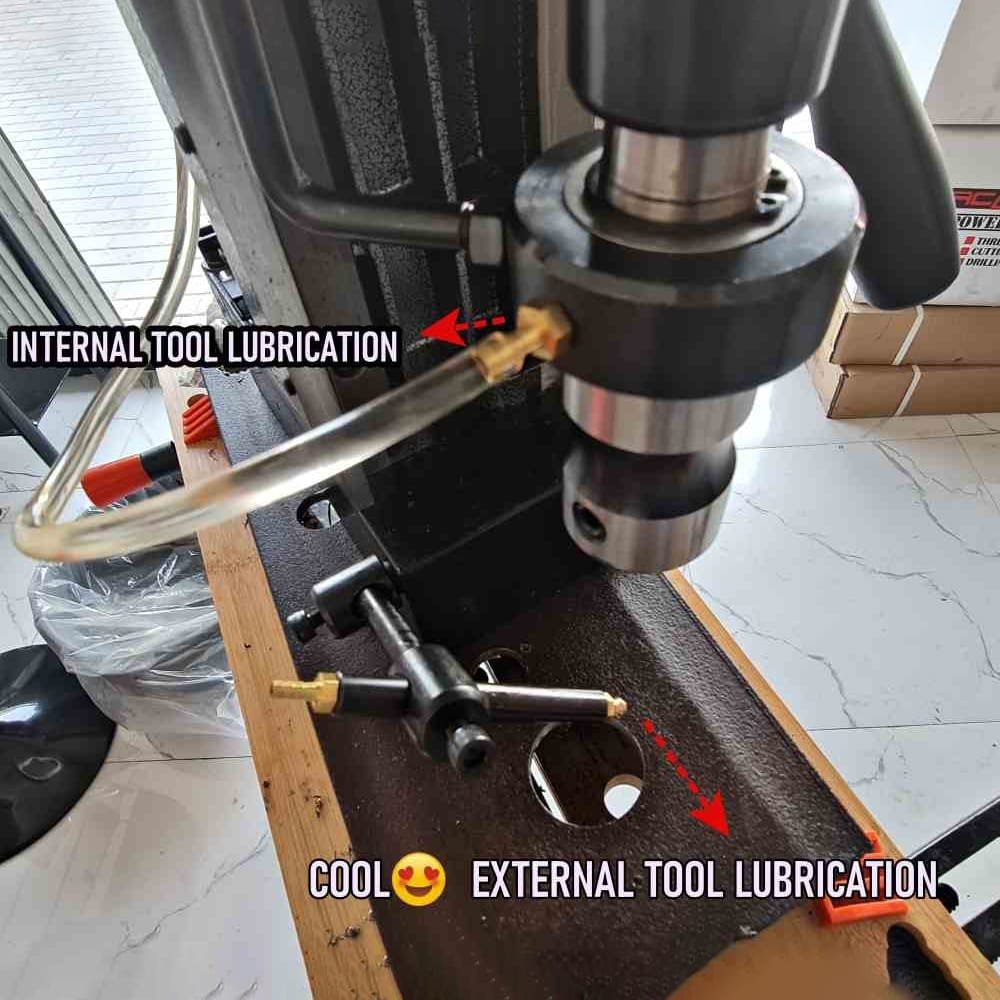

• Integral Auto-Cooling Function: Features an integral auto-cooling system to support drilling operations.
• External Cooling Device: Supplied with an external cooling device for cutting tool cooling during operation.
• 220mm Maximum Spindle Opening: Provides up to 220mm between the spindle and workpiece, allowing the attachment of twist drill chucks and compatible accessories.
• 1400kg Magnetic Holding Force: Powerful magnetic base securely holds the machine on ferrous work surfaces during drilling.
• MT3 Spindle: Equipped with an MT3 spindle featuring integrated tool cooling and lubrication.
• Stable Drilling Performance: Designed to provide stable support, faster drilling, and accurate hole sizing.
• Low Maintenance: Engineered for low maintenance during regular industrial operation.
• Minimal Vibration: Designed to minimise vibration during drilling applications.

Industrial Drilling Applications in Oman

• Annular Cutting: Suitable for annular cutting applications up to Ø50mm.
• Twist Drilling: Designed for conventional drilling operations using twist drills up to Ø27mm.
• Countersinking: Supports countersinking applications up to Ø55mm.
• Industrial Metalworking: Designed for precision drilling operations on metal surfaces using a magnetic base.

Macstroc STROC.50HV – Available Through iBuild in Oman

iBuild supplies the Macstroc STROC.50HV as part of its engineering-grade metalworking equipment portfolio in Oman. As an authorised technical partner, iBuild supports fabrication workshops, industrial manufacturers, contractors, and engineering professionals with genuine Macstroc machinery for specification-driven applications.

Alongside equipment availability, iBuild provides technical guidance, local support, and lifecycle support to help customers select the appropriate magnetic drilling solution for their drilling capacity, tooling, and application requirements.
