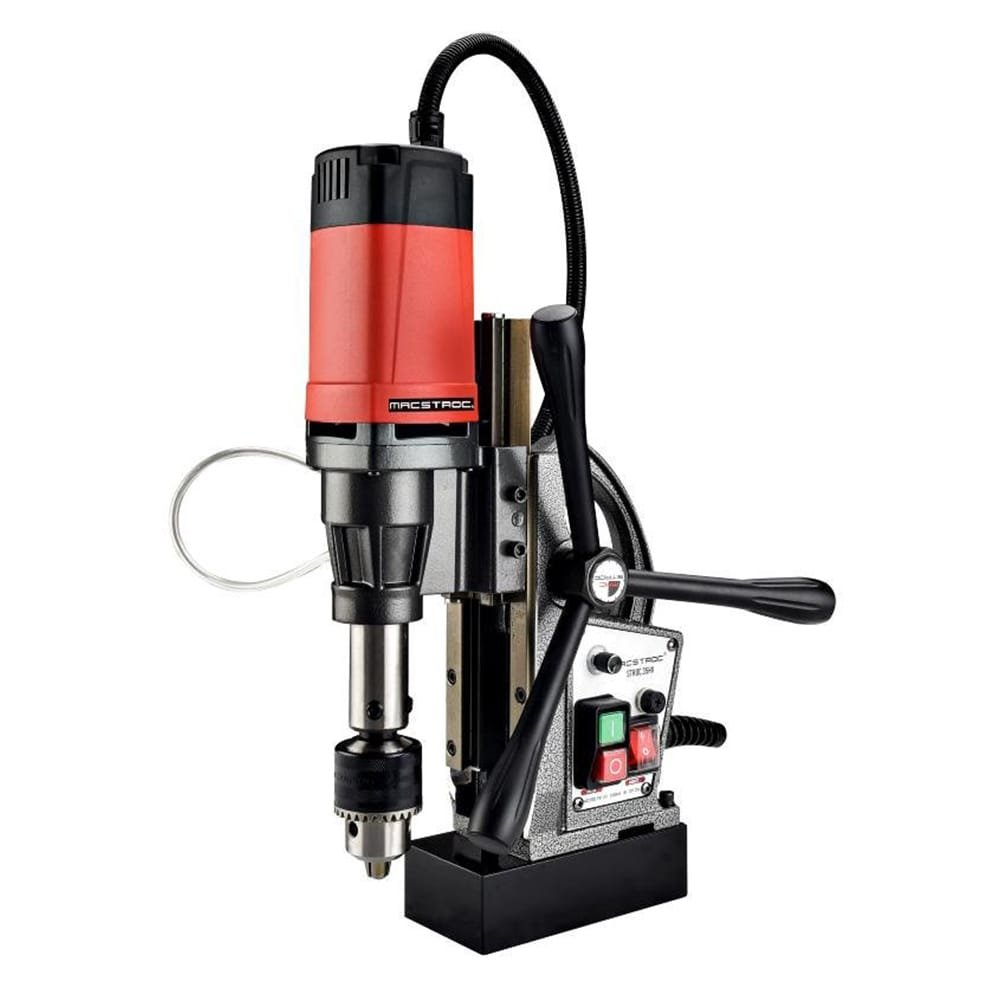

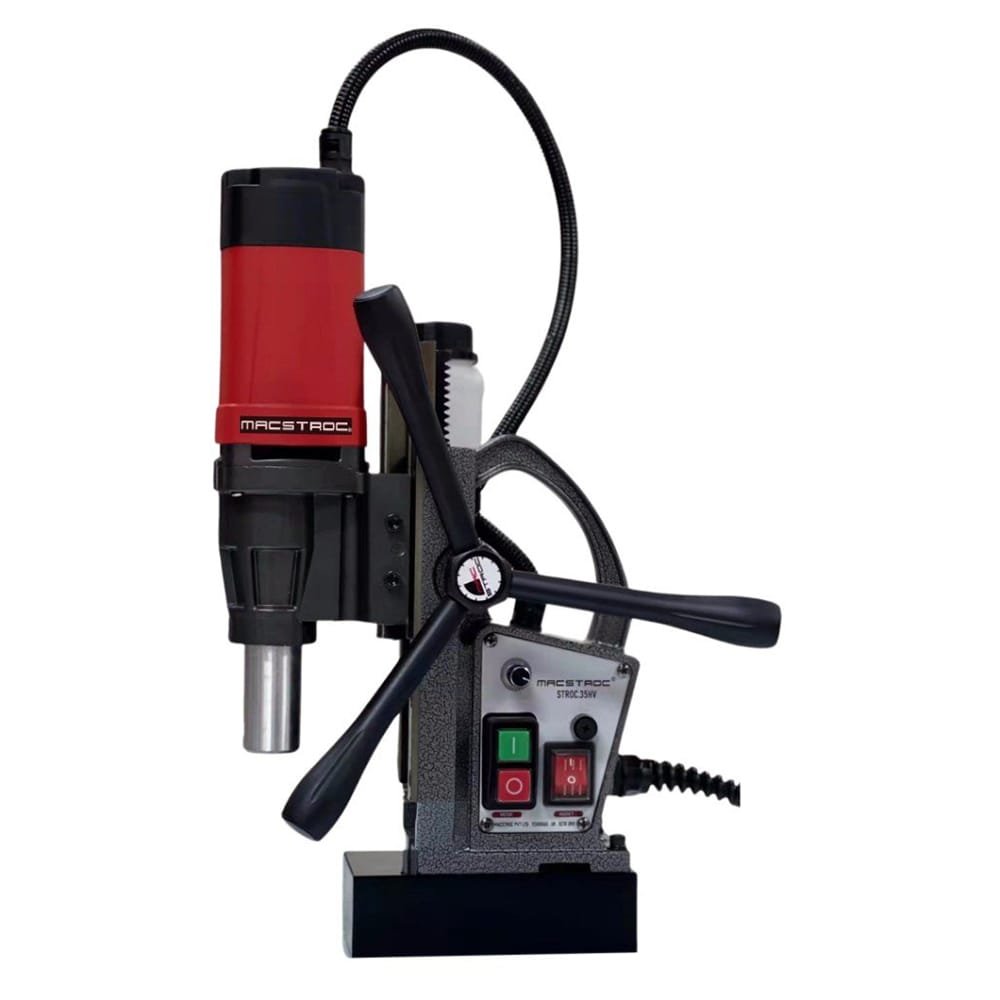

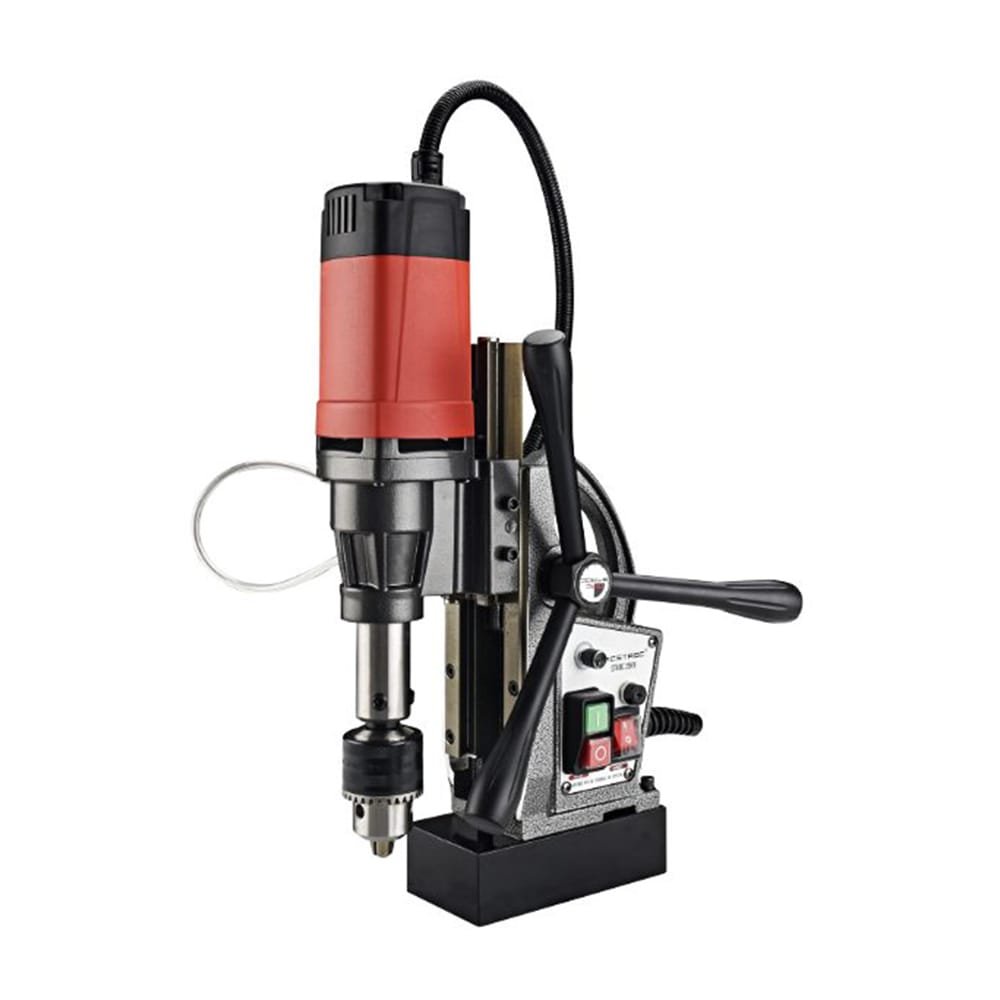

Macstroc STROC.35HV Magnetic Drilling Machine 35mm

The Macstroc STROC.35HV is a variable speed magnetic drilling machine designed for annular cutting up to 35mm, twist drilling up to 16mm, and countersinking up to 40mm on metal surfaces.

Precision Magnetic Drilling for Industrial Metalworking

The Macstroc STROC.35HV is engineered for industrial drilling applications requiring accurate hole production and stable machine performance. Equipped with a powerful hi-torque motor, integral auto-cooling function, and a 1300kg magnetic base, the machine delivers controlled drilling for annular cutters, twist drills, and countersinking tools. The extendable spindle height allows additional drilling accessories to be fitted while maintaining flexibility across different workpiece configurations.

Macstroc STROC.35HV Features and Technical Capabilities

• 35mm Annular Cutting Capacity: Supports annular cutters from Ø12mm to Ø35mm for precision hole cutting in steel fabrication applications.
• Twist Drilling Capability: Accommodates twist drills from Ø1mm to Ø16mm, providing versatility for conventional drilling operations.
• Countersinking Capacity: Supports countersinking tools from Ø10mm to Ø40mm for finishing drilled holes.

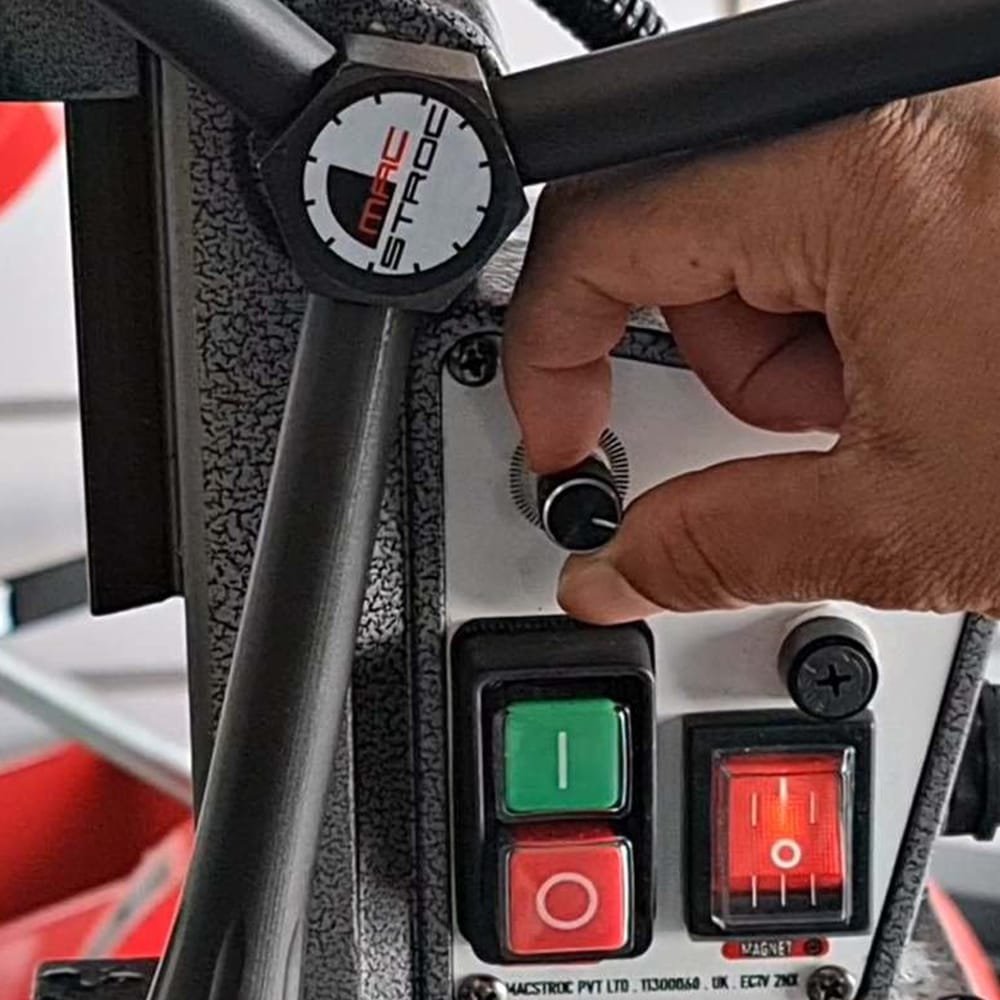

• Variable Speed Control: Variable speed operation with a no-load speed range of 200-750r/min allows drilling speeds to be matched to the application.
• Hi-Torque Motor: Powered by an 1100W hi-torque motor with a total power rating of 1150W for industrial drilling performance.
• Integral Auto-Cooling Function: Built-in auto-cooling assists during drilling operations.

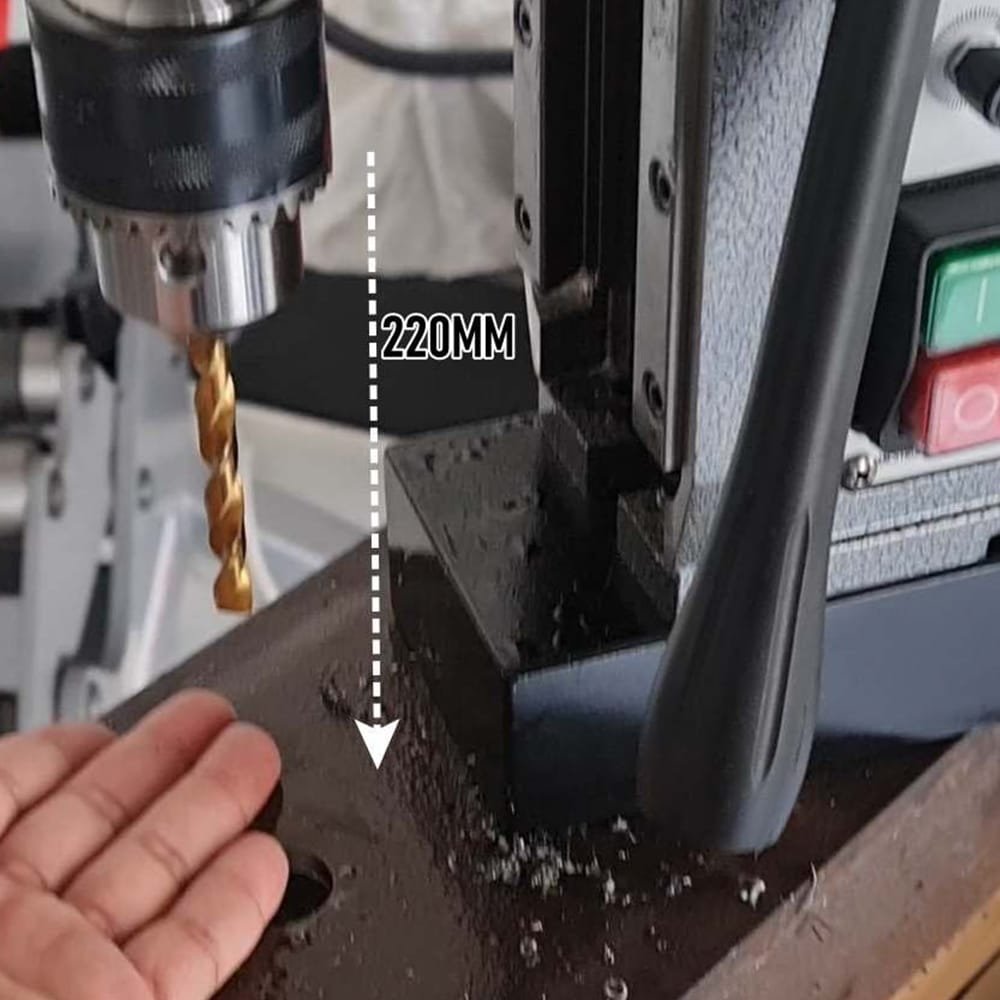

• 220mm Extendable Stroke: Extendable height up to 220mm from the workpiece to the spindle allows the use of twist drill chucks and compatible accessories.
• Powerful Magnetic Base: Generates a magnetic holding force of 1300kg to secure the machine during drilling.
• 19.5mm Weldon Spindle: Equipped with a 19.5mm Weldon spindle for compatible cutting tools.
• Compact Machine Design: Weighs 11kg while maintaining industrial drilling capability.
• High Accuracy: Designed to provide accurate drilling performance for industrial applications.
• Low Maintenance: Engineered for low maintenance during regular operation.
• Minimal Vibration: Designed to minimise vibration during drilling operations.

Industrial Drilling Applications in Oman

• Annular Cutting: Designed for annular hole cutting up to Ø35mm in metal fabrication applications.
• Twist Drilling: Suitable for conventional drilling using twist drills up to Ø16mm.
• Countersinking: Supports countersinking operations up to Ø40mm.
• Industrial Metalworking: Designed for drilling applications on metal surfaces using its magnetic base.

Macstroc STROC.35HV – Available Through iBuild in Oman

iBuild supplies the Macstroc STROC.35HV as part of its engineering-grade metalworking equipment portfolio in Oman. As an authorised technical partner, iBuild supports fabrication workshops, industrial manufacturers, contractors, and engineering professionals with genuine Macstroc machinery for specification-driven applications.

In addition to product availability, iBuild provides technical guidance, local support, and lifecycle support to help customers select the appropriate magnetic drilling solution for their industrial drilling requirements.
