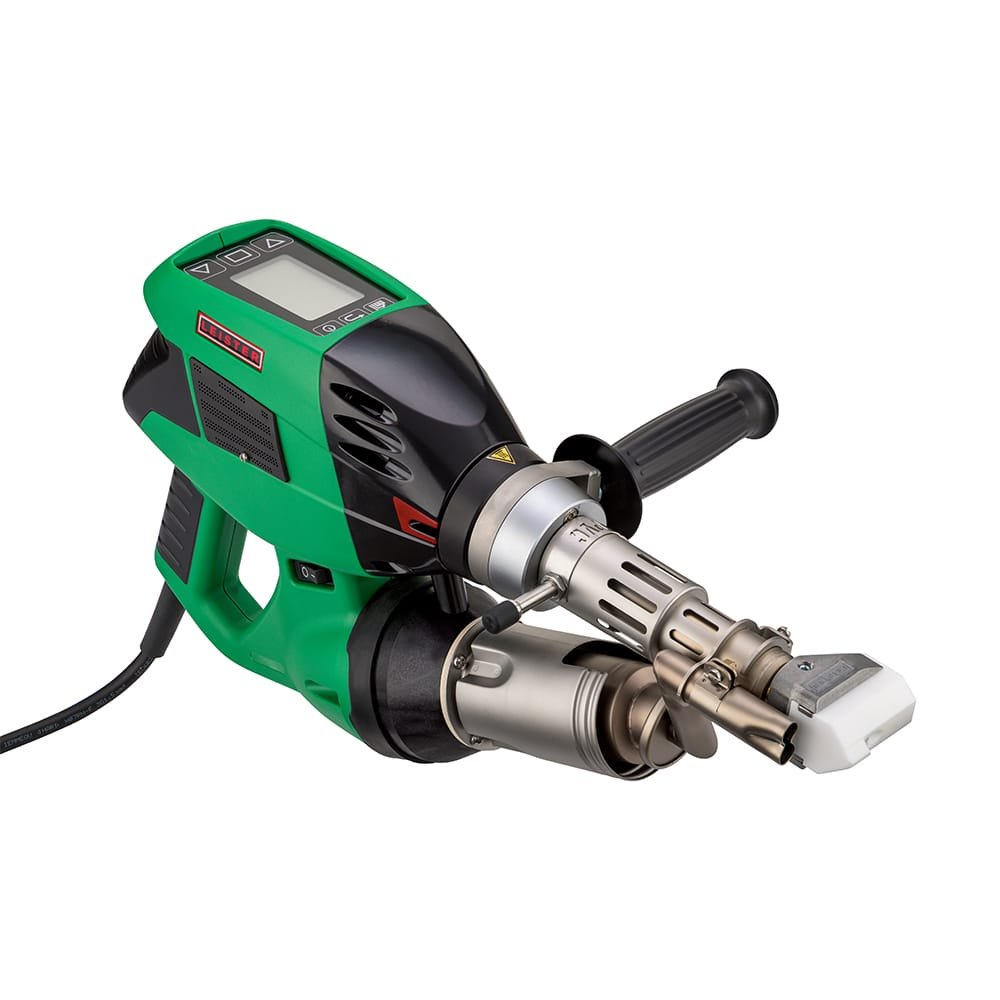

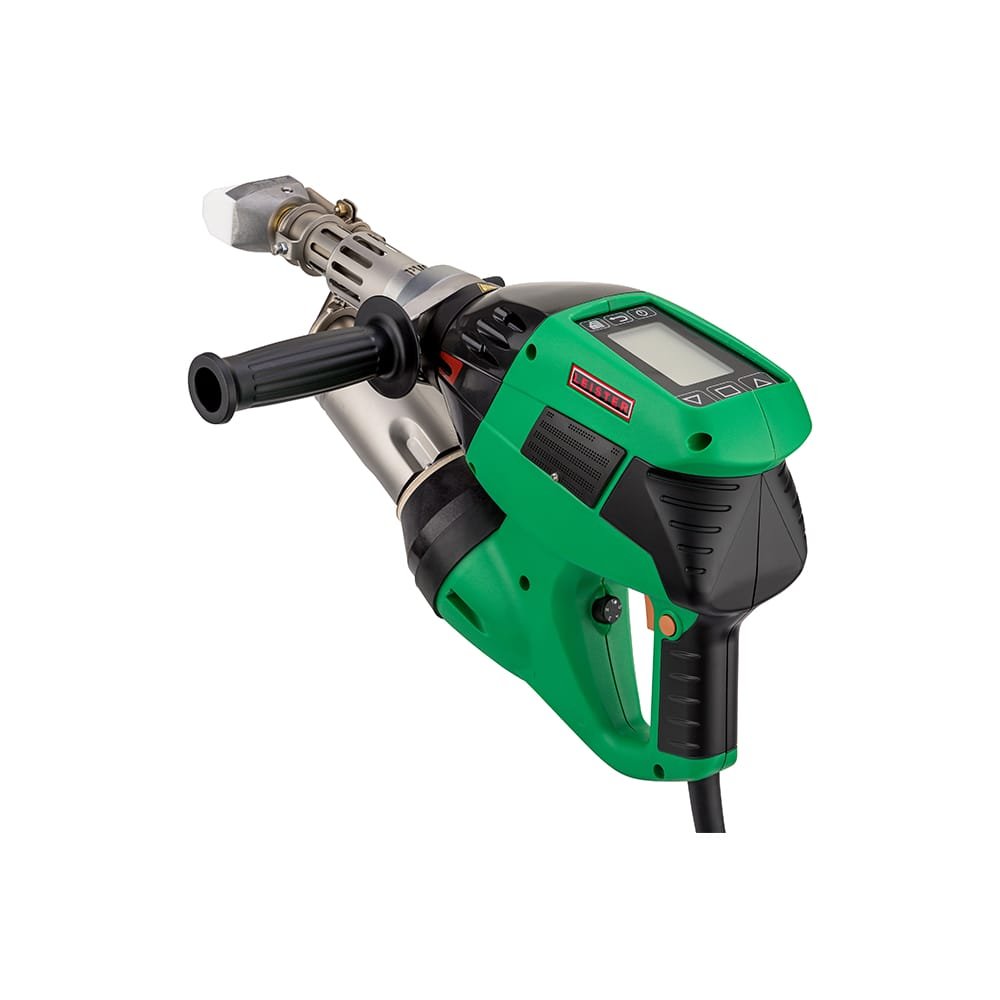

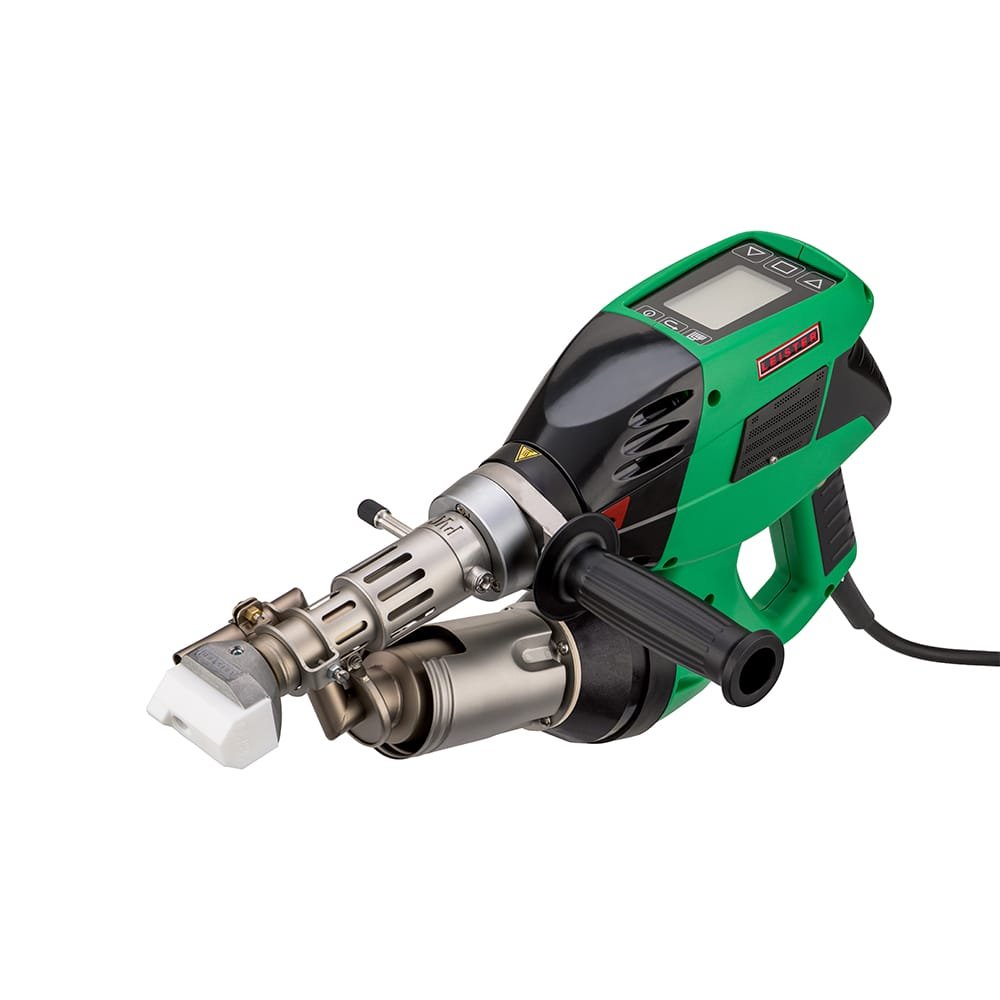

Leister WELDPLAST S2 PVC Hand Extrusion Welder

The Leister WELDPLAST S2 PVC is a 3000 W hand extrusion welder delivering up to 2 kg/h material output, specifically designed for PVC-U processing with corrosion protection through refined metal components and fully sealed electronics, separately channelled pre-heated air for large temperature differential between substrate pre-heat and melt, dedicated PVC extrusion welding HMI menu, closed-loop air temperature control, coil heater screw heating, brushless blower motor, and external air guide – welding PVC-U, HDPE, LDPE, LLDPE, and PP sheet from 10 mm to 20 mm thickness in chemical plant fabrication, water treatment, industrial piping, and multi-material plastic fabrication environments.

PVC-U Extrusion Welding with Corrosion Protection and Process-Specific Temperature Architecture

PVC-U extrusion welding imposes demands on the hand extruder that standard polyolefin-focused machines are not designed to address. At the elevated processing temperatures required to achieve full PVC rod plasticisation, PVC generates hydrochloric acid vapour as a thermal decomposition by-product. Even at controlled processing temperatures below the degradation threshold, the chlorinated vapour environment within and around the extruder’s air and melt circuits creates corrosive conditions that attack unprotected metal components and sealed electronics over time – reducing service life, creating reliability risk on long production runs, and potentially contaminating the PVC melt with corrosion particulate that produces visible and invisible weld defects.

The WELDPLAST S2 PVC addresses this through an internal architecture specifically engineered for PVC processing. Metal components exposed to the PVC processing environment are refined with corrosion-resistant surface treatment. Electronics are completely sealed – eliminating the exposure path that would allow acidic vapour penetration to damage circuit components during sustained PVC welding operation. And the pre-heated air circuit is channelled separately from the melt path – maintaining the large temperature differential between the substrate pre-heating air and the extruded PVC melt temperature that PVC-U process requirements specify, without the thermal cross-contamination that a shared air path would introduce between the two circuits. Combined with a dedicated HMI menu for PVC extrusion welding that provides the correct parameter environment for PVC-U from the point of selection, the WELDPLAST S2 PVC is the extrusion welding instrument that PVC fabrication professionals across Oman and the GCC can rely on for consistent PVC-U weld quality without the component degradation that an unprotected standard extruder accumulates through PVC processing over time.

WELDPLAST S2 PVC Technical Capabilities and PVC Fabrication Features

• Refined Metal Components and Fully Sealed Electronics for Corrosion Protection: All metal components within the WELDPLAST S2 PVC that are exposed to the processing environment are refined with corrosion-resistant surface treatment, and all electronics are completely sealed against the chlorinated vapour environment that PVC processing generates at operating temperatures. This protection architecture extends the operational service life of the extruder across sustained PVC fabrication programmes and eliminates the corrosion-related failure modes that standard extruder internal components develop when regularly exposed to PVC and PVDF processing conditions.
• Separately Channelled Pre-Heated Air for Large Temperature Differential: The pre-heated air is routed through a separate channel from the melt path – maintaining a large and controlled temperature differential between the substrate pre-heating air temperature delivered to the joint face and the PVC melt temperature at the extrusion screw. For PVC-U, this differential is operationally significant: the substrate pre-heating temperature and the correct PVC melt temperature are substantially different values, and the ability to maintain them independently within appropriate ranges for each function is the process control requirement that consistent PVC-U extrusion weld quality depends on.
• Dedicated PVC Extrusion Welding HMI Menu: The HMI display includes a dedicated menu configuration for PVC extrusion welding – pre-structuring the parameter environment and display guidance appropriate to PVC-U processing rather than presenting the generic polyolefin parameter format. This dedicated menu reduces operator setup complexity, eliminates the parameter error risk of loading standard PE or PP settings for a PVC application, and provides the process-specific context that consistent PVC-U extrusion welding quality requires at every production start.
• Closed-Loop Air Temperature Control with External Air Guide: The closed-loop air temperature control system maintains the pre-heating air temperature at the set value throughout each weld run – compensating for ambient temperature variation and load changes to sustain consistent substrate pre-heating at the joint face via the external air guide. The external air guide routes the temperature-controlled pre-heating air directly to the joint substrate surface ahead of the welding shoe, providing targeted, accurate pre-heating of the PVC-U base material to the temperature required for fusion at the weld interface.
• 3000 W Heating Power with Up to 2 kg/h Output: The 3000 W heating system delivers the thermal output required for productive PVC-U extrusion welding at up to 2 kg/h with 4 mm rod – achieving 0.6 to 1.3 kg/h with 3 mm rod and 1 to 2 kg/h with 4 mm rod, measured with PE – providing the bead volume and throughput that structural weld joints on PVC-U sheet from 10 mm to 20 mm require at working speeds consistent with the thermal sensitivity requirements of PVC-U processing.
• Coil Heater Screw Heating for PVC-U Melt Temperature Control: The coil heater maintains accurate, controlled melt temperature across the extrusion screw for PVC-U rod – providing the precise screw temperature that PVC-U processing within the correct temperature window requires, without the temperature gradient variation that less controlled screw heating approaches produce and that increases the risk of either incomplete plasticisation or thermal degradation onset at the screw surfaces under extended PVC welding operation.
• Brushless Blower Motor for Sustained Performance in PVC Environments: The brushless blower motor provides the low-maintenance, sustained airflow performance that the corrosive operating environment of PVC and PVDF fabrication demands – without the brush wear and carbon debris that conventional brush blower motors produce in environments where moisture and chemical vapour exposure accelerates brush degradation and reduces blower life relative to clean-air industrial applications.
• Multi-Material Compatibility: PVC-U, HDPE, LDPE, LLDPE, and PP: The WELDPLAST S2 PVC welds PVC-U as its primary designed application and also accommodates HDPE, LDPE, LLDPE, and PP – enabling fabrication operations that process multiple thermoplastic materials within the same facility to deploy a single extruder across their full material scope, with the PVC-U-specific corrosion protection and process control architecture providing durability across both the PVC and polyolefin material transitions within the production programme.
• Compact 450 mm, 5.8 kg Body for Fabrication Access: The 450 mm length and 5.8 kg operating weight enable the WELDPLAST S2 PVC to be used in the confined vessel internals, equipment installation positions, and corner access situations that PVC chemical plant fabrication and industrial piping construction regularly present – where the combination of body dimensions and manageable weight determine whether the extruder can be positioned and guided accurately at the joint face without the body obstructing access to the weld zone.

PVC-U Extrusion Welding Applications for the WELDPLAST S2 PVC in Oman and the GCC

• Chemical Process Plant PVC-U Tank and Vessel Fabrication: Welds structural joints on PVC-U chemical tanks, process vessels, acid baths, and chemical containment enclosures where the corrosion protection of the WELDPLAST S2 PVC’s internal components sustains reliable performance across the sustained PVC chloride vapour exposure that chemical plant fabrication generates – and where the dedicated PVC menu ensures correct parameter application for every PVC-U weld joint in the fabrication programme.
• Water Treatment and Infrastructure PVC-U Piping and Vessel Fabrication: Produces structural extrusion weld joints on PVC-U piping systems, distribution manifolds, and water treatment plant components across Oman and the GCC water infrastructure sector – where PVC-U is specified for its chemical resistance and pressure performance, and where the WELDPLAST S2 PVC’s process-specific architecture delivers the consistent weld quality that pressurised water service demands from extrusion-welded joints.
• Industrial Drainage and Effluent Treatment PVC-U Fabrication: Welds PVC-U drainage channels, effluent treatment vessels, and industrial waste water infrastructure components where chemical resistance to the effluent chemistry is the primary material selection driver and where extrusion weld joint quality determines the leak-free service performance of the installed system across industrial facilities in Oman and the GCC.
• Multi-Material Fabrication Transitioning Between PVC-U and Polyolefin Materials: The WELDPLAST S2 PVC’s compatibility with HDPE, LDPE, LLDPE, and PP alongside its primary PVC-U capability enables fabrication operations that work across both chlorinated and polyolefin thermoplastic families to deploy a single extruder for both material types – with the corrosion protection ensuring that polyolefin use does not diminish the machine’s PVC-U performance over the service life of the instrument.
• PVDF and Corrosion-Generating Material Processing: The sealed electronics and corrosion-resistant metal component architecture that the WELDPLAST S2 PVC incorporates for PVC-U processing also qualify it for PVDF extrusion welding – where the fluoropolymer processing environment produces similar corrosion risk to standard extruder internal components, and where the dedicated protection architecture of the WELDPLAST S2 PVC provides the component longevity that professional PVDF fabrication for chemical and semiconductor applications requires.

Leister WELDPLAST S2 PVC – Available Through iBuild, Authorised Leister Distributor in Oman

iBuild is an authorised Leister distributor in the Sultanate of Oman, providing PVC fabricators, chemical plant construction contractors, water treatment infrastructure specialists, and industrial piping engineers with direct access to the WELDPLAST S2 PVC alongside compatible PVC-U welding rod, welding shoes for different PVC-U joint geometries, and technical guidance on dedicated PVC HMI menu configuration, temperature parameter setup for PVC-U grades, and corrosion protection maintenance practices. As a manufacturer-authorised technical partner, iBuild supports material-specific parameter optimisation for PVC-U and PVDF processing, rod specification selection, and lifecycle support to sustain WELDPLAST S2 PVC performance across intensive PVC fabrication programmes.

For PVC fabricators, chemical plant contractors, water infrastructure construction teams, and industrial facility engineering specialists across Oman and the GCC requiring a 3000 W hand extrusion welder specifically designed and corrosion-protected for PVC-U and PVDF processing – with dedicated PVC welding HMI menu, separate air circuit for large temperature differential, sealed electronics, and refined metal component protection – iBuild is the authorised local source for the Leister WELDPLAST S2 PVC – backed by manufacturer authority and in-country technical support.
